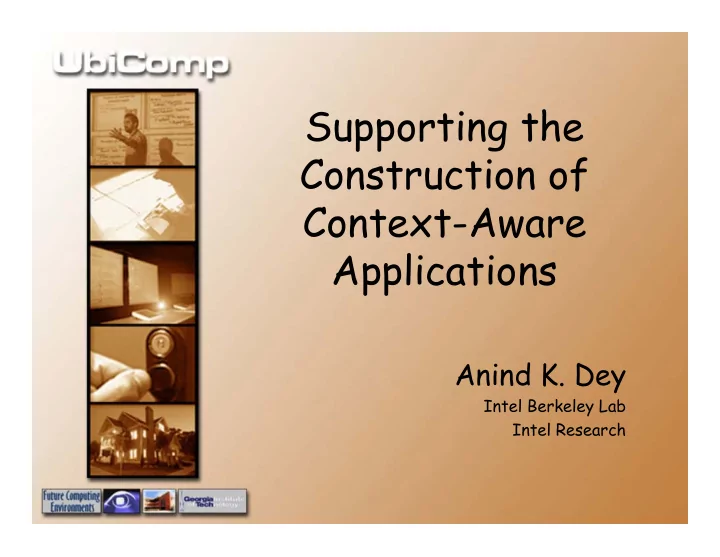

Supporting the Construction of Context-Aware Applications

Anind K. Dey

Intel Berkeley Lab Intel Research

slide-2
SLIDE 2

9/17/2001 3

How UbiComp is Different from Traditional GUI

  • Not only direct interaction for input

and output

  • Need to use RANGE of explicit AND

implicit interaction

  • Different computing paradigm
slide-3
SLIDE 3

9/17/2001 4

Context and Context-Awareness

  • Focused on input
  • Context: any information relevant to an

interaction that can be used to characterize the situation of an entity

  • Context-awareness
  • General model of interactive computing
  • Addresses subset of ubicomp problems: input
slide-4
SLIDE 4

9/17/2001 5

Value of Context

  • Potential for improved usability
  • Very important for mobile users with

poor input devices

  • “Smarter” applications
  • Increased communications bandwidth
slide-5
SLIDE 5

9/17/2001 6

Design Space for Context- Aware Applications

  • Toolkit allows exploration of design space
  • Basic types of context:
  • Location, identity, time, activity
  • Simple/singular complex/multiple
  • Combinations
  • Uses of context:
  • Present to user
  • Automatically perform set of services
  • Tag captured information to ease retrieval
slide-6
SLIDE 6

9/17/2001 7

Example

  • Tour guides, travel assistants,

personalization software

  • Reminder to buy milk
  • When to deliver: not time/location

specific

  • How to deliver: appropriate modality
slide-7
SLIDE 7

9/17/2001 8

Outline

  • Motivation
  • Problems dealing with context
  • Contribution: Context Toolkit
  • Validation:
  • Design space and applications
  • Building more realistic applications
  • Conclusions and future work
slide-8
SLIDE 8

9/17/2001 9

Building Applications

  • M. Weiser: The whole point of

ubiquitous computing, of course, is the applications.

slide-9
SLIDE 9

9/17/2001 9

Building Applications

  • M. Weiser: The whole point of

ubiquitous computing, of course, is the applications.

  • But … what if the applications are

hard to build? And, what if this inhibits our ability to build compelling applications?

slide-10
SLIDE 10

9/17/2001 10

Issues in Context-Awareness

  • What is context?
  • Representation of context
  • Application domains
  • Which behaviors to support
  • When to execute behaviors
  • Privacy, Quality of Service, …
  • Evaluation of applications
  • make it easier to build explore
slide-11
SLIDE 11

9/17/2001 11

Why Context is Hard to Use

  • Acquired from sensors
  • Not just keyboards and mice – lots of

heterogeneous devices

  • Need to abstract data
  • Distributed
  • Dynamic
slide-12
SLIDE 12

9/17/2001 12

Results of Difficulties

  • Ad hoc application building
  • Difficult to build, reuse and evolve
  • Small variety of sensors
  • Small variety of context: mostly location
  • Few applications, mostly simple: mostly

presenting context

  • Practical: difficult to prototype, test and

evaluate

slide-13
SLIDE 13

9/17/2001 13

Why Applications are Hard to Build: A Case Study

  • Cyberguide case study: no separation
  • f concerns
slide-14
SLIDE 14

9/17/2001 14

Outline

  • Motivation
  • Problems dealing with context
  • Contribution: Context Toolkit
  • Validation:
  • Design space and applications
  • Building more realistic applications
  • Conclusions and future work
slide-15
SLIDE 15

9/17/2001 15

Need Programming Support

  • Goal: make application development easier
  • Identified number of requirements for

architectural support and design process

  • Examined existing support and determined

how developers might think about building context-aware applications

  • Developed Context Toolkit: architecture

with supporting library of components

slide-16
SLIDE 16

9/17/2001 16

Related Work

  • Existing Context-Aware Systems
  • Schilit (Columbia, 1995)
  • Stick-e notes (Pascoe, Kent, 1996)
  • CyberDesk (Dey, Georgia Tech, 1997)
  • CALAIS (Ward, Cambridge, 1998)
  • MUSE (Castro, UCLA, 2000)
  • Context-Awareness SDK (Tangis Corp., 2000)
  • Proposed/Related Systems
  • Situated Computing Service (HP, 1997)
  • Contextual Information Service (Pascoe,Kent, 1998)
  • HIVE (Minar, MIT, 1998)
  • OAA (Cohen, OGI, 1996)
slide-17
SLIDE 17

9/17/2001 17

Research Contributions

  • Conceptual framework requirements
  • Provide framework for designing apps more

easily

  • Lower threshold to enable more designers
  • Context Toolkit
  • Implementation and exploration of design space
  • Support investigation of complex problems

and more realistic apps

  • Raise ceiling
  • Privacy, uncertainty, security, end-user

programming

slide-18
SLIDE 18

9/17/2001 18

Toolkit Requirements

  • Context specification
  • Discovery
  • Storage
  • Separation of concerns
  • Interpretation
  • Transparent communications
  • Constant availability
slide-19
SLIDE 19

9/17/2001 19

Design Process

  • 1. Specification
  • 2. Acquisition
  • 3. Delivery
  • 4. Reception
  • 5. Action
slide-20
SLIDE 20

9/17/2001 19

Design Process

  • 1. Specification
  • 2. Acquisition
  • 3. Delivery
  • 4. Reception
  • 5. Action

1.

Specification

2.

Acquisition

3.

Action

slide-21
SLIDE 21

9/17/2001 20

Time for a Big Insight!

  • Have a design process – complex and

simplified

  • Have a set of architecture

requirements

  • Need to figure out how to support

these

slide-22
SLIDE 22

9/17/2001 21

Look to input handling

  • Graphical User Interface (GUI)

widgets

  • separation of concerns
  • callbacks and attributes
  • query/subscribe
  • common interface
  • e.g. button
slide-23
SLIDE 23

9/17/2001 22

Context Widgets

  • Responsible for acquiring and

abstracting data from particular sensor, separation of concerns, storage

Widget Sensor Widget Application Application Sensor Context Architecture

slide-24
SLIDE 24

9/17/2001 22

Context Widgets

  • Responsible for acquiring and

abstracting data from particular sensor, separation of concerns, storage

Widget Sensor Widget Application Application Sensor Context Architecture Face Recognition Location Widget Location Widget In/Out Board Smart Card Reader

slide-25
SLIDE 25

9/17/2001 23

Context Interpreters

  • Convert or interpret context to

higher level information

  • Context not available at appropriate

level

Face Recognition Location Widget Location Widget In/Out Board Smart Card Reader

slide-26
SLIDE 26

9/17/2001 23

Context Interpreters

  • Convert or interpret context to

higher level information

  • Context not available at appropriate

level

Face Recognition Location Widget Location Widget In/Out Board Smart Card Reader ID to Name Interpreter

slide-27
SLIDE 27

9/17/2001 23

Context Interpreters

  • Convert or interpret context to

higher level information

  • Context not available at appropriate

level

Face Recognition Location Widget Location Widget In/Out Board Smart Card Reader ID to Name Interpreter

slide-28
SLIDE 28

9/17/2001 24

Context Aggregators

  • Collect context relevant to particular

entities (recall definition)

  • Further separation, simplifies design

Face Recognition Location Widget Location Widget In/Out Board Smart Card Reader ID to Name Interpreter

slide-29
SLIDE 29

9/17/2001 24

Context Aggregators

  • Collect context relevant to particular

entities (recall definition)

  • Further separation, simplifies design

Face Recognition Location Widget Location Widget In/Out Board Smart Card Reader ID to Name Interpreter Building Aggregator

slide-30
SLIDE 30

9/17/2001 25

Context Toolkit Framework

  • Supports real-world model/methodology and provides library

(distributed: XML/HTTP, input-focused)

  • Component model: facilitates building of applications

Widget Sensor Widget Application Application Interpreter Interpreter Aggregator Sensor Context Architecture

slide-31
SLIDE 31

9/17/2001 25

Context Toolkit Framework

  • Supports real-world model/methodology and provides library

(distributed: XML/HTTP, input-focused)

  • Component model: facilitates building of applications

Widget Sensor Widget Application Application Interpreter Interpreter Aggregator Sensor Context Architecture Service Actuator

slide-32
SLIDE 32

9/17/2001 25

Context Toolkit Framework

  • Supports real-world model/methodology and provides library

(distributed: XML/HTTP, input-focused)

  • Component model: facilitates building of applications

Widget Sensor Widget Application Application Interpreter Interpreter Aggregator Sensor Context Architecture Service Actuator Discoverer

slide-33
SLIDE 33

9/17/2001 26

Experiences: Benefits

  • Provides separation of concerns
  • Lightweight integration and re-use of

components

  • Easy to create and evolve apps, allowing

exploration of the design space

  • Add context to context-less apps
  • Add more context to context-aware apps
slide-34
SLIDE 34

9/17/2001 27

Outline

  • Motivation
  • Problems dealing with context
  • Contribution: Context Toolkit
  • Validation:
  • Design space and applications
  • Building more realistic applications
  • Conclusions and future work
slide-35
SLIDE 35

9/17/2001 28

Validation

  • Used to build existing applications
  • Used to explore the design space
  • Used to build more complex and

realistic applications

slide-36
SLIDE 36

9/17/2001 29

Additional Validation

  • Facilitating larger community outside of Georgia Tech, including:
  • British Telecom Labs
  • MIT
  • Trinity College
  • PLAY Research Group
  • Stuttgart
  • SICS, Sweden
  • ETH
  • Philips
  • Telenor
  • Nokia
  • Arch:
  • CMU (mobile agents)
  • Motorola (arch/mobile user apps)
  • Autonama de Madrid (arch/smart spaces

apps)

  • Apps
  • Keele (desktop apps)
  • Novator (apps for mobile workers)
  • Technical University Munich/CMU

(informal meeting support)

slide-37
SLIDE 37

9/17/2001 30

Aware Home (MANSE ’99)

  • Great testbed for context-aware

computing

  • 3 goals: elderly, infants, everyone
  • Context Toolkit is the s/w

infrastructure in the Aware Home

slide-38
SLIDE 38

9/17/2001 30

Aware Home (MANSE ’99)

  • Great testbed for context-aware

computing

  • 3 goals: elderly, infants, everyone
  • Context Toolkit is the s/w

infrastructure in the Aware Home

slide-39
SLIDE 39

9/17/2001 31

Design Space for Context- Aware Applications

  • Toolkit allows exploration of design space
  • Types of context:
  • Location, identity, time, activity
  • Simple/singular complex/multiple
  • Combinations
  • Uses of context:
  • Present to user
  • Automatically perform set of services
  • Tag captured information to ease retrieval
slide-40
SLIDE 40

9/17/2001 32

Applications Built

  • Simple use of location:
  • Turn lights on and off (perform service)
  • Location and id (perform service)
  • Information Guide: present info about

user’s group (CHI ’99)

  • Context-Aware Mailing List
slide-41
SLIDE 41

9/17/2001 33

In/Out Board – 3 versions

(CHI ’99)

  • Context used: location, identity, time
  • How used: present context
slide-42
SLIDE 42

9/17/2001 34

In/Out Board Architecture

Location Widget In/Out Board iButton Dock ID to Name Interpreter Web-based In/Out Board Context-Aware Mailing List

  • Simple apps demonstrates support for reusability

(don’t have to re-build infrastructure on per- application basis) and evolving applications

slide-43
SLIDE 43

9/17/2001 34

In/Out Board Architecture

Location Widget In/Out Board iButton Dock ID to Name Interpreter Web-based In/Out Board Context-Aware Mailing List

  • Simple apps demonstrates support for reusability

(don’t have to re-build infrastructure on per- application basis) and evolving applications

PinPoint 3D-iD

slide-44
SLIDE 44

9/17/2001 35

  • Context used: location, id, time, activity
  • How used: present, perform service, tag
  • Work done by others in research group

Serendipitous Meetings

slide-45
SLIDE 45

9/17/2001 35

  • Context used: location, id, time, activity
  • How used: present, perform service, tag
  • Work done by others in research group

Serendipitous Meetings

Playback controls Filters Ink written before current time is in

  • riginal color

Ink written after current time is in

  • riginal color

Current time within session Selected session Selected day Day containing whiteboard activity

slide-46
SLIDE 46

9/17/2001 36

Meeting Architecture

Context Architecture For each possible location

  • f the

mobile board Location Widget DUMMBO Location Widget ID to Name Interpreter iButton Dock iButton Dock

  • Demonstrates support for evolution
  • Use by others
slide-47
SLIDE 47

9/17/2001 37

Conference Assistant (ISWC ’99)

  • Context used: location, multiple levels of identity,

activity, time

  • How used: present, service, tag
slide-48
SLIDE 48

9/17/2001 37

Conference Assistant (ISWC ’99)

  • Context used: location, multiple levels of identity,

activity, time

  • How used: present, service, tag

Slide User Notes Interest Control Audio/Video Indicator

slide-49
SLIDE 49

9/17/2001 37

Conference Assistant (ISWC ’99)

  • Context used: location, multiple levels of identity,

activity, time

  • How used: present, service, tag

Slide User Notes Interest Control Audio/Video Indicator

slide-50
SLIDE 50

9/17/2001 37

Conference Assistant (ISWC ’99)

  • Context used: location, multiple levels of identity,

activity, time

  • How used: present, service, tag

Slide User Notes Interest Control Audio/Video Indicator Slide text User notes Retrieved slide Query Interface Schedule context widgets

Identity, Location, Activity

  • f People, Places, Things

Joe Smith context

slide-51
SLIDE 51

9/17/2001 38

Conference Assistant Arch.

  • Complex application: reuse, evolution
slide-52
SLIDE 52

9/17/2001 39

Outline

  • Motivation
  • Problems dealing with context
  • Contribution: Context Toolkit
  • Validation:
  • Design space and applications
  • Building more realistic applications
  • Conclusions and future work
slide-53
SLIDE 53

9/17/2001 40

Complex and Realistic Applications

  • Privacy: Dynamic Door Displays
  • Ambiguity: In/Out Board extension
  • Security: Service/Context Access

(SACMAT 2001)

  • End-user programming: CybreMinder

(HUC 2000)

slide-54
SLIDE 54

9/17/2001 41

Component Abstraction

X X Situation realization P X Context specification P X Evolution P X Sensor failure P X Sensor addition V X Multiple Apps V X Storage V X Query/subscribe V X Distributed communications P X Context acquisition Component None Abstractions Features Level of Support X – none P – partial V – complete

slide-55
SLIDE 55

9/17/2001 41

Component Abstraction

X X Situation realization P X Context specification P X Evolution P X Sensor failure P X Sensor addition V X Multiple Apps V X Storage V X Query/subscribe V X Distributed communications P X Context acquisition Component None Abstractions Features Level of Support X – none P – partial V – complete X P P P P V V V V P Component

slide-56
SLIDE 56

9/17/2001 42

Situation Abstraction: Declarative Style

  • Revisit context definition
  • Allow programmer to define a situation (real-

world callbacks)

  • Declare what context you want, not how to
  • btain it
  • Architecture’s responsibility to deliver it
  • Makes specification in design process

simpler, more robust, easier to evolve

slide-57
SLIDE 57

9/17/2001 43

Revised Framework

Widget Sensor Widget Application Application Interpreter Interpreter Aggregator Sensor Context Architecture Discoverer

  • Supports blackboard/box model of the world
  • Different than component model

Actuator Service

slide-58
SLIDE 58

9/17/2001 44

Situation Abstraction

X X Situation realization P X Context specification P X Evolution P X Sensor failure P X Sensor addition V X Multiple Apps V X Storage V X Query/subscribe V X Distributed communications P X Context acquisition Component None Abstractions Features

slide-59
SLIDE 59

9/17/2001 44

Situation Abstraction

X X Situation realization P X Context specification P X Evolution P X Sensor failure P X Sensor addition V X Multiple Apps V X Storage V X Query/subscribe V X Distributed communications P X Context acquisition Component None Abstractions Features V V V V V V V V V P Situation

slide-60
SLIDE 60

9/17/2001 45

CybreMinder (HUC ’00)

slide-61
SLIDE 61

9/17/2001 45

CybreMinder (HUC ’00)

slide-62
SLIDE 62

9/17/2001 45

CybreMinder (HUC ’00)

slide-63
SLIDE 63

9/17/2001 46

CybreMinder (HUC ’00)

slide-64
SLIDE 64

9/17/2001 46

CybreMinder (HUC ’00)

slide-65
SLIDE 65

9/17/2001 46

CybreMinder (HUC ’00)

slide-66
SLIDE 66

9/17/2001 46

CybreMinder (HUC ’00)

slide-67
SLIDE 67

9/17/2001 47

CybreMinder (HUC ’00)

slide-68
SLIDE 68

9/17/2001 47

CybreMinder (HUC ’00)

slide-69
SLIDE 69

9/17/2001 47

CybreMinder (HUC ’00)

slide-70
SLIDE 70

9/17/2001 47

CybreMinder (HUC ’00)

slide-71
SLIDE 71

9/17/2001 48

Outline

  • Motivation
  • Problems dealing with context
  • Contribution: Context Toolkit
  • Validation:
  • Design space and applications
  • Building more realistic applications
  • Conclusions and future work
slide-72
SLIDE 72

9/17/2001 49

Research Contributions

  • Conceptual framework requirements
  • Provide framework for designing apps more

easily

  • Lower threshold to enable more designers
  • Context Toolkit
  • Implementation and exploration of design space
  • Support investigation of complex problems

and more realistic apps

  • Raise ceiling
  • Privacy, uncertainty, security, end-user

programming

slide-73
SLIDE 73

9/17/2001 50

What’s Next?

  • Complex interpretation, sensor fusion, dealing with

ambiguity how to infer what a user really wants

  • Ontology, QoS, privacy, security
  • Data models
  • Development environment
  • Evaluation of context-awareness
  • What to do, and when and why
  • Overload/how interruptible is the user
  • End-user control of what happens
  • Broaden scope of framework to be a general model
  • f interactive and ubiquitous computing: look at

implicit output

slide-74
SLIDE 74

9/17/2001 51

Acknowledgements

  • Gregory D. Abowd & FCE
  • Motorola & NSF
  • Contact info:
  • anind@cc.gatech.edu
  • http://www.cc.gatech.edu/~anind
  • http://www.cc.gatech.edu/fce/ctk
  • Questions?
slide-75
SLIDE 75

9/17/2001 52

Intercom System

  • Facilitate communications between family

members:

  • In the same house
  • Between houses
  • While mobile
  • Uses 4 types of context in combination

(primarily present, service, but potential for tagging when learning)

  • Leverage social mediation skills
slide-76
SLIDE 76

9/17/2001 53

Design Process

  • 1. Specification – context and behaviors
  • 2. Acquisition – install, API, query/notify,

store, interpret

  • 3. Delivery – deliver context to multiple, remote

applications

  • 4. Reception – locate relevant sensors, request

context, interpret

  • 5. Action – analysis and action
slide-77
SLIDE 77

9/17/2001 54

How to simplify?

  • Brooks 87: “No Silver Bullet: Essence and

Accidents of Software Engineering”

  • essential problems
  • inherent problems
  • specific to the task at hand
  • accidental problems
  • problems induced by design tools
  • not specific to the task
slide-78
SLIDE 78

9/17/2001 55

Callback Model

  • Transparent communications, always available
  • Similar to GUI architectures

Application Base Object handle () Location Widget Base Object Sensor

slide-79
SLIDE 79

9/17/2001 55

Callback Model

  • Transparent communications, always available
  • Similar to GUI architectures

Application Base Object handle () Location Widget Base Object Sensor (a) subscribe: David in Room 343

slide-80
SLIDE 80

9/17/2001 55

Callback Model

  • Transparent communications, always available
  • Similar to GUI architectures

Application Base Object handle () Location Widget Base Object Sensor (a) subscribe: David in Room 343

slide-81
SLIDE 81

9/17/2001 55

Callback Model

  • Transparent communications, always available
  • Similar to GUI architectures

Application Base Object handle () Location Widget Base Object Sensor (a) subscribe: David in Room 343

slide-82
SLIDE 82

9/17/2001 55

Callback Model

  • Transparent communications, always available
  • Similar to GUI architectures

Application Base Object handle () Location Widget Base Object Sensor (a) subscribe: David in Room 343 (b) sensor data arrives Sensor

slide-83
SLIDE 83

9/17/2001 55

Callback Model

  • Transparent communications, always available
  • Similar to GUI architectures

Application Base Object handle () Location Widget Base Object Sensor (a) subscribe: David in Room 343 (b) sensor data arrives Sensor

slide-84
SLIDE 84

9/17/2001 55

Callback Model

  • Transparent communications, always available
  • Similar to GUI architectures

Application Base Object handle () Location Widget Base Object Sensor (a) subscribe: David in Room 343 (b) sensor data arrives Sensor (c) callback if data matches: David in 343

slide-85
SLIDE 85

9/17/2001 55

Callback Model

  • Transparent communications, always available
  • Similar to GUI architectures

Application Base Object handle () Location Widget Base Object Sensor (a) subscribe: David in Room 343 (b) sensor data arrives Sensor (c) callback if data matches: David in 343 (d) callback delivered to a handler

slide-86
SLIDE 86

9/17/2001 56

Access Control

  • Dynamic Door Displays
slide-87
SLIDE 87

9/17/2001 56

Access Control

  • Dynamic Door Displays
slide-88
SLIDE 88

9/17/2001 57

Ambiguous Context

speakers microphone motion detector keyboard display dock

slide-89
SLIDE 89

9/17/2001 58

Experiences: Limitations

  • Continuously changing context
  • Dealing with unreliable context and
  • ther quality of service issues
  • Component failure
  • Privacy
slide-90
SLIDE 90

9/17/2001 59

Important Distinction

slide-91
SLIDE 91

9/17/2001 59

Important Distinction

  • Behavior that “looks easy” but is not.
  • Star Trek’s doors
  • Real-time classroom control
  • Incremental speech recognition

improvement

slide-92
SLIDE 92

9/17/2001 59

Important Distinction

  • Behavior that “looks easy” but is not.
  • Star Trek’s doors
  • Real-time classroom control
  • Incremental speech recognition

improvement

  • Behavior that “looks hard” but is not.
  • Mobile tour guide (GPS, IR beacons)
  • Temporal synching
slide-93
SLIDE 93

9/17/2001 60

Distribution of Sensing

  • Heterogeneity of platforms and

languages

  • No guarantees on what sensors require
  • No guarantees on what what’s available
  • No guarantees on what developers

prefer

slide-94
SLIDE 94

9/17/2001 61

Abstraction: Interpretation

  • Provide meaning to sensed data
  • Simple converters
  • Complex inferences
slide-95
SLIDE 95

9/17/2001 62

Abstraction: Aggregation

  • Eases interpretation
  • Maps to notion of an entity
  • Efficiency mechanism
slide-96
SLIDE 96

9/17/2001 63

Component Persistence

  • Not like GUI widgets
  • Execute autonomously
  • Always running
slide-97
SLIDE 97

9/17/2001 64

Context History

  • Not like GUI widgets
  • Don’t want to leave to apps
  • Components always running
  • Store data for future apps
slide-98
SLIDE 98

9/17/2001 65

Situations: Declarative Style

  • Say what you want, not how you want it

done – framework figures it out

  • Allow programmer to define a situation

(complex real-world callbacks)

  • Specification in design process simpler
  • More robust w.r.t. component failures and

easier to evolve
