SLIDE 1

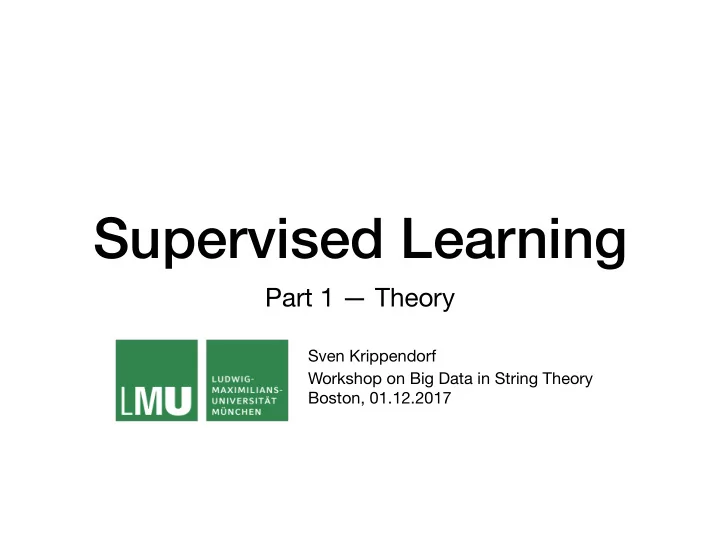

Supervised Learning

Part 1 — Theory

Sven Krippendorf  Workshop on Big Data in String Theory Boston, 01.12.2017

SLIDE 2

Content

Theory
Applications: Mathematica
Discussion

SLIDE 3

Def: Supervised Learning

Supervised learning is the machine learning task of inferring a function from labelled training data. Workflow:

1. Determine training examples
2. Prepare training set
3. How to represent the input object
4. How to represent the output object
5. Determine your algorithm
6. Run algorithm, adjust/determine parameters
7. Evaluate accuracy

SLIDE 4

Learning algorithms

Support Vector Machines
Naive Bayes
Linear discriminant analysis
Decision trees
k-nearest neighbour algorithm
Neural networks

SLIDE 5

Known issues

Bias-variance tradeoff
Function complexity and amount of training data
Dimensionality of input space
Noise in output values
Heterogeneous data

SLIDE 6

Examples

Geometric classification
Handwritten number recognition - the harmonic oscillator
f ML
Voice recognition (spectral features)

SLIDE 7

A 1st problem

10
5

5 10 x

10
5

5 10 y

Classify data into two classes: Class 1: above line Class 2: below line Input: data points

SLIDE 8

SVM

10
5

5 10 x

10
5

5 10 y

Which line?

SLIDE 9

SVM

SVM (support vector machine) identify the lines maximally

separating the data sets:                   

Useful to be stable against “perturbations”
10
5

5 10 x

10
5

5 10 y

w.xi − b ≥ 1

2 |w|

w.xi − b ≤ −1

SLIDE 10

SVM

How are these lines determined? Minimisation with

constraints, dual problem using Lagrange-multipliers. This problem then can be dealt with using quadratic programming algorithms.

These are readily implemented in standard environments

(Mathematica, Matlab, Python, etc.)

In higher dimensions: plane, hyperplane

SLIDE 11

SVM: hard layer vs soft layer

Penalty for outliers, might be a better fit to data

10
5

5 10 x

10
5

5 10 y

SLIDE 12

2nd problem

10
5

5 10 x

10
5

5 10 y

10
5

5 10 x

10
5

5 10 y

SLIDE 13

SVM: Kernel trick

Different representation of data via kernel map:

{x, y} → {x2, y2} {x, y} → {x2, y}

20 40 60 80 100 20 40 60 80 100 20 40 60 80

1

1 2 3 4 5 6

10
5

5 10 x

10
5

5 10 y

10
5

5 10 x

10
5

5 10 y

SLIDE 14

Linear discriminant analysis

Use information about mean/variance of data set to

distinguish classes.   

Set threshold to identify class:
100
50

50 100 T 100 200 300 400 500 #

6
4
2

2 4 6

6
4
2

2 4 6

(x − µ0)Σ−1

0 (x − µ0) + log |Σ0| − (x − µ1)Σ−1 1 (x − µ1) − log |Σ1| < threshold

SLIDE 15

k-nearest neighbour

Classify data according to data point and nearest

neighbours.

k

more noise less noise boundaries clear boundaries less clear

10
5

5 10

5

5 10

6
4
2

2 4 6

4
2

2 4 6 8 10

6
4
2

2 4 6

2

2 4 6 8

SLIDE 16

Neural Network

d (data), w (weight), b (bias). Linear layer: wij dj + b
Softmax Layer:
Loss function, capturing how far the desired output is

from true output.

… input layer hidden layer

utput layer

d, w, b d, w, b

softmax(di) = edi P

j edj

SLIDE 17

Hand-written number recognition

Handwritten number recognition:
Input 28x28 matrix with entries {0,1}
Simple network, taking every entry as an input and using
ne layer (w.x+b), a success rate of 89% is achieved.
More sophisticated networks achieve incredible accuracy.

1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 0 0 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 0 0 0 0 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 0 0 0 0 0 0 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 0 0 0 0 0 0 1 1 0 0 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 1 1 0 0 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 1 1 0 0 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 0 0 0 0 1 1 0 0 1 1 1 0 0 1 1 1 1 1 1 1 1 1 1 1 1 1 1 0 0 0 0 1 1 1 0 1 1 1 1 0 0 1 1 1 1 1 1 1 1 1 1 1 1 1 0 0 0 1 1 1 1 1 1 1 1 1 1 0 0 1 1 1 1 1 1 1 1 1 1 1 1 1 0 0 1 1 1 1 1 1 1 1 1 1 1 0 0 1 1 1 1 1 1 1 1 1 1 1 1 0 0 0 1 1 1 1 1 1 1 1 1 1 1 0 0 1 1 1 1 1 1 1 1 1 1 1 0 0 0 0 1 1 1 1 1 1 1 1 1 1 1 0 0 1 1 1 1 1 1 1 1 1 1 1 0 0 0 1 1 1 1 1 1 1 1 1 1 1 0 0 0 1 1 1 1 1 1 1 1 1 1 1 0 0 0 1 1 1 1 1 1 1 1 1 1 0 0 0 1 1 1 1 1 1 1 1 1 1 1 1 0 0 0 0 1 1 1 1 1 1 1 0 0 0 0 1 1 1 1 1 1 1 1 1 1 1 1 1 1 0 0 0 0 0 1 1 0 0 0 0 0 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 0 0 0 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1

SLIDE 18

Voice recognition

A voice signal

Representing it via wavelet transform (spectrogram)

1 2 3 4 5 6 7

0.5

0.5

100000 200000 300000 0.1 0.2 0.3 0.4 0.5

SLIDE 19

String theory example: Dimers

6 1 2 3

WdP1 = X23Y31Z12 − X12Y31Z23 + X36Y62Z23 − X23Y62Z36 −X36Y23Z12Φ61 + X12Y23Z36Φ61

1 2 1 3 2 3 1 3 1 2 1 2 1

bounds on number of families (1002.1790):

SLIDE 20

end of part 1

SLIDE 21

Supervised Learning

Part 2 — Applications

Sven Krippendorf  Workshop on Big Data in String Theory Boston, 01.12.2017

SLIDE 22

Disclaimer

There are many tools you can use…
I just talk about one at a very basic level: Mathematica

… simply because it’s quick for me and I assume people are familiar with it.

SLIDE 23

Mathematica

SLIDE 24

Mathematica

You need version 11.1.1 or later…

SLIDE 25

Example 1: basic SVN

Let’s switch to notebook01.nb

SLIDE 26

Example 2: kernel trick

let’s look at notebook02.nb

SLIDE 27

Example 3: kernel trick

let’s look at notebook03.nb

SLIDE 28

Thank you.

Let’s discuss about applications…

SLIDE 29

Supervised Learning

Part 3 — Discussion

Sven Krippendorf  Workshop on Big Data in String Theory Boston, 01.12.2017
