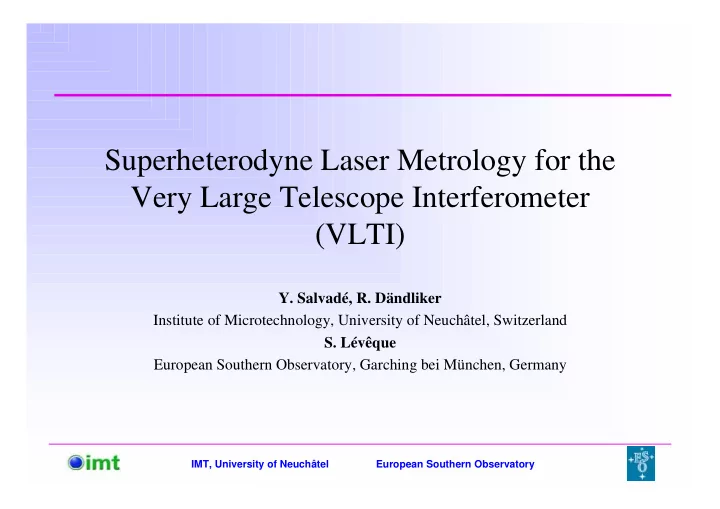

Superheterodyne Laser Metrology for the Very Large Telescope Interferometer (VLTI) Y. Salvad, R. Dndliker Institute of Microtechnology, University of Neuchtel, Switzerland S. Lvque European Southern Observatory, Garching bei

slide-1
SLIDE 1

IMT, University of Neuchâtel European Southern Observatory

Superheterodyne Laser Metrology for the Very Large Telescope Interferometer (VLTI)

  • Y. Salvadé, R. Dändliker

Institute of Microtechnology, University of Neuchâtel, Switzerland

  • S. Lévêque

European Southern Observatory, Garching bei München, Germany

slide-2
SLIDE 2

IMT, University of Neuchâtel European Southern Observatory

Table of contents

➢ Short description of VLTI-PRIMA ➢ Metrology requirements ➢ Superheterodyne metrology ➢ Phase-meter prototype ➢ Test of accuracy ➢ Foreseen tests at the VLT observatory ➢ Conclusions

slide-3
SLIDE 3

IMT, University of Neuchâtel European Southern Observatory

Very Large Telescope Interferometer (VLTI)

➢ Four 8-m Unit Telescopes (UT) ➢ Three moveable 1.8-m Auxiliary Telescopes (AT)

slide-4
SLIDE 4

IMT, University of Neuchâtel European Southern Observatory

Phase-referenced imaging and µas astrometry (PRIMA)

➢ Goals

❏ Observation and imaging of faint

  • bjects

❏ Micro-arcsecond astrometry

➢ Principle

❏ Bright star as reference star

(fringe tracking)

❏ Laser metrology for controlling

internal optical path lengths

❏ Angular separation of the two

  • bjects:
  • OPDR – OPDS = ∆S B + ∆L

Science star S, θS

  • Ref. star R, θR

R S Telescope T1 T2 Star Sep. SS1 SS2 Delay Line DL1 DL2 DDL2

  • Diff. Delay Line

DDL1 Reference Beam Combiner (PRIMA) Science Beam Combiner (AMBER, MIDI, PRIMA camera) OPLR1 OPLR2 OPLS1 OPLS2 Baseline B

slide-5
SLIDE 5

IMT, University of Neuchâtel European Southern Observatory

PRIMA metrology - requirements

Range a nda c cura c y

Ma x . pro p a g at i o n p a t h (re t u rn wa y ) 550m In d i v id u a l O PDL1, L

2(return wa y

) 240m Differen t i a l OPD, ∆L (1 arcm i n ) 60m m Ac c u rac y o n ∆L (µ a s a c c u rac y ) < 5 n m R e so l u ti o n o n ∆L < 1 n m Expected dynamic pha s e variations (λ λ λ λ = 1 µ m )

  • n indi v

idua lOPD T y pi c a l v a lue Trac k i n g

  • f DL & STS (∂L ∂t = 11 m m

/s) 22 k H z Variab l e c u rv a ture mirror a b o u t 4 k H z

  • n differ e

nti a l OPD Trac k i n g

  • f DDL & STS (∂∆L ∂t

20 H z Sl e wi n g

  • f DDL & STS (∂∆L ∂t

30 k H z

slide-6
SLIDE 6

IMT, University of Neuchâtel European Southern Observatory

PRIMA metrology - additional requirements

➢ Laser source

❏ Coherence length: > 500 m ❏ Frequency stability: < 10-8 (same laser is used for both interferometers) ❏ Wavelength between 1.1 µm (bandgap of Si) and 1.45 µm (H band), to avoid

straylight on existing stellar detectors

➠ Frequency stabilized Nd:YAG laser @ 1.319 µm (to be developed)

➢ Phase detection technique

❏ High-resolution technique (2π/660 phase resolution) ❏ Suppression of crosstalks between reference and science channels

(Calibration mode: Star separator inject the same star in both channels)

➟ Two heterodyne interferometers:

➤Different heterodyne frequencies f1 and f2 ➤Frequency offset ∆ν between the two interferometers

slide-7
SLIDE 7

IMT, University of Neuchâtel European Southern Observatory

Heterodyne interferometers

DL DDL I 2 Telescope 1 Telescope 2

Frequency shifter module

Secondary FSU

I 1

Reference object Science object PRIMARY FSU

Nd:YAG, 1.3 µm ν ν+f1 ν+∆ν+f2 ν+∆ν

Retroreflectors on secondary mirrror

Frequency shifter module

LASER

φ1 = 4π c ν L1 φ2 = 4π c (ν+ ∆ν)L2

❏ Interference signals: I1(t) = cos(2πf1t + φ1)

I2(t) = cos(2πf2t + φ2)

slide-8
SLIDE 8

IMT, University of Neuchâtel European Southern Observatory

Superheterodyne detection

➢ Electronic mixing + low-pass filtering ➢ Advantages

❏ Direct access to ∆L ❏ Slower phase variations

→ enable longer integration times

❏ Phase noise less important

φ1 – φ2 f1 f2 f1 f2 f1–f2

photodetectors

f1–f2

Imes(t) = I12 cos 2π(f1 − f2)t + φ1 − φ2

[ ]

φ1 − φ2 = 4π ν c ∆L − 4π ∆ν c L2 ≈ 4π ν c ∆L

slide-9
SLIDE 9

IMT, University of Neuchâtel European Southern Observatory

Frequency shifters

➢ Fiber pigtailed acousto-optic modulators (IntraAction Corp.)

❏ Heterodyne frequencies: f1 = 650 kHz and f2 = 450 kHz ❏ Frequency offset: ∆ν = 78 MHz

AOM3 AOM4 Laser Nd:YAG +40 MHz +39.35 MHz PM fiber couplers AOM1 AOM2 –38 MHz –38.45 MHz

slide-10
SLIDE 10

IMT, University of Neuchâtel European Southern Observatory

Electronic prototype

➢ VME boards

❏ Low-noise photodetectors + preamplifiers

  • Sensitivity of 0.9 V/µW
  • NEP of 0.2 pW/Hz0.5

➟Required optical power: 10 nW

❏ Superheterodyne modules ❏ Limiting amplifiers ❏ Digital phase-meter

  • Zero-crossing phasemeter
  • On board averaging capability
slide-11
SLIDE 11

IMT, University of Neuchâtel European Southern Observatory

Superheterodyne modules

➢ Superheterodyne modules

❏ Input bandpass filters

  • 450 kHz and 650 kHz
  • Bandwidth > 50 kHz
  • Minimized phase shifts (!)

❏ Ouput bandpass filters

  • 200 kHz
  • 50 kHz bandwidth

f1 f2 f1 – f2

slide-12
SLIDE 12

IMT, University of Neuchâtel European Southern Observatory

Digital phasemeter

➢ Digital zero-crossing

❏ FPGAs (Altera) to measure the « instantaneous » phase and the number of 2π cycles ❏ On-board averaging (Average over 2n periods) ❏ PLL to generate a clock frequency of 200 MHz ➨ 2π/1000 phase resolution

Reference Probe Fractional fringe counter Start Stop Clock Output

xN1

Timebase signal PLL Adder i f I F Summation start Summation stop Summed fractional number F Summed integer number I Fractional fringe counter Start Stop Clock Output

Phase shifter

Integer fringe counter (quadrature counter) Output

A

instantaneous integer number i instantaneous fractional number f Quadrant detector

B

limiting ampl. limiting ampl.

4000 3000 2000 1000 700 600 500 400 300 200 100 Phase [deg]

  • 2
  • 1

1

Error

slide-13
SLIDE 13

IMT, University of Neuchâtel European Southern Observatory

Test of accuracy

➢ Two-wavelength interferometry

❏ Interference signals:

I(t) = a1cos(2πf1t+φ1) + a2cos(2πf2t+φ2)

➨ Reduced sensitivity:

φ1 – φ2 = 4π(ν2 – ν1)L/c

slide-14
SLIDE 14

IMT, University of Neuchâtel European Southern Observatory

Results

➢ Two-wavelength interferometry

❏ ν2 – ν1 = 1.5 GHz ➙ Λ = 200 mm

(stability of 10–5)

❏ Required mechanical stability > 100 µm ❏ Measured accuracy:

  • Standard deviation of 2p/300
  • Corresponding to 2.3 nm accuracy

❏ Bandwidth: 50 kHz ❏ Optical power: 100 nW ❏ Improvement by averaging

  • ver several periods

600 400 200

  • 200

Digital Output

80 60 40 20

Distance [mm]

5

  • 5

Error [digit]

slide-15
SLIDE 15

IMT, University of Neuchâtel European Southern Observatory

PRIMA metrology - Test Campain at Paranal- Q1 2002

➢ Main Objectives

❏ Quantify the influence of environmental parameters (OPD and Tilt Disturbance) ❏ Quantify the influence of the VLTI optical train (transmission, polarization) ❏ Determine straylight levels ❏ Retro-fit results to the Design of the PRIMA metrology system.

➢ Infrastructure

❏ VLTI Instrument “VINCI” for injection in the

stellar path

❏ full VLTI optical train up to Retro-reflectors

mounted on 2 UT ’s (optical path ≈ 350m)

Picture of VINCI Instrument (Courtesy of P. Kervella)

slide-16
SLIDE 16

IMT, University of Neuchâtel European Southern Observatory

Conclusion

➢ Concept based on superheterodyne detection for PRIMA ➢ Electronic prototype:

❏ Manufacture and preliminary tests ❏ Accuracy better than 5 nm for optical power of 100 nW and 50 kHz bandwidth

  • Good hopes to improve this performance

❏ Suitable for two-wavelength interferometry (absolute distance measurement)

➢ Next step: full scale tests at the VLTI

❏ Retro-fit results to the Design of the PRIMA metrology system.
