Feature matching is ubiquitous
- 3D reconstruction
- Visual localization
- SLAM
- Place recognition
[Google VPS] [Image Matching Workshop 2020] [ScanNet]
SuperGlue: Learning Feature Matching with Graph Neural Networks - - PowerPoint PPT Presentation
SuperGlue: Learning Feature Matching with Graph Neural Networks - - PowerPoint PPT Presentation

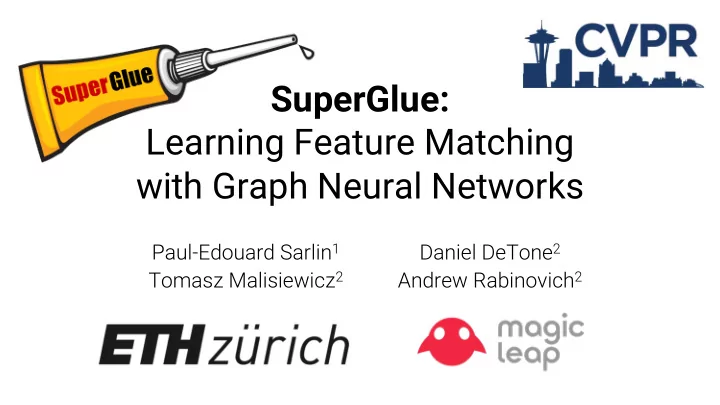

SuperGlue: Learning Feature Matching with Graph Neural Networks Paul-Edouard Sarlin 1 Daniel DeTone 2 Tomasz Malisiewicz 2 Andrew Rabinovich 2 Feature matching is ubiquitous 3D reconstruction Visual localization SLAM Place
SLIDE 2
SLIDE 3
- Extreme wide-baseline image pairs in real-time on GPU
- State-of-the-art indoor+outdoor matching with SIFT & SuperPoint
SuperGlue = Graph Neural Nets + Optimal Transport
SLIDE 4
- Front-end: images to constraints
○ Recent works: deep learning for feature extraction → Convolutional Nets!
- Back-end: optimize pose and 3D structure
[Cadena et al, 2016]
Visual SLAM
SLIDE 5
- Our position: learn the data association!
- We propose a new middle-end: SuperGlue
- 2D-to-2D feature matching
front-end feature extraction back-end MAP estimation middle-end data association
A middle-end
SLIDE 6
A minimal matching pipeline
> Classical: SIFT, ORB > Learned: SuperPoint, D2-Net
detection description feature matching
- utlier
filtering pose estimation
> Heuristics: ratio test, mutual check > Learned: classifier on set deep net Nearest Neighbor Matching
SuperGlue: context aggregation + matching + filtering
image pair [DeTone et al, 2018] [Yi et al, 2018]
SLIDE 7
The importance of context
with SuperGlue no SuperGlue
SLIDE 8
Single a match per keypoint + occlusion and noise → a soft partial assignment:
S u p e r G l u e
Inputs Outputs
- Images A and B
- 2 sets of M, N local features
○ Keypoints:
- Coordinates
- Confidence
○ Visual descriptors:
sum ≤ 1 sum ≤ 1
Problem formulation
SLIDE 9
Solving a partial assignment problem A Graph Neural Network with attention
Self Cross
L dustbin score
+
score matrix
Attentional Aggregation
partial assignment
M+1 N+1 visual descriptor =1 matching descriptors position
+
Keypoint Encoder
local features
Sinkhorn Algorithm
column norm. row normalization
T
Encodes contextual cues & priors Reasons about the 3D scene Differentiable solver Enforces the assignment constraints = domain knowledge
SLIDE 10
- Initial representation for each keypoints :
- Combines visual appearance and position with an MLP:
Self Cross
L dustbin score
+
Attentional Graph Neural Network
score matrix
Attentional Aggregation
Optimal Matching Layer
partial assignment
M+1 N+1 visual descriptor =1 matching descriptors position
+
Keypoint Encoder
local features
Sinkhorn Algorithm
column norm. row normalization
T
Multi-Layer Perceptron
SLIDE 11
Update the representation based on other keypoints:
- in the same image: “self” edges
- in the other image: “cross” edges
→ A complete graph with two types of edges
Self Cross
L dustbin score
+
Attentional Graph Neural Network
score matrix
Attentional Aggregation
Optimal Matching Layer
partial assignment
M+1 N+1 visual descriptor =1 matching descriptors position
+
Keypoint Encoder Sinkhorn Algorithm
column norm. row normalization
T
feature in image at layer
local features
SLIDE 12
Update the representation using a Message Passing Neural Network
Self Cross
L dustbin score
+
Attentional Graph Neural Network
score matrix
Attentional Aggregation
Optimal Matching Layer
partial assignment
M+1 N+1 visual descriptor =1 matching descriptors position
+
Keypoint Encoder Sinkhorn Algorithm
column norm. row normalization
T
the message
local features
SLIDE 13
Attentional Aggregation
- Compute the message
using self and cross attention
- Soft database retrieval: query , key , and value
= [tile, position (70, 100)] = [tile, pos. (80, 110)] = [corner, pos. (60, 90)] = [grid, pos. (400, 600)]
query neighbors query salient points [Vaswani et al, 2017]
SLIDE 14
A B A B
Self-attention = intra-image information flow Cross-attention = inter-image distinctive points Attention builds a soft, dynamic, sparse graph candidate matches
SLIDE 15
Self Cross
L dustbin score
+
Attentional Graph Neural Network
score matrix
Attentional Aggregation
Optimal Matching Layer
partial assignment
M+1 N+1 visual descriptor =1 matching descriptors position
+
Keypoint Encoder Sinkhorn Algorithm
column norm. row normalization
T
Compute a score matrix for all matches:
local features
SLIDE 16
Self Cross
L dustbin score
+
Attentional Graph Neural Network
score matrix
Attentional Aggregation
Optimal Matching Layer
partial assignment
M+1 N+1 visual descriptor =1 matching descriptors position
+
Keypoint Encoder Sinkhorn Algorithm
column norm. row normalization
T
- Occlusion and noise: unmatched keypoints are assigned to a dustbin
- Augment the scores with a learnable dustbin score
local features
SLIDE 17
Self Cross
L dustbin score
+
Attentional Graph Neural Network
score matrix
Attentional Aggregation
Optimal Matching Layer
partial assignment
M+1 N+1 visual descriptor =1 matching descriptors position
+
Keypoint Encoder Sinkhorn Algorithm
column norm. row normalization
T
- Compute the assignment that maximizes
- Solve an optimal transport problem
- With the Sinkhorn algorithm: differentiable & soft Hungarian algorithm
[Sinkhorn & Knopp, 1967]
local features
SLIDE 18
Self Cross
L dustbin score
+
Attentional Graph Neural Network
score matrix
Attentional Aggregation
Optimal Matching Layer
partial assignment
M+1 N+1 visual descriptor =1 matching descriptors position
+
Keypoint Encoder Sinkhorn Algorithm
column norm. row normalization
T
- Compute ground truth correspondences from pose and depth
- Find which keypoints should be unmatched
- Loss: maximize the log-likelihood of the GT cells
local features
SLIDE 19
SuperPoint + NN + heuristics
Results: indoor - ScanNet
SuperPoint + SuperGlue
SuperGlue: more correct matches and fewer mismatches
SLIDE 20
SuperPoint + NN + mutual check SuperPoint + NN + OA-Net (inlier classifier)
Results: outdoor - SfM
SuperPoint + SuperGlue
SuperGlue: more correct matches and fewer mismatches
SLIDE 21
21
Results: attention patterns
Flexibility of attention → diversity of patterns
global context neighborhood distinctive keypoints self-similarities match candidates
SLIDE 22
Evaluation
SuperGlue yields large improvements in all cases
Heuristics Learned inlier classifier
SLIDE 23
SuperGlue @ CVPR 2020
First place in the following competitions:
- Image matching challenge
- Local features for visual localization
- Visual localization for handheld devices
vision.uvic.ca/image-matching-challenge www.visuallocalization.net
SLIDE 24
SuperGlue Learning Feature Matching with Graph Neural Networks
A major step towards end-to-end deep SLAM & SfM
psarlin.com/superglue
