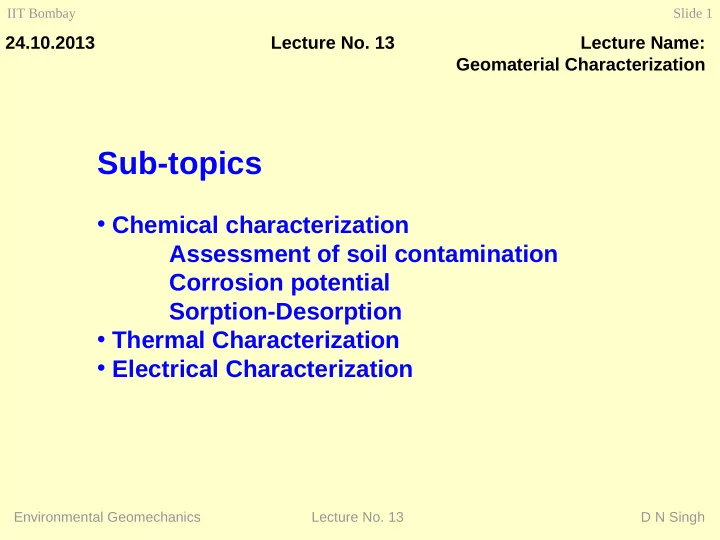

24.10.2013 Lecture No. 13 Lecture Name: Geomaterial Characterization

Sub-topics

• Chemical characterization

Assessment of soil contamination Corrosion potential Sorption-Desorption

• Thermal Characterization
• Electrical Characterization

IIT Bombay Slide 1 Environmental Geomechanics Lecture No. 13 D N Singh

Limitations Expensive instrumentation Cumbersome methodology Intensive & rigorous sample preparation, time consuming Complicated procedure for calibration and analysis Requirement of skilled and trained personnel Pore-solution extraction/Analysis (PME) AAS ICP-MS Gas chromatography Ion selective electrodes Impedance spectroscopy (Impedance analyzer) Electrical resistivity methods (Probes) Electro-magnetic methods (Time domain Reflectometry) Dielectric constant (Ground penetrating radar)

Environmental Geomechanics Lecture No. 13 D N Singh Slide 2

CHEMICAL CHARACTERIZATION for ASSESSING SOIL CONTAMINATION

Direct methods Indirect methods

IIT Bombay

Used for measuring soil suction and characterizing unsaturated soil

Soil Suction Matric(x) suction (soil matrix) Osmotic suction (salts)

Total Suction

Soil-water characteristic curve (SWCC) ψ w

AEV

wr

w : water content ψ : Soil suction Environmental Geomechanics Lecture No. 13 D N Singh Slide 3

Exploring the possibility of WP4 (dewpoint potentiameter) AN INDIRECT METHODOLOGY FOR ASSESSING SOIL CONTAMINATION

IIT Bombay

Block chamber

Working principle of WP4

Environmental Geomechanics Lecture No. 13 D N Singh Slide 4

Measuring range- 0 to 80 MPa Works on relative humidity principle WP4 measures total suction of soil Uncontaminated soil : Total suction = Matric(x) suction Contaminated soil : Total suction = Matric(x) suction + Osmotic suction SWCC of uncontaminated and contaminated soil of same type would be different The difference between SWCCs would indicate soil contamination

IIT Bombay

A Case study

Soil used: Marine soil designated as contaminated soil (CS) Source: Collected from the coastal area of Mumbai, India

Soil property Value Specific gravity 2.64 Particle size characteristics Coarse sand (4.75-2.0 mm) 4 Medium sand (2.0-0.420 mm) 9 Fine sand (0.420-0.074mm) 11 Silt size (0.074-0.002 mm) 44 Clay size (< 0.002 mm) 32 Consistency limits Liquid limit (%) 61 Plastic limit (%) 37 Plasticity index (%) 24 Soil Classification (USCS) MH Oxide % by weight SiO2 33 Al2O3 11 Fe2O3 12 TiO2 2 CaO 6 Chlorides (ppm) 9840 Sulphites (ppm) 40 CEC (meq/100g) 4.04

Physical properties Chemical properties As such the soil is contaminated

Environmental Geomechanics Lecture No. 13 D N Singh Slide 5 IIT Bombay

Soil subjected to washing to nullify contamination

• No. of washings

LS Chloride (ppm) Sulphite (ppm) 1 2 6750 15 2 4 1850 10 3 6 800 10 4 8 250 5 5 10 90 < 5

Washing nullifies contamination

Environmental Geomechanics Lecture No. 13 D N Singh Slide 6 IIT Bombay

IIT Bombay

For geotechnical engineers, it’s very important subject Metal corrosion in undisturbed soils is generally very low regardless of the soil composition (e.g. metal piles, reinforcement of foundation etc.) Corrosion of metal (steel) in disturbed soils (e.g., buried pipelines that are backfilled) is strongly affected by soil conditions & properties. Soil changes its chemical and physical nature continuously over time and seasonally.

Corrosion Potential of Soils

Environmental Geomechanics Lecture No. 13 D N Singh Slide 7

Pipeline damage from pitting/corrosion

IIT Bombay

• Chloride content
• Moisture content
• Oxygen content/Redox potential
• Soil permeability/texture
• pH/Acidity
• Temperature
• Soil resistivity
• Drainage characteristics
• Sulfate/Sulfite ion concentrations
• Microbiological activity
• Stray currents (from cathodic protection, DC traction

system viz., train, metro)

• Spillage of corrosive substance/pollution

Soil Characteristics & Environmental Variables

Environmental Geomechanics Lecture No. 13 D N Singh Slide 8

IIT Bombay

Clay in the soil mass reduces movement of air (oxygen) and water, i.e. low aeration, when wet, and hence increase in local (pitting) corrosion. High plasticity of clay (swelling/shrinking soils) can pull off susceptible coatings on the structures. Clay is susceptible to cracking (during wetting-drying cycles) which helps transport of air and moisture to the structures buried in it. Sand promotes aeration and moisture distribution & hence, soluble salts and gases (air/oxygen) are easily transported to structures, causing greater general corrosion but less pitting.

Soil Classification/Texture

Environmental Geomechanics Lecture No. 13 D N Singh Slide 9

Bored Cast in-situ piles

Reinforcement in concrete pile exposed due to leaching of concrete Chloride and Sulphate content of water found well within prescribed limit & hence water not corrosive. Ryzner index (RI) of water was found out to be 7.7 & hence water is corrosive and unsaturated

Environmental Geomechanics Lecture No. 13 D N Singh IIT Bombay Slide 10

pH scale for Soils

Langelier Saturation Index (LI) Ryznar Index

Determines the degree of scale formation RI = 2 pHs – pH RI < 5.5 heavy scale will form 5.5 < RI < 6.2 scale will form 6.8 < RI < 8.5 water is corrosive RI > 8.5 water is very corrosive

Environmental Geomechanics Lecture No. 13 D N Singh IIT Bombay Slide 11

ASSESSMENT OF CORROSION POTENTIAL OF SOILS

Durability of underground structures is seriously affected by corrosion of the concrete (IS: 456-2000) Specifications for type of cement, minimum cement content, maximum water-cement ratio, etc., to be adopted stringently, based on the exposure

• f the concrete to different concentrations of sulphates in the soil or

ground water. However, for assessment of corrosion potential of underground structures, chemical properties of the soil need to be considered in details. Corrosion is an electrochemical process Certain conditions must exist for the corrosion to occur (corrosion cell)

Environmental Geomechanics Lecture No. 13 D N Singh Slide 12

Effects of soil characteristics on corrosion By Victor Chaker, J. David Palmer ASTM Committee G-1 on Corrosion of Metals

IIT Bombay

Soil (Electrolyte) Metallic connection Anode Cathode Electric current

Electrochemical reaction

Corrosion

The “Corrosion cell”

Environmental Geomechanics Lecture No. 13 D N Singh Slide 13

Soil ≡ Electrolyte

Therefore properties of soils play a crucial role in accelerating corrosion.

Properties of soils:

Electrical resistivity pH moisture content Porosity sulphate and chlorides content redox potential presence of micro-organism temperature are important for evaluating the corrosion potential of soils (DIN 50929-3). For corrosion, the elements that are soluble in water are important: – Base forming: Na, K, Ca, Mg (raise pH). – Acid forming: Carbonate, Bicarbonate, Chloride ion, Nitrate, and Sulfate (lower pH).

IIT Bombay

Rating based on the soil fraction Rating based on the electrical resistivity Rating based on the pH

Environmental Geomechanics Lecture No. 13 D N Singh Slide 14

Rating Based on the ground water status Rating based on the sulphite content Rating based on the chloride content

Based on different soil characteristics, a certain rating (R1 to R6) for the soils has been assigned and the sum of these ratings is a measure of the overall soil corrosivity.

IIT Bombay

Rating based on the soil fraction

Soil fraction % by weight R1 Clay & silt <10 +4 10 to 30 +2 30 to 50 50 to 80

• 2

>80

• 4

>5

• 12
• 12

Rating based on the electrical resistivity Resistivity (Ω.m) R2 >500 +4 200 to 500 +2 50 to 200 20 to 50

• 2

10 to 20

• 4

<10

• 6

Rating based on the pH PH R3 >9 +2 5.5 to 9 4.0 to 5.5

• 1

<4

• 3

Environmental Geomechanics Lecture No. 13 D N Singh Slide 15

Higher conductivity: high corrosion rate (efficient electrolyte)

IIT Bombay

Rating Based on the ground water status Ground water status R4 No groundwater Groundwater

• 1

Groundwater at times

• 2

Rating based on the sulphite content Sulphite content (g/l) R5 <0.15 0.15 to 1

• 2

1 to 2

• 4

>2

• 6

Rating based on the chloride content Chloride content (ppm) R6 <100 100-2000

• 2

2000-10000

• 4

>10000

• 6

Environmental Geomechanics Lecture No. 13 D N Singh Slide 16

Total assessment of the corrosion potential Summation of R1- R6 ∑R Corrosion potential ≥0 Virtually not corrosive

• 1 to -4

Slightly corrosive

• 5 to -10

Corrosive < -10 Highly corrosive

Chloride ions: Cause pitting of steel and decrease soil resistivity.

IIT Bombay

Dissolved Oxygen concentration in the soil moisture determines its RP(potential

• diff. between the electrodes), higher the oxygen content, higher would be the RP

The difference in the RP may lead to the formation of the “corrosion cell” Low soil RP indicates conditions conducive to anaerobic microbiological activities. RP varies with time, moisture content variations, micro-organism activities etc. RP measurements may not be accurate assessment of corrosion potential of soils.

Redox Potential (mV) (Std. H Scale) Aeration Corrosivity >400 strong aeration Noncorrosive 200 to 400 Aeration Weak 100 to 200 weak aeration Moderate 0-100 Non to weak Severe Negative Not aerated Extremely sever

Environmental Geomechanics Lecture No. 13 D N Singh Slide 17

Soil Corrosivity based on Redox (Reduction-Oxidation) Potential ORP (Oxidation Reduction Potential))

In well aerated soils, Fe3+ exhibits red, yellow, and brown colors. In poorly aerated soils, the oxygen content is low & soils are gray in color due to reduced state of the Fe.

IIT Bombay
