6/12/2012 Performance Observations of the Beijing areas Great Wall Rammed Earth and Rubble Core Great Wall Rammed Earth and Rubble Core , (unrestored sections) David Dark 0 Study area Map 1 1 6/12/2012 Figure 1. All stone, no brick,

slide-1
SLIDE 1

6/12/2012 1

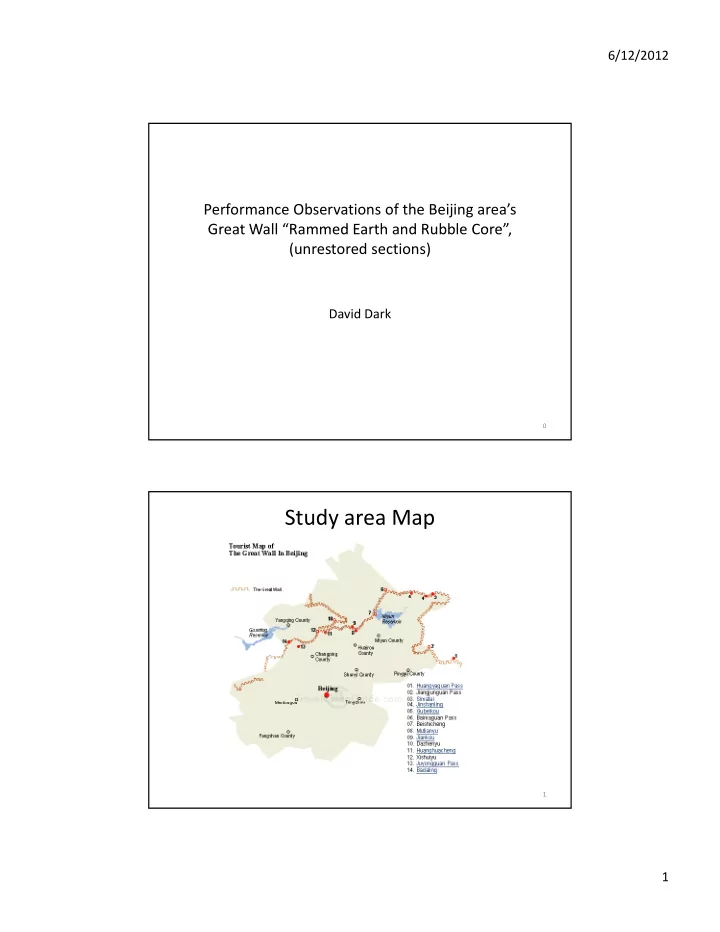

Performance Observations of the Beijing area’s Great Wall “Rammed Earth and Rubble Core” Great Wall Rammed Earth and Rubble Core , (unrestored sections)

David Dark

Study area Map

1

slide-2
SLIDE 2

6/12/2012 2

Figure 1. All stone, no brick, but Rubble Core. #13 and #14

2

Figure 2. All stone, no brick, but Rubble Core. #13 and #14

3

slide-3
SLIDE 3

6/12/2012 3

Figure 4. Sticky‐Rice and Lime mortar. Typical brick. #5

4

Sticky‐Rice and Lime mortar. Typical

  • brick. #8

5

slide-4
SLIDE 4

6/12/2012 4

Sticky‐Rice and Lime mortar. Disintegrating bricks. #4

6

Sticky‐Rice and Lime mortar. Disintegrating bricks. #4

7

slide-5
SLIDE 5

6/12/2012 5

Sticky‐Rice and Lime mortar. Disintegrating bricks. #4

8

Sticky‐Rice and Lime mortar Disintegrating bricks. #4

9

slide-6
SLIDE 6

6/12/2012 6

Disintegrating Sticky‐Rice and Lime

  • mortar. #4

10

Sticky‐Rice and Lime mortar & disintegrating bricks. #5

11

slide-7
SLIDE 7

6/12/2012 7

Sticky‐Rice and Lime mortar & disintegrating bricks. #5

12

Figure 5. Sticky‐Rice and Lime mortar between paving. #5

13

slide-8
SLIDE 8

6/12/2012 8

Sticky‐Rice and Lime mortar between

  • paving. #8

14

Drainage system. #4

15

slide-9
SLIDE 9

6/12/2012 9

Drainage system. #4

16

Water drainage spouts draining the top of a tower. #8

17

slide-10
SLIDE 10

6/12/2012 10

Drainage channel. #8

18

Figure 3. Typical brick on stone

  • construction. Earth foundation. #5

19

slide-11
SLIDE 11

6/12/2012 11

Typical brick on stone construction. Bedrock foundation. #4

20

Figure 6. Rubble Foundation, erosion

  • n very steep incline. #5

21

slide-12
SLIDE 12

6/12/2012 12

Quarried Stone. Single course

  • foundation. #5

22

Mortared Rubble on bedrock. #4

23

slide-13
SLIDE 13

6/12/2012 13

The exception to the rule! #4

24

Another exception! #4

25

slide-14
SLIDE 14

6/12/2012 14

Quarried Stone. #4

26

Quarried Stone. #4

27

slide-15
SLIDE 15

6/12/2012 15

Quarried Stone at tower base. #4

28

Quarried Stone on earth foundation. Badly cracked walls. #8

29

slide-16
SLIDE 16

6/12/2012 16

Quarried Stone doorpost to left. Rough cut stone bottom. #8

30

Quarried Stone. Water drainage spout. #8

31

slide-17
SLIDE 17

6/12/2012 17

Figure 9. Low wall on high peak. #4

32

Figure 10. Foot traffic erosion. #4

33

slide-18
SLIDE 18

6/12/2012 18

Figure 11. Outward lean. Parapet on right fallen away. #4

34

Outward lean & buckle. #4

35

slide-19
SLIDE 19

6/12/2012 19

Figure 7. Rammed Earth and Rubble side by side. #5

36

Rammed Earth and Rubble side by

  • side. #5

37

slide-20
SLIDE 20

6/12/2012 20

Figure 8. Rubble Core. Brick wall leaning in. #5

38

Wall intact but parapet missing. #5

39

slide-21
SLIDE 21

6/12/2012 21

Figure 12. Outer walls brick walls slipped away. #5

40

Slip section with Rammed Earth Core torn and exposed at an angle. #5

41

slide-22
SLIDE 22

6/12/2012 22

Repairs to a slipped section. #5

42

Vegetation in some areas is dense. #8

43

slide-23
SLIDE 23

6/12/2012 23

Vegetation in some areas is dense. #8

44

Rubble Core of a superior nature. #4

45

slide-24
SLIDE 24

6/12/2012 24

Rubble Core. #4

46

Pavers with Rubble Core under. #5

47

slide-25
SLIDE 25

6/12/2012 25

Rubble Core & pavers. #4

48

Rubble Core & pavers. #4

49

slide-26
SLIDE 26

6/12/2012 26

Rubble Core. #5

50

Rubble Core with some foot traffic

  • erosion. #5

51

slide-27
SLIDE 27

6/12/2012 27

Rubble Core & pavers. #4

52

The serpentine nature of the Wall aids

  • longevity. #4

53

slide-28
SLIDE 28

6/12/2012 28

The serpentine nature of the Wall aids

  • longevity. West of #14

54

Rubble Core constructed in courses with mortar between. West of #14

55

slide-29
SLIDE 29

6/12/2012 29

Rubble Core constructed in courses with mortar between. West of #14

56

Rubble Core constructed in courses with earth between. West of #14

57

slide-30
SLIDE 30

6/12/2012 30

Stone parapets fall far sooner than brick on steep sections. West of #14

58

Steeper still the Wall readily falls to

  • pieces. West of #14

59

slide-31
SLIDE 31

6/12/2012 31

Only 1 course of (removed?) Pavers

  • ver inferior Rubble Core. #8

60

Inferior Rubble Core with little earth

  • between. #8

61

slide-32
SLIDE 32

6/12/2012 32

Inferior Rubble Core with little earth

  • between. #8

62

Drainage spouts on an inclined

  • section. #4

63

slide-33
SLIDE 33

6/12/2012 33

Poor design. #8

64

Poor design. #8

65

slide-34
SLIDE 34

6/12/2012 34

Parapet walls fallen in. Note extreme angle of wall. #8

66

Chaotic, but a haven for small animals & plants. #8

67

slide-35
SLIDE 35

6/12/2012 35

Parapet walls fallen in. Outer wall

  • collapsed. #8

68

Large rocks in Rubble Core. #8

69

slide-36
SLIDE 36

6/12/2012 36

Outer Wall and inner Core meld and bonded together with mortar. #8

70

The End!
