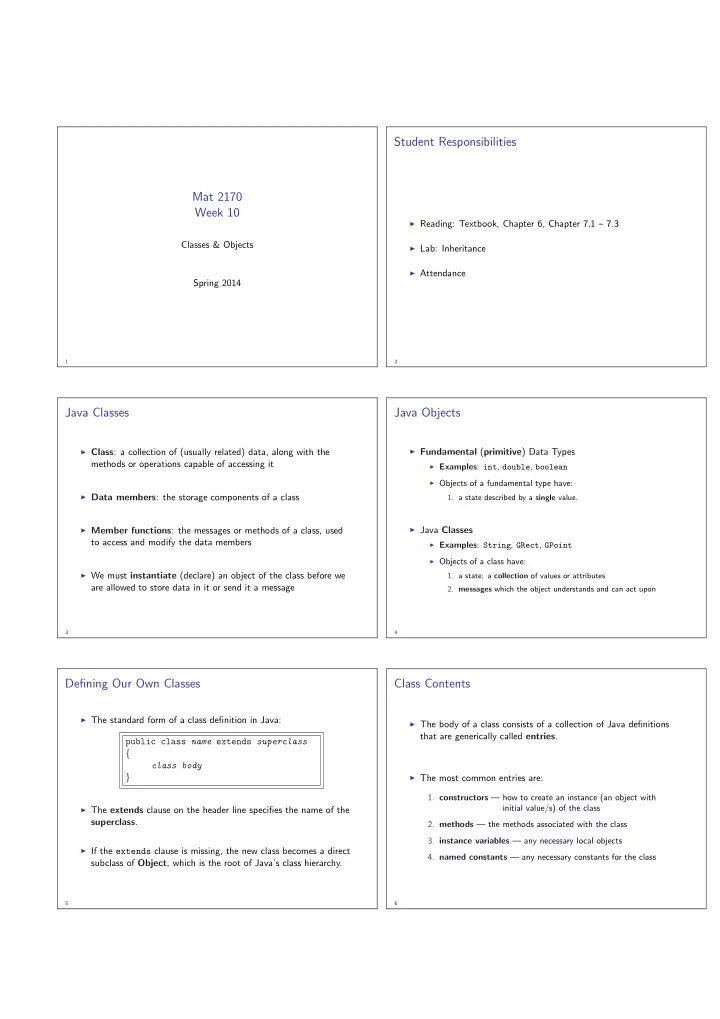

Mat 2170 Week 10

Classes & Objects Spring 2014

1

Student Responsibilities

◮ Reading: Textbook, Chapter 6, Chapter 7.1 – 7.3 ◮ Lab: Inheritance ◮ Attendance

2

Java Classes

◮ Class: a collection of (usually related) data, along with the

methods or operations capable of accessing it

◮ Data members: the storage components of a class ◮ Member functions: the messages or methods of a class, used

to access and modify the data members

◮ We must instantiate (declare) an object of the class before we

are allowed to store data in it or send it a message

3

Java Objects

◮ Fundamental (primitive) Data Types

◮ Examples: int, double, boolean ◮ Objects of a fundamental type have:

• 1. a state described by a single value.

◮ Java Classes

◮ Examples: String, GRect, GPoint ◮ Objects of a class have:

• 1. a state: a collection of values or attributes
• 2. messages which the object understands and can act upon

4

Defining Our Own Classes

◮ The standard form of a class definition in Java:

public class name extends superclass { class body }

◮ The extends clause on the header line specifies the name of the

superclass.

◮ If the extends clause is missing, the new class becomes a direct

subclass of Object, which is the root of Java’s class hierarchy.

5

Class Contents

◮ The body of a class consists of a collection of Java definitions

that are generically called entries.

◮ The most common entries are:

• 1. constructors — how to create an instance (an object with

initial value/s) of the class

• 2. methods — the methods associated with the class
• 3. instance variables — any necessary local objects
• 4. named constants — any necessary constants for the class

6

Creating Classes

◮ We can design exactly the structure needed to store related data ◮ We can designate exactly how data may be accessed or

modified

◮ We learned how to use classes, now we’ll learn how to modify

them, and create our own by:

◮ adding messages to existing classes ◮ adding attributes / data to existing classes ◮ overriding messages in existing classes ◮ building a class from “scratch” 7

Thinking about clocks. . .

A Wall Clock. . . An Alarm Clock. . . A Grandfather Clock. . . A Wristwatch. . .

8

Thinking about clocks. . .

A Wall clock IS-A kind of clock ⇒ a clock that hangs on a wall An Alarm clock IS-A kind of clock ⇒ a clock with an alarm A Grandfather clock IS-A kind of clock ⇒ a clock with a pendulum and chimes A Wristwatch IS-A kind of clock ⇒ a clock that straps to your arm Wall clocks, Alarm clocks, Grandfather clocks, and Wristwatches are specialized clocks

9

Inheritance Hierarchy

IS−A relationships

Alarm Clock Wall Clock Wristwatch Grandfather Clock

Clock

10

Extending Classes

Wouldn’t it be nice to be able to create specialized Java objects without starting from scratch? Of course it would! For example:

◮ Blinking rectangles ◮ Moving circles ◮ Arbitrary precision numbers

Inheritance

is the object–oriented programming mechanism for

specialization

.

11

Inheritance

◮ Inheritance is the ability to define a new class by using an

existing class as a basis.

◮ The new class inherits the attributes and behaviors of the

parent class.

◮ The new class IS–A specialized version of the parent class.

12

Derived Classes

◮ A derived class IS–A new version of its parent class. ◮ It has the same members its parent class has. ◮ It can add members — both methods and data ◮ It can re–define members of the parent class, over-riding the

parent’s definition.

◮ For example, re-defining what it means to move() by giving a new

implementation for the function.

13

Inheritance

◮ A natural way to reuse code

◮ Programming by extension rather than re-invention — building

• n what we already have, rather than starting from scratch.

◮ Object-oriented paradigm is well–suited for this style of

programming

◮ Terminology

◮ Parent, base, or superclass ◮ Derived or subclass 14

Class Message Examples

◮ Constructors: Create an object — initialize data members

GRect rectA = new GRect(0.0, 0.0, 20.0, 30.0); GRect rectB = new GRect(x, y, width, height);

◮ Mutators or Setters: Change the state or attributes

MyCircle.setColor(Color.RED);

◮ Inspectors or Getters: Determine something about the state

double bh = Box.getHeight()

◮ Facilitators: Perform a task

MyCircle.move();

15

Derived Class Definition

General form: public class DerivedClassName extends ParentClass { // Members go here } Example from GSquare Class: public class GSquare extends GRect { // Rest of the definition goes here }

16

A Square and More. . .

A GSquare IS-A GRect which

◮ Is restricted to equal width and height ◮ Can be created with a given color

See Lab Writeup

17

The GSmartSquare Class

A GSmartSquare IS-A GSquare which knows:

◮ How to find its window ◮ Whether its left or right edge has gone out of the window ◮ Whether its top or bottom edge has gone out of the window ◮ Whether its fits in its window

See Lab Writeup You will be completing this class in lab

18

A Square and Still More. . .

A GMovingSquare IS-A GSmartSquare which:

◮ Keeps track of a displacement (x- and y-coordinate) ◮ Knows how to move by this displacement

We can derive this class from GSmartSquare by adding:

◮ displacement: a new attribute to keep track of ∆x and ∆y

for the object

◮ move: a message to make a move based on this

displacement

◮ a constructor that initializes the displacement as well as

the other usual attributes of a GSquare object See Lab Writeup You will be completing this class in lab

19

Technical Notes I

◮ When we need to refer to a parent class constructor or another

• f its methods from within a derived class method, we preface

the call with the keyword: super.

Example (GSquare): super(x, y, size, size);

◮ When we need to distinguish a derived class method from a

parent class method or a parameter, we preface the call with the keyword: this.

Example (GSquare): this(x, y, size, Color.BLACK);

20

Technical Notes II

◮ When no receiver is specified the message is sent to the current

• bject. In other words, message() is the same as

this.message() within the class.

Example (GSquare): setColor(color); Is equivalent to: this.setColor(color);

◮ We can also use the keyword this to call a constructor from

another constructor within the same class.

21

Notes on Lab 10

◮ The graphics window is able to clear objects from itself with the

remove(obj) message. It can erase everything with the removeAll() message.

◮ You must be clear in your mind between methods in the circle

classes and those in the project (program) class, and how they differ.

◮ This lab is worth 50 points, and is not due for two weeks (rather

than the usual one) from Thursday. Take this as a hint to begin working on it early. There will be another new lab next week.

22

Provided for you: Moving the particles

// Move all particles in the window // For every object in our graphics window... for (int j = 0; j < getElementCount(); j++) { // Get the jth object GObject gObject = getElement(j); // Make sure it is a Particle if (gObject instanceof GParticle) { // Since we have a particle, // cast it as such and move it. ((GParticle) gObject).move(); } }

23

Controlling Access to Entries

◮ Each entry in a Java class is marked with a keyword to control

which classes have access to that entry.

◮ The types of access are termed public, private, and protected. ◮ The text uses only public and private. All entries are marked

as private unless there is a compelling reason to export them.

24

Designer versus Client View of Class Members

Clients cannot access these!

&

Clients can access these

Public members

Protected members

Private members

25

Access Privileges

public All classes in the program have access; public entries in a class are said to be exported by that class. private Access is limited to the class itself, making that entry completely invisible outside the class. protected Access is restricted to the class that defines these entities, along with any of its subclasses or any classes in the same package. (no keyword) The entry is visible only to classes in the same package, and are called package–private.

26

The Structure of Memory

◮ bit: a fundamental unit of information found in one of two

possible states: off and on — or false / true — or 0 / 1.

◮ byte: 8 bits ◮ nybble: 4 bits or half a byte ◮ word: 4 bytes

kilo (K) = 210 = 1,024 mega (M) = 220 = 1,048,576 giga (G) = 230 = 1,037,741,824

◮ A 64KB computer from the early 1970’s would have had 64 ×

1024 or 65,536 bytes of memory.

◮ A 512MB machine would have 512 × 1,048,576 or 536,870,912

bytes of memory.

27

Binary notation — a Byte

128 64 32 16 8 1 = = = = = = = = 32 8 2 4 2

1 1 1

42

28

Hexadecimal — Base 16 — 4 Bits Each Hex digit Value A 10 B 11 C 12 D 13 E 14 F 15

1 1 1 2 A 2 A

10 x 1 = 10 2 x 16 = 32 42

29

Memory and Addresses

Within the memory system of a typical computer, every byte is identified by a numeric address, starting at 0.

0001 1001 1002 0002 0003 1000

FFFE FFFD

0000

FFFF

If we use two bytes to hold addresses, the largest address is: FFFF16 or 15 × 163 + 15 × 162 + 15 × 161 + 15 × 160 or 65,535. It takes 4 bytes, or a word, to be able to address a gigabyte of memory.

30

Allocating Memory

◮ Whenever a variable or object is declared, the compiler must

reserve space in memory to hold its value/s.

◮ allocation: the process of reserving memory space. ◮ Memory is allocated from one of three different regions of

memory depending on how an object is declared:

• 1. The beginning of memory
• 2. The stack
• 3. The heap

31

memory for program code and static data pool of memory (the "stack") local variables memory for

toward lower addresses the stack grows toward higher addresses the heap grows

(the "heap") available for objects

Memory regions

32

Allocation Strategies — Beginning or Low Memory

Static variables and constants.

◮ static variables belong to the whole class, not to an individual

• bject.

◮ This group is usually allocated at the beginning of the memory

space.

◮ Program instructions are also stored at the beginning of

memory.

33

Allocation Strategies — The Heap

Dynamically allocated objects.

◮ All objects created using new are assigned storage from a

region of memory called the heap.

◮ Convention places the heap memory immediately after the fixed

region assigned to the static declarations of a class.

◮ The heap grows toward higher addresses.

34

Allocation Strategies — The Stack

Local variables.

◮ All variables that are declared as local variables inside a method

are allocated from a region of memory called the stack.

◮ Convention places the beginning of stack memory at the

highest legal address in memory.

◮ The stack grows toward lower addresses as new methods are

called.

35

Local variables — Continued.

◮ When a method is invoked, the size of the stack increases by

the amount needed to hold the local variables that method declares.

◮ The memory set aside for a particular method is called a stack

frame.

◮ When a method returns, its stack frame is discarded, restoring

the frame of its caller.

36

WIK: What’s Important to Know

◮ A reference is simply the memory address of an object. We

are able to send a message to an object via a reference to it.

◮ When a parameter is passed to a method, a copy of its value is

made.

37

WIK

◮ For primitive types, this means a copy of the value is made —

the original remains untouched.

◮ When an class object is passed as a parameter to a method, a

copy of the reference to that object (its address in memory) is made. Changes, if any, are then made to the original object.

◮ Non-primitive variables (objects) are references (memory

addresses).

38

WIK

◮ When we pass a reference as a parameter to a method the

method still just gets a copy of the argument.

◮ However, having a copy of a reference is almost like having the

• riginal, since it’s the memory address of the object.

◮ The null literal is a reference that refers to no object. Any

non-primitive variable can be set equal to null, which is sometimes a useful way to initialize it.

39

The javadoc Documentation System

◮ One of the important ways in which Java works together with

the World–Wide–Web is in the design of its documentation system, javadoc.

◮ The javadoc program reads Java source files and generates

documentation for each class in the file.

◮ ACM Java Libraries complete documentation located at:

http://jtf.acm.org/javadoc/student/

40

Writing javadoc Comments

The javadoc program from the Java developer’s kit (JDK) produces nicely formatted HTML documentation from special comments embedded in the source code. To make this work with your own programs, you need to add specially formatted comments to your code. A javadoc comment begins with the characters /** and extends up to the closing */ just as a regular comment does. Using documentation comments helps programmers produce accurate and consistent documentation.

41

Documentation Comments

◮ Documentation comments begin with /** and end with */. ◮ Lines that begin with @ are tags that have special meaning.

@author Starts a paragraph where one or more author names may be entered @param Starts a parameter description for a function pa- rameter with the given name @return Starts a return value description for a function

◮ Java defines a few more tags and it is possible to define your

• wn. However, you only need to know the above tags for now.

◮ Note: you can also add html formatting to your documentation

comments.

42

Documentation Comments: Examples

/** * Moves the GMovingSquare according to the current * displacement. */ public void move() /** * Returns a copy of the current displacement (velocity) of * the GMovingSquare. * @return a copy of the current velocity */ public GPoint getDisplacement() /** * Sets the displacement (velocity) of the GMovingSquare * to (x,y). * @param x the x component of the new displacement * @param y the y component of the new displacement */ public void setDisplacement(double x, double y)

43

Sample javadoc Pages — RandomGenerator

44

Constructor and Method Summaries

45

Constructor and Method Details

46 47 48
