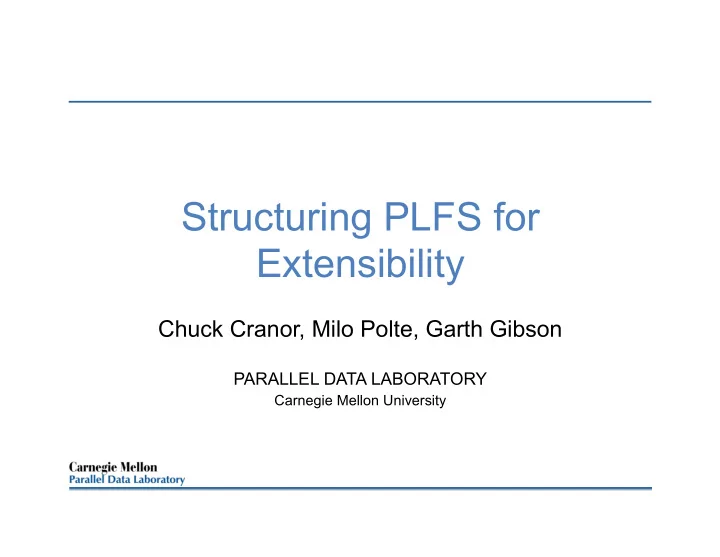

Structuring PLFS for Extensibility Chuck Cranor, Milo Polte, Garth Gibson PARALLEL DATA LABORATORY Carnegie Mellon University What is PLFS? Parallel Log Structured File System Interposed filesystem b/w apps & backing storage

SLIDE 1

Structuring PLFS for

Extensibility

Chuck Cranor, Milo Polte, Garth Gibson

PARALLEL DATA LABORATORY

Carnegie Mellon University

SLIDE 2

Parallel Log Structured File System

– Interposed filesystem b/w apps & backing storage – Los Alamos National Labs, CMU, EMC, … – Target: HPC checkpoint files

PLFS transparently transforms a highly

concurrent write access pattern to a pattern more efficient for distributed filesystems

– First paper: Bent et al, Supercomputer 2009 – http://github.com/plfs, http://institute.lanl.gov/plfs/

What is PLFS?

SLIDE 3

The two main checkpoint write patterns:

– N-1: all N processes write to one shared file

Concurrent I/O to a single file is often unscalable
Small, unaligned, clustered traffic is problematic

– N-N: each process writes to its own file

Overhead of inserting many files in a single dir
Easier for DFS (after files created)
Archival and management more difficult
Initial PLFS focus: improve N-1 case

Checkpoint Write Patterns

SLIDE 4

PLFS improves N-1 performance by

transforming it into an N-N workload

FUSE/MPI: transparent solution,

no application changes required

PLFS Transforms Workloads

SLIDE 5

PLFS Converts N-1 to N-N

PLFS Virtual Layer /foo host1 host2 host3 /foo/ hostdir.1/ hostdir.2/ hostdir.3/ 131 132 279 281 152 148 data.131 indx.131 data.132 indx.132 data.279 indx.279 data.281 indx.281 data.152 indx.152 data.148 indx.148 Physical Underlying Parallel File System

SLIDE 6

PLFS N-1 Bandwidth Speedups

100X 10X

SPEED UP

SLIDE 7

Original PLFS was limited to 1 workload:

– N-1 checkpoint on mounted posix filesystem – All data stored in PLFS container logs

Ported first to MIO-IO/ROMIO

– Feasibly deploy on leadership class machines

Success with LANL apps: actual adoption?

– Requires maintainability & roadmap evolution – Develop a team: LANL, EMC, CMU, …

Revisit code with maintainability in mind

The Price of Success

SLIDE 8

PLFS Extensibility Architecture

PLFS high-level API MDHIM w/LevelDB HPC Application Logical FS interface container small file flat file Index API distributed pattern byte-range I/O Store interface posix pvfs iofsl hdfs libhdfs/jvm hdfs.jar libplfs

SLIDE 9

Emergence of Hadoop: converged storage
HDFS: Hadoop Distributed Filesystem

– Key attributes:

Single sequential writer (not POSIX, no pwrite)
Not VFS mounted, access through Java API
Local storage on nodes (converged)
Data replicated ~3 times (local+remote1+remote2)
HPC in the Cloud: N-1 checkpoint on HDFS?

– Observation: PLFS log I/O fits HDFS semantics

Case Study: HPC in the Cloud

SLIDE 10

PLFS hardwired to POSIX API:

– Needs a kernel mounted filesystem – Uses integer file descriptors – Memory maps index files to read them

HDFS does not fit these assumptions
Solution: I/O Store

– Insert a layer of indirection above PLFS backend – Model after POSIX API to minimize code changes

PLFS Backend Limitations

SLIDE 11

PLFS I/O Store Architecture

lib{hdfs,jvm} hdfs.jar PLFS FUSE PLFS MPI I/O posix libc API PLFS container I/O store posix i/o HDFS i/o libplfs mounted fs Java code

SLIDE 12

Testbed: PRObE (www.nmc-probe.org)
Each node has dual 1.6GHz AMD cores,

16GB RAM, 1TB drive, gigabit ethernet

Ubuntu Linux, HDFS 0.21.0, PLFS, OpenMPI
Benchmark: LANL FS Test Suite (fs_test)
Simulates N-1 checkpoint, strided
Filesystems tested:

– PVFS OrangeFS 2.8.4 w/64MB stripe size – PLFS/HDFS w/1 replica (local disk) – PLFS/HDFS w/3 replicas (local disk + remote1 + remote 2)

Blocksizes: 47001, 48K, 1M
Checkpoint size: 32GB written by 64 nodes

PLFS/HDFS Benchmark

SLIDE 13

Benchmark Operation

3 stride block remaining strides continue pattern for write phase read phase nodes nodes (shifted for read) 2 3 1 1 2

We unmount and cache flush data filesystem between read/write

SLIDE 14

FUSE filesystem and a Middleware lib (MPI)

PLFS Implementation Architecture

PLFS FUSE daemon PLFS FUSE app proc1 PLFS FUSE app proc2 PLFS MPI app proc1 PLFS MPI app proc2

FUSE module VFS/POSIX API

interconnect

Local fs

Distributed fs

PLFS lib

PLFS/ MPI libs PLFS/ MPI libs

use r kernel

app i/o FUSE upcall backing store i/o MPI sync calls to disk to network to other nodes

SLIDE 15

47001

48K 1M access unit size (bytes) 500 1000 1500 2000 write bandwidth (Mbytes/s) PVFS-write PLFS/HDFS1-write PLFS/HDFS3-write

PLFS/HDFS Write Bandwidth

SLIDE 16

47001

48K 1M access unit size (bytes) 500 1000 1500 2000 write bandwidth (Mbytes/s) PVFS-write PLFS/HDFS1-write PLFS/HDFS3-write

PLFS/HDFS Write Bandwidth

PLFS/HDFS performs well (note HDFS1 is local disk)

SLIDE 17

47001

48K 1M access unit size (bytes) 500 1000 1500 2000 write bandwidth (Mbytes/s) PVFS-write PLFS/HDFS1-write PLFS/HDFS3-write

PLFS/HDFS Write Bandwidth

PLFS/HDFS performs well (note HDFS3 is 3 copies)

SLIDE 18

47001

48K 1M access unit size (bytes) 500 1000 read bandwidth (Mbytes/s) PVFS-read PLFS/HDFS1-read PLFS/HDFS3-read

PLFS/HDFS Read Bandwidth

HDFS with small access size benefits from PLFS log grouping

SLIDE 19

47001

48K 1M access unit size (bytes) 500 1000 read bandwidth (Mbytes/s) PVFS-read PLFS/HDFS1-read PLFS/HDFS3-read

PLFS/HDFS Read Bandwidth

HDFS3 with large access size suffers imbalance

SLIDE 20

20 30 40 50 60 Node number 500 1000 Total size of data served (MB) PLFS/HDFS1 PLFS/HDFS3

HDFS 1 vs 3: I/O Scheduling

Network counters show HDFS3 read imbalance

SLIDE 21

Rewrote initial I/O Store prototype

– Production-level code – Multiple concurrent instances of I/O Stores

Re-plumbed entire backend I/O path
Prototyped POSIX, HDFS, PVFS stores

– IOFSL done by EMC

Regression tested at LANL
I/O Store now part of PLFS released code

– https://github.com/PLFS

I/O Store Status

SLIDE 22

PLFS extensions for workload transformation:

– Logical FS interface

Not just container logs; packing small files, burst buffer

– I/O Store layer

Non-POSIX backends (HDFS, IOFSL, PVFS)
Compression, write buffering, IO forwarding

– Container index extensions

PLFS is open source, available on github

Extensibility
