String Theory in the LHC Era J Marsano (marsano@uchicago.edu) 1 Thursday, April 12, 12 String Theory in the LHC Era 1. Electromagnetism and 5. Supersymmetry Special Relativity 2. The Quantum World 6. Einsteins Gravity 3. Why do we need

slide-1
SLIDE 1

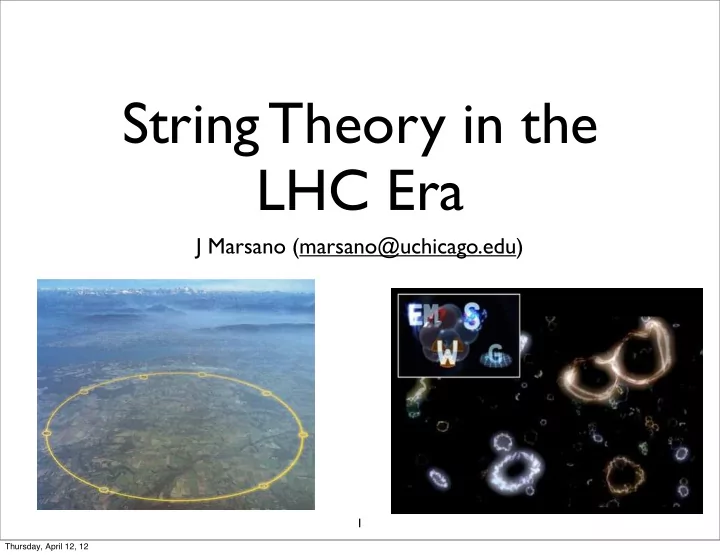

String Theory in the LHC Era

1

J Marsano (marsano@uchicago.edu)

Thursday, April 12, 12

slide-2
SLIDE 2

String Theory in the LHC Era

  • 1. Electromagnetism and

Special Relativity

  • 2. The Quantum World
  • 3. Why do we need the Higgs?
  • 4. The Standard Model and Beyond
  • 9. String Theory and Particle Physics
  • 5. Supersymmetry
  • 6. Einstein’s Gravity
  • 7. Why is Quantum Gravity so Hard?
  • 8. String Theory and Unification

2

Thursday, April 12, 12

slide-3
SLIDE 3

3

Electromagnetic Waves

Characterized by:

  • Intensity
  • Wavelength

Maxwell → fixed speed c |E|2 λ Wavelength λ

Frequency ν = c λ

Thursday, April 12, 12

slide-4
SLIDE 4

4

Photoelectric Effect

How does emission depend on

  • Intensity of beam?
  • Wavelength of beam?

Thursday, April 12, 12

slide-5
SLIDE 5

5

Photoelectric Effect

Robert Millikan

UChicago Professor!

← Wavelength λ

Thursday, April 12, 12

slide-6
SLIDE 6

6

Photoelectric Effect

At large wavelengths, no electrons emitted

→ Independent of intensity of the incident radiation

Thursday, April 12, 12

slide-7
SLIDE 7

7

Photoelectric Effect Electromagnetic waves have a ‘smallest piece’

Thursday, April 12, 12

slide-8
SLIDE 8

7

Photoelectric Effect Electromagnetic waves have a ‘smallest piece’

Thursday, April 12, 12

slide-9
SLIDE 9

7

Photoelectric Effect Electromagnetic waves have a ‘smallest piece’

Thursday, April 12, 12

slide-10
SLIDE 10

7

Photoelectric Effect Electromagnetic waves have a ‘smallest piece’ Smallest pieces - ‘quanta’

Photon energy is determined by its wavelength

h ∼ 6.626 × 10−34J · s

Planck constant

E = hc λ = hν

Thursday, April 12, 12

slide-11
SLIDE 11

8

Photoelectric Effect

Photon energy is determined by wavelength

Beam intensity ↔ # of photons

Electron interacts with one photon at a time

→ Ejected only if wavelength short enough

Wavelength, λ ↔ Energy of each photon

E = hc λ = hν

Incident light (photons)

Thursday, April 12, 12

slide-12
SLIDE 12

9

Two Important Points:

  • 1. ‘Particle-like’ behavior of light
  • 2. Correlation between energy and length scales

Energy Wavelength

E = hc λ

Thursday, April 12, 12

slide-13
SLIDE 13

10

We observe the world through scattering experiments

Wavelength of light limits distance scales that we can resolve

Thursday, April 12, 12

slide-14
SLIDE 14

10

We observe the world through scattering experiments

Wavelength of light limits distance scales that we can resolve

Thursday, April 12, 12

slide-15
SLIDE 15

10

We observe the world through scattering experiments

Wavelength of light limits distance scales that we can resolve

Thursday, April 12, 12

slide-16
SLIDE 16

10

We observe the world through scattering experiments

Wavelength of light limits distance scales that we can resolve

Thursday, April 12, 12

slide-17
SLIDE 17

11

datom

Need λ < datom to study atoms

↔ E > hc datom

Need λ < dnucleus to study atomic nucleus

↔ E > hc dnucleus dnucleus

Thursday, April 12, 12

slide-18
SLIDE 18

11

datom

Need λ < datom to study atoms

↔ E > hc datom

Need λ < dnucleus to study atomic nucleus

↔ E > hc dnucleus dnucleus

Thursday, April 12, 12

slide-19
SLIDE 19

11

datom

Need λ < datom to study atoms

↔ E > hc datom

Need λ < dnucleus to study atomic nucleus

↔ E > hc dnucleus dnucleus

Thursday, April 12, 12

slide-20
SLIDE 20

12

Must go to higher energies to probe small distance scales

LHC ∼ 10−18 cm (0.000000000000000001 cm) Strings: 10−33 cm?

Thursday, April 12, 12

slide-21
SLIDE 21

13

Waves and Particles

Sometimes light behaves like a wave.... ....and sometimes like a particle ...depends on the question we ask

Let’s examine some important wave behavior and its implications

Thursday, April 12, 12

slide-22
SLIDE 22

14

Waves and Uncertainty

A photon in this wave carries momentum p = h λ

λ

But where is it?

E = hc λ

Thursday, April 12, 12

slide-23
SLIDE 23

15

Interference Constructive Destructive

Thursday, April 12, 12

slide-24
SLIDE 24

15

Interference Constructive Destructive

Thursday, April 12, 12

slide-25
SLIDE 25

15

Interference Constructive Destructive

Thursday, April 12, 12

slide-26
SLIDE 26

15

Interference Constructive Destructive

Thursday, April 12, 12

slide-27
SLIDE 27

15

Interference Constructive Destructive Waves can ‘cancel’ one another

Thursday, April 12, 12

slide-28
SLIDE 28

16

∆x Waves and Uncertainty

Thursday, April 12, 12

slide-29
SLIDE 29

16

∆x Waves and Uncertainty

General property of waves

+ + + + ... =

∆x∆ ✓ 1 λ ◆ & 1

∆λ

Thursday, April 12, 12

slide-30
SLIDE 30

17

Heisenberg Uncertainty

Quantum Theory: Light composed of photons

∆x∆p & h

Cannot pin down position and momentum of a photon ∆x∆ ✓ 1 λ ◆ & 1

p = h λ

(more fundamental than our treatment suggests)

Thursday, April 12, 12

slide-31
SLIDE 31

18

So Far:

  • 1. Light waves composed of many quanta -- photons
  • Wave can behave like stream of particles
  • 2. Energy and momentum determined by wavelength
  • 3. Cannot pin down and to arbitrary precision

x

p

E

p

What about particles (eg electrons)? Do they behave like waves?

Thursday, April 12, 12

slide-32
SLIDE 32

19

Diffraction

Incident wave Screen Intensity Slit

I ∼ |E|2

Thursday, April 12, 12

slide-33
SLIDE 33

19

Diffraction

Incident wave Screen Intensity Slit

I ∼ |E|2

Interference!

Thursday, April 12, 12

slide-34
SLIDE 34

20

Screen Number of Electrons Slit

e− source

Electrons too!

Thursday, April 12, 12

slide-35
SLIDE 35

20

Screen Number of Electrons Slit

e− source

Electrons too!

Thursday, April 12, 12

slide-36
SLIDE 36

20

Screen Number of Electrons Slit

e− source

Electrons too!

Thursday, April 12, 12

slide-37
SLIDE 37

20

Screen Number of Electrons Slit

e− source

Electrons too!

Thursday, April 12, 12

slide-38
SLIDE 38

20

Screen Number of Electrons Slit

e− source

Electrons too!

Thursday, April 12, 12

slide-39
SLIDE 39

20

Screen Number of Electrons Slit

e− source

Electrons too!

Thursday, April 12, 12

slide-40
SLIDE 40

20

Screen Number of Electrons Slit

e− source

Electrons too!

Thursday, April 12, 12

slide-41
SLIDE 41

20

Screen Number of Electrons Slit

e− source

Electrons too!

Thursday, April 12, 12

slide-42
SLIDE 42

20

Screen Number of Electrons Slit

e− source

Electrons too!

Thursday, April 12, 12

slide-43
SLIDE 43

21

Screen Slit

e− source

Particle of momentum has an intrinsic wavelength

λ = h p

p

Number of Electrons

What is ‘waving’?

Thursday, April 12, 12

slide-44
SLIDE 44

22

Intensity

I ∼ |E|2

Slit

e− source

Number of Electrons

Intensity ⬌ # of photons Intensity profile ⬌

probability for an individual photon to hit a particular spot on the screen

Associate an abstract ‘wave function‘ to each electron

Ψ |Ψ|2 ↔ probability

Thursday, April 12, 12

slide-45
SLIDE 45

23

What is waving? Probability!

....it is a wave so we can get interference effects

Classical EM Wave ‘Electron wave’

E |E|2 Ψ |Ψ|2

Intensity Probability

Thursday, April 12, 12

slide-46
SLIDE 46

24

Double Slit Experiment

Incident wave Screen Intensity

I ∼ |E|2

Thursday, April 12, 12

slide-47
SLIDE 47

24

Double Slit Experiment

Incident wave Screen Intensity

I ∼ |E|2

Interference

Thursday, April 12, 12

slide-48
SLIDE 48

24

Double Slit Experiment

Incident wave Screen Intensity

I ∼ |E|2

Interference

Thursday, April 12, 12

slide-49
SLIDE 49

25

What about Electrons?

Screen

Interference

e− source

Probability ∼ |Ψ|2

Thursday, April 12, 12

slide-50
SLIDE 50

25

What about Electrons?

Screen

Interference

e− source

Probability ∼ |Ψ|2

Detectors

Thursday, April 12, 12

slide-51
SLIDE 51

25

What about Electrons?

Screen

e− source

Probability ∼ |Ψ|2

Detectors

Thursday, April 12, 12

slide-52
SLIDE 52

26

e− source

Detectors

Electrons passing through different slits do not interfere with one another after we add the detectors

How can we understand this?

Thursday, April 12, 12

slide-53
SLIDE 53

27

Slits Electron probability

Before measurement

Thursday, April 12, 12

slide-54
SLIDE 54

27

Slits Electron probability

After measurement

Thursday, April 12, 12

slide-55
SLIDE 55

28

Slits Electron probability

Measurement causes ‘Wave function collapse’

‘Copenhagen Interpretation’

Niels Bohr

Thursday, April 12, 12

slide-56
SLIDE 56

29

About ‘wave function collapse’.....

Wave from top slit Wave from bottom slit Direction of ‘waving’ ‘Detector state space’

Detectors

Thursday, April 12, 12

slide-57
SLIDE 57

29

About ‘wave function collapse’.....

Wave from top slit Wave from bottom slit Direction of ‘waving’ ‘Detector state space’

Detectors

Thursday, April 12, 12

slide-58
SLIDE 58

29

About ‘wave function collapse’.....

Wave from top slit Wave from bottom slit Direction of ‘waving’ ‘Detector state space’

Detectors

Thursday, April 12, 12

slide-59
SLIDE 59

29

About ‘wave function collapse’.....

Wave from top slit Wave from bottom slit Direction of ‘waving’ ‘Detector state space’

Detectors

Thursday, April 12, 12

slide-60
SLIDE 60

30

Electron passing through each slit becomes ‘entangled’ with its detector

Spoils cancellation that caused interference pattern

→ ‘Decoherence’

Detectors

Thursday, April 12, 12

slide-61
SLIDE 61

31

Decoherence is not ‘wave function collapse’.... Explains why the wave function ‘seems’ to collapse

Detectors

Interaction with environment spoils quantum ‘cancellations’, leading to ‘classical behavior’

Thursday, April 12, 12

slide-62
SLIDE 62

32

Detectors

Explains why detectors destroy the interference pattern ...but not the whole story

Thursday, April 12, 12

slide-63
SLIDE 63

33

  • 1. Particles exhibit wave-like behavior
  • Waves describe ‘probabilities’
  • 2. Particle wavelength determined by momentum
  • 3. We disturb the system when we make observations

p

Particles as Waves:

Thursday, April 12, 12

slide-64
SLIDE 64

34

‘Wave-particle duality’ forces us to take a probabilistic view

  • f nature

Thursday, April 12, 12

slide-65
SLIDE 65

35

What about relativity??? Quantum mechanics + Relativity Quantum field theory Language of particle physics

Thursday, April 12, 12

slide-66
SLIDE 66

35

What about relativity??? Sidney Coleman

(Illinois Institute of Technology alumnus!) http://www.physics.harvard.edu/about/Phys253.html http://arxiv.org/abs/1110.5013 Lecture notes: Videos:

Quantum mechanics + Relativity Quantum field theory Language of particle physics

Thursday, April 12, 12

slide-67
SLIDE 67

36

Suppose we could trap an electron... ....and then we release it

Thursday, April 12, 12

slide-68
SLIDE 68

36

Suppose we could trap an electron... ....and then we release it Light Cone

t

x

Nonzero probability to detect it here!

Quantum mechanics doesn’t care about the speed of light

Release trapped particle

Thursday, April 12, 12

slide-69
SLIDE 69

37

∆x∆p & h

∆x → 0 = ⇒ ∆p → ∞! Significant probability of huge momenta and energies in the box Enough to create new particles

  • ut of the vacuum

Thursday, April 12, 12

slide-70
SLIDE 70

37

∆x∆p & h

∆x → 0 = ⇒ ∆p → ∞! Significant probability of huge momenta and energies in the box Enough to create new particles

  • ut of the vacuum

Thursday, April 12, 12

slide-71
SLIDE 71

38

Light Cone

t

x

New particles interfere to give zero probability of detection here

Sometimes one particle comes out..... ...and sometimes several do

Thursday, April 12, 12

slide-72
SLIDE 72

39

Effect of adding relativity: Particle number is not conserved Even in vacuum!!!

Thursday, April 12, 12

slide-73
SLIDE 73

40

e− e− γ

Interaction of electron with photon

Thursday, April 12, 12

slide-74
SLIDE 74

40

e− e− γ

Interaction of electron with photon

  • r
  • r .....

Thursday, April 12, 12

slide-75
SLIDE 75

41

Must sum over all possibilities weighted by their ‘probability amplitudes’ + + + ... ...sum over histories

Richard Feynman

Thursday, April 12, 12

slide-76
SLIDE 76

42

+ + ... Quantum Electrodynamics

These diagrams determine the ‘anomalous magnetic moment’ of the electron

Thursday, April 12, 12

slide-77
SLIDE 77

42

+ + ... Quantum Electrodynamics

These diagrams determine the ‘anomalous magnetic moment’ of the electron = 1 159 652 180.73(2.8) × 10−12 = 1 159 652 175.86(8.48) × 10−12 g − 2 2 (theory) g − 2 2 (exp)

Thursday, April 12, 12

slide-78
SLIDE 78

43

Quantum Electrodynamics (QED) works incredibly well

Richard Feynman Julian Schwinger Sin-Itiro Tomonoga

L ∼ ¯ ψ (iγµDµ − m) ψ − 1 4e2 FµνF µν

Photon Electron Charge Electron mass

Thursday, April 12, 12

slide-79
SLIDE 79

44

L ∼ ¯ ψ (iγµDµ − m) ψ − 1 4e2 FµνF µν

Photon Electron Charge Electron mass

Mass without Higgs...... so why all the fuss......

Thursday, April 12, 12

slide-80
SLIDE 80

45

Next time: Why do we need the Higgs?

Thursday, April 12, 12

slide-81
SLIDE 81

46

SUMMARY

  • Electromagnetic waves can behave like streams of particles
  • Energy of ‘smallest piece’ (photon) determined by wavelength
  • Fundamental relation between energy and distance scales
  • Particles can behave like waves
  • Each particle has a Broglie wavelength determined by momentum
  • The quantity that ‘waves’ is probability
  • We are forced to take a probabilistic view of nature!
  • When we add relativity, particle number is not conserved
  • Vacuum not empty--particles popping in and out of existence
  • Must sum over all histories (Feynman diagrams)
  • Observation cannot be separated from the act of measurement
  • Measurement entangles the system we observe with our detectors

Thursday, April 12, 12
