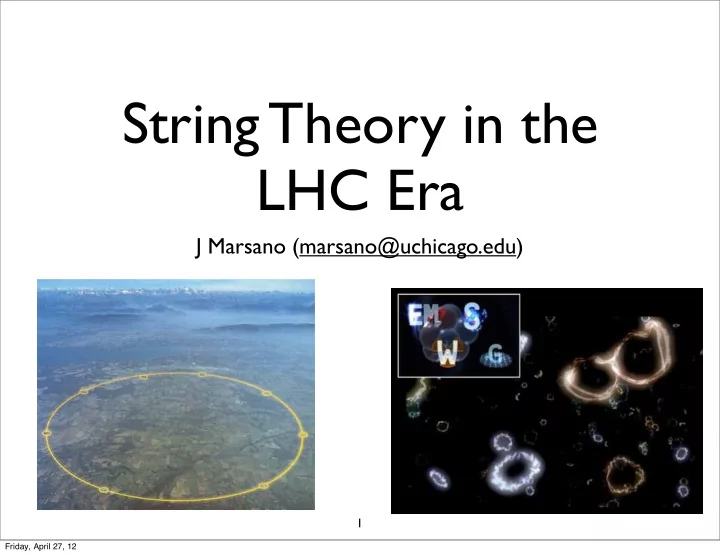

String Theory in the LHC Era J Marsano (marsano@uchicago.edu) 1 - - PowerPoint PPT Presentation
String Theory in the LHC Era J Marsano (marsano@uchicago.edu) 1 Friday, April 27, 12 String Theory in the LHC Era 1. Electromagnetism and 5. Supersymmetry Special Relativity 2. The Quantum World 6. Einsteins Gravity 3. Why do we need
1
J Marsano (marsano@uchicago.edu)
Friday, April 27, 12
Special Relativity
2
Friday, April 27, 12
3
Friday, April 27, 12
4
In lecture 2, we met Quantum Electrodynamics
Richard Feynman Julian Schwinger Sin-Itiro Tomonoga
Electrons interact by exchange
Massless force carrier
e ∼ r 4π 137
Dimensionless coupling
e− e− γ e− e−
Friday, April 27, 12
5
In lecture 3, we met the Weak Interactions e− n → p+ + e− + νe
n
p+ νe
mproton ∼ 0.938 GeV
GF ∼ 1 (300 GeV)2 ∼
2
`proton ∼ 10−13 cm
MZ ∼ 91 GeV
MW ∼ 80 GeV
νe νe Z0
n n
Friday, April 27, 12
6
Long range force
Weak bosons W ±, Z0
Short range force
Range set by 1 Mass of W ±, Z0
n νe e− p+ W −
Photon γ
Massless force carrier Massive force carriers
Friday, April 27, 12
7
Electromagnetism Weak Interactions Leptons
(electron, neutrino, and two similar pairs of particles)
Friday, April 27, 12
8
...for that matter what keeps the protons together in the nucleus of an atom?
Friday, April 27, 12
9
Hideki Yukawa
p+ n π0 p+ n
mπ0 ∼ 0.135 GeV
Yukawa proposed a ‘force carrier’--pion Very short lived particle
τπ0 ∼ 8.4 × 10−17 s π0 → γ + γ
(he didn’t call it that)
Friday, April 27, 12
10
Cosmic Rays!
Expose special photographic plates at high altitudes (on mountains or balloons)
Cecil Frank Powell
Friday, April 27, 12
11
Tevatron at Fermilab
p p
By the 1960’s, hundreds of particles were discovered that participate in Yukawa’s nuclear interaction
Friday, April 27, 12
12
By the 1960’s, hundreds of particles were discovered that participate in Yukawa’s nuclear interaction
Many ad hoc concepts introduced to explain decay patterns, masses, etc
Friday, April 27, 12
13
Interesting patterns for particles of similar mass
‘Strangeness’ Charge
Suggestive of underlying mathematical structure
Groups of 8 Groups of 10 η0 Groups of 1
Friday, April 27, 12
14
Friday, April 27, 12
15
Suppose 31 flavors was really ‘3 flavors’
You and I decide to buy two sundaes but the flavors are chosen at random 3 flavors 3 flavors
×
= 9
fUdge ripple cookie Dough Strawberry
Mine Yours How many possibilities?
Friday, April 27, 12
16
Suppose instead that both are for me
3 flavors 3 flavors
×
= 9
Mine Also mine U D D U These 2 combinations are effectively the same Less than 9 distinct combinations... how many?
fUdge ripple cookie Dough Strawberry
Friday, April 27, 12
17
3 flavors 3 flavors
×
= 9
Mine Also mine We can enumerate all possibilities
UU DD SS UD+DU US+SU DS+SD = 6
fUdge ripple cookie Dough Strawberry This set of 6 possibilities is closed under relabeling of flavors
Friday, April 27, 12
18
3 flavors 3 flavors
×
= 9
Mine Also mine Mathematicians like to divide the 9 combinations into groups that do not mix with one another under relabeling
UD+DU US+SU DS+SD UU DD SS UD-DU US-SU DS-SD
Symmetric under interchange Antisymmetric under interchange
fUdge ripple cookie Dough Strawberry
Friday, April 27, 12
18
3 flavors 3 flavors
×
= 9
Mine Also mine Mathematicians like to divide the 9 combinations into groups that do not mix with one another under relabeling
UD+DU US+SU DS+SD UU DD SS UD-DU US-SU DS-SD
Symmetric under interchange Antisymmetric under interchange
fUdge ripple cookie Dough Strawberry
Friday, April 27, 12
19
3 flavors 3 flavors
×
= 9
Mine Also mine
If we have a set of states made of 2 things that come in 3 flavors
Expect a grouping according to
this is not quite what we see in the particle zoo....
fUdge ripple cookie Dough Strawberry
Friday, April 27, 12
20
Interesting patterns for particles of similar mass
‘Strangeness’ Charge
Suggestive of underlying mathematical structure
Groups of 8 Groups of 10 η0 Groups of 1
Friday, April 27, 12
20
Interesting patterns for particles of similar mass
‘Strangeness’ Charge
Suggestive of underlying mathematical structure
Groups of 8 Groups of 10 η0 Groups of 1
Friday, April 27, 12
20
Interesting patterns for particles of similar mass
‘Strangeness’ Charge
Suggestive of underlying mathematical structure
Groups of 8 Groups of 10 η0 Groups of 1
Friday, April 27, 12
20
Interesting patterns for particles of similar mass
‘Strangeness’ Charge
Suggestive of underlying mathematical structure
Groups of 8 Groups of 10 η0 Groups of 1
Friday, April 27, 12
21
You and I invite a friend to join us for the sundae... Now how many combinations?
3 flavors 3 flavors 3 flavors
× ×
= 27
Mine Yours Our friend’s
fUdge ripple cookie Dough Strawberry
Friday, April 27, 12
22
Consider all 27 possible permutations of sundaes
UUU, UUD, UDU, DUU, UUS, USU, SUU DDD, DDU, DUD, UDD, DDS, DSD, SDD, SSS, SSU, SUS, USS, SSD, SDS, DSS, UDS, USD, DUS, DSU, SUD, SDU
Mathematicians divide the 27 combinations into groups that do not mix under relabeling
UUU+DDD+SSS
10 ‘symmetric’ combinations
UUU DDD SSS UUD+... UUS+... UDD+... USS+... DDS+... DSS+... UDS+...
Friday, April 27, 12
23
Interesting patterns for particles of similar mass
‘Strangeness’ Charge
Groups of 8 Groups of 10
Particles display pattern consistent being made of three things that come in three flavors
(mesons too if you think of 3 as product of 30s)
Friday, April 27, 12
24
‘Strangeness’ Charge
Murray Gell-Mann
3 ‘flavors’ of quark up, down, strange
Very useful organizational principle that gives order to the ‘particle zoo’
Friday, April 27, 12
25
Murray Gell-Mann
The Ω− was not previously known
Gell-Mann predicted its existence and its mass
Friday, April 27, 12
26
‘Strangeness’ Charge
Murray Gell-Mann
Quarks introduced as a mathematical tool suggested by symmetry structure and particle mass patterns
Friday, April 27, 12
27
γ e− e− e− e− γ e− e−
Is my favorite particle fundamental or composite? p+ p+
Energy is conserved
Scattering is ‘elastic’
Appears that energy is not conserved
Scattering is ‘inelastic’
Friday, April 27, 12
28
γ e− e−
Is my favorite particle fundamental or composite? p+ p+
Appears that energy is not conserved
Scattering is ‘inelastic’
u u d
p+
γ e− e−
Some initial energy deposited in proton structure
Friday, April 27, 12
29
http://hyperphysics.phy-astr.gsu.edu
Cross section (like probability)
u u d
p+
γ e− e−
At low electron energies, scattering is primarily elastic Becomes inelastic at high electron energies
Friday, April 27, 12
30
The particles of the ‘Particle Zoo’ are all quark bound states Baryons Triples of quarks Mesons Quark/anti-quark bound states No free quarks: why not?
p+
π0
Friday, April 27, 12
31
No free quarks: why not?
Friday, April 27, 12
32
Meson spectrum exhibits some ‘string-like’ features Studies of ‘quantized strings’ in 1960’s to describe mesons
picture is much more involved.....
Some problems....e.g. spin 2 excitations
Friday, April 27, 12
32
Meson spectrum exhibits some ‘string-like’ features Studies of ‘quantized strings’ in 1960’s to describe mesons
picture is much more involved.....
Some problems....e.g. spin 2 excitations
Gravity!
Friday, April 27, 12
33
No free quarks: why not?
Friday, April 27, 12
34
What if we model the ‘strong force’ between quarks by analogy with Electromagnetism and the Weak Interactions?
q q q q
g
Quark should carry a suitable ‘charge’
Ω−
Some baryons have three identical quarks ⬌ Pauli exclusion requires three ‘kinds’ of charge
‘color charge’
Friday, April 27, 12
35
What if we model the ‘strong force’ between quarks by analogy with Electromagnetism and the Weak Interactions?
q q q q
g
Ω−
Quarks carry a ‘color charge’...red, green, blue
→ there are 8 types of gluon (rg, rb, etc)
Friday, April 27, 12
36
q q q q
g
Ω−
Friday, April 27, 12
37
As an example, consider QED (electromagnetism)
Interaction receives quantum corrections
Friday, April 27, 12
38
Electromagnetic interaction weaker at long distances (low energies) and stronger at short distances (high energies)
Strength of Electromagnetic interaction depends on distance scale
αem ∼ e2 4π Energy scale
Friday, April 27, 12
39
q q q q
Interaction of quarks with gluons receives many quantum corrections
q q
g g g
Because there are 8 gluons, they can interact with one another This is unlike QED, where there is
interaction
Friday, April 27, 12
39
q q q q
Interaction of quarks with gluons receives many quantum corrections
q q
g g g
Because there are 8 gluons, they can interact with one another This is unlike QED, where there is
interaction
Friday, April 27, 12
40
David Gross H David Politzer Frank Wilczek
QCD is strong at large distances (low energies) but weak at small distances (large energies)
Friday, April 27, 12
41
Friday, April 27, 12
41
Friday, April 27, 12
41
Friday, April 27, 12
41
Friday, April 27, 12
41
Separating quarks requires so much energy that we make a quark/anti-quark pair if we try to separate them
Friday, April 27, 12
42
Electromagnetism Strong nuclear force Weak nuclear force
(electrons and neutrinos)
Friday, April 27, 12
43
Electromagnetism Strong nuclear force Weak nuclear force Leptons (electrons and neutrinos) Quarks
All particle masses from coupling to Higgs
Friday, April 27, 12
43
Electromagnetism Strong nuclear force Weak nuclear force Leptons (electrons and neutrinos) Quarks
All particle masses from coupling to Higgs
Photon massless long range force Gluons massless but many
W and Z bosons massive short range force Quark and lepton masses from Higgs
Friday, April 27, 12
44
with probability) around 1 TeV without the Higgs
Friday, April 27, 12
45
A Toroidal Lhc ApparatuS Compact Muon Solenoid
Friday, April 27, 12
46
Image from CDF website
p p
Friday, April 27, 12
47
Image from CDF website
h → γγ
Friday, April 27, 12
48
Friday, April 27, 12
48
Friday, April 27, 12
49
[GeV]
H
m 110 115 120 125 130 135 140 145 150
SM
10 1 10 Obs. Exp.
±
± = 7 TeV s
Ldt = 4.6-4.9 fb
2011 Data CLs Limits
Higgs boson mass (GeV)
110 115 120 125 130 135 140 145
S
CL
10
10
10 1
90% 95% 99%
L = 4.6-4.8 fb = 7 TeV s CMS,
Observed Expected (68%) Expected (95%)
Friday, April 27, 12
50
Friday, April 27, 12
51
Inverse electromagnetic coupling Inverse weak interaction coupling Inverse QCD coupling
At high energies, electromagnetic coupling becomes large
→ Some new physics must be waiting there.....
Friday, April 27, 12
51
Inverse electromagnetic coupling Inverse weak interaction coupling Inverse QCD coupling Grand Unification?
At high energies, electromagnetic coupling becomes large
→ Some new physics must be waiting there.....
Friday, April 27, 12
52
Why?
Friday, April 27, 12
53
Energy Scales
1018 GeV 10−3 GeV
Quantum gravity Weak scale Proton mass Electron mass
16 orders of magnitude
1 GeV 102 GeV
Where did this large scale separation come from?
Higgs boson breaks electroweak symmetry Generates mass for W and Z bosons
Friday, April 27, 12
54
Energy Scales
1018 GeV 10−3 GeV
Quantum gravity Weak scale Proton mass Electron mass
16 orders of magnitude
1 GeV 102 GeV
Determined by ‘infinite’ quantum corrections that must be dealt with Will have much more to say about infinities in coming lectures....for now this hierarchy of scales requires excessive ‘fine-tuning’
Friday, April 27, 12
55
Many ideas for physics Beyond the Standard Model....
Inverse electromagnetic coupling Inverse weak interaction coupling Inverse QCD coupling Grand Unification?
Unification improves significantly with ‘Supersymmetry’....
Friday, April 27, 12
56
Friday, April 27, 12
57
interacting particles
Friday, April 27, 12
