Stochastic Differential Dynamic Logic for Stochastic Hybrid Systems Andr e Platzer Logical Systems Lab Carnegie Mellon University, Pittsburgh, PA 0.5 0.4 0.3 0.2 1.0 0.1 0.8 0.6 0.4 0.2 Andr e Platzer (CMU) Stochastic

slide-1
SLIDE 1

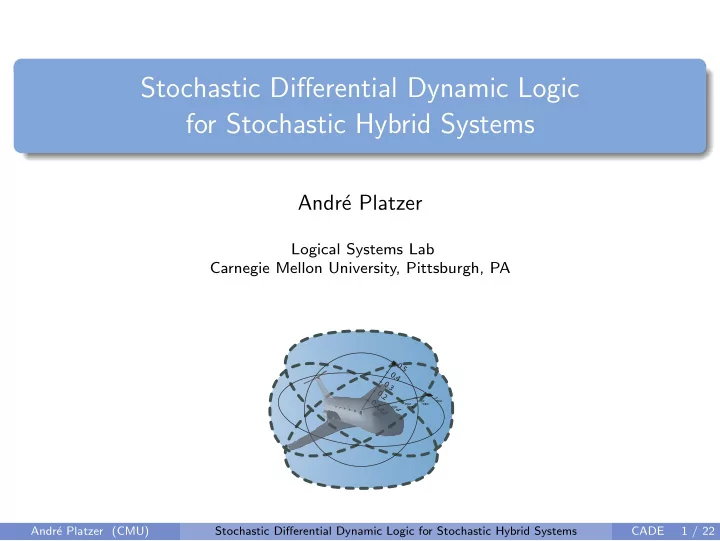

Stochastic Differential Dynamic Logic for Stochastic Hybrid Systems

Andr´ e Platzer

Logical Systems Lab Carnegie Mellon University, Pittsburgh, PA

0.2 0.4 0.6 0.8 1.0

0.1 0.2 0.3 0.4 0.5

Andr´ e Platzer (CMU) Stochastic Differential Dynamic Logic for Stochastic Hybrid Systems CADE 1 / 22

slide-2
SLIDE 2

Outline

1

Motivation

2

Stochastic Differential Dynamic Logic SdL Design Stochastic Differential Equations Syntax Semantics Well-definedness

3

Stochastic Differential Dynamic Logic Syntax Semantics Well-definedness

4

Proof Calculus for Stochastic Hybrid Systems Compositional Proof Calculus Soundness

5

Conclusions

Andr´ e Platzer (CMU) Stochastic Differential Dynamic Logic for Stochastic Hybrid Systems CADE 1 / 22

slide-3
SLIDE 3

Cyber-Physical Systems:

Q: I want to verify trains

Challenge

Andr´ e Platzer (CMU) Stochastic Differential Dynamic Logic for Stochastic Hybrid Systems CADE 2 / 22

slide-4
SLIDE 4

Cyber-Physical Systems: Hybrid Systems

Q: I want to verify trains A: Hybrid systems

Challenge (Hybrid Systems)

Continuous dynamics (differential equations) Discrete dynamics (control decisions)

1 2 3 4 t 2 1 1 2 a 1 2 3 4 t 0.5 1.0 1.5 2.0 2.5 3.0 v 1 2 3 4 t 1 2 3 4 5 6 z

Andr´ e Platzer (CMU) Stochastic Differential Dynamic Logic for Stochastic Hybrid Systems CADE 2 / 22

slide-5
SLIDE 5

Cyber-Physical Systems: Hybrid Systems

Q: I want to verify trains A: Hybrid systems Q: But there’s uncertainties!

Challenge (Hybrid Systems)

Continuous dynamics (differential equations) Discrete dynamics (control decisions)

1 2 3 4 t 2 1 1 2 a 1 2 3 4 t 0.5 1.0 1.5 2.0 2.5 3.0 v 1 2 3 4 t 1 2 3 4 5 6 z

Andr´ e Platzer (CMU) Stochastic Differential Dynamic Logic for Stochastic Hybrid Systems CADE 2 / 22

slide-6
SLIDE 6

Cyber-Physical Systems:

Q: I want to verify uncertain trains

Challenge

Andr´ e Platzer (CMU) Stochastic Differential Dynamic Logic for Stochastic Hybrid Systems CADE 3 / 22

slide-7
SLIDE 7

Cyber-Physical Systems: Probabilistic Systems

Q: I want to verify uncertain trains A: Markov chains

Challenge (Probabilistic Systems)

Directed graph (Countable state space) Weighted edges (Transition probabilities)

0.3 0.7 0.3 0.3 0.5 0.5 0.9 0.1 0.4 0.4 1.0 0.7 0.3 0.5 0.8 0.2 1.0 1.0 0.1

1.0 0.3 0.2 0.5 0.3 0.7

0.4 0.3 0.8 1.0 0.4 1.0 0.6 0.5 1.0 0.5 1.0 1.0 0.2 1.0 0.3

Andr´ e Platzer (CMU) Stochastic Differential Dynamic Logic for Stochastic Hybrid Systems CADE 3 / 22

slide-8
SLIDE 8

Cyber-Physical Systems: Probabilistic Systems

Q: I want to verify uncertain trains A: Markov chains Q: But trains move!

Challenge (Probabilistic Systems)

Directed graph (Countable state space) Weighted edges (Transition probabilities)

0.3 0.7 0.3 0.3 0.5 0.5 0.9 0.1 0.4 0.4 1.0 0.7 0.3 0.5 0.8 0.2 1.0 1.0 0.1

1.0 0.3 0.2 0.5 0.3 0.7

0.4 0.3 0.8 1.0 0.4 1.0 0.6 0.5 1.0 0.5 1.0 1.0 0.2 1.0 0.3

Andr´ e Platzer (CMU) Stochastic Differential Dynamic Logic for Stochastic Hybrid Systems CADE 3 / 22

slide-9
SLIDE 9

Cyber-Physical Systems:

Q: I want to verify uncertain trains

Challenge

Andr´ e Platzer (CMU) Stochastic Differential Dynamic Logic for Stochastic Hybrid Systems CADE 4 / 22

slide-10
SLIDE 10

Cyber-Physical Systems: Stochastic Hybrid Systems

Q: I want to verify uncertain trains A: Stochastic hybrid systems

Challenge (Stochastic Hybrid Systems)

Continuous dynamics (differential equations) Discrete dynamics (control decisions) Stochastic dynamics (uncertainty)

Andr´ e Platzer (CMU) Stochastic Differential Dynamic Logic for Stochastic Hybrid Systems CADE 4 / 22

slide-11
SLIDE 11

Cyber-Physical Systems: Stochastic Hybrid Systems

Q: I want to verify uncertain trains A: Stochastic hybrid systems

Challenge (Stochastic Hybrid Systems)

Continuous dynamics (differential equations) Discrete dynamics (control decisions) Stochastic dynamics (uncertainty) Discrete stochastic (lossy communication) Continuous stochastic (wind, track)

z v m

Andr´ e Platzer (CMU) Stochastic Differential Dynamic Logic for Stochastic Hybrid Systems CADE 4 / 22

slide-12
SLIDE 12

Cyber-Physical Systems: Stochastic Hybrid Systems

Q: I want to verify uncertain trains A: Stochastic hybrid systems Q: How?

Challenge (Stochastic Hybrid Systems)

Continuous dynamics (differential equations) Discrete dynamics (control decisions) Stochastic dynamics (uncertainty) Discrete stochastic (lossy communication) Continuous stochastic (wind, track)

z v m

Andr´ e Platzer (CMU) Stochastic Differential Dynamic Logic for Stochastic Hybrid Systems CADE 4 / 22

slide-13
SLIDE 13

Contributions

1 System model and semantics for stochastic hybrid systems: SHP 2 Prove semantic processes are adapted and a.s. c`

adl` ag

3 Prove natural process stopping times are Markov times 4 Specification and verification logic: SdL 5 Prove measurability of SdL semantics ⇒ probabilities well-defined 6 Proof rules for SdL 7 Sound Dynkin use of infinitesimal generators of SDEs 8 First compositional verification for stochastic hybrid systems 9 Logical foundation for analysis of stochastic hybrid systems Andr´ e Platzer (CMU) Stochastic Differential Dynamic Logic for Stochastic Hybrid Systems CADE 5 / 22

slide-14
SLIDE 14

Outline

1

Motivation

2

Stochastic Differential Dynamic Logic SdL Design Stochastic Differential Equations Syntax Semantics Well-definedness

3

Stochastic Differential Dynamic Logic Syntax Semantics Well-definedness

4

Proof Calculus for Stochastic Hybrid Systems Compositional Proof Calculus Soundness

5

Conclusions

Andr´ e Platzer (CMU) Stochastic Differential Dynamic Logic for Stochastic Hybrid Systems CADE 5 / 22

slide-15
SLIDE 15

Outline (Conceptual Approach)

1

Motivation

2

Stochastic Differential Dynamic Logic SdL Design Stochastic Differential Equations Syntax Semantics Well-definedness

3

Stochastic Differential Dynamic Logic Syntax Semantics Well-definedness

4

Proof Calculus for Stochastic Hybrid Systems Compositional Proof Calculus Soundness

5

Conclusions

Andr´ e Platzer (CMU) Stochastic Differential Dynamic Logic for Stochastic Hybrid Systems CADE 5 / 22

slide-16
SLIDE 16

Model for Stochastic Hybrid Systems

d i s c r e t e

a := −b

Andr´ e Platzer (CMU) Stochastic Differential Dynamic Logic for Stochastic Hybrid Systems CADE 6 / 22

slide-17
SLIDE 17

Model for Stochastic Hybrid Systems

d i s c r e t e c

  • n

t i n u

  • u

s

a := −b

d2x dt2 = a

Andr´ e Platzer (CMU) Stochastic Differential Dynamic Logic for Stochastic Hybrid Systems CADE 6 / 22

slide-18
SLIDE 18

Model for Stochastic Hybrid Systems

d i s c r e t e c

  • n

t i n u

  • u

s s t

  • c

h a s t i c

a := −b

d2x dt2 = a 1 3a := −b ⊕ 2 3a := a + 1

Andr´ e Platzer (CMU) Stochastic Differential Dynamic Logic for Stochastic Hybrid Systems CADE 6 / 22

slide-19
SLIDE 19

Model for Stochastic Hybrid Systems

d i s c r e t e c

  • n

t i n u

  • u

s s t

  • c

h a s t i c

a := −b

d2x dt2 = a 1 3a := −b ⊕ 2 3a := a + 1

a := −b; d2x

dt2 = a

Andr´ e Platzer (CMU) Stochastic Differential Dynamic Logic for Stochastic Hybrid Systems CADE 6 / 22

slide-20
SLIDE 20

Model for Stochastic Hybrid Systems

d i s c r e t e c

  • n

t i n u

  • u

s s t

  • c

h a s t i c

a := −b

d2x dt2 = a 1 3a := −b ⊕ 2 3a := a + 1

a := −b; d2x

dt2 = a

a := ∗

Andr´ e Platzer (CMU) Stochastic Differential Dynamic Logic for Stochastic Hybrid Systems CADE 6 / 22

slide-21
SLIDE 21

Model for Stochastic Hybrid Systems

d i s c r e t e c

  • n

t i n u

  • u

s s t

  • c

h a s t i c

a := −b

d2x dt2 = a 1 3a := −b ⊕ 2 3a := a + 1

a := −b; d2x

dt2 = a

a := ∗ dX = bdt + σdW

Andr´ e Platzer (CMU) Stochastic Differential Dynamic Logic for Stochastic Hybrid Systems CADE 6 / 22

slide-22
SLIDE 22

Model for Stochastic Hybrid Systems

d i s c r e t e c

  • n

t i n u

  • u

s s t

  • c

h a s t i c

a := −b

d2x dt2 = a 1 3a := −b ⊕ 2 3a := a + 1

a := −b; d2x

dt2 = a

a := ∗ dX = bdt + σdW SHS

Andr´ e Platzer (CMU) Stochastic Differential Dynamic Logic for Stochastic Hybrid Systems CADE 6 / 22

slide-23
SLIDE 23

Model for Stochastic Hybrid Systems

Q: How to model stochastic hybrid systems

Model (Stochastic Hybrid Systems)

Andr´ e Platzer (CMU) Stochastic Differential Dynamic Logic for Stochastic Hybrid Systems CADE 7 / 22

slide-24
SLIDE 24

Model for Stochastic Hybrid Systems

Q: How to model stochastic hybrid systems

Model (Stochastic Hybrid Systems)

Discrete dynamics (control decisions) a := −b Continuous dynamics (differential equations) Stochastic dynamics (structural)

Andr´ e Platzer (CMU) Stochastic Differential Dynamic Logic for Stochastic Hybrid Systems CADE 7 / 22

slide-25
SLIDE 25

Model for Stochastic Hybrid Systems

Q: How to model stochastic hybrid systems

Model (Stochastic Hybrid Systems)

Discrete dynamics (control decisions) a := −b Continuous dynamics (differential equations) x′′ = a Stochastic dynamics (structural)

Andr´ e Platzer (CMU) Stochastic Differential Dynamic Logic for Stochastic Hybrid Systems CADE 7 / 22

slide-26
SLIDE 26

Model for Stochastic Hybrid Systems

Q: How to model stochastic hybrid systems

Model (Stochastic Hybrid Systems)

Discrete dynamics (control decisions) a := −b Continuous dynamics (differential equations) x′′ = a Stochastic dynamics (structural)

1 3a := −b ⊕ 2 3a := a + 1

Andr´ e Platzer (CMU) Stochastic Differential Dynamic Logic for Stochastic Hybrid Systems CADE 7 / 22

slide-27
SLIDE 27

Model for Stochastic Hybrid Systems

Q: How to model stochastic hybrid systems

Model (Stochastic Hybrid Systems)

Discrete dynamics (control decisions) a := −b a := ∗ Continuous dynamics (differential equations) x′′ = a Stochastic dynamics (structural)

1 3a := −b ⊕ 2 3a := a + 1

Andr´ e Platzer (CMU) Stochastic Differential Dynamic Logic for Stochastic Hybrid Systems CADE 7 / 22

slide-28
SLIDE 28

Model for Stochastic Hybrid Systems

Q: How to model stochastic hybrid systems

Model (Stochastic Hybrid Systems)

Discrete dynamics (control decisions) a := −b a := ∗ Continuous dynamics (differential equations) x′′ = a dx = adt + σdW Stochastic dynamics (structural)

1 3a := −b ⊕ 2 3a := a + 1

Andr´ e Platzer (CMU) Stochastic Differential Dynamic Logic for Stochastic Hybrid Systems CADE 7 / 22

slide-29
SLIDE 29

Model for Stochastic Hybrid Systems

Q: How to model stochastic hybrid systems A: Stochastic Hybrid Programs

Model (Stochastic Hybrid Systems)

Discrete dynamics (control decisions) a := −b a := ∗ Continuous dynamics (differential equations) x′′ = a dx = adt + σdW Stochastic dynamics (structural)

1 3a := −b ⊕ 2 3a := a + 1

Andr´ e Platzer (CMU) Stochastic Differential Dynamic Logic for Stochastic Hybrid Systems CADE 7 / 22

slide-30
SLIDE 30

Stochastic Differential Equations (SDE)

Definition (Ordinary differential equation (ODE))

dx(t) dt = b(x(t)) x(0) = x0 t x

dx(t) dt

= 1 x0 + t

Definition (It¯

  • stochastic differential equation (SDE))

dXt = b(Xt)dt + σ(Xt)dWt X0 = Z

0.2 0.4 0.6 0.8 1.0

  • 1

1 2 0.2 0.4 0.6 0.8 1.0 1 1 2

  • Andr´

e Platzer (CMU) Stochastic Differential Dynamic Logic for Stochastic Hybrid Systems CADE 8 / 22

slide-31
SLIDE 31

Stochastic Differential Equations (SDE)

Definition (Ordinary differential equation (ODE))

dx(t) dt = b(x(t)) x(0) = x0 t x

dx(t) dt

= 1 x0 + t

Definition (It¯

  • stochastic differential equation (SDE))

Xs = Z + s dXt = Z + s b(Xt)dt + s σ(Xt)dWt

0.2 0.4 0.6 0.8 1.0

  • 1

1 2 0.2 0.4 0.6 0.8 1.0 1 1 2

  • Andr´

e Platzer (CMU) Stochastic Differential Dynamic Logic for Stochastic Hybrid Systems CADE 8 / 22

slide-32
SLIDE 32

Stochastic Differential Equations (SDE)

Definition (Ordinary differential equation (ODE))

dx(t) dt = b(x(t)) x(0) = x0 t x

dx(t) dt

= 1 x0 + t

Definition (It¯

  • stochastic differential equation (SDE))

Xs = Z + s dXt = Z + s b(Xt)dt + s σ(Xt)dWt

0.2 0.4 0.6 0.8 1.0

  • 1

1 2 0.2 0.4 0.6 0.8 1.0 1 1 2

  • Calculus

Andr´ e Platzer (CMU) Stochastic Differential Dynamic Logic for Stochastic Hybrid Systems CADE 8 / 22

slide-33
SLIDE 33

Stochastic Differential Equations (SDE)

Definition (Ordinary differential equation (ODE))

dx(t) dt = b(x(t)) x(0) = x0 t x

dx(t) dt

= 1 x0 + t

Definition (It¯

  • stochastic differential equation (SDE))

Xs = Z + s dXt = Z + s b(Xt)dt + s σ(Xt)dWt

0.2 0.4 0.6 0.8 1.0

  • 1

1 2 0.2 0.4 0.6 0.8 1.0 1 1 2

  • Calculus

Andr´ e Platzer (CMU) Stochastic Differential Dynamic Logic for Stochastic Hybrid Systems CADE 8 / 22

slide-34
SLIDE 34

Brownian Motion is Extremely Complex

Definition (Brownian motion W ⇒ end of calculus)

1 W0 = 0

(start at 0)

2 Wt almost surely continuous 3 Wt − Ws ∼ N(0, t − s)

(independent normal increments) ⇒ a.s. continuous everywhere but nowhere differentiable ⇒ a.s. unbounded variation, ∈ FV, nonmonotonic on every interval

Andr´ e Platzer (CMU) Stochastic Differential Dynamic Logic for Stochastic Hybrid Systems CADE 9 / 22

slide-35
SLIDE 35

Brownian Motion is Extremely Complex

Definition (Brownian motion W ⇒ end of calculus)

1 W0 = 0

(start at 0)

2 Wt almost surely continuous 3 Wt − Ws ∼ N(0, t − s)

(independent normal increments) ⇒ a.s. continuous everywhere but nowhere differentiable ⇒ a.s. unbounded variation, ∈ FV, nonmonotonic on every interval

Andr´ e Platzer (CMU) Stochastic Differential Dynamic Logic for Stochastic Hybrid Systems CADE 9 / 22

slide-36
SLIDE 36

Stochastic Hybrid Programs: Syntax

Definition (Stochastic hybrid program α)

x := θ (assignment)

  • jump & test

x := ∗ (random assignment) ?H (conditional execution) dx = bdt + σdW & H (SDE) α; β (seq. composition)

  • algebra

λα ⊕ νβ (convex combination) α∗ (nondet. repetition)

Andr´ e Platzer (CMU) Stochastic Differential Dynamic Logic for Stochastic Hybrid Systems CADE 10 / 22

slide-37
SLIDE 37

What is the Semantics of a Stochastic Hybrid Program?

Usual semantics of system is transition relation ⊆ Rd × Rd on states

Andr´ e Platzer (CMU) Stochastic Differential Dynamic Logic for Stochastic Hybrid Systems CADE 11 / 22

slide-38
SLIDE 38

What is the Semantics of a Stochastic Hybrid Program?

Usual semantics of system is transition relation ⊆ Rd × Rd on states This does not work here, because we lose stochastic information Idea: Start at initial value described by random variable Z : Ω → Rd

Andr´ e Platzer (CMU) Stochastic Differential Dynamic Logic for Stochastic Hybrid Systems CADE 11 / 22

slide-39
SLIDE 39

What is the Semantics of a Stochastic Hybrid Program?

Usual semantics of system is transition relation ⊆ Rd × Rd on states This does not work here, because we lose stochastic information Idea: Start at initial value described by random variable Z : Ω → Rd Semantics of program α is stochastic process generator [ [α] ] : (Ω → Rd) → ([0, ∞) × Ω → Rd) giving stochastic process [ [α] ]Z : [0, ∞) × Ω → Rd for each Z

Andr´ e Platzer (CMU) Stochastic Differential Dynamic Logic for Stochastic Hybrid Systems CADE 11 / 22

slide-40
SLIDE 40

What is the Semantics of a Stochastic Hybrid Program?

Usual semantics of system is transition relation ⊆ Rd × Rd on states This does not work here, because we lose stochastic information Idea: Start at initial value described by random variable Z : Ω → Rd Semantics of program α is stochastic process generator [ [α] ] : (Ω → Rd) → ([0, ∞) × Ω → Rd) giving stochastic process [ [α] ]Z : [0, ∞) × Ω → Rd for each Z When does a stochastic process stop? Semantics of program α includes stopping time generator ( |α| ) : (Ω → Rd) → (Ω → R) giving stopping time ( |α| )Z : Ω → R for each Z

Andr´ e Platzer (CMU) Stochastic Differential Dynamic Logic for Stochastic Hybrid Systems CADE 11 / 22

slide-41
SLIDE 41

Stochastic Hybrid Program: Process Semantics

Z Xt [ [xi := θ] ]Z xi . = [ [θ] ]Z

Definition (Stochastic hybrid program α: process semantics )

[ [xi := θ] ]Z = ˆ Y Y (ω)i = [ [θ] ]Z(ω) and Yj = Zj (for j = i) ( |xi := θ| )Z = 0 t x Z Xt if Xti = [ [θ] ]Z and Xtj = Zj for j = i

Andr´ e Platzer (CMU) Stochastic Differential Dynamic Logic for Stochastic Hybrid Systems CADE 12 / 22

slide-42
SLIDE 42

Stochastic Hybrid Program: Process Semantics

Z Xt [ [xi := ∗] ]Z xi ∼ U(0, 1)

Definition (Stochastic hybrid program α: process semantics )

[ [xi := ∗] ]Z = ˆ U Ui ∼ U(0, 1) i.i.d. F0-measurable ( |xi := ∗| )Z = 0 t x Z Xt Xt if Xti ∼ U(0, 1) and Xt(z) = Z(z) for z = x

Andr´ e Platzer (CMU) Stochastic Differential Dynamic Logic for Stochastic Hybrid Systems CADE 12 / 22

slide-43
SLIDE 43

Stochastic Hybrid Program: Process Semantics

Z [ [?H] ]Z

  • n {Z |

= H}

Definition (Stochastic hybrid program α: process semantics )

[ [?H] ]Z = ˆ Z

  • n the event {Z |

= H} ( |?H| )Z = 0 t x Z no change on {Z | = H}

  • therwise not defined

Andr´ e Platzer (CMU) Stochastic Differential Dynamic Logic for Stochastic Hybrid Systems CADE 12 / 22

slide-44
SLIDE 44

Stochastic Hybrid Program: Process Semantics

Z Xt [ [dx = bdt + σdW & H] ]Z

Definition (Stochastic hybrid program α: process semantics )

[ [dx = bdt + σdW & H] ]Z solves dX = [ [b] ]Xdt + [ [σ] ]XdBt, X0 = Z ( |dx = bdt + σdW & H| )Z = inf{t ≥ 0 : Xt ∈ H} t x H Z Xt dx = bdt + σdW & H

Andr´ e Platzer (CMU) Stochastic Differential Dynamic Logic for Stochastic Hybrid Systems CADE 12 / 22

slide-45
SLIDE 45

Stochastic Hybrid Program: Process Semantics

Z Xt Xt [ [α] ]Z [ [β] ]Z [ [λα ⊕ νβ] ]Z

Definition (Stochastic hybrid program α: process semantics )

[ [λα ⊕ νβ] ]Z = IU≤λ[ [α] ]Z + IU>λ[ [β] ]Z =

  • [

[α] ]Z

  • n event {U ≤ λ}

[ [β] ]Z

  • n event {U > λ}

( |λα ⊕ νβ| )Z = IU≤λ( |α| )Z + IU>λ( |β| )Zwith i.i.d. U ∼ U(0, 1), F0-meas t x Z Xt Xt

Andr´ e Platzer (CMU) Stochastic Differential Dynamic Logic for Stochastic Hybrid Systems CADE 12 / 22

slide-46
SLIDE 46

Stochastic Hybrid Program: Process Semantics

Z s Xt [ [α; β] ]Z [ [α] ]Z [ [β] ]Z

Definition (Stochastic hybrid program α: process semantics )

[ [α; β] ]Z

t =

   [ [α] ]Z

t

  • n event {t < (

|α| )Z} [ [β] ]

[ [α] ]Z

( |α| )Z

t−( |α| )Z

  • n event {t ≥ (

|α| )Z} ( |α; β| )Z = ( |α| )Z + ( |β| )

[ [α] ]Z

( |α| )Z

t x Z s Xt

Andr´ e Platzer (CMU) Stochastic Differential Dynamic Logic for Stochastic Hybrid Systems CADE 12 / 22

slide-47
SLIDE 47

Stochastic Hybrid Program: Process Semantics

Z s1 s2 sn Xt [ [α∗] ]Z [ [α] ]Z [ [α] ]Z [ [α] ]Z

Definition (Stochastic hybrid program α: process semantics )

[ [α∗] ]Z

t = [

[αn] ]Z

t on event {(

|αn| )Z > t} ( |α∗| )Z = lim

n→∞ (

|αn| )Z t x Z Xt

Andr´ e Platzer (CMU) Stochastic Differential Dynamic Logic for Stochastic Hybrid Systems CADE 12 / 22

slide-48
SLIDE 48

Stochastic Hybrid Program: Process Semantics

Z s1 s2 sn Xt [ [α∗] ]Z [ [α] ]Z [ [α] ]Z [ [α] ]Z

Definition (Stochastic hybrid program α: process semantics )

[ [α∗] ]Z

t = [

[αn] ]Z

t on event {(

|αn| )Z > t} ( |α∗| )Z = lim

n→∞ (

|αn| )Z monotone! t x Z Xt

Andr´ e Platzer (CMU) Stochastic Differential Dynamic Logic for Stochastic Hybrid Systems CADE 12 / 22

slide-49
SLIDE 49

Well-definedness of Stochastic Process Semantics

Theorem

1 [

[α] ]Z is a.s. c` adl` ag and adapted (to completed filtration (Ft) generated by Z, (Ws)s≤t, U)

2 (

|α| )Z is a Markov time / stopping time (i.e., {( |α| )Z ≤ t} ∈ Ft) ⇒ End value [ [α] ]Z

( |α| )Z is F( |α| )Z -measurable.

Andr´ e Platzer (CMU) Stochastic Differential Dynamic Logic for Stochastic Hybrid Systems CADE 13 / 22

slide-50
SLIDE 50

Outline

1

Motivation

2

Stochastic Differential Dynamic Logic SdL Design Stochastic Differential Equations Syntax Semantics Well-definedness

3

Stochastic Differential Dynamic Logic Syntax Semantics Well-definedness

4

Proof Calculus for Stochastic Hybrid Systems Compositional Proof Calculus Soundness

5

Conclusions

Andr´ e Platzer (CMU) Stochastic Differential Dynamic Logic for Stochastic Hybrid Systems CADE 13 / 22

slide-51
SLIDE 51

Stochastic Differential Dynamic Logic SdL: Syntax

Definition (SdL term f )

F (primitive measurable function, e.g., characteristic IA) λf + νg (linear term) Bf (scalar term for boolean term B) αf (reachable)

Definition (SdL formula φ)

φ ::= f ≤ g | f = g

Andr´ e Platzer (CMU) Stochastic Differential Dynamic Logic for Stochastic Hybrid Systems CADE 14 / 22

slide-52
SLIDE 52

What is the Semantics of SdL?

Semantics of classical logics maps interpretations to truth-values.

Andr´ e Platzer (CMU) Stochastic Differential Dynamic Logic for Stochastic Hybrid Systems CADE 15 / 22

slide-53
SLIDE 53

What is the Semantics of SdL?

Semantics of classical logics maps interpretations to truth-values. This does not work for SdL, because state evolution of α in αf is stochastic.

Andr´ e Platzer (CMU) Stochastic Differential Dynamic Logic for Stochastic Hybrid Systems CADE 15 / 22

slide-54
SLIDE 54

What is the Semantics of SdL?

Semantics of classical logics maps interpretations to truth-values. This does not work for SdL, because state evolution of α in αf is stochastic. Semantics of SdL is stochastic. Semantics of SdL is a random variable generator [ [f ] ] : (Ω → Rd) → (Ω → R) giving a random variable [ [f ] ]Z : Ω → R for each initial state random variable Z

Andr´ e Platzer (CMU) Stochastic Differential Dynamic Logic for Stochastic Hybrid Systems CADE 15 / 22

slide-55
SLIDE 55

Stochastic Differential Dynamic Logic SdL: Semantics

Definition (Measurable semantics)

Andr´ e Platzer (CMU) Stochastic Differential Dynamic Logic for Stochastic Hybrid Systems CADE 16 / 22

slide-56
SLIDE 56

Stochastic Differential Dynamic Logic SdL: Semantics

Definition (Measurable semantics)

[ [F] ]Z = F ℓ(Z) i.e., [ [F] ]Z(ω) = F ℓ(Z(ω))

Andr´ e Platzer (CMU) Stochastic Differential Dynamic Logic for Stochastic Hybrid Systems CADE 16 / 22

slide-57
SLIDE 57

Stochastic Differential Dynamic Logic SdL: Semantics

Definition (Measurable semantics)

[ [F] ]Z = F ℓ(Z) i.e., [ [F] ]Z(ω) = F ℓ(Z(ω)) [ [λf + νg] ]Z = λ[ [f ] ]Z + ν[ [g] ]Z

Andr´ e Platzer (CMU) Stochastic Differential Dynamic Logic for Stochastic Hybrid Systems CADE 16 / 22

slide-58
SLIDE 58

Stochastic Differential Dynamic Logic SdL: Semantics

Definition (Measurable semantics)

[ [F] ]Z = F ℓ(Z) i.e., [ [F] ]Z(ω) = F ℓ(Z(ω)) [ [λf + νg] ]Z = λ[ [f ] ]Z + ν[ [g] ]Z [ [Bf ] ]Z = [ [B] ]Z ∗ [ [f ] ]Z i.e., [ [Bf ] ]Z(ω) = [ [B] ]Z(ω)[ [f ] ]Z(ω)

Andr´ e Platzer (CMU) Stochastic Differential Dynamic Logic for Stochastic Hybrid Systems CADE 16 / 22

slide-59
SLIDE 59

Stochastic Differential Dynamic Logic SdL: Semantics

Definition (Measurable semantics)

[ [F] ]Z = F ℓ(Z) i.e., [ [F] ]Z(ω) = F ℓ(Z(ω)) [ [λf + νg] ]Z = λ[ [f ] ]Z + ν[ [g] ]Z [ [Bf ] ]Z = [ [B] ]Z ∗ [ [f ] ]Z i.e., [ [Bf ] ]Z(ω) = [ [B] ]Z(ω)[ [f ] ]Z(ω) [ [αf ] ]Z = sup{[ [f ] ][

[α] ]Z

t

: 0 ≤ t ≤ ( |α| )Z}

Andr´ e Platzer (CMU) Stochastic Differential Dynamic Logic for Stochastic Hybrid Systems CADE 16 / 22

slide-60
SLIDE 60

Stochastic Differential Dynamic Logic SdL: Semantics

Definition (Measurable semantics)

[ [F] ]Z = F ℓ(Z) i.e., [ [F] ]Z(ω) = F ℓ(Z(ω)) [ [λf + νg] ]Z = λ[ [f ] ]Z + ν[ [g] ]Z [ [Bf ] ]Z = [ [B] ]Z ∗ [ [f ] ]Z i.e., [ [Bf ] ]Z(ω) = [ [B] ]Z(ω)[ [f ] ]Z(ω) [ [αf ] ]Z = sup{[ [f ] ][

[α] ]Z

t

: 0 ≤ t ≤ ( |α| )Z} t x Z Xt [ [αf ] ]Z

Andr´ e Platzer (CMU) Stochastic Differential Dynamic Logic for Stochastic Hybrid Systems CADE 16 / 22

slide-61
SLIDE 61

Well-definedness of SdL Semantics

Theorem (Measurable)

[ [f ] ]Z is a random variable (i.e., measurable) for any random variable Z and SdL term f .

Andr´ e Platzer (CMU) Stochastic Differential Dynamic Logic for Stochastic Hybrid Systems CADE 17 / 22

slide-62
SLIDE 62

Well-definedness of SdL Semantics

Theorem (Measurable)

[ [f ] ]Z is a random variable (i.e., measurable) for any random variable Z and SdL term f .

Corollary (Pushforward measure well-defined for Borel-measurable S)

S → P(([ [f ] ]Z)−1(S)) = P({ω ∈ Ω : [ [f ] ]Z(ω) ∈ S}) = P([ [f ] ]Z ∈ S)

Andr´ e Platzer (CMU) Stochastic Differential Dynamic Logic for Stochastic Hybrid Systems CADE 17 / 22

slide-63
SLIDE 63

Outline (Verification Approach)

1

Motivation

2

Stochastic Differential Dynamic Logic SdL Design Stochastic Differential Equations Syntax Semantics Well-definedness

3

Stochastic Differential Dynamic Logic Syntax Semantics Well-definedness

4

Proof Calculus for Stochastic Hybrid Systems Compositional Proof Calculus Soundness

5

Conclusions

Andr´ e Platzer (CMU) Stochastic Differential Dynamic Logic for Stochastic Hybrid Systems CADE 17 / 22

slide-64
SLIDE 64

Proof Calculus for Stochastic Differential Dynamic Logic

xi := θf = f θ

xi

Xt Xt f θ

xi

[ [xi := θ] ]Xt xi . = [ [θ] ]Xt

Andr´ e Platzer (CMU) Stochastic Differential Dynamic Logic for Stochastic Hybrid Systems CADE 18 / 22

slide-65
SLIDE 65

Proof Calculus for Stochastic Differential Dynamic Logic

xi := θf = f θ

xi

Xt Xt f θ

xi

[ [xi := θ] ]Xt xi . = [ [θ] ]Xt ?Hf = Hf Xt [ [?H] ]Xt

  • n {Xt |

= H}

Andr´ e Platzer (CMU) Stochastic Differential Dynamic Logic for Stochastic Hybrid Systems CADE 18 / 22

slide-66
SLIDE 66

Proof Calculus for Stochastic Differential Dynamic Logic

xi := θf = f θ

xi

Xt Xt f θ

xi

[ [xi := θ] ]Xt xi . = [ [θ] ]Xt ?Hf = Hf Xt [ [?H] ]Xt

  • n {Xt |

= H} α(λf ) = λαf

Andr´ e Platzer (CMU) Stochastic Differential Dynamic Logic for Stochastic Hybrid Systems CADE 18 / 22

slide-67
SLIDE 67

Proof Calculus for Stochastic Differential Dynamic Logic

xi := θf = f θ

xi

Xt Xt f θ

xi

[ [xi := θ] ]Xt xi . = [ [θ] ]Xt ?Hf = Hf Xt [ [?H] ]Xt

  • n {Xt |

= H} α(λf ) = λαf α(λf +νg) ≤ λαf +ναg

Andr´ e Platzer (CMU) Stochastic Differential Dynamic Logic for Stochastic Hybrid Systems CADE 18 / 22

slide-68
SLIDE 68

Proof Calculus for Stochastic Differential Dynamic Logic

xi := θf = f θ

xi

Xt Xt f θ

xi

[ [xi := θ] ]Xt xi . = [ [θ] ]Xt ?Hf = Hf Xt [ [?H] ]Xt

  • n {Xt |

= H} α(λf ) = λαf α(λf +νg) ≤ λαf +ναg f ≤ g αf ≤ αg

Andr´ e Platzer (CMU) Stochastic Differential Dynamic Logic for Stochastic Hybrid Systems CADE 18 / 22

slide-69
SLIDE 69

Proof Calculus for Stochastic Differential Dynamic Logic

α; βf ≤ α(f ⊔ βf ) f ≤ βf α; βf ≤ αβf Xt s Xt [ [α; β] ]Xt [ [α] ]Xt [ [β] ]Xt

Andr´ e Platzer (CMU) Stochastic Differential Dynamic Logic for Stochastic Hybrid Systems CADE 19 / 22

slide-70
SLIDE 70

Proof Calculus for Stochastic Differential Dynamic Logic

α; βf ≤ α(f ⊔ βf ) f ≤ βf α; βf ≤ αβf Xt s Xt [ [α; β] ]Xt [ [α] ]Xt [ [β] ]Xt αf ≤ f α∗f ≤ f Xt s1 s2 sn Xt [ [α∗] ]Xt [ [α] ]Xt [ [α] ]Xt [ [α] ]Xt

Andr´ e Platzer (CMU) Stochastic Differential Dynamic Logic for Stochastic Hybrid Systems CADE 19 / 22

slide-71
SLIDE 71

Proof Calculus for Stochastic Differential Dynamic Logic

α; βf ≤ α(f ⊔ βf ) f ≤ βf α; βf ≤ αβf Xt s Xt [ [α; β] ]Xt [ [α] ]Xt [ [β] ]Xt αf ≤ f α∗f ≤ f Xt s1 s2 sn Xt [ [α∗] ]Xt [ [α] ]Xt [ [α] ]Xt [ [α] ]Xt P(λα ⊕ νβf ∈ S) = λP(αf ∈ S) + νP(βf ∈ S) Xt Xt Xt [ [α] ]Xt [ [β] ]Xt [ [λα ⊕ νβ] ]Xt

Andr´ e Platzer (CMU) Stochastic Differential Dynamic Logic for Stochastic Hybrid Systems CADE 19 / 22

slide-72
SLIDE 72

Soundness

Theorem (SdL calculus is sound)

1 Rules are globally sound pathwise, i.e., fi ≤ gi f ≤ g holds for each

initial Z pathwise for each ω ∈ Ω

2 ⊕ is sound in distribution Andr´ e Platzer (CMU) Stochastic Differential Dynamic Logic for Stochastic Hybrid Systems CADE 20 / 22

slide-73
SLIDE 73

Soundness

Theorem (SdL calculus is sound)

1 Rules are globally sound pathwise, i.e., fi ≤ gi f ≤ g holds for each

initial Z pathwise for each ω ∈ Ω

2 ⊕ is sound in distribution

Theorem (Soundness for SDE)

Let λ > 0, f ∈ C 2

C(Rd, R) compact support on H (e.g., H bounded)

α(H → f ) ≤ λp H→f ≥ 0 H→Lf ≤ 0 P(αdx = bdt + σdW & Hf ≥ λ) ≤ p sound

Andr´ e Platzer (CMU) Stochastic Differential Dynamic Logic for Stochastic Hybrid Systems CADE 20 / 22

slide-74
SLIDE 74

Soundness

Theorem (Soundness for SDE)

Let λ > 0, f ∈ C 2

C(Rd, R) compact support on H (e.g., H bounded)

α(H → f ) ≤ λp H→f ≥ 0 H→Lf ≤ 0 P(αdx = bdt + σdW & Hf ≥ λ) ≤ p sound

Theorem (Dynkin for c` adl` ag strong Markov Xt and f ∈ C 2

C(Rd, R))

Af (x) := lim

tց0

E xf (Xt) − f (x) t

E xτ<∞

⇒ E xf (Xτ) = f (x)+E x τ Af (Xs)ds

Andr´ e Platzer (CMU) Stochastic Differential Dynamic Logic for Stochastic Hybrid Systems CADE 20 / 22

slide-75
SLIDE 75

Soundness

Theorem (Soundness for SDE)

Let λ > 0, f ∈ C 2

C(Rd, R) compact support on H (e.g., H bounded)

α(H → f ) ≤ λp H→f ≥ 0 H→Lf ≤ 0 P(αdx = bdt + σdW & Hf ≥ λ) ≤ p sound

Theorem (Dynkin for c` adl` ag strong Markov Xt and f ∈ C 2

C(Rd, R))

Af (x) := lim

tց0

E xf (Xt) − f (x) t

E xτ<∞

⇒ E xf (Xτ) = f (x)+E x τ Af (Xs)ds

Theorem (Differential generator for SDE solution and f ∈ C 2

C(Rd, R))

Af = Lf := b∇f + σσT 2 ∇∇f

Andr´ e Platzer (CMU) Stochastic Differential Dynamic Logic for Stochastic Hybrid Systems CADE 20 / 22

slide-76
SLIDE 76

Soundness

Theorem (Soundness for SDE)

Let λ > 0, f ∈ C 2

C(Rd, R) compact support on H (e.g., H bounded)

α(H → f ) ≤ λp H→f ≥ 0 H→Lf ≤ 0 P(αdx = bdt + σdW & Hf ≥ λ) ≤ p sound

Theorem (Dynkin for c` adl` ag strong Markov Xt and f ∈ C 2

C(Rd, R))

Af (x) := lim

tց0

E xf (Xt) − f (x) t

E xτ<∞

⇒ E xf (Xτ) = f (x)+E x τ Af (Xs)ds

Theorem (Differential generator for SDE solution and f ∈ C 2

C(Rd, R))

Af = Lf := b∇f + σσT 2 ∇∇f =

  • i

bi ∂f ∂xi + 1 2

  • i,j

(σσT)i,j ∂2f ∂xi∂xj

Andr´ e Platzer (CMU) Stochastic Differential Dynamic Logic for Stochastic Hybrid Systems CADE 20 / 22

slide-77
SLIDE 77

Soundness

Theorem (Soundness for SDE)

Let λ > 0, f ∈ C 2

C(Rd, R) compact support on H (e.g., H bounded)

α(H → f ) ≤ λp H→f ≥ 0 H→Lf ≤ 0 P(αdx = bdt + σdW & Hf ≥ λ) ≤ p sound

Theorem (Dynkin for c` adl` ag strong Markov Xt and f ∈ C 2

C(Rd, R))

Af (x) := lim

tց0

E xf (Xt) − f (x) t

E xτ<∞

⇒ E xf (Xτ) = f (x)+E x τ Af (Xs)ds Af (Xs) = Lf (Xs) ≤ 0 on H ⇒ E xf (Xτ) ≤ f (x) for all x, τ ⇒ Px-a.s. E x(f (Xt)|Fs) = E Xsf (Xt−s) ≤ f (Xs) ⇒ Xt supermartingale

Andr´ e Platzer (CMU) Stochastic Differential Dynamic Logic for Stochastic Hybrid Systems CADE 20 / 22

slide-78
SLIDE 78

Soundness

Theorem (Soundness for SDE)

Let λ > 0, f ∈ C 2

C(Rd, R) compact support on H (e.g., H bounded)

α(H → f ) ≤ λp H→f ≥ 0 H→Lf ≤ 0 P(αdx = bdt + σdW & Hf ≥ λ) ≤ p sound

Theorem (Dynkin for c` adl` ag strong Markov Xt and f ∈ C 2

C(Rd, R))

Af (x) := lim

tց0

E xf (Xt) − f (x) t

E xτ<∞

⇒ E xf (Xτ) = f (x)+E x τ Af (Xs)ds

Theorem (Doob maximal martingale ineq., c` adl` ag supermartingale)

∀ f ≥ 0, λ > 0 P

  • sup

t≥0

f (Xt) ≥ λ | F0

  • ≤ Ef (X0)

λ

Andr´ e Platzer (CMU) Stochastic Differential Dynamic Logic for Stochastic Hybrid Systems CADE 20 / 22

slide-79
SLIDE 79

Soundness

Theorem (Soundness for SDE)

Let λ > 0, f ∈ C 2

C(Rd, R) compact support on H (e.g., H bounded)

α(H → f ) ≤ λp H→f ≥ 0 H→Lf ≤ 0 P(αdx = bdt + σdW & Hf ≥ λ) ≤ p sound

Theorem (Dynkin for c` adl` ag strong Markov Xt and f ∈ C 2

C(Rd, R))

Af (x) := lim

tց0

E xf (Xt) − f (x) t

E xτ<∞

⇒ E xf (Xτ) = f (x)+E x τ Af (Xs)ds

Theorem (Doob maximal martingale ineq., c` adl` ag supermartingale)

∀ f ≥ 0, λ > 0 P

  • sup

t≥0

f (Xt) ≥ λ | F0

  • ≤ Ef (X0)

λ ≤ λp λ = p

Andr´ e Platzer (CMU) Stochastic Differential Dynamic Logic for Stochastic Hybrid Systems CADE 20 / 22

slide-80
SLIDE 80

Proof Example

α(H → f ) ≤ λp H→f ≥ 0 H→Lf ≤ 0 P(αdx = bdt + σdW & Hf ≥ λ) ≤ p ?x2 + y2 ≤ 1 3(H → f ) =

  • H → x2 + y2 ≤ 1

3

  • (x2 + y2) ≤ 1 ∗ 1

3 f ≡ x2 + y2 ≥ 0 with H ≡ x2 + y2 < 10 Lf = 1 2

  • −x ∂f

∂x − y ∂f ∂y + y2 ∂2f ∂x2 − 2xy ∂2f ∂x∂y + x2 ∂2f ∂y2

  • ≤ 0

P(?x2 + y2 ≤ 1 3; dx = −x 2dt − ydW , dy = −y 2dt + xdW & Hx2 + y2 ≥ 1) ≤ (by ;′) P(?x2 + y2 ≤ 1 3dx = −x 2dt − ydW , dy = −y 2dt + xdW & Hx2 + y2 ≥ 1) ≤ 1 3

Andr´ e Platzer (CMU) Stochastic Differential Dynamic Logic for Stochastic Hybrid Systems CADE 21 / 22

slide-81
SLIDE 81

Outline

1

Motivation

2

Stochastic Differential Dynamic Logic SdL Design Stochastic Differential Equations Syntax Semantics Well-definedness

3

Stochastic Differential Dynamic Logic Syntax Semantics Well-definedness

4

Proof Calculus for Stochastic Hybrid Systems Compositional Proof Calculus Soundness

5

Conclusions

Andr´ e Platzer (CMU) Stochastic Differential Dynamic Logic for Stochastic Hybrid Systems CADE 21 / 22

slide-82
SLIDE 82

Conclusions

d i s c r e t e c

  • n

t i n u

  • u

s s t

  • c

h a s t i c stochastic differential dynamic logic

SdL = DLarithmetic + SHP αφ φ Stochastic hybrid systems Compositional system model & semantics Logic for stochastic hybrid systems Well-definedness & measurability Stochastics accessible in logic Compositional proof rules Stochastic calculus & symbolic logic

Andr´ e Platzer (CMU) Stochastic Differential Dynamic Logic for Stochastic Hybrid Systems CADE 22 / 22

slide-83
SLIDE 83

Conclusions

d i s c r e t e c

  • n

t i n u

  • u

s s t

  • c

h a s t i c stochastic differential dynamic logic

SdL = DLarithmetic + SHP αφ φ Stochastic hybrid systems Compositional system model & semantics Logic for stochastic hybrid systems Well-definedness & measurability Stochastics accessible in logic Compositional proof rules Stochastic calculus & symbolic logic

Andr´ e Platzer (CMU) Stochastic Differential Dynamic Logic for Stochastic Hybrid Systems CADE 22 / 22
