Jelena Maricic University of Hawaii at Manoa May 17, 2014

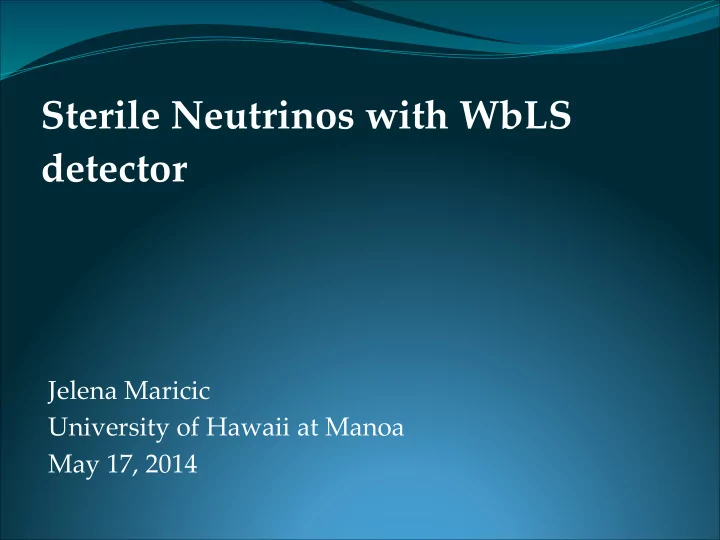

Sterile Neutrinos with WbLS detector

Jelena Maricic, University of Hawaii

Outline

• Physics motivation for the very short baseline neutrino
• scillations search
• Concept of the antineutrino generator experiment
• 144Ce-144Pr PBq antineutrino generator (IsoDAR briefly

mentioned)

• Statistics with 10-50 kton size WbLS detector
• Effects from energy threshold
• Effects from energy resolution
• Effects from vertex resolution
• Summary

2

Motivation for the short baseline antineutrino search

• There may be 4th neutrino flavor living at a very short baseline
• Unexplored area at reactor neutrino (MeV) energies

3

Dash line: 3 ν’s Solid line: 3+ 1 ν states with ∆m2 = 1 eV2

• G. Mention et al. Phys.Rev.D83:073006,2011

?

Jelena Maricic, University of Hawaii

Testing short baseline oscillation

• If the 4th neutrino is present and oscillates distance-dependent flux

from the source will demonstrate it at the distances of the order of

• scillation length from the neutrino source
• In case of sterile neutrino Δ m2 ~ 1-2 eV2, oscillation distance of

interest is of the order of couple of meters.

• Large detectors with low energy threshold favorable for checking this

hypothesis

4

Jelena Maricic, University of Hawaii

Neutrino and antineutrino generators

• Neutrino generators such as
• 51Cr (753 keV) and
• 37Ar (814 keV) have been used in

the past

• Monoenergetic
• Require measurement of vertex

position only for L/E

• Detection in LS via elastic

scattering off electrons must be very strong (5-10 MCi) to overcome solar neutrino background

• —> too low in energy for WbLS

detector?

• Antineutrino generators are

detected in LS detected via inverse beta decay (IBD)

• Antineutrino energy > 1.8 MeV

(IBD threshold)

• Lifetime > 1 month to allow time

for production and transport

• Requires nuclei with high Qβ and

long lifetime

• No single nucleus satisfies this

condition

• Pairs of beta decay nuclei needed: the

first one with low Qβ and long lifetime followed by the second one with high Qβ and short lifetime

5

Jelena Maricic, University of Hawaii

144Ce – 133Pr antineutrino generator

• Nuclei are in equilibrium
• Decay rate completely driven by

144Ce

• Up to 150 kCi production

capability (~5 PBq)

• Antineutrino emitted in 144Ce

decay below IBD threshold 1.8 MeV

• Antineutrinos above 1.8 MeV

emitted in 144Pr undergo IBD

• Main intrinsic background

comes from 2.185 keV gamma with 0.7% branching ratio similar energy as 2.2 MeV deexcitation gamma from neutron capture on hydrogen

6

Jelena Maricic, University of Hawaii

Antineutrino generator outside of the detector

• Advantages: safe, simpler to deploy; almost point like source;

baseline as low as 3 – 4 m

• •Disadvantages: lot of neutrinos lost due to partial solid angle

coverage

7

Potential of the currently existing detectors

• Current generation of LS

detectors has the ability to probe the reactor antineutrino anomaly at 2σ level

• Scientific interest for a

more decisive measurement especially in the case of possible positive signals

8

Jelena Maricic, University of Hawaii

Expected rate

• 140 kCi source for 18 months and t1/2 = 285 days for 144Ce
• Assume that the source can be placed at 4 m distance from the target

volume edge

• ~177,300 (132,300) interactions in no oscillation scenario for 20 (10)

kton detector

• Using
• We get ~168,600 (125,800) interactions for

sin2 2θ = 0.1 and ∆m2 = 1 eV2

9

Anti-neutrino spectrum

• sin2 2θ = 0.1 and
• ∆m2 = 1 eV2
• 10 kton detector
• Source 18 m from the

center

• Spectrum peaked toward

high energy, BUT most difference between

• scillated vs. unoscillated

spectrum in the peak region below 2.8 MeV

10

Effect of Energy Threshold

Ability to distinguish between oscillated and unoscillated spectrum strongly dependent on the energy threshold. Rate for a 10 kton detector comparable to 1 kton LS detector with 1.8 MeV threshold Detection efficiency NOT included —> further affect the signal statistics

11

10 kton 20 kton 1.8 MeV unosc

• sc
• 132,300

125,800

• 177,300

168,600 2.4 MeV unosc

• sc
• 88,500

84,200

• 118,600

112,800 2.8 MeV unosc

• sc
• 27,700

26,400

• 37,100

35,300

Jelena Maricic, University of Hawaii

Illustration of the statistics effect

• Example from 144Ce in KamLAND
• General shape of the sensitivity curves does not change with roughly

twice as many events, BUT increased sensitivity to smaller mixing angles and masses

• Note the importance of knowing the absolute rate for larger masses

12 Courtesy of T. Lasserre

arXiv:1312.0896 [physics.ins-det]

Jelena Maricic, University of Hawaii

Oscillated vs Unoscillated Spectrum

13

• sin2 2θ = 0.1 and
• ∆m2 = 1 eV2
• Oscillation pattern

much less pronounced farther from the source.

Cumulative rate vs distance

• sin2 2θ = 0.1 and
• ∆m2 = 1 eV2
• Without energy and

vertex resolution effects

• 10 kton detector
• Source 18 m from the

center

• Oscillation effects more

pronounced closer to the source

• Important to bring source

as close to target volume as possible to probe larger ∆m2

• Larger detector increases

sensitivity to smaller ∆m2 due to longer baseline

14

Energy and Vertex resolution effects

15

6.5%, 12 cm 13%, 24 cm 26%, 48 cm

• sin2 2θ = 0.1 and
• ∆m2 = 1 eV2

Energy Resolution effect

• Energy resolution varied between 2.5% and 15% flat in 1kton LS

detector

• Effects more pronounced in shape only analysis
• Overall, weak sensitivity on energy resolution

16

arXiv:1312.0896 [physics.ins-det]

Vertex resolution effect

• Vertex resolution varied between 5 cm and 50 cm
• Larger mixing masses more affected; effect significan

in the shape only analysis

17

arXiv:1312.0896 [physics.ins-det]

Antineutrino source - detector distance effect

• Keeping the distance between the source and detector as short as possible

is critical

• Especially important in the shape only analysis (some of the effect is due to

reduced statistics)

18

arXiv:1312.0896 [physics.ins-det]

Decay At Rest Source 8Li

• 8Li decay produces antineutrino flux with higher energy,

weakening energy threshold/detection efficiency requirement

• 8Li produced from 7Li by exposure to copious neutron flux

19

20

KamLAND -- 1 kT sphere (

• JUNO – 20 kT squat cylinder
• LENA – 50 kT long cylinder

* Reactor anomaly – νe disappearance is a direct test of the signal * LSND/MB -- If CPT is a good symmetry, then νe disappearance limits exclude νe signals Dependences on: geometry, distance to detector, aspect ratio of detector

• Slide from Matt Toups

regarding IsoDAR

IsoDAR

IsoDAR for WATCHMAN

21

Slide from Matt Toups regarding IsoDAR

IsoDAR and possible alternatives for 8Li

• Issues with IsoDAR:
• compact accelerator under development
• expensive technology and significant power/space/shielding

requirement

• long distance to the detector (7 m to detector edge) affects sensitivity to

large ∆m2

• Alternatives:
• other sources of copious neutrons - d-t neutron generators with 1014 n/s

yield exists —> gets the DAR 8Li source closer to detector

• cheaper technology than accelerator
• use of heavy water to moderate neutrons efficiently (expensive)
• better purify 7Li, although difficult to go beyond current 99.99% 7Li

purity (expensive)

22

Summary

• High sensitivity test of the sterile neutrino hypothesis with large WbLS

detector seems feasible

• Measurement prospect very dependent on energy threshold, statistics,

source-detector distance and knowledge of the absolute antineutrino rate

• Retaining low energy threshold (bellow 2.5 MeV) is more critical then going

to larger detector size

• Optimized cylindrical shape is better than spherical

(average source-detector distance smaller)

• Requirements are moderately stringent for energy (15%) and vertex

resolution (25-50 cm)

• Ideal solution for WbLS detector: DAR 8Li source, close to the detector with

knowledge of the absolute antineutrino production rate at the level of 1-2%

23
