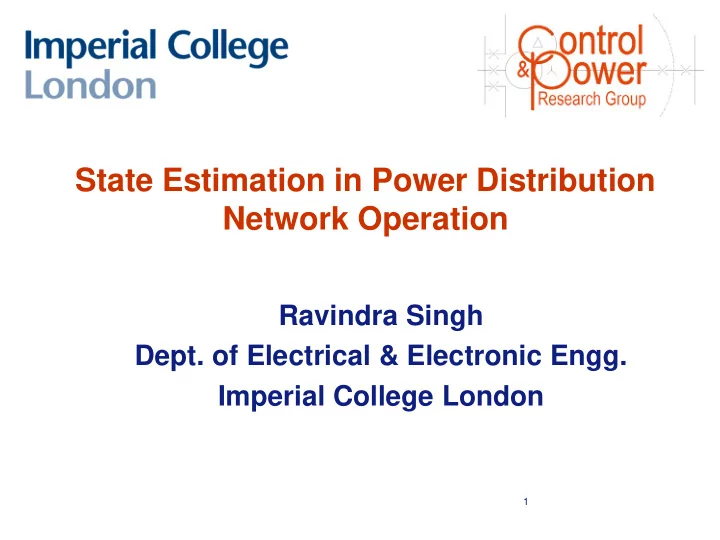

State Estimation in Power Distribution Network Operation

Ravindra Singh

• Dept. of Electrical & Electronic Engg.

Imperial College London

1

Outline:

• Introduction
• Research Objectives

– Identification of DSSE solver – Modelling of pseudo measurements – Measurement placement

• Conclusion and future Work

2

Introduction

Distribution networks of today:

– Old design and ageing equipments – Passive operation – Based on “Fit and Forget” concept

This concept can not work considering

– The deregulation of power system – Emphasis towards low carbon technology – Introduction of DGs at distribution level

3

Distribution Management System (DMS)

4

• Introduction of DGs at distribution level requires monitoring and

control of distribution networks through Distribution Management System (DMS)

• DMS has two functional block
• State Estimation
• Control Scheduling
• SE will be the core function of the DMS which will provide the input

to control scheduling block for various control functionality

Challenges in DSSE

• State estimation is routine task in

transmission systems

• Several SE techniques exist
• But these techniques can not be

duplicated in distribution networks mainly due to

– lack of available measurements – lack of methodologies and tools that can be applied to restricted measurements

6

Objectives

1. Development of DSSE Algorithm

• Choice of DSSE Solver

2. Modelling of Pseudo Measurements

• To ensure network observability
• To handle non Gaussian load distribution

3. Measurement placement

• Location
• Type
• Number

4. SE with network topology changes

7

Objective 1: Choice of DSSE Estimator

• State estimation is a data fitting

problem:

– State Vector: – Measurements: – Model:

• The solution of the state

estimation problem requires finding that minimises a (weighted) norm of the residuals:

฀ ฀ zi ∈ ℜ, i =1,K ,m

n

x ℜ ∈

฀ ฀ zi = hi(x) + ei, i =1,K ,m

m i x h z x r

i i i

, , 1 ), ( ) (  = − =

x

m > n, ei = measurement error (Gaussian)

8

Review of state estimation in transmission system

L2 and L1 norms

• L2 norm:

(Weighted) Least Squares LS approach.

– Performs well in the presence

• f noise

– Fails to reject bad data

• L1 norm:

(Weighted) Least Absolute Value LAV approach

– More robust than LS in the presence of bad data – Ineffective for noise filtering min

x

1 2 wiri(x)2

i=1 m

∑

where wi = 1 σ i

2

min

x

wi

12 ri(x) i=1 m

∑

9

Compromise: Huber M-estimator

• Huber function
• State estimation

problem ρ(t) =

1 2 t 2, if t ≤ γ

γ t − 1

2 γ 2, if t > γ

  

∑

= m i i x

x r

1

)) ( ( min ρ

estimator LS ⇒ ∞ → γ estimator LAV 0 ⇒ → γ

10

Estimators Summary

ϒ= 1.5

11

H = ∂h(x) ∂x and Rz is measurement error covarince matrix

• Various estimators like WLS,

WLAV, and SHGM were tested on the 95 bus UKGDS model (Fig) with

• errors in real measurement

1%-3%

• errors in pseudo measurements

20%-50%

• DSSE relies on a large number of

pseudo measurements which are statistical in nature

• Thus the statistical criterion were

adopted to identify the suitable solver for the DSSE problem

12

Simulation study

Statistical Criteria

• Bias: For the estimator to be unbiased, the mean error in

the estimates should be zero

• Consistency : For consistency the normalized mean

square estimation error should be within confidence bound determined by chi-square test (under Gaussian assumption

• f error)
• Quality : Expressed as the inverse of the trace of the error

covariance matrix

13

E( ˆ x − xt) = 0

ε = ( ˆ x − xt)T P −1( ˆ x − xt)

Q = 1 log(trace(P))

Performance Summary

14 8,86

• 55,65

6,7

• 60
• 50
• 40
• 30
• 20
• 10

10 20 WLS WLAV SHGM

Bias Consistency Quality WLS is the suitable solver for the DSSE problem

Objective 2: Modelling of Pseudo Measurements

5000 10000 15000 0.5 1 1.5 time Load,pu 5000 10000 15000 0.5 1 1.5 time Load,pu 5000 10000 15000 0.5 1 1.5 time Load,pu 5000 10000 15000 0.5 1 1.5 time Load,pu Commercial Domestic Economy Domestic Unrestricted Industrial

Loads of various customer class Load profile computations

15

WLS algorithm assumes that the measurements are normally distributed, however:

• Load pdfs do not follow normal distribution
• One way could be to model them as lognormal or beta distribution
• However, this is not true (pdf shown in Fig.)
• This shows that the load pdfs do not follow any particular known

distribution

Issues with the WLS

16

How to Model the Variability in Load pdfs?

Concept of Gaussian Mixture Model (GMM)

• Load pdfs are represented

through a mixture of Gaussian components

• Resulting pdf is a weighted

combination of individual Gaussian components.

• Now WLS can be applied
• Use of Expectation

Maximization (EM) algorithm to obtain the parameters of the mixture components

17

Density Estimation Through EM Algorithm

{ }

c o m p o n e n t s m i x t u r e

• f

N

• .

) d e t ( ) 2 ( 1 ) , | ( } , , { : s e t t h e f r o m c h o s e n i s w h e r e , 1 a n d ) , | ( ) | (

) ( ) ( 2 1 2 / 1 2 / 1 1 1

1

= Σ = Σ Σ = = Γ = Σ =

− Σ − − = = =

−

∑ ∑

M c e z f w w z f w z f

i i i

z z i d i i M c i i i i M c i i M c i i i i µ µ

π µ µ γ γ γ µ γ

• Mixture Model

18

The Algorithm

The EM Algorithm works recursively to obtain the parameters of the mixture

• components. One step of recursion, yielding formulae for :

i g i v

1 s s

γ γ

+

Result at Bus #82

19

Comparison with other distributions

• Comparison is based on both graphical

and the numerical measure

• For numerical measure Chi-Square

goodness of fit value is used

• A smaller value of goodness fit

indicates a better fit

• GMM gives better fit according to

both measures

20

SE Results:

• SE was performed with 1 voltage and 2

flow measurements at main substation

• Loads were modelled as GMM using

load profiles obtained by mapping the behaviour of various customer class at each bus

• SE was run at different time steps by

sampling the load profiles

• Estimation errors are small close to

the main substation buses (Bus #2)

• Errors increase at the buses away

from main substation (Bus #51)

• This is because the buses away from

main substation are predominantly influenced by pseudo measurements

• Error in angle is more as compared to

voltage

Bus #2 Bus #51

21

Objective 3: Measurement Placement

SE Example:

• 3% error in real, 50% error in pseudo
• UKGDS Network
• 100 Simulations
• 1% voltage threshold 5% angle

threshold

• In this example a significant number of cases are above their respective thresholds
• The reason is that the SE utilizes a large number of pseudo measurements
• This problem can be eliminated by placing more number of real measurements

22

Objective

To bring down the relative errors in Voltage and angle below threshold in more than 95% simulation cases.

Benefit

Reduction in error in estimates.

Issues: To identify

• Measurement location
• Measurement type
• Number of measurements

23

Problem Formulation

Improve: In order to improve above index reduce: Where, (1) (2)

24

Geometric Interpretation of Error Covariance Matrix

n-dimensional error ellipse e = error vector (n×1) P= error covariance matrix (n×n) c=constant Using transformation , can be diagonalized and the is given by:

25

• Index in (1) can be improved by reducing

the right hand side of (2)

• This can be achieved by reducing the

determinant of estimation error covariance matrix.

• Since determinant represents the area of

the error ellipse, the said probability index can be improved through reduction in area of the V-δ error ellipse.

• Placement of voltage meter reduces the

errors in both voltage and angle if

• rientation of ellipse is according to Fig.

(a) (Correlated)

• However if the errors are aligned with the

coordinate axis (Fig. (b)). The placement

• f voltage measurement does not

improve errors in angle (Uncorrelated)

• In this situation we used flow

measurements and based on the criterion

• f minimization of the area of P-Q_flow

error ellipse

26

The Algorithm Flow Chart

27

Results

Measurements Placed: V19,V20, V21 P15-17,Q15-17 P34-35,Q34-35

Quality Error ellipses

Red ellipse: Before No Placement Blue ellipse: After All Meters Placed

• 2

2 x 10

• 3
• 0.015
• 0.01
• 0.005

0.005 0.01 0.015 Error in Angle Error in Voltage

• 2

2 x 10

• 3
• 0.015
• 0.01
• 0.005

0.005 0.01 0.015

• 2

2 x 10

• 3
• 0.015
• 0.01
• 0.005

0.005 0.01 0.015 Bus #19 Bus #20 Bus #21

28

Chebyshev Bound

• Minimization of probability in (2)

makes sense if Chebyshev bound is less than unity

• This depends on the choice of

the threshold and increases with reduction in threshold

• A very tight threshold may not

be useful for practical purpose hence algorithm can be started with appropriate choice of thresholds

• In measurement placement

algorithm bound reduces significantly with placement of meters

29

Conclusion & Future Work

• Problems associated with DSSE have

been highlighted and addressed in probabilistic and statistical framework

• Future work will focus on

– Three phase SE – SE with correlations in measurements – Decentralized estimation – Stochastic optimization based measurement placement technique

» T

37

Publications

• Journal

[1] R. Singh, B. C. Pal, and R. B. Vinter, “Measurement Placement in Distribution System State Estimation,” IEEE Transactions on Power Systems, vol. 24, no. 2, pp. 668-675, May 2009 [2] R. Singh, B. C. Pal, and R. A. Jabr, “Choice of Estimator for Distribution System State Estimation,” IET Generation Transmission and Distribution, vol. 3, no. 7, pp. 666-678, July 2009 [3] R. Singh, B. C. Pal, and R. A. Jabr, “Statistical Representation of Distribution System Loads Using Gaussian Mixture Model,” IEEE Transactions on Power Systems, Accepted for publication. [4] R. Singh, B. C. Pal, and R. A. Jabr, “Distribution System State Estimation Through Gaussian Mixture Model of the Load as Pseudo Measurement,” IET Generation Transmission and Distribution, Revision under review. [5] R. Singh, E. Manitsas, B. C. Pal, and G. Strbac, “A Recursive Bayesian Approach for Identification of Network Configuration Changes in Distribution System State Estimation,” IEEE Transactions on Power Systems, Revision under review.

38

• Conference

[6] E. Manitsas, R. Singh, B. C. Pal, and G. Strbac, “Modelling of Pseudo Measurements for Distribution System State Estimation,” CIRED, 2008, Frankfurt. [7] R. Singh, B. C. Pal, R. A. Jabr, and P. D. Lang, “Distribution System Load Flow Using Primal Dual Interior Point Method,” IEEE Powercon and Power India Conference, New Delhi, 2008. [8] R. Singh, B. C. Pal, and R. B. Vinter, “Measurement Placement in Distribution System State Estimation,” IEEE PES General Meeting, Calgary, July, 2009.

39

State Estimation in Power Distribution Network Operation

Ravindra Singh

• Dept. of Electrical & Electronic Engg.

Imperial College London

40
