Stack 7 January 2019 OSU CSE 1 Stack The Stack component family allows you to manipulate strings of entries of any (arbitrary) type in LIFO (last-in-first-out) order A kind of dual to Queue Remember, "first" and

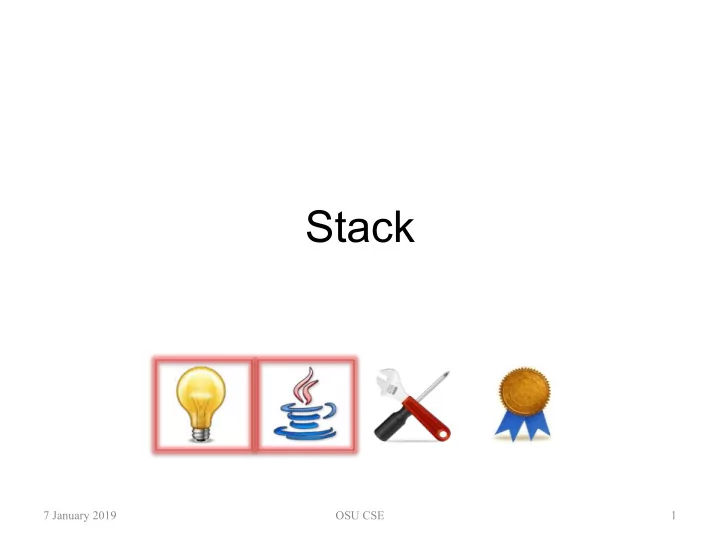

SLIDE 1

Stack

7 January 2019 OSU CSE 1

SLIDE 2

Stack

The Stack component family allows you

to manipulate strings of entries of any (arbitrary) type in LIFO (last-in-first-out)

rder

– A kind of “dual” to Queue – Remember, "first" and "last" here refer to the temporal order in which entries are put into the string and taken out of it, not about the

rder in the string when it is written down

7 January 2019 OSU CSE 2

SLIDE 3

Interfaces and Classes

7 January 2019 OSU CSE 3

Stack Stack1L Stack2 implements implements StackKernel extends Standard extends

SLIDE 4

Interfaces and Classes

7 January 2019 OSU CSE 4

Stack Stack1L Stack2 implements implements StackKernel extends Standard extends Standard has contracts for three methods: clear newInstance transferFrom

SLIDE 5

Interfaces and Classes

7 January 2019 OSU CSE 5

Stack Stack1L Stack2 implements implements StackKernel extends Standard extends StackKernel has contracts for three methods: push pop length

SLIDE 6

Interfaces and Classes

7 January 2019 OSU CSE 6

Stack Stack1L Stack2 implements implements StackKernel extends Standard extends Stack has a contract for three

ther methods:

top replaceTop flip

SLIDE 7

Mathematical Model

The value of a Stack variable is modeled

as a string of entries of type T

Formally:

type Stack is modeled by string of T

7 January 2019 OSU CSE 7

SLIDE 8

No-argument Constructor

Ensures:

this = < >

7 January 2019 OSU CSE 8

SLIDE 9

Example

7 January 2019 OSU CSE 9

Code State

Stack<Integer> si = new Stack1L<>();

SLIDE 10

Example

7 January 2019 OSU CSE 10

Code State

Stack<Integer> si = new Stack1L<>(); si = < >

SLIDE 11

push

void push(T x)

Adds x at the top (left end) of this.
Aliases: reference x
Updates: this
Ensures:

this = <x> * #this

7 January 2019 OSU CSE 11

SLIDE 12

Example

7 January 2019 OSU CSE 12

Code State

si = < 3, 70 > k = 49 si.push(k);

SLIDE 13

Example

7 January 2019 OSU CSE 13

Code State

si = < 3, 70 > k = 49 si.push(k); si = < 49, 3, 70 > k = 49

SLIDE 14

Example

7 January 2019 OSU CSE 14

Code State

si = < 3, 70 > k = 49 si.push(k); si = < 49, 3, 70 > k = 49 Note the alias created here, which you cannot see in the tracing table; you should be able to draw the appropriate diagram showing it.

SLIDE 15

pop

T pop()

Removes and returns the entry at the top

(left end) of this.

Updates: this
Requires:

this /= < >

Ensures:

#this = <pop> * this

7 January 2019 OSU CSE 15

SLIDE 16

Example

7 January 2019 OSU CSE 16

Code State

si = < 49, 3, 70 > z = –584 z = si.pop();

SLIDE 17

Example

7 January 2019 OSU CSE 17

Code State

si = < 49, 3, 70 > z = –584 z = si.pop(); si = < 3, 70 > z = 49

SLIDE 18

length

int length()

Reports the length of this.
Ensures:

length = |this|

7 January 2019 OSU CSE 18

SLIDE 19

top

T top()

Returns the entry at the the top (left end)
f this.
Aliases: reference returned by top
Requires:

this /= < >

Ensures:

<top> is prefix of this

7 January 2019 OSU CSE 19

SLIDE 20

Example

7 January 2019 OSU CSE 20

Code State

si = < 49, 3, 70 > k = –58 k = si.top();

SLIDE 21

Example

7 January 2019 OSU CSE 21

Code State

si = < 49, 3, 70 > k = –58 k = si.top(); si = < 49, 3, 70 > k = 49

SLIDE 22

Example

7 January 2019 OSU CSE 22

Code State

si = < 49, 3, 70 > k = –58 k = si.top(); si = < 49, 3, 70 > k = 49 Note the alias created here, which you cannot see in the tracing table; you should be able to draw the appropriate diagram showing it.

SLIDE 23

replaceTop

T replaceTop(T x)

Replaces the top of this with x, and returns the old top.
Aliases: reference x
Updates: this
Requires:

this /= < >

Ensures:

<replaceTop> is prefix of #this and this = <x> * #this[1, |#this|)

7 January 2019 OSU CSE 23

SLIDE 24

Example

7 January 2019 OSU CSE 24

Code State

si = < 49, 70 > k = –58 j = 16

k = si.replaceTop(j);

SLIDE 25

Example

7 January 2019 OSU CSE 25

Code State

si = < 49, 70 > k = –58 j = 16

k = si.replaceTop(j);

si = < 16, 70 > k = 49 j = 16

SLIDE 26

Example

7 January 2019 OSU CSE 26

Code State

si = < 49, 70 > k = –58 j = 16

k = si.replaceTop(j);

si = < 16, 70 > k = 49 j = 16 Note the alias created here, which you cannot see in the tracing table; you should be able to draw the appropriate diagram showing it.

SLIDE 27

Another Example

7 January 2019 OSU CSE 27

Code State

si = < 49, 70 > j = 16

j = si.replaceTop(j);

SLIDE 28

Another Example

7 January 2019 OSU CSE 28

Code State

si = < 49, 70 > j = 16

j = si.replaceTop(j);

si = < 16, 70 > j = 49

SLIDE 29

Another Example

7 January 2019 OSU CSE 29

Code State

si = < 49, 70 > j = 16

j = si.replaceTop(j);

si = < 16, 70 > j = 49 This use of the method avoids creating an alias: it swaps j with the entry previously at the top.

SLIDE 30

flip

void flip()

Reverses (“flips”) this.
Updates: this
Ensures:

this = rev(#this)

7 January 2019 OSU CSE 30

SLIDE 31

Example

7 January 2019 OSU CSE 31

Code State

s1 = < 18, 6, 74 > s1.flip();

SLIDE 32

Example

7 January 2019 OSU CSE 32

Code State

s1 = < 18, 6, 74 > s1.flip(); s1 = < 74, 6, 18 >

SLIDE 33

Resources

OSU CSE Components API: Stack

– http://cse.osu.edu/software/common/doc/

7 January 2019 OSU CSE 33
