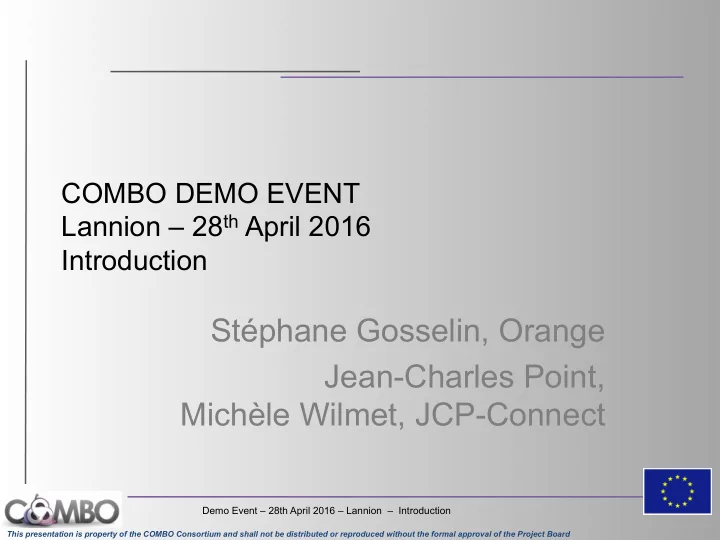

COMBO DEMO EVENT Lannion – 28th April 2016 Introduction

Stéphane Gosselin, Orange Jean-Charles Point, Michèle Wilmet, JCP-Connect

1 Demo Event – 28th April 2016 – Lannion – Introduction

This presentation is property of the COMBO Consortium and shall not be distributed or reproduced without the formal approval of the Project Board

Introductory talk – Agenda ■ COMBO project ■ Main COMBO concepts

• 1. Network Fixed Mobile Convergence (FMC) and

COMBO project vision

• 2. Structural convergence
• 3. Functional convergence
• 4. COMBO network scenarios

■ What you will see during this demo event ■ Practical aspects and agenda of the demo event

Demo Event – 28th April 2016 – Lannion – Introduction 2

This presentation is property of the COMBO Consortium and shall not be distributed or reproduced without the formal approval of the Project Board

COMBO project

Demo Event – 28th April 2016 – Lannion – Introduction 3

This presentation is property of the COMBO Consortium and shall not be distributed or reproduced without the formal approval of the Project Board

COMBO project ID card

■ COnvergence of fixed and Mobile BrOadband access/aggregation networks ■ Large scale integrating project (2013-2016) ■ Work programme topic: ICT- 2011.1.1 Future Networks ■ Web page: http://www.ict-combo.eu

Demo Event – 28th April 2016 – Lannion – Introduction 4

Vendors Small and medium enterprises Operators Academic and research institutions

This presentation is property of the COMBO Consortium and shall not be distributed or reproduced without the formal approval of the Project Board

Context and objective of this demo event

■ COMBO – COnvergence of fixed and Mobile BrOadband access/aggregation networks – is an FP7 European project on convergence of fixed and mobile networks, with three main targets:

♦ Target 1: Define and develop FMC architectures for future networks, which will be technically assessed with respect to FMC use cases defined by the project ♦ Target 2: Demonstrate experimentally key FMC network features to show the feasibility of proposed architectures ♦ Target 3: Influence standardization bodies with respect to FMC architectures to push COMBO concepts

■ This demo event intends to present main outcomes and proofs of concept obtained by the project up to now, with a specific focus on experimental results (target 2)

Demo Event – 28th April 2016 – Lannion – Introduction 5

This presentation is property of the COMBO Consortium and shall not be distributed or reproduced without the formal approval of the Project Board

Main COMBO concepts

Demo Event – 28th April 2016 – Lannion – Introduction 6

This presentation is property of the COMBO Consortium and shall not be distributed or reproduced without the formal approval of the Project Board

• 1. Network FMC and COMBO project vision

Demo Event – 28th April 2016 – Lannion – Introduction 7

This presentation is property of the COMBO Consortium and shall not be distributed or reproduced without the formal approval of the Project Board

What is network Fixed and Mobile Convergence (FMC)

Demo Event – 28th April 2016 – Lannion – Introduction 8

Common architecture for fixed and mobile network requires interaction at different points: § Structural convergence

§ Common use of resources e.g. infrastructure, technology, interfaces, transport mechanisms

§ Functional convergence

§ Unification of fixed and mobile network functions

Fixed and mobile networks § are developed independently of each other § have only very limited joint usage of infrastructure § have independent network

• peration, control and

management FMC only at service level (e.g. IP Multimedia Subsystem)

Aggregation Network Fixed Core Mobile Core Fixed access Radio access

Today‘s network architecture

Potential converged architecture

Aggregation Network Fixed Core Mobile Core

Fixed access Radio access

Functional convergence Structural convergence

Functional convergence Functional convergence

This presentation is property of the COMBO Consortium and shall not be distributed or reproduced without the formal approval of the Project Board

Why network FMC is needed for 5G design

Demo Event – 28th April 2016 – Lannion – Introduction 9

• Increasing number of users and

connected devices

• Need to access any content any

time anywhere with any device

• Bandwidth-hungry usages of

fixed and mobile customers, driven by video streaming

• Increasing Wi-Fi traffic coming

from mobile terminals

• A resulting tight price pressure
• n telcos requiring significant

CapEx and OpEx reductions

• Unification of hardware

resources (equipment, cables, sites, etc.) for both fixed and mobile services

• Cost and energy savings
• Simplification of fixed and

mobile network architectures

• Ease of use, ease of operation

and network sharing capabilities

• Network FMC will enable a

5G infrastructure with end-to-end management and

• rchestration

Drivers

Expected benefits from network FMC

This presentation is property of the COMBO Consortium and shall not be distributed or reproduced without the formal approval of the Project Board

Reference framework

Demo Event – 28th April 2016 – Lannion – Introduction 10

Central Office (CO) Main CO Core CO Approximate numbers of customers per service area several 1 000s to 10 000s a few 10 000s to ~100 000 1 000 000s Approximate number of macro base stations per service area < 10 10-30 100s to ~1 000

Reference locations for network convergence

This presentation is property of the COMBO Consortium and shall not be distributed or reproduced without the formal approval of the Project Board

COMBO project vision in a nutshell

Demo Event – 28th April 2016 – Lannion – Introduction 11

■ COMBO targets structural and functional convergence of fixed and mobile networks

• Integration of backhaul/fronthaul with fixed access / aggregation
• Integration of unified fixed and mobile functions in key functional

blocks and functional entities

■ COMBO defines network scenarios based on Next Generation Point of Presence (NG-POP), as the location for the subscriber IP edge of fixed, Wi-Fi and mobile networks

• distributed NG-POPs @ main COs
• centralized NG-POPs @ core COs

■ COMBO defines a Universal Access Gateway (UAG) as a functional entity unifying user access to fixed and mobile networks

• UAG data planes include the common subscriber

IP edge for fixed, mobile and Wi-Fi and are located in NG-POPs Structural convergence Functional convergence

This presentation is property of the COMBO Consortium and shall not be distributed or reproduced without the formal approval of the Project Board

• 2. Structural convergence

Demo Event – 28th April 2016 – Lannion – Introduction 12

This presentation is property of the COMBO Consortium and shall not be distributed or reproduced without the formal approval of the Project Board

Heterogeneous Radio Access Networks will trigger structural convergence

Demo Event – 28th April 2016 – Lannion – Introduction 13

■ Larger number

• f antenna

locations ■ Required RAN coordination (small and macro cells) ■ Much more capillarity and dynamicity required from back-/ fronthauling infrastructures

This presentation is property of the COMBO Consortium and shall not be distributed or reproduced without the formal approval of the Project Board

Structural convergence Unified optical access / aggregation network

Demo Event – 28th April 2016 – Lannion – Introduction 14

■ Features of the unified optical access / aggregation

• Converged physical layer functions supporting heterogeneous

access services for fixed, mobile and Wi-Fi

• Low latency and high capacity required for fronthaul transport
• Compatibility with legacy infrastructures, e.g. existing Optical

Distribution Networks

■ Different flavors have been studied and experimented by COMBO

• based on Next Generation Passive Optical Network 2 (NG-PON2)
• either on Wavelength-Selective or Wavelength-Routed Optical Distribution

Network

• including centralized wavelength control and improved with low latency electrical

crossconnect

• or based on Dense WDM (DWDM) flexible photonic transport

technologies

• including joint orchestration of RAN, transport and cloud resources

This presentation is property of the COMBO Consortium and shall not be distributed or reproduced without the formal approval of the Project Board

* NG-PON2 scenario with coexistence only on feeder fibre not shown here

WS-DWDM: Wavelength selec<ve– Dense WDM WR-DWDM: Wavelength routed – Dense WDM TWDM: TDM WDM RRU: Remote Radio Unit

Access solutions for structural convergence

15

Central Office (CO) Main CO

UAG

Small cell

CWDM

Macro cell Cabinet

Cost study range

today

WS- DWDM PON PtP CWDM

1:32 RRU

WR- DWDM PON

1:4

NG- PON2 WDM

• verlay*

1:32 nx10G (FH)

• r 3G (BH)

3G 4 λ (10G TWDM residential) 4 - 8 λ (3G WDM overlay) 3G / λ AWG in CO AWG in Cab Reference Whole ODN co- existence BBU hotel OLT e.g. 80 λ 3G / λ 3G / λ

• ptional

2nd stage splitter

1:4

ONU CPRI RRU ONU RRU ONU RRU ONU RRU ONU

Demo Event – 28th April 2016 – Lannion – Introduction

This presentation is property of the COMBO Consortium and shall not be distributed or reproduced without the formal approval of the Project Board

Example of flexible system option for structural convergence

Demo Event – 28th April 2016 – Lannion – Introduction 16

This presentation is property of the COMBO Consortium and shall not be distributed or reproduced without the formal approval of the Project Board

• 3. Functional convergence

Demo Event – 28th April 2016 – Lannion – Introduction 17

This presentation is property of the COMBO Consortium and shall not be distributed or reproduced without the formal approval of the Project Board

Functional convergence uAUT and uDPM as functional enablers for FMC

Demo Event – 28th April 2016 – Lannion – Introduction 18

■ universal subscriber and user AUThentication (uAUT)

• A set of functions that allows a user to authenticate once and

have access to multiple networks and/or services

• It avoids the drawbacks of the proliferation of identities, user/

subscriber profiles and authentication mechanisms in fixed and mobile networks

■ universal Data Path Management (uDPM)

• A set of functions that allows redirecting (part) of mobile data

traffic over the fixed/Wi-Fi data paths or vice versa

• while maintaining session continuity
• and enabling multiple data paths to be used simultaneously for a

given user session and its individual traffic flows

This presentation is property of the COMBO Consortium and shall not be distributed or reproduced without the formal approval of the Project Board

High-level functional view of UAG – links with uAUT and uDPM

■ Fixed Access Node = OLT ■ Wi-Fi Access Node = Wi-Fi Access Point ■ Mobile Access Node = eNodeB (or BBU or BBU hotel) ■ Network interfaces make connection between nodes: no processing of subscriber IP traffic ■ Subscriber interfaces are logical interfaces at subscriber level, connecting UE or CPE to UAG data plane

19

uAUT uAUT uAUT uAUT uAUT uAUT uDPM uDPM uDPM

Demo Event – 28th April 2016 – Lannion – Introduction

This presentation is property of the COMBO Consortium and shall not be distributed or reproduced without the formal approval of the Project Board

• 4. COMBO network scenarios

Demo Event – 28th April 2016 – Lannion – Introduction 20

This presentation is property of the COMBO Consortium and shall not be distributed or reproduced without the formal approval of the Project Board

Distributed NG-POP as key FMC network scenario

Demo Event – 28th April 2016 – Lannion – Introduction 21

3GPP Wi-Fi BBU hotelling

Content Content

Distribution of most popular contents, CDN Optical node concentration

ONU OLT Base station

3GPP

BBU OLT

NG-POP

Core CO Home/Building CO Main CO Macro site Small Cell Internet

Wi-Fi

common transport architecture common functions for fixed, mobile, Wi-Fi

Distributed Core Nodes

UAG Functional entity including unified subscriber IP edge for fixed, mobile, Wi-Fi

This presentation is property of the COMBO Consortium and shall not be distributed or reproduced without the formal approval of the Project Board

COMBO network scenarii as deployment scenarii for UAG

22

Distributed NG-POP scenario Centralized NG-POP scenario

Demo Event – 28th April 2016 – Lannion – Introduction

This presentation is property of the COMBO Consortium and shall not be distributed or reproduced without the formal approval of the Project Board

What you will see during this demo event

Demo Event – 28th April 2016 – Lannion – Introduction 23

This presentation is property of the COMBO Consortium and shall not be distributed or reproduced without the formal approval of the Project Board

Summary of what will be shown

■ Key transport and functional enablers of fixed mobile network integration will be shown in a fully converged environment built around the NG-POP concept ■ The demonstration will feature Alice’s unmatched experience enabled by advanced virtualized functions such as universal authentication, universal data path management and reactive content distribution ■ Also, distributed and centralized NG-POP scenarios will be illustrated, supported by an integrated wavelength- based optical infrastructure

Demo Event – 28th April 2016 – Lannion – Introduction 24

This presentation is property of the COMBO Consortium and shall not be distributed or reproduced without the formal approval of the Project Board

Global demonstration blueprint

Demo Event – 28th April 2016 – Lannion – Introduction 25

Main CO (Japan room) Building (Colombia room) Cabinet / CO Small / Macro Cell Core CO SDN controller / orchestrator

WiFi AP Cache Controller

vEPC uAUT Internet U E

NFV Server

CPRI Tester

WiFi AP Cache AP

U E

distributed NG-POP

Content server

uDPM U E MPE DE DWDM-centric architecture WR WDM PON

eNB

WiFi AP

U E Low Latency Cross Connect CPRI Tester Carrier Ethernet Switch UAG

Content Server

Local services EPC CPRI Tester

eNB

RAN emulator

Cache server

WDM OLT

18km Lannion fibre ring

ONU ONU ONU WDM OLT GPON OLT WS WDM PON + GPON ONU ONU ONU ONU RRU ONU RRU ONU WSS WSS RRU ONU RRU ONU

15 km

BBU

ONU

18km Lannion fibre ring

This presentation is property of the COMBO Consortium and shall not be distributed or reproduced without the formal approval of the Project Board

The five booths

Demo Event – 28th April 2016 – Lannion – Introduction 26

Name Title Room Short description Archi COMBO Architectural Concepts and Outcomes I r e l a n d room

Architectural outcomes of COMBO project on both transport and functional aspects. Key project concepts are explained here: NG-POP, integration of backhaul/fronthaul with fixed access, Universal Access Gateway, universal Authentication, universal Data Path Management.

dNG- POP Distributed NG-POP J a p a n room

NG-POPs are distributed in main central offices. dNG-POP features optical access nodes, Base Band Units of mobile access nodes, Universal Access Gateway (unified subscriber IP edge) and local application services.

c/dNG- POP Centralized / Distributed NG-POP S h o w room

Features a virtual mobile core within the distributed NG-POP scenario, and illustrates the unified SDN orchestrator for automatically configuring a multi-layer aggregation network within the context of centralized NG-POP scenario.

uAUT & uDPM universal Authentication and Data Path Management Colombia 1 room

Features Alice’s experience in multi-access situations, enabled by universal authentication and data path management.

uDPM & Caching universal Data Path Management & Caching Colombia 2 room

Features Alice’s experience enabled by uDPM Decision Engine and uDPM-enabled reactive content distribution in multi-access situations.

This presentation is property of the COMBO Consortium and shall not be distributed or reproduced without the formal approval of the Project Board

Practical aspects and agenda of the demo event

Demo Event – 28th April 2016 – Lannion – Introduction 27

This presentation is property of the COMBO Consortium and shall not be distributed or reproduced without the formal approval of the Project Board

Overall agenda of the day

■ 9:30 – 10:15: Welcome coffee ■ 10:15 – 11:00: Introductory talk ■ 11:00 – 13:00: Two one-hour booths per group ■ 13:00 – 14:00: Lunch break ■ 14:00 – 17:00: Three one-hour booths per group ■ 17:00: Refreshments, end of the event 5 groups of invitees are defined and will be guided by COMBO contributors:

♦ Group 1: Jean-Charles Point, Bertrand Le Guyader ♦ Group 2: Stéphane Gosselin, Daniel Abgrall ♦ Group 3: Michèle Wilmet ♦ Group 4: Erik Weis ♦ Group 5: Jose Alfonso Torrijos Gijon

Demo Event – 28th April 2016 – Lannion – Introduction 28

This presentation is property of the COMBO Consortium and shall not be distributed or reproduced without the formal approval of the Project Board

Agenda per group

Demo Event – 28th April 2016 – Lannion – Introduction 29

Group 1 Group 2 Group 3 Group 4 Group 5 09:30 Welcome coffee 10:15 Introduction 11:00 dNG-POP Archi c/dNGPOP uAUT & uDPM uDPM & Caching 12:00 Archi c/dNGPOP dNG-POP uDPM & Caching uAUT & uDPM 13:00 Lunch 14:00 uAUT & uDPM dNG-POP uDPM & Caching c/dNGPOP Archi 15:00 uDPM & Caching uAUT & uDPM Archi dNG-POP c/dNGPOP 16:00 c/dNGPOP uDPM & Caching uAUT & uDPM Archi dNG-POP 17:00 Refreshments - End of the demo event

This presentation is property of the COMBO Consortium and shall not be distributed or reproduced without the formal approval of the Project Board

Acknowledgments COMBO team for this demo event

■ Logistics: M. Wilmet, S. Gosselin, B. Le Guyader, J.-C. Point, K. Dobrajs

♦ Thanks also to Pôle Images & Réseaux : G. Maugis, A. Balan

■ Technical organization and integration: B. Le Guyader,

• X. Grall, S. Gosselin, D. Abgrall

■ Booth Archi : D. Breuer, A. Gravey, B. Skubic, J. Torrijos ■ Booth dNG-POP : Z. Ghebretensae, A. Autenrieth, B. Andrus, X. Grall, B. Le Guyader, J. Zou, S. Zimmermann, E. Masgrau Rite, O. Calvo Garcia, J. V. Galan, D. Beamonte ■ Booth uAUT & uDPM : P. Olaszi, A. Pineda, S. Höst ■ Booth uDPM & Caching : Y. Liu, A. Ladanyi, T. Cinkler,

• O. Fall

■ Booth c/dNG-POP : R. Martinez, M. Requena, A. Mayoral

Demo Event – 28th April 2016 – Lannion – Introduction 30

This presentation is property of the COMBO Consortium and shall not be distributed or reproduced without the formal approval of the Project Board

Demo Event – 28th April 2016 – Lannion – Introduction 31

Thank you for your attention

www.ict-combo.eu stephane.gosselin@orange.com pointjc@jcp-connect.com michele.wilmet@jcp-connect.com

This presentation is property of the COMBO Consortium and shall not be distributed or reproduced without the formal approval of the Project Board

Backup

Demo Event – 28th April 2016 – Lannion – Introduction 32

This presentation is property of the COMBO Consortium and shall not be distributed or reproduced without the formal approval of the Project Board

Mapping between uAUT and uDPM and main functional groups for network FMC

Key functional groups within Fixed–Mobile convergence

Forwarding Automatic Configuration Management Policy and Charging Subscriber Data and Session Management Mobility universal subscriber and user AUThentication (uAUT) Binds the user to multiple subscribers’ identities Identifies policies and binds them to subscribers Global Authentication; Controls single session over several networks Controls horizontal and vertical handover; facilitates load balancing universal Data Path Management (uDPM) Interface Selection Routing Load balancing Takes account

• f policies

(network’s and subscriber’s specific) Applies session management rules to multiple paths Handover between technologies,

• ptimises

server’s choice

33 Demo Event – 28th April 2016 – Lannion – Introduction

This presentation is property of the COMBO Consortium and shall not be distributed or reproduced without the formal approval of the Project Board

COMBO UAG implementations

UAG as a structurally converged IP edge : incremental implementation

34

UAG as a functionally converged IP edge : disruptive implementation

ul#mate target for UAG implementa#on

Demo Event – 28th April 2016 – Lannion – Introduction
