SLIDE 1

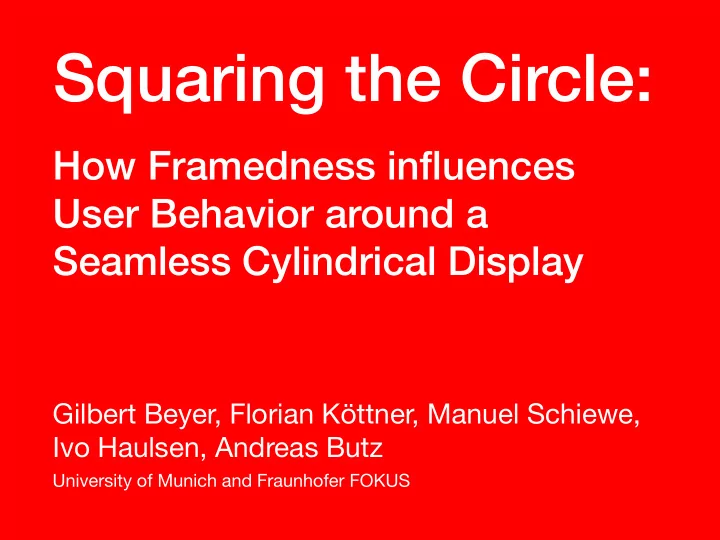

Squaring the Circle:
How Framedness influences User Behavior around a Seamless Cylindrical Display
Gilbert Beyer, Florian Köttner, Manuel Schiewe, Ivo Haulsen, Andreas Butz
University of Munich and Fraunhofer FOKUS
Shaped Displays
Squaring the Circle: How Framedness influences User Behavior around - - PowerPoint PPT Presentation
Squaring the Circle: How Framedness influences User Behavior around - - PowerPoint PPT Presentation
Squaring the Circle: How Framedness influences User Behavior around a Seamless Cylindrical Display Gilbert Beyer, Florian Kttner, Manuel Schiewe, Ivo Haulsen, Andreas Butz University of Munich and Fraunhofer FOKUS Shaped Displays Digital
SLIDE 2
SLIDE 3
Digital Advertising Column
SLIDE 4
Audience behavior
SLIDE 5
Defining qualities of shaped displays
Form Factor / Framedness / Seamlessness
SLIDE 6
SURFACE ROUGHNESS CURVATURE
concave / convex
PLANARITY
flat / non-flat
Page 6 of 51
Q1: Form Factor
SHAPE
primitive / complex
SLIDE 7
Page 7 of 51
Cylinder
SLIDE 8
Page 8 of 51
Circular Cylinder
SLIDE 9
*For a hexagon see Koppel et al. 2012
Polygon (Octagon)
SLIDE 10
Page 10 of 51
Surface Roughness
SLIDE 11
Page 11 of 51
Q2: Framedness
FRAMED DISPLAYS
4 boundaries
SEMI-FRAMED DISPLAYS
2 boundaries
UNFRAMED DISPLAYS
1-0 boundaries
SLIDE 12
Semi-framed (curved)
Advertising Column
Page 12 of 51
SLIDE 13
Semi-framed (flat)
Banner Display
Page 13 of 51
SLIDE 14
Page 14 of 51
Q3: Seamlessness
NO EDGES NO BEZELS NO FRAMES
SLIDE 15
Page 15 of 51
Q3: Seamlessness
seamless not seamless
SLIDE 16
The same? Or producing different user behavior?
SLIDE 17
User positions and constellations
SLIDE 18
Column Display
Interaction / Hardware / Challenges
SLIDE 19
Page 19 of 51
Interaction Principle
Communicating the interactivity by means of an unaware or implicit initial interaction
SLIDE 20
Page 20 of 51
Frontal approachers
Unaware initial interaction using a space-saving user representation
SLIDE 21
Page 21 of 51
Tangential passers-by
Unaware initial interaction using particles appearing slightly ahead
SLIDE 22
COMPUTING POWER
8 Kinects
UNBIASED INTERACTION STYLE
no specific poses
SEAMLESS CONTENT
Page 22 of 51
Design Challenges
SEAMLESS INTERACTION
within a circular space
SEAMLESS CONTENT
not affecting positions
SLIDE 23
Multi-Kinect load
SLIDE 24
Page 24 of 51
Hardware Setup
distributed system exchanging depth and skeleton data integrating Kinects as unobtrusively as possible
SLIDE 25
Page 24 of 51
Hardware Setup
distributed system exchanging depth and skeleton data integrating Kinects as unobtrusively as possible
SLIDE 26
Study
Conditions / Design / Data collection
SLIDE 27
Page 26 of 51
Condition 1: Unframed Column
Seamless content and interaction
SLIDE 28
Page 27 of 51
Condition 2: Framed Column
Frames were just a visual overlay over the seamless content
SLIDE 29
Four-week deployment
SLIDE 30
INTERVIEWS LOGGING
data assessed by Kinects
VIDEO-REC.
220 hours
Page 29 of 51
Data Collection
FIELD RATER
(hidden)
INTERVIEWS
semi-structured after the study
SLIDE 31
Page 30 of 51
Scoring Positions
SLIDE 32
Page 31 of 51
Nesting Behaviors
SLIDE 33
Results
General / Conditions / Post-hoc analysis
SLIDE 34
Page 33 of 51
General Observations
762 interactions and 205 people watching others within 33 hour sample 40.9 seconds average interaction interval length
SLIDE 35
Page 34 of 51
General Observations
Initial interaction: already reacting from a distance if approaching frontally – later when deviating
SLIDE 36
Page 35 of 51
General Observations
Pairs and groups interacted untiringly, but singles devoted as well
SLIDE 37
Page 36 of 51
General Observations
All kind of human behavior between cooperation, competition, self-activity
SLIDE 38
Conditions
SLIDE 39
Page 38 of 51
Observations: unframed condition
Users assumed diverse positions, dispersed around the column to assume an active role
SLIDE 40
Page 39 of 51
Observations: framed condition
Significant association between frame and whether users assumed a central position
SLIDE 41
Page 40 of 51
Observations: framed condition
Nested behaviors: Users reposition themselves when starting to interact
SLIDE 42
Page 41 of 51
Observations: pairs and groups
Unframed condition: comfortable distances between users
SLIDE 43
Framed condition: Conflicts when interacting in front of the same frame
- r cooperating between
neighboring frames
Page 42 of 51
Observations: pairs and groups
SLIDE 44
Page 43 of 51
Interviews
Out of 79 interviewees
symbolic image
– most assumed purpose – was entertainment – most could reproduce – detailed functionality – only 1 recalled the – presence of the frames
SLIDE 45
Interpretation
Columns / Framedness / Seamlessness
SLIDE 46
Framedness significantly influences user positioning
around more complex display shapes
SLIDE 47
The basic shape should not be considered in isolation
when designing for new display shapes
SLIDE 48
Blindness for the Frames
?
SLIDE 49
Page 48 of 51
Advantages or otherwise
POSITIONING USERS use frames CLOSE-BY INTERACTION avoid frames REGULATING DISTANCE use or avoid frames MAXIMIZING USERS avoid frames
SLIDE 50
Page 49 of 51
Seamless displays: more options
Virtual frames already performed well to draw users to a position
SLIDE 51
Page 50 of 51
Outlook: visual moderation
Actively shaping the audience by dynamically employing virtual frames?
SLIDE 52
Discussion
