Spreading and bi-stability of droplets driven by thermocapillary and centrifugal forces Joshua Bostwick North Carolina State University Workshop on Surfactant Driven Thin Film Flows Fields Institute, Toronto, ON 2/22/2012 1 Outline

slide-1
SLIDE 1

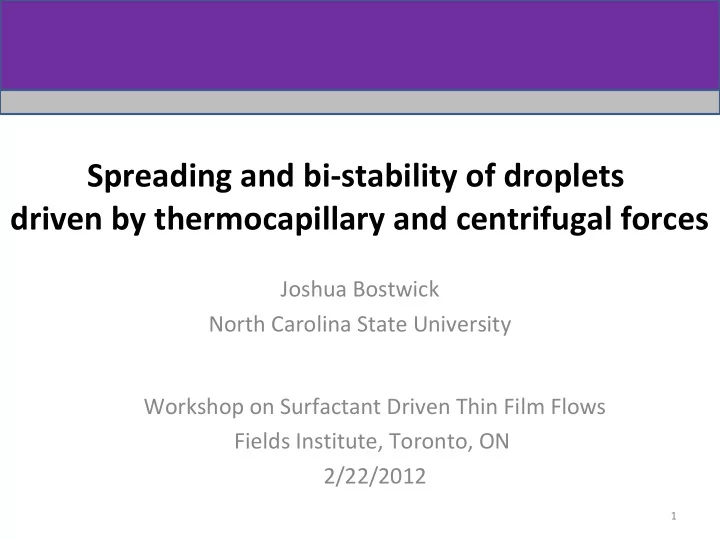

Spreading and bi-stability of droplets driven by thermocapillary and centrifugal forces

Joshua Bostwick North Carolina State University Workshop on Surfactant Driven Thin Film Flows Fields Institute, Toronto, ON 2/22/2012

1

slide-2
SLIDE 2
  • Definition sketch

– Spreading mechanisms

  • thermocapillarity
  • wetting vs. spreading
  • Quasi-static spreading

– axial vs. radial thermal gradients

  • flows, interface shapes and spreading rates

– bi-stability

  • competition

– effect of applied temperature profile

  • linear vs. logarithmic heating

Outline

2

slide-3
SLIDE 3
  • Spreading forces

– Body

  • gravity, centrifugal

– Surface

  • thermocapillarity

– Contact

  • wetting
  • Competition can lead to instabilities!

Why do fluid ids spread?

Young-Dupre’ static contact- angle

3

slide-4
SLIDE 4

Heating conditions

heat transfer (conductive) substrate heating (non-uniform)

motivated by experiments in Behringer group (Duke University)

NOTE: 2 temperature scales

4

slide-5
SLIDE 5

Thermocapil illary forces

surface tension equation of state substrate heating (non-uniform) Marangoni stress (shear) heat transfer (conductive)

axial gradient radial gradient

5

slide-6
SLIDE 6

wetting vs. spreading

Young-Dupre equation

force balance (statics)

modeling microscopic effects using macroscopic quantities dynamic contact-line law

force imbalance (dynamics): mobility exponent

wetting spreading

slide-7
SLIDE 7

Definition sketch

7

choose applied temperature distribution consistent with experiment

slide-8
SLIDE 8

Solution method

incompressible, Newtonian fluid lubrication approximation quasi-static approximation

8

slide-9
SLIDE 9

Quasi-static spreading

steady droplet shape (small heating)

Map the problem to the contact line!

Imbalance of contact-line forces drive motion

“+ auxiliary conditions” mobility exponent response

Dynamic CL Law

9

Bond centrifugal radial Marangoni axial Marangoni

slide-10
SLIDE 10
  • large parameter space

– equilibrium, flow fields and path to equilibrium

  • review isothermal spreading
  • linear temperature distribution

– small heating – isorotational spreading

  • axial vs. radial thermal gradients
  • competition and bi-stability

– centrifugal effects

  • logarithmic temperature distribution

– compare retraction laws to experiment

Outline of results

10

slide-11
SLIDE 11

Isothermal spreading

spreading laws equilibrium shapes spreading law base flow surface tension dominant gravity dominant governing equation Tanner (1979), Chen (1988) Ehrhard (1991)

slide-12
SLIDE 12

axial gradient radial gradient

droplet shapes thermo- capillary flows Ehrhard 91 (JFM) Smith 95 (JFM)—2D

12

vs.

slide-13
SLIDE 13

Approach to equilibrium

axial gradient radial gradient

13

slide-14
SLIDE 14

Competition

equilibrium and Descartes’ rule of signs vs.

+ +

14

slide-15
SLIDE 15

Bi-stability

bifurcation diagram force balance energy landscape

+

15

slide-16
SLIDE 16

Approach to equilibrium

drop

de-coupled CL dimpled ridge

16

slide-17
SLIDE 17

Centrifugal effects

17

equilibrium equation centrifugal forces can replace/overcome the effect of heat transfer! `slices’ of parameter space

slide-18
SLIDE 18

Logarithmic temperature profile

18

lumped parameter equilibrium equation with

retraction rates are consistent with Mukhopadhyay & Behringer 2009

heat transfer is necessary to achieve bi-stability

slide-19
SLIDE 19

Concluding remarks

  • bi-stability <---> competition
  • centrifugal forces can enlarge regions of bi-stability

– thermal conditions may be relaxed – more control

  • map regions of indefinite spreading
  • generalized to other heating conditions

Acknowledgement: NSF FRG Grant # DMS-0968258

19

Michael Shearer, Karen Daniels, Joshua Dijksman

slide-20
SLIDE 20

Quasi-static spreading

steady droplet shape (small heating)

Map the problem to the contact line!

Imbalance of contact-line forces drive motion

“+ auxiliary conditions” mobility exponent response static contact-angle

Dynamic CL Law

20

slide-21
SLIDE 21

Evolution equation

auxiliary conditions dimensionless numbers capillary Bond centrifugal slip length thermocapillary Biot (heat transfer) thermal gradient

scale with σ

(surface tension)

slide-22
SLIDE 22

Evolution equation

auxiliary conditions dimensionless numbers Capillary Bond Centrifugal Slip length Thermocapillary Biot Thermal gradient

slide-23
SLIDE 23

Field equations

surface tension relationship energy balance velocity field pressure temperature incompressibility Stokes flow

slide-24
SLIDE 24

Boundary conditions

substrate volume free surface contact-line

slide-25
SLIDE 25

Wetting

Young-Dupre equation:

force balance (statics) non-wetting ( ) wetting ( )

modeling microscopic effects using macroscopic quantities

slide-26
SLIDE 26

Evolution equation

auxiliary conditions dimensionless numbers Capillary Bond Centrifugal Slip length Thermo-capillary Biot Thermal gradient

slide-27
SLIDE 27

Spreading

Spreading law unbalanced forces (dynamics) wetting (advancing contact angle) spreading

slide-28
SLIDE 28

Why do fluid ids spread?

centrifugal forces (body) thermocapillarity (surface) gravity (body) wetting (substrate) Young-Dupre’ static contact- angle

28

slide-29
SLIDE 29

Competition

vs.

+ +

29

slide-30
SLIDE 30

30

slide-31
SLIDE 31

axial gradient radial gradient

shapes flows Ehrhard 91 (JFM) Smith 95 (JFM)—2D

31

slide-32
SLIDE 32

Quasi-static spreading

steady droplet shape

Map the problem to the contact line!

Imbalance of contact-line forces drive motion applied temperature gradient

“+ auxiliary conditions” mobility exponent response static contact-angle

Dynamic CL Law

32

slide-33
SLIDE 33

Approach to equilibrium

axial gradient radial gradient

mobility exponent

33

slide-34
SLIDE 34

Competition

equilibrium and Descartes’ rule of signs axial-cool, radial-in axial-heat, radial-out vs.

34

slide-35
SLIDE 35

Heating conditions

ambient temperature equation of state heat transfer (conductive) substrate heating (non-uniform) Marangoni stress (shear) Experiments by Behringer group (Duke University)

35

slide-36
SLIDE 36

Why do fluid ids spread?

centrifugal forces (body) thermocapillarity (surface) gravity (body) wetting (substrate) Young-Dupre’ static contact- angle

36

slide-37
SLIDE 37

Gravity-driven spreading

power laws equilibrium shapes spreading law base flow force balance surface tension dominant gravity dominant

slide-38
SLIDE 38

Quasi-static limit (C 0 )

Marangoni numbers equilibrium time-dependence in BC

Map the problem to the contact line!

slide-39
SLIDE 39

Results

  • Large parameter space
  • Unforced spreading (base-flow)

– power laws

  • Spreading by thermal-gradients (forced)

– axial vs. radial gradients

  • similarities, mechanisms and power laws

– equilibrium, stability and bifurcation

  • surface chemistry (wetting)

– bi-stability

  • competition
