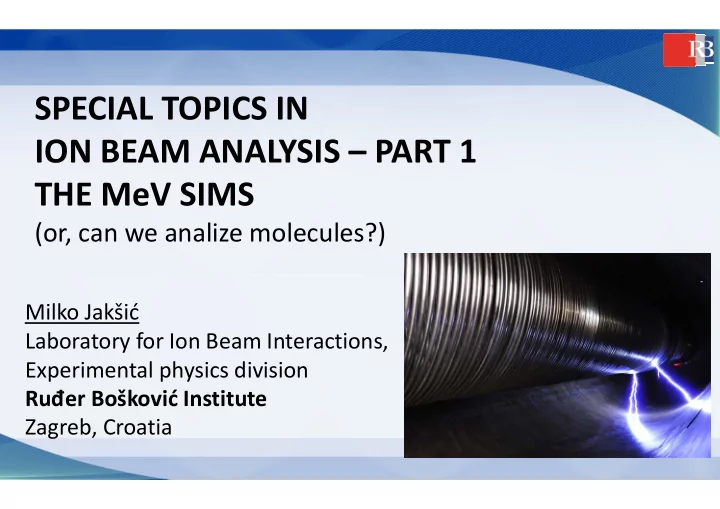

SPECIAL TOPICS IN ION BEAM ANALYSIS – PART 1 THE MeV SIMS

(or, can we analize molecules?)

Milko Jakšić Laboratory for Ion Beam Interactions, Experimental physics division Ruđer Bošković Institute Zagreb, Croatia

slide-2
SLIDE 2

OUTLINE

  • Ion microprobe – focusing the ion beam
  • Interaction of heavy ions and matter & Ion Beam Analysis
  • SIMS (Secondary Ion Mass Spectroscopy) ‐ history and basics
  • SIMS with MeV ions at the Ruđer Bošković Institute

– The setup – Cultural heritage studies application – Applications in forensics

  • SIMS setup with STIM detector as a START trigger

– Application to molecular imaging of cells

  • Capillary SIMS & increasing mass resolution
  • Conclusions
  • Transnational access to accelerator facilities

2

slide-3
SLIDE 3

Ion beam focusing

Ion microprobe basics:

  • Solenoid lenses (used in electron microscopy) can not focus

MeV ions (unless superconductive magnets are used)

  • Systems of magnetic or electrostatic quadrupoles have to be

used

  • The main parameter that determines microbeam spot size of the

MeV ion microprobe systems is demagnification !

  • Many possible sources of unwanted influences on final

microbeam size: ion source brightness, ion beam current, focusing element aberrations, vibrations, misalignments, working distances, collimation, vacuum levels, ion mass and energy,….

Demagnifications: Dx = x/X Dy = y/Y Vertical plane Horizontal plane

slide-4
SLIDE 4

Ion beam focusing

RBI microprobe setup:

  • High excitation triplet (Oxford) for low rigidity

ions (up to 8 MeV protons)

  • Classical doublet is used for high rigidity ions

(only two first quads are connected) and using longer working distance.

  • Magnetic beam scanning is used
  • Working distance is 11 cm for triplet, 26 cm for

doublet

From: F. Watt, G.W. Grime (Eds.), Principles and Applications

  • f High Energy Ion Microbeams, Adam Hilger, Bristol (1987).
slide-5
SLIDE 5

Imaging using focused ion beam

elemental maps

X Y proton beam scan generator X Y quadrupole doublet focusing lens sample x-ray detector amplifier X-ray energy spectrum

  • bject slits

Pb Ca S Fe

scan scan focus focus pixe pixe Elemental images

slide-6
SLIDE 6

Interaction of fast (MeV) ions with matter

ionization scattering a) Ionization of atoms (scattering with electrons) b) Scattering with atomic nuclei c) Nuclear reactions Every process lead to one or more analytical techniques: ION BEAM ANALYSIS

slide-7
SLIDE 7

IBA and interactions of ion beam with matter

7

Are there any process that can result in analysis of molecules? Yes, mass spectrometry !

slide-8
SLIDE 8

keV ions and SIMS

Nuclear stopping Sputtering process !

slide-9
SLIDE 9

9

keV ions and SIMS ‐ Secondary ion mass spectrometry

SIMS spectra are dominated by molecular fragments !!!

slide-10
SLIDE 10

10

500 1000 1E-6 1E-5 1E-4 1E-3 0,01 0,1 1 10 100 1000 10000 100000

Number of charge pairs (ion*nm)

  • 1

Depth (nm)

500 1000 1E-6 1E-5 1E-4 1E-3 0,01 0,1 1 10 100 1000 10000 100000

Vacancies (ion*nm)

  • 1

Depth (nm)

protons protons C Si Cu I C Si Cu I

Eions = 1 MeV/amu

What about the MeV ions?

Electronic stopping is much higher !!

slide-11
SLIDE 11

What about the MeV ions?

slide-12
SLIDE 12

Secondary Ion Mass Spectrometry (SIMS) The history – PDMS !

12

  • 1974 first papers on desorption of molecular ions using fission fragments from 252Cf source

(plasma desorption mass spectrometry – PDMS) appeared

  • Later PDMS was abandoned and replaced by other mass spectrometry techniques like electron spray

ionisation (ESI), matrix‐assisted laser desorption/ionization MALDI and SIMS using ions of keV energies.

  • In 2008, group of prof. J. Matsuo from Kyoto University started to use a MeV ions for desorption (same principle

as PDMS, but MeV ions are produced by ion beam accelerator)

  • Today, 5‐6 laboratories in the world are performing SIMS measurements with MeV ions
slide-13
SLIDE 13

Secondary Ion Mass Spectrometry (SIMS) The history – the use of MeV accelerator

13

MeV SIMS

Kyoto University - Jiro Matsuo et al,

  • Nucl. Instr. Meth., 267 (2009) 2144

Imaging mass spectrometry with nuclear microprobes for biological applications Heavy ions of aprox. 1 MeV per nucleon

slide-14
SLIDE 14

Linear TOF telescope for MeV SIMS

providing a trigger (START signal)!!

START‐beam chopper STOP‐MCP detector

Pulse duration 2 ns Time between two pulses 100 μs

slide-15
SLIDE 15

START‐beam chopper STOP‐MCP detector

Pulse duration 2 ns Time between two pulses 100 μs

0.020 0.025 0.030 0.035 0.040 0.045 0.050

T im e (s)

100 pA = 620 ions in 1 s, or 1.22 ion in 2 ns

Linear TOF telescope for MeV SIMS

providing a trigger (START signal)!!

slide-16
SLIDE 16

Linear TOF telescope for MeV SIMS

+5 kV 0‐3 kV ‐2 kV

MeV ions (chopped beam) Target Einzel lens Grid MCP Anode positive fragments L≈400 mm

slide-17
SLIDE 17

Why MeV SIMS?

17

1000 100 10 1 0.1 0.01 Spatial resolution (μm) 105 104 103 102 Molecular weight Tissue Living cell Bacteria Protein Lipid Drag

Microbeam setup for MeV SIMS (Q triplet)

  • Pulsed ion beam (repetition rate 100 μs)
  • Object slit opening : 100 μm x 100 μm
  • Collimator slit opening: 2 mm x 2 mm
  • Beam dimension: ~ 5 μm (+ beam halo)
  • Average pulsed current: ~ 1 fA
  • < 5ns pulse duration
  • Molecular mapping of tissue
  • Detected masses: ~ 1000 Da
  • High efficiency: >1% secondary ion yield
  • 103 higher yield for heavy molecules

than keV SIMS

slide-18
SLIDE 18

MeV SIMS spectra and beam resolution test

18

  • MeV SIMS image of Leucine

evaporated

  • n

Si substrate through Precision Electroformed Mash, 200 line/inch (space 112.3 μm, wire 14.7 μm)

  • prepared by Keisuke Wakamoto,

Kyoto University

  • lateral beam resolution:

x = (2.6 ± 1.2) μm y = (5.3 ± 2.0) μm

  • 5 MeV O+3
  • scan size 270×270 μm2
  • 0.1 mol solution of

Leucine‐ C6H13NO2

slide-19
SLIDE 19

MeV SIMS – Imaging in forensics

Green: m/z=611 Blue: m/z=576 Red: m/z=105 Identification of pigments (variations of blue phthalocyanines and alkyd binder)

Molecular imaging of the ink intersections

Pen 2 under Pen 3 Pen 3 under Pen 2

slide-20
SLIDE 20

MeV SIMS – Imaging in forensics

50 100 150 200 250 300 350 400 10000 20000 30000

Counts m/Z

m/Z=23 m/Z=365 Beam: 8 MeV Si4+ Image size: 1×1 mm2 Sample: Fingerprint on Si

slide-21
SLIDE 21

“Study of modern paint materials and their stability using MeV SIMS and other analytical techniques”

  • Project with the Academy of Fine Arts Vienna
  • The most used binding media in artistic field, especially acrylic, vinyl and alkyds
  • Behavior of those materials, their interaction with other materials as well as their

degradation with time is not well understood

Cultural heritage studies using MeV SIMS

21

slide-22
SLIDE 22

Table 1: description of the pigments used for the mock‐ups preparation, with relative molecular mass values

Analysis of the colour pigment

22

slide-23
SLIDE 23

Identification of different blue phthalocyanine pigments in alkyd paints:

Binding medium Phthalocyanine

chlorinated Cu‐PC Cu‐PC Metal free PC

5 MeV Si4+

23

slide-24
SLIDE 24
  • 2 component mock‐ups were prepared at the Academy of Fine Arts
  • Commercial paints Griffin
  • Artificial ageing using increased temperature, (UV) light
  • UV1 + T1 ‐ 2 months ageing UV+T, T1 only temperature T
  • UV2 + T2 ‐ 4 months ageing UV+T, T2 only temperature T

24

slide-25
SLIDE 25

Alkyd:

  • m/z= 76,104, 148 phthalic anhydride
  • m/z=191 ‐ polyol alkyd component Trimethylolpropane
  • m/z=284 ‐ drying oil alkyd component (stearic acid)
  • 5 MeV Si4+ PB15:3

25

slide-26
SLIDE 26

SIMS setup with STIM detector used as trigger

26

Requirements:

  • thin samples (transparent for the primary ions being used)
  • Cell thickness is ~ 5 µm ☑
  • Tissues sections ~5 µm ☑
  • Samples are mounted on the thin (100 nm) Si3N4 windows

Microbeam setup for MeV SIMS (Q triplet)

  • Continuous beam
  • Object slit opening :5 μmx5 μm
  • Collimator slit opening: 50 µmx50 µm
  • Beam dimension: <400 nm (Low beam halo)
  • Average current: ~ 1 fA (~10 kHz)
  • ~2 ns START pulse width
  • Molecular mapping of single cell
  • Detected masses: ~ 1000 Da
  • High efficiency: ~ 0.1 secondary ion yield
  • In addition, STIM image of the sample is recorded
slide-27
SLIDE 27

Beam resolution test

  • Beam: 9 MeV O4+
  • STIM measurements on a Ni‐plated grid
  • Smallest grid bars are = 400 nm
  • Scan (map) size= 27x27 µm2
  • Lateral resolution:

FWHM (x)=(300±60) nm FWHM (y)=(500±100) nm (due to 45° orientation)

27

slide-28
SLIDE 28

Molecular imaging of red onion cells

28

Single layer of onion cells mounted on the 1x1 mm2 window

  • Cryofixation (plunge freezing in LN2)
  • Freeze dried (24 h, 80°C at 10‐3 mbar)
  • SIMS measurements were performed by 9 MeV O4+

ions

Single cell size width ~ 50 µm

slide-29
SLIDE 29

Molecular maps of the single onion cell

29

100 200 300 400 500 600 700 800 900 4000 8000 12000 16000 20000

Counts m/z Positive ions

100 200 300 400 500 600 700 800 900 1000 200 400 600

Counts m/z Negative ions

Scan size=200x200 µm2 (≈800 nm/pixel)

slide-30
SLIDE 30

Molecular maps of the single onion cell

30

Scan size=200x200 µm2 (≈800 nm/pixel)

slide-31
SLIDE 31

Molecular imaging of single cancer cell

Cell line preparation:

  • CaCo‐2 cells were derived from a human colorectal adenocarcinoma
  • Grown on 100 nm thin Si3N4 window (with 5 nm Au layer)
  • Washed in ammonium formate (NH4HCOO)
  • Cryofixation (plunge freezing in LN2)
  • Freeze dried (24 h, 80°C at 10‐3 mbar)

31

slide-32
SLIDE 32

32

CaCo‐2 cell, spectra and molecular maps)

100 200 300 400 10000 20000 30000 40000 50000 60000 70000 80000 Lipid fragment 184.1 K

+

Na

+

Counts m/z

Beam: 9 MeV O4+ Scan size: 85x85 µm2 (≈300 nm/pixel) STIM Na+ K+ Lipid Optical image

  • Z. Siketic et al., Appl. Phys. Lett. 107, 093702 (2015)
slide-33
SLIDE 33

SIMS setup with capillary collimation

33

  • Central beam line – Capillary collimation
  • Capability to use the heaviest ions produced by 6.0

MV tandem (up to 100 MeV (ME/q2) rigidity)

  • these can not be used in microprobe beam line !
  • Larger LET ions - significantly increased sensitivity !

Beam direction

slide-34
SLIDE 34

SIMS setup with capillary collimation

34

  • Central beam line – Capillary collimation
  • Capability to use the heaviest ions produced by 6.0

MV tandem (up to 100 MeV (ME/q2) rigidity)

  • these can not be used in microprobe beam line !
  • significantly increased sensitivity !
  • Increased mass resolution - new Reflectron

spectrometer !!

Ion beam

slide-35
SLIDE 35

SIMS setup with capillary collimation

35

  • Central beam line – Capillary collimation
  • Capability to use the heaviest ions produced by 6.0

MV tandem (up to 100 MeV (ME/q2) rigidity)

  • these can not be used in microprobe beam line !
  • significantly increased sensitivity !
  • Increased mass resolution - new Reflectron

spectrometer !!

slide-36
SLIDE 36

Determination of Deposition Order of Toners, Inkjet Inks, and Blue Ballpoint Pen Combining MeV‐Secondary Ion Mass Spectrometry and Particle Induced X‐ray Emission MeV SIMS results

  • K. L. Moore, M. Barac, M. Brajković, M.J. Bailey, Z. Siketić, I. Bogdanović Radović
  • Anal. Chem.2019912012997‐13005K. DOI: 10.1021/acs.analchem.9b03058
  • Mev SIMS – sample surface

information

  • PIXE – deeper layers (incl. Surface)
  • Complex SIMS spectra & images

were treated by principal component analysis (PCA)

  • Images of different PCA

components were produced in ordre to distinguish order of deposition of inks !!

slide-37
SLIDE 37

Particle Induced X‐Ray Emission (PIXE) results

  • Detection of characteristic X‐rays
  • They come from different depths
  • Elemental analysis (S and Na in inkjet, Si in laser)

p X-rays

  • K. Moore, M. Barac et al., Analytical Chemistry, DOI: 10.1021/acs.analchem.9b03058
slide-38
SLIDE 38

a) PC2 map of laser toner 3 and its loading plot, b) PC3 map of inkjet ink 2 and its loading plot

a) b)

Laser Inkjet

Inkjet below laser

  • K. Moore, M. Barac et al., Published in Analytical chemistry, DOI: 10.1021/acs.analchem.9b03058
slide-39
SLIDE 39

a) PC2 map of laser toner 3 and its loading plot, b) PC3 map of inkjet ink 2 and its loading plot

a) b)

Laser Inkjet

Inkjet above laser

  • K. Moore, M. Barac et al., Published in Analytical chemistry, DOI: 10.1021/acs.analchem.9b03058
slide-40
SLIDE 40

Mouse Serum sample

Blue‐normal diet, Blood glucose level: 6.3 mmol/L Green‐high fat diet, Blood glucose level: 8.6 mmol/L

Lipid fragment m/z=184.1 Cholesterol m/z=369.4 DAG PC

Positive SIMS spectra

FA

Negative SIMS spectra Diabetes Research and Clinical Practice‐ Under revision

slide-41
SLIDE 41

Urine analysis‐temporal profiles

  • Time sets of urine samples were measured in several individual mice with

respect to the development of type 1 diabetes.

  • Based on the largest difference in the time profile of blood glucose,

CONTROL and DISEASES of the group of individuals were selected.

  • The algorithm, multivariate empirical Bayesian time series analysis

(MEBA), was used for detecting distinctive temporal profiles.

  • The

ANOVA algorithm found the most significant masses which contributes to the separation of the two defined groups (control and disease).

slide-42
SLIDE 42

Temporal profiles:

CONTROL DISEASE

High blood glucose levels!

TIME

SAMPLE NO. CAGE LABEL TIME

GUK (mmol/L)

1810062 K1 O 1

5.2

1810063 K1 O 2

5.1

1810064 K1 O 3

6.3

1810065 K1 O 4

5.7

1810066 K1 O 5

6.8

1810067 K1 O 6

6.1

1810068 K1 O 7

6.6

1810069 K1 O 8

9.7

1810070 K1 O 9

28.1 !

1810098 K1 L 1

5.9

1810099 K1 L 2

5.7

1810100 K1 L 3

5.3

1810101 K1 L 5

5.3

1810102 K1 L 6

6.5

1810103 K1 L 7

5.1

1810104 K1 L 8

5.2

1810105 K1 L 9

23.9 !

1810071 K1 D 1

5.5

1810072 K1 D 2

6.1

1810073 K1 D 3

5.3

1810074 K1 D 4

4.8

1810075 K1 D 5

5

1810076 K1 D 6

5.4

1810077 K1 D 7

4.9

1810078 K1 D 8

6.1

1810079 K1 D 9

4.9

1810080 K2 L 1

5.3

1810081 K2 L 2

5.4

1810082 K2 L 4

5.5

1810083 K2 L 3

6.1

1810084 K2 L 5

5

1810085 K2 L 6

4.8

1810086 K2 L 7

5.2

1810087 K2 L 8

5.4

1810088 K2 L 9

4.7

Blood glucose levels CONTROL DISEASE

slide-43
SLIDE 43

Conclusions (1)

  • Presented MeV SIMS setup is very simple (and cheap!), it is readily compatible

with existing heavy ion microprobes

  • System was used to study aging of modern paint materials with a good

molecular yields for studied pigments

  • New MeV TOF‐SIMS arrangement, with STIM detector beyond the target for

START triggering, shows great potential for subcellular molecular imaging with a lateral resolution well below 1 µm (CaCo‐2 cell molecular imaging is demonstrated)

  • Additionally, STIM images are simultaneously collected, thus providing

additional information about the sample density distribution and allows for cellular localization without the use of additional markers

  • In collaboration with biology department, this technique will be use for the

investigation and understanding of biochemical processes inside an individual cell

43

slide-44
SLIDE 44

Ruđer Bošković Institute accelerator facility

6.0 MV Tandem Van de Graaff 1.0 MV Tandetron

slide-45
SLIDE 45

1.0 MV HVE Tandetron accelerator 6.0 MV EN Tandem Van de Graaff accelerator

Ruđer Bošković Institute accelerator facility

slide-46
SLIDE 46

Conclusions (2)

Ion beams could provide plenty of unique information on unique samples !

  • Classical IBA techniques (PIXE, RBS, PIGE, NRA)
  • New IBA techniques: MeV SIMS
  • Microprobe IBA can provide unique information
  • Single ion IBA – characterisation of charge transport, crystal structure, density

variations --- sub micrometer resolution (10 nm – CIBA Singapore)

slide-47
SLIDE 47

Transnational Access to RBI facilities

Dual beam irradiation for fusion materials Dual microbeam (simultaneous irradiation & probing) Heavy ion microprobe IBIC, MeV SIMS, etc. TOF ERDA Capillary microprobe - MeV SIMS

slide-48
SLIDE 48

Transnational Access to RBI facilities

IAEA CRP Call for proposals opened in April 2019 !! (including nonEuropean researchers !!) visit: https://www.ionbeamcenters.eu Calls for proposals twice a year !

slide-49
SLIDE 49

Acknowledgements
