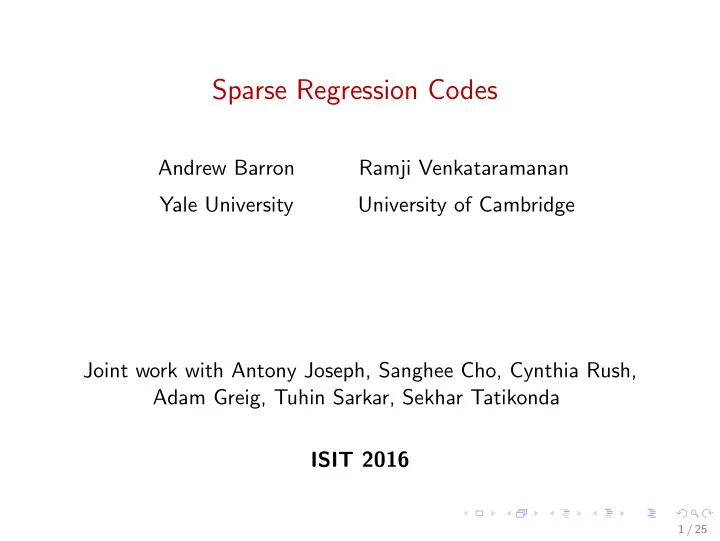

Sparse Regression Codes Andrew Barron Ramji Venkataramanan Yale - - PowerPoint PPT Presentation

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Sparse Regression Codes

Andrew Barron Ramji Venkataramanan Yale University University of Cambridge Joint work with Antony Joseph, Sanghee Cho, Cynthia Rush, Adam Greig, Tuhin Sarkar, Sekhar Tatikonda ISIT 2016

1 / 25

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Part III of the tutorial:

• SPARCs for Lossy Compression
• SPARCs for Multi-terminal Source and Channel Coding
• Open questions

(Joint work with Sekhar Tatikonda, Tuhin Sarkar, Adam Greig)

2 / 25

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Lossy Compression

Codebook

S = S1, . . . , Sn

enR

ˆ S = ˆ S1, . . . , ˆ Sn

R nats/sample

• Distortion criterion: 1

n∥S − ˆ

S∥2 = 1

n

∑

k(Sk − ˆ

Sk)2

• For i.i.d N(0, ν2) source, min distortion = ν2e−2R

3 / 25

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Lossy Compression

Codebook

S = S1, . . . , Sn

enR

ˆ S = ˆ S1, . . . , ˆ Sn

R nats/sample

• Distortion criterion: 1

n∥S − ˆ

S∥2 = 1

n

∑

k(Sk − ˆ

Sk)2

• For i.i.d N(0, ν2) source, min distortion = ν2e−2R
• Can we achieve this with low-complexity codes?

– Storage & Computation

3 / 25

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

SPARC Construction

A: β: 0, c2, 0, cL, 0, , 0 0,

M columns M columns M columns Section 1 Section 2 Section L

T

n rows

0, c1, n rows, ML columns, Aij ∼ N(0, 1/n)

4 / 25

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

SPARC Construction

A: β: 0, c2, 0, cL, 0, , 0 0,

M columns M columns M columns Section 1 Section 2 Section L

T

n rows

0, c1, n rows, ML columns, Aij ∼ N(0, 1/n) Choosing M and L:

• For rate R codebook, need ML = enR
• Choose M polynomial of n ⇒ L ∼ n/log n
• Storage Complexity ↔ Size of A: polynomial in n

4 / 25

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Optimal Encoding

A: β: 0, c2, 0, cL, 0, , 0 0,

M columns M columns M columns Section 1 Section 2 Section L

T

n rows

0, c1,

Minimum Distance Encoding: ˆ β = arg minβ∈ SPARC ∥S − Aβ2∥ Theorem [Venkataramanan, Tatikonda ’12, ’14]: For source S i.i.d. ∼ N(0, ν2), the sequence of rate R SPARCs with n, L, M = Lb with b > b∗(R): P (1 n∥S − Aˆ β∥2 > D ) < e−n (E ∗(R,D)+o(1)). Achieves the optimal rate-distortion function with the optimal error exponent E ∗(R, D)

5 / 25

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Successive Cancellation Encoding

A: β: 0,

M columns Section 1

T

n rows

0, c1,

Step 1: Choose column in section 1 that minimizes ∥S − c1Aj∥2

• Max among M inner products ⟨S, Aj⟩

6 / 25

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Successive Cancellation Encoding

A: β: 0,

M columns Section 1

T

n rows

0, c1,

Step 1: Choose column in section 1 that minimizes ∥S − c1Aj∥2

• Max among M inner products ⟨S, Aj⟩
• c1 =

√ 2ν2 log M

• residual R1 = S − c1 ˆ

A1

6 / 25

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Successive Cancellation Encoding

A: β: 0, c2, 0,

M columns Section 2

T

n rows

Step 2: Choose column in section 2 that minimizes ∥R1 − c2Aj∥2

• Max among inner products ⟨R1, Aj⟩
• c2 =

√ 2(log M)ν2 ( 1 − 2R

L

)

• residual R2 = R1 − c2 ˆ

A2

6 / 25

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Successive Cancellation Encoding

A: β: cL, 0, , 0

M columns Section L

T

n rows

Step L: Choose column in section L that minimizes ∥RL−1 −cLAj∥2

• cL =

√ 2(log M)ν2 ( 1 − 2R

L

)L

• Final residual RL = RL−1 − cL ˆ

AL Final Distortion = 1

n∥RL∥2

6 / 25

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Performance

Theorem [Venkataramanan, Sarkar,Tatikonda ’13]: For an ergodic source S with mean 0 and variance ν2, the encoding algorithm produces a codeword Aˆ β that satisfies the following for sufficiently large M, L: P (1 n∥S − Aˆ β∥2 > ν2e−2R + ∆ ) < e

−κn (∆− c log log M log M )

Deviation between actual distortion and the optimal value is O( log log n

log n )

7 / 25

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Performance

Theorem [Venkataramanan, Sarkar,Tatikonda ’13]: For an ergodic source S with mean 0 and variance ν2, the encoding algorithm produces a codeword Aˆ β that satisfies the following for sufficiently large M, L: P (1 n∥S − Aˆ β∥2 > ν2e−2R + ∆ ) < e

−κn (∆− c log log M log M )

Deviation between actual distortion and the optimal value is O( log log n

log n )

Encoding Complexity: ML inner products and comparisons ⇒ polynomial in n

7 / 25

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Numerical Experiment

Gaussian source: Mean 0, Variance 1

0.5 1 1.5 2 2.5 3 3.5 4 4.5 5 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 1

Rate (bits/sample) Distortion Shannon limit

Parameters: M=L3, L∈[30,100]

SPARC

8 / 25

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Why does the algorithm work?

A: β: 0,

M columns Section 1

T

n rows

0, c1, Each section is a code of rate R/L (L ∼

n log n)

• Step 1: S

− → R1 = S − c1 ˆ A1 |R1|2 ≈ ν2e−2R/L ≈ ν2 ( 1 − 2R L ) for c1 = √ 2ν2 log M

9 / 25

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Why does the algorithm work?

A: β: 0, c2, 0,

M columns Section 2

T

n rows

Each section is a code of rate R/L (L ∼

n log n)

• Step 1: S

− → R1 = S − c1 ˆ A1 |R1|2 ≈ ν2e−2R/L ≈ ν2 ( 1 − 2R L ) for c1 = √ 2ν2 log M

• Step 2: ‘Source’ R1

− → R2 = R1 − c2 ˆ A2

9 / 25

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Why does the algorithm work?

A: β: 0, ci, 0

M columns Section i

T

n rows

Each section is a code of rate R/L (L ∼

n log n)

• Step i: ‘Source’ Ri−1

− → Ri = Ri−1 − ci ˆ A2 With c2

i = 2Rν2 L

( 1 − 2R

L

)i−1, |Ri|2 ≈ |Ri−1|2 ( 1 − 2R L ) ≈ ν2 ( 1 − 2R L )i

9 / 25

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Why does the algorithm work?

A: β: cL, 0, , 0

M columns Section L

T

n rows

Each section is a code of rate R/L (L ∼

n log n)

Final Distortion: |RL|2 ≈ ν2 ( 1 − 2R L )L ≤ ν2e−2R L-stage successive refinement L ∼ n/ log n

9 / 25

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Successive Refinement Interpretation

A: β: 0, ci, 0

M columns Section i

T

n rows

• The encoder successively refines the source over ∼

n log n stages

• The deviations in each stage can be significant!

|Ri|2 = ν2 ( 1 − 2R L )i

• ‘Typical Value’

(1 + ∆i)2, i = 0, . . . , L

• KEY to result: Controlling the final deviation ∆L
• Recall: successive cancellation does not work for SPARC

AWGN decoding

10 / 25

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Open Questions in SPARC Compression

• Better encoders with smaller gap to D∗(R)?

Iterative soft-decision encoding, AMP?

• AWGN decoding AMP doesn’t work when directly used for

compression: – may need decimation a la LDGM codes for compression

• But recall: With min-distance encoding, SPARCs attain the

rate-distortion function with the optimal error-exponent

• Compression performance with ±1 dictionaries
• Compression of finite alphabet sources

11 / 25

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Sparse Regression Codes for multi-terminal networks

12 / 25

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Codes for multi-terminal problems

Key ingredients:

• Superposition (Multiple-access channel, Broadcast channel)
• Random binning (e.g., Distributed compression, Channel

Coding with Side-Information, . . . ) SPARC is based on superposition coding!

13 / 25

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Multiple-Access Channel

Noise

+

X1 X2 Y ˆ M1 M1 M2 ˆ M2

∥X1∥2 n ≤ P1, ∥X2∥2 n ≤ P2, Noise ∼ N(0, σ2) Corner points of capacity region are given by R1 = 1 2 log ( 1 + P1 P2 + σ2 ) , R2 = 1 2 log ( 1 + P2 σ2 ) and R1 = 1 2 log ( 1 + P1 σ2 ) , R2 = 1 2 log ( 1 + P2 P1 + σ2 )

14 / 25

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Successive Decoding

Y = X1 + X2 + Noise The rate-pair R1 = 1 2 log ( 1 + P1 P2 + σ2 ) , R2 = 1 2 log ( 1 + P2 σ2 ) can be achieved by point-to-point codes:

• X1 is decoded from Y treating X2 as noise
• Subtract off X1, then decode X2 with snr P2/σ2

15 / 25

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Successive Decoding

Y = X1 + X2 + Noise The rate-pair R1 = 1 2 log ( 1 + P1 P2 + σ2 ) , R2 = 1 2 log ( 1 + P2 σ2 ) can be achieved by point-to-point codes:

• X1 is decoded from Y treating X2 as noise
• Subtract off X1, then decode X2 with snr P2/σ2

Easy to implement with SPARCs

Rate R1 SPARC defined by n × M1L1 matrix A1 Rate R2 SPARC defined by n × M2L2 matrix A2 Y = A1β1 + A2β2 + Noise

15 / 25

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Joint Decoding

Y = [A1 A2] [β1 β2 ] + Noise

• One can also decode the message pair β := [β1; β2] directly

using design matrix A := [A1 A2]

• Can achieve all the points in the capacity region
• Idea extends to > 2 users
• Can achieve capacity region of scalar Gaussian Broadcast

channel with similar superposition idea Codes for MAC and BC are straightforward because SPARC is already based on superposition coding!

16 / 25

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Compression with Decoder Side-Information

Encoder Decoder X Y = X + Z ˆ X R

• Side-information Y = X + Z

X ∼ N(0, ν2), Z ∼ N(0, σ2)

• Want to compress X to within squared-distortion

D ∈ (0, var(X|Y )), var(X|Y ) =

ν2σ2 ν2+σ2

[Wyner-Ziv ’75]: The optimal rate-distortion function is R∗(D) = 1 2 log var(X|Y ) D , D ∈ (0, var(X|Y ))

• Want to achieve this with feasible encoding + decoding

17 / 25

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Wyner-Ziv Coding Scheme

Encoder Decoder X Y ˆ X R

Side-info Y = X + Z X ∼ N(0, ν2), Z ∼ N(0, σ2)

18 / 25

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Wyner-Ziv Coding Scheme

Encoder Decoder X Y ˆ X R

Side-info Y = X + Z X ∼ N(0, ν2), Z ∼ N(0, σ2)

U 2nR1 cwds

Encoder

• Quantize X to U: find U that minimizes ∥X − U∥2
• Z ′ = X − U, want R1 large enough that the distortion

∥Z ′∥2 n

≤ (

1 ν2 + 1 D − 1 var(X|Y )

)−1

18 / 25

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Wyner-Ziv Coding Scheme

Encoder Decoder X Y ˆ X R

Side-info Y = X + Z X ∼ N(0, ν2), Z ∼ N(0, σ2)

U 2nR1 cwds 2nR bins

Encoder

• Quantize X to U: find U that minimizes ∥X − U∥2
• Z ′ = X − U, want R1 large enough that the distortion

∥Z ′∥2 n

≤ (

1 ν2 + 1 D − 1 var(X|Y )

)−1

18 / 25

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Wyner-Ziv Coding Scheme

Encoder Decoder X Y ˆ X R

Side-info Y = X + Z X ∼ N(0, ν2), Z ∼ N(0, σ2)

U 2nR1 cwds 2nR bins

Decoder

Y = X + Z = U + Z ′ + Z

• Find U within bin that minimizes ∥Y − U∥2

– Reconstruct ˆ X = E [ X | U, Y ]

18 / 25

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Binning with SPARCs

A: β:

T

0, c1, cL, 0, , 0 0,

M columns Section L M columns Section 1 M columns

, c2, 0,

Section 2

• Quantize X to U using n × ML SPARC (rate R1)

19 / 25

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Binning with SPARCs

A: β:

T

0, c1, cL, 0, , 0 0,

M columns Section L M columns Section 1 M columns

, c2, 0,

M ′

• Quantize X to U using n × ML SPARC (rate R1)
• Divide each section into subsections of M′ columns
• Encoder sends indices of sub-sections containing the column

19 / 25

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Binning with SPARCs

A: β:

T

0, c1, cL, 0, , 0 0,

M columns Section L M columns Section 1 M columns

, c2, 0,

M ′

• Quantize X to U using n × ML SPARC (rate R1)
• Divide each section into subsections of M′ columns
• Encoder sends indices of sub-sections containing the column
• Each Bin is a collection of L sub-sections

( M/M′)L = 2nR bins

19 / 25

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Binning with SPARCs

A: β:

T

0, c1, cL, 0, , 0 0,

M columns Section L M columns Section 1 M columns

, c2, 0,

M ′

• Quantize X to U using n × ML SPARC (rate R1)
• Divide each section into subsections of M′ columns
• Encoder sends indices of sub-sections containing the column
• Each Bin is a collection of L sub-sections

( M/M′)L = 2nR bins

• Decodes Y to U within smaller n × M′L SPARC

19 / 25

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Writing on Dirty Paper

Encoder + Decoder M ˆ M

X

Y

S Noise ε

Y = X + S + ε, S ∼ N(0, σ2

s ),

ε ∼ N(0, σ2), ∥X∥2 n ≤ P

Theorem [Gelfand-Pinsker ’80, Costa ’83]

The capacity of this channel is 1

2 log

( 1 + P

σ2

) High-rate channel code split into bins of lower rate “source” codes

20 / 25

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

SPARC Construction

Y = X + S + ε,

∥X∥2 n

≤ P

A: β:

T

0, c1, cL, 0, , 0 0,

M columns Section L M columns Section 1 M columns

, c2, 0,

M ′

Encoder

• n × ML SPARC of rate R1
• Divide each section into M′ subsections
• Defines (M/M′)L = 2nR bins

21 / 25

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

SPARC Construction

Y = X + S + ε,

∥X∥2 n

≤ P

A: β:

T

0, c1, cL, 0, , 0 0,

M columns Section L M columns Section 1 M columns

, c2, 0,

M ′

Encoder

• Within message bin quantize S to U using rate (R1 − R)

SPARC

• Transmit X = U − αS, for appropriately chosen constant α

21 / 25

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

SPARC Construction

Y = X + S + ε,

∥X∥2 n

≤ P

A: β:

T

0, c1, cL, 0, , 0 0,

M columns Section L M columns Section 1 M columns

, c2, 0,

M ′

Decoder

Y = X + S + ε ↔ Y = (1 + κ)U + ε′

• Decode U from Y the big (rate R1) codebook

21 / 25

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Binning with SPARCs

A: β:

T

0, c1, cL, 0, , 0 0,

M columns Section L M columns Section 1 M columns

, c2, 0,

M ′

Theorem (Venkataramanan-Tatikonda ’12)

With optimal (ML) encoding + decoding, SPARCs attain the

• ptimal information-theoretic rates for Gaussian Wyner-Ziv and

Gelfand-Pinsker models with probability of error exponentially decaying in n.

22 / 25

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Summary

Sparse Regression Codes:

• Rate-optimal for Gaussian point-to-point communication and

compression

• Low-complexity encoding and decoding algorithms
• Nice structure that enables binning and superposition

23 / 25

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Ongoing Work/Open Questions

– Power Allocation for binning with feasible encoding & decoding: Optimal allocation for the source and channel coding parts are different! – SPARCs for Gaussian channel coding, source coding, binning + superposition ⇒ low-complexity, rate-optimal codes for:

• Distributed Lossy Compression (“Berger-Tung”)
• Gaussian Multiple Descriptions
• Gaussian Relay Channels
• Fading Channels, MIMO Channels
• Gaussian Multi-terminal Networks

. . . – SPARCs for interpreting variables that arise in converses

24 / 25

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

References

– R. Venkataramanan, A. Joseph and S. Tatikonda, Lossy Compression via Sparse Linear Regression: Performance under Minimum-distance Encoding, IEEE Trans. Inf. Theory, June 2014 – R. Venkataramanan, T. Sarkar and S. Tatikonda, Lossy Compression via Sparse Linear Regression: Computationally Efficient Encoding and Decoding, IEEE Trans. Inf. Theory, June 2014 – R. Venkataramanan and S. Tatikonda, The Rate-Distortion Function and Error Exponent of Sparse Regression Codes with Optimal Encoding, http://arxiv.org/abs/1401.5272 (Short version at ISIT ’14) – R. Venkataramanan and S. Tatikonda, Sparse Regression Codes for Multi-terminal Source and Channel Coding, Allerton 2012

25 / 25
