26.0 Millhaus Greg D. Fisher | Architect Southwest Study 3070 Terry Lake Road | Fort Collins, Colorado February 28 | 2018 West East 0' 4' 8' 20' 26.0 Millhaus Elevations Greg D. Fisher | Architect 3070 Terry Lake Road | Fort Collins,

slide-1
SLIDE 1

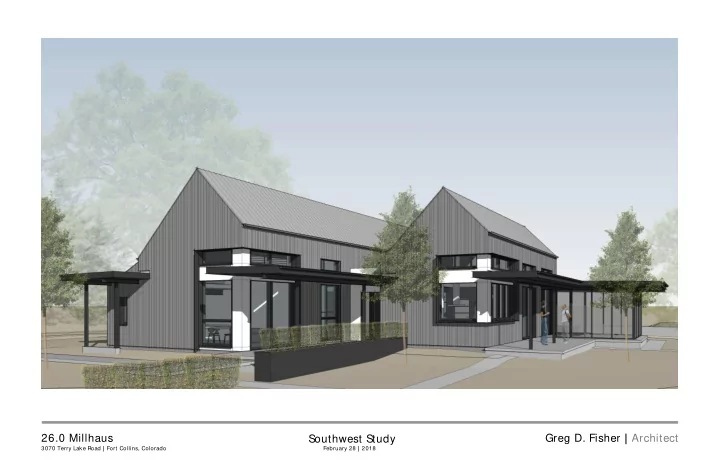

Greg D. Fisher | Architect 26.0 Millhaus

3070 Terry Lake Road | Fort Collins, Colorado February 28 | 2018

Southwest Study

slide-2
SLIDE 2

Greg D. Fisher | Architect 26.0 Millhaus

3070 Terry Lake Road | Fort Collins, Colorado February 28 | 2018

0' 4' 8' 20'

Elevations West East

slide-3
SLIDE 3
slide-4
SLIDE 4

Greg D. Fisher | Architect 26.0 Millhaus

3070 Terry Lake Road | Fort Collins, Colorado February 28 | 2018

Southwest Study

slide-5
SLIDE 5

Greg D. Fisher | Architect 26.0 Millhaus

3070 Terry Lake Road | Fort Collins, Colorado February 28 | 2018

Southeast S tudy

slide-6
SLIDE 6
slide-7
SLIDE 7 6 2 . 3 2

N O R T H T E R R Y

5 0 6 0 5 0 60 5 0 6 0 5 0 65 5 0 6 5 5 0 6 5 62 .1 3 62 .0 8 62 .5 6 62 .3 4 62 .2 7 61 .8 7 61 .9 6 59 .0 3 64 .5 0 64 .5 0 64 .8 1 6 1 . 8 6 62 .3 5 62 .2 0 61 .8 0 62 .1 5 61 .4 9 61 .8 5 61 .7 8 61 .6 3 6 2 . 3 2 6 1 . 8 3 62 .1 5 6 2 . 6 4 62 .2 4 62 .3 3 64 .2 8 65 .4 2 64 .5 7 63 .8 0 64 .0 0 6 . 8 4 6 . 9 1 6 . 8 3 6 1 . 3 6 . 8 1 60 .9 9 61 .1 2 62 .7 4 62 .5 1 62 .6 2 62 .6 1 61 .3 7 60 .9 7 61 .0 0 62 .4 2 63 .1 3 6 2 .2 6 6 3 . 7 8 62 .0 1 62 .9 1 62 .9 4 P P P P P P P P

9.2'± GATE

TERRY LAKE ROAD

J A C K S O N D I T C H HOUSE shop garage

Greg D. Fisher | Architect 26.0 Millhaus

3070 Terry Lake Road | Fort Collins, Colorado February 28 | 2018

0' 10' 20' 40' 80'

Site Plan

slide-8
SLIDE 8

Master Mech./Stor. Mud Studio Kitchen Dining Living Coffee

screened porch

Entry Pantry Piano Bath Cl. Bath

patio patio veggie garden

  • Br. 2

Office

planter

Stor. Coats Garage Shop

entry court

Greg D. Fisher | Architect 26.0 Millhaus

3070 Terry Lake Road | Fort Collins, Colorado February 28 | 2018

Area (Gross Building) Main Level 3137 SF Attic 116 SF Total 3254 SF

Main Level

0' 5' 10' 25' 3/32" = 1' *PH Wall Area Impact: 204 sf (3050 sf)

slide-9
SLIDE 9
slide-10
SLIDE 10
slide-11
SLIDE 11
slide-12
SLIDE 12
slide-13
SLIDE 13
slide-14
SLIDE 14
slide-15
SLIDE 15
slide-16
SLIDE 16
slide-17
SLIDE 17

SYSTEM NOTES:

FLOORS: WALLS:

GENERAL NOTES:

CEILINGS / SOFFITS: ROOFS: THERMAL & MOISTURE RESISTANCE:

C-S (SIDING):

  • SIDING
  • CONTINUOUS GALV. STEEL VENTING @ EXT.
  • ROOF FRAMING PER STUCT. DRW'GS. & ARCH.

SECTIONS C-GB (GYPSUM BOARD):

  • 1/2" GYPSUM BOARD
  • ROOF, FLOOR OR SERVICE CAVITY FRAMING PER
  • STRUCT. DRW'GS. & ARCH. SECTIONS

R-CTF (CORRUGATED TRANSLUCENT FIBERGLASS):

  • CORRUGATED TRANSLUCENT FIBERGLASS PANELS
  • 2X6 RAFTERS @ 24" O.C.

R-MR (METAL ROOF):

  • 24 GA. PRE-FINISHED STANDING SEAM METAL

ROOFING INSTALLED PER MANUF. REQ'MTS.

  • CONTINUOUS ICE & WATER UNDERLAYMENT
  • ROOF FRAMING & CEILING TYPE PER STRUCT.

DRW'GS. & ARCH. SECTIONS R-RC (RAFTERS CONDITIONED):

  • RAFTERS @ 24" O.C. PER STRUCT. DRW'GS. & ARCH.

SECTIONS

  • 2X4 CEILING JOISTS @ 24" O.C.
  • VAPOR BARRIER PER SYSTEM NOTES BELOW
  • 2X4 PURLINS @ 24" O.C. (SERVICE CAVITY)
  • INSUL. PER SYSTEM NOTES BELOW
  • C-S OR C-WD PER CEILING PLAN & SECTIONS

R-SPM (SINGLE PLY MEMBRANE):

  • TPO MEMBRANE SYSTEM
  • 1/4" DENSDECK SUBSTRATE BOARD PRIMER
  • ROOF FRAMING & CEILING TYPE PER STRUCT.

DRW'GS. & ARCH. SECTIONS R-TC (TRUSSES CONDITIONED):

  • PRE-ENG'D. PARALLEL OR CONVENTIONAL TRUSSES

@ 24" O.C. PER STRUCT. DRW'GS. & ARCH. SECTIONS

  • VAPOR BARRIER PER SYSTEM NOTES BELOW
  • 2X4 PURLINS @ 24" O.C. (SERVICE CAVITY)
  • INSUL. PER SYSTEM NOTES BELOW
  • C-GB OR C-WD PER CEILING PLAN & SECTIONS

R-TS (TRUSSES SEMI-CONDITIONED):

  • PRE-ENG'D. CONVENTIONAL TRUSSES @ 24" O.C.

PER STRUCT. DRW'GS. & ARCH. SECTIONS

  • VAPOR BARRIER PER SYSTEM NOTES BELOW
  • INSUL. PER SYSTEM NOTES BELOW
  • C-GB PER CEILING PLAN & SECTIONS

R-U (UNCONDITIONED RAFTERS OR TRUSSES):

  • ROOF FRAMING & CEILING TYPE PER STRUCT.

DRW'GS. & ARCH. SECTIONS FOUNDATION INSULATION:

  • DAMPROOFING
  • 2" EPS (R-10)

SLAB INSULATION:

  • POLY VAPOR BARRIER W/ ALL JOINTS TAPED
  • 8" EPS (R-40) @ HOUSE / 5" EPS @ SHOP

WALL/ROOF CAVITY INSULATION:

  • DENSE-PACK FIBERGLASS OUTSIDE VB - 10 1/2" @

CONDITIONED WALLS (R-42), 5 1/2" @ SEMI-CONDIT- IONED WALLS (R-22), 14" @ ROOFS (R-56)

  • MINERAL WOOL BATTS @ SERVICE CAVITIES - 2 1/2"

@ WALLS (R-8), 3 1/2" @ CEILINGS (R-12) ATTIC INSULATION:

  • 20" LOOSE FILL FIBERGLASS (R-80)

WEATHER RESISTIVE BARRIER (WRB):

  • SIGA MAJVEST OR SOLITEX MENTO 1000
  • ALL JOINTS TAPED

VAPOR BARRIER (VB):

  • SIGA MAJREX OR INTELLO PLUS STANDARD
  • ALL JOINTS TAPED

WINDOWS & DOORS:

  • ALL EXT. WINDOWS & DOORS TO HAVE 1 7/8" TRIPLE

PANE LOW E GLAZING (U - .14 / SHGC - .56)

  • GARAGE DOORS TO BE INSULATED
  • ALL OPENINGS TO BE WRAPPED, TAPED & SEALED

MISCELLANEOUS:

  • ALL INTERIOR WALLS @ BEDROOMS, BATHROOMS,

STUDIO & OFFICE TO BE INSULATED F-C5R (CONCRETE - 4" REINFORCED):

  • 5" POLISHED CONCRETE SLAB W/ RADIANT HEATING
  • #4 REBAR MATT @ 24" O.C. ABOVE RADIANT
  • 6X6 10/10 W.W.F. BELOW RADIANT
  • INSUL. PER SYSTEM NOTES BELOW
  • SUBGRADE PER SOILS REPORT REQ'MTS.

F-C4U (CONCRETE - 4" UN-REINFORCED):

  • 4" CONCRETE SLAB
  • COLORED & ARCHITECTURALLY SCORED WHERE

INDICATED

  • SUBGRADE PER SOILS REPORT REQ'MTS.

F-OSB

  • SEALED OSB DECKING OVER FLOOR FRAMING

PER STRUCT. DRW'GS.

  • 1. SUBCONTRACTORS TO REVIEW DRAWINGS PRIOR

TO CONSTRUCTION. NOTIFY ARCHITECT OF ANY DISCREPANCIES PRIOR TO PROCEEDING W/ CON- STRUCTION.

  • 2. ALL DIMENSIONS ARE TO OUTSIDE FACE OF

CONC., FACE OF MASONRY, FACE OF STUD UNLESS INDICATED W/ A CENTERLINE ( ) SYMBOL OR UN- LESS NOTED OTHERWISE.

  • 3. SEE WALL SECTIONS FOR FURTHER DIMENSIONAL

RELATIONSHIPS.

  • 4. ALL EXCESS MATERIALS ARE TO BE DIVERTED

FROM THE LANDFILL WHEREVER POSSIBLE.

  • 5. INSTALL ALL PRODUCTS PER MANUFACTURERS

REQ'MTS.

  • 6. COORDINATE ALL INTERIOR FINISH & FIXTURE

SELECTIONS W/ OWNER/ARCHITECT.

  • 7. COORDINATE ALL EXTERIOR FINISH SELECTIONS

W/ OWNER/ARCHITECT. C L W-BS (BARK SIDING):

  • 26" BARK SIDING BY BARKHOUSE
  • 1X4 HORIZ. BATTS @ 24" O.C.
  • 1X4 VERT. BATTS @ WALL STUD SPACING
  • WALL TYPE W-EC OR W-ES

W-BV (BRICK VENEER):

  • BRICK VENEER
  • 1/2" OSB
  • 2X4 STUDS @ 16" O.C.

W-EC (EXTERIOR CONDITIONED):

  • SIDING TYPE PER ELEVATIONS OR 1/2" GYP. BD. @

HOUSE TO SHOP WALL

  • WEATHER BARRIER PER SYSTEM NOTES BELOW

(NOT REQ'D. @ HOUSE TO SHOP WALL)

  • 1/2" OSB SHEATHING (NOT REQ'D. @ SHOP)
  • 2X6 STUDS @ 16" O.C.
  • 1 1/2" GAP
  • 2X4 STUDS @ 24" O.C.
  • VAPOR BARRIER PER SYSTEM NOTES BELOW
  • 2X3 STUDS @ 24" O.C.
  • 1/2" GYP. BD. OR 1/2" DUROCK @ WET AREAS
  • INSUL. PER SYSTEM NOTES BELOW

W-ES (EXTERIOR SEMI-CONDITIONED):

  • SIDING TYPE PER ELEVATIONS
  • WEATHER BARRIER PER SYSTEM NOTES BELOW
  • 1/2" OSB SHEATHING
  • 2X6 STUDS @ 16" O.C.
  • VAPOR BARRIER PER SYSTEM NOTES BELOW
  • 1/2" GYP. BD.
  • INSUL. PER SYSTEM NOTES BELOW

W-IW4 (INTERIOR - 2X4):

  • 1/2" GYP. BD. TO FINISHED SIDES OR 1/2" DUROCK

@ WET AREAS

  • 2X4 STUDS @ 16" O.C.
  • INSUL. PER SYSTEM NOTES BELOW

W-IW6 (INTERIOR - 2X6):

  • 1/2" GYP. BD. TO FINISHED SIDES OR 1/2" DUROCK

@ WET AREAS

  • 2X6 STUDS @ 16" O.C.
  • INSUL. PER SYSTEM NOTES BELOW

W-PS (PANEL SIDING):

  • PANEL SIDING
  • 1X4 VERT. BATTS @ WALL STUD SPACING
  • WALL TYPE W-EC OR W-ES

T.O. BEAM PLATE 109' - 1 1/8" T.O. SLAB/FND. 100' - 0" T.O. FOOTING 97' - 2" WINDOW HD. 1A 107' - 0" T.O. OSB 2 110' - 3 7/8"

C

GRADE 99' - 6"

D E G B F

HEAL HT. 1 112' - 2 7/8" WINDOW HD. 1C 109' - 0" HEAL HT. 2 115' - 8 1/2" T.O. WALL 2 114' - 0" WINDOW HD. 2 112' - 9 1/2" TRUSS BR'G. 2 110' - 6 7/8" TRUSS BR'G. 3 114' - 0 1/2" T.O. SIDING 2 115' - 0 19/32" T.O. SIDING 1 111' - 6 31/32" B.O. SIDING 1 110' - 4 1/2"

2 A-4.3 2 A-4.4 1 A-4.3 1 A-4.4

TRUSS BR'G. 1 109' - 4 5/8" W-BS - TYP. W-PS - TYP. R-SPM - TYP. R-MR - TYP.

Studio 110

W-EC - TYP. F-C5R - TYP. C-GB / R-RC C-S / R-TC - TYP. @ VAULTS

  • INSUL. FOUND. - SEE STRUCT.

DRW'GS. - TYP. 12" 12" 12" 12" 12" 12" 12" 12" 1/4" 12" 1/4" 12" STEEL OR ALUM. SHADING BOXES @ KITCHEN & STUDIO CORNER - TYP. A-4.1 3 A-5.1 1

  • WINDOW HD. 1B

108' - 0"

  • T.O. BEAM PLATE

109' - 1 1/8" T.O. SLAB/FND. 100' - 0" T.O. FOOTING 97' - 2" WINDOW HD. 1A 107' - 0" T.O. OSB 2 110' - 3 7/8"

C

GRADE 99' - 6"

D E G B F

HEAL HT. 1 112' - 2 7/8" WINDOW HD. 1C 109' - 0" HEAL HT. 2 115' - 8 1/2" T.O. WALL 2 114' - 0" WINDOW HD. 2 112' - 9 1/2" TRUSS BR'G. 2 110' - 6 7/8" TRUSS BR'G. 3 114' - 0 1/2" T.O. SIDING 2 115' - 0 19/32" T.O. SIDING 1 111' - 6 31/32" B.O. SIDING 1 110' - 4 1/2"

2 A-4.3 2 A-4.4 1 A-4.3 1 A-4.4

TRUSS BR'G. 1 109' - 4 5/8" 12" 12" 12" 12" 12" 12" 12" 12" 1/4" 12" 1/4" 12"

Office 111 Storage 201

1/4" 12" A-4.1 3 Sim A-5.1 1 Sim TEMPERED GLAZING IN

  • STL. FRAME

F-OSB 4' - 8"

  • WINDOW HD. 1B

108' - 0"

  • T.O. SLAB/FND.

100' - 0" T.O. FOOTING 97' - 2"

E

WINDOW HD. 1C 109' - 0" HEAL HT. 2 115' - 8 1/2" T.O. WALL 2 114' - 0" WINDOW HD. 2 112' - 9 1/2" TRUSS BR'G. 3 114' - 0 1/2" T.O. SIDING 2 115' - 0 19/32" T.O. SIDING 1 111' - 6 31/32" B.O. SIDING 1 110' - 4 1/2" W-PS - SEE ELEVS. FOR LOCATIONS - TYP. STEEL OR ALUM. SHADING BOXES @ KITCHEN & STUDIO CORNER - CLIPPED TO OUTSIDE OF SHEATHING - TYP. 1' - 8" 1' - 0" R-MR - TYP. ROUND DOWNPOUT LOCATIONS IN PRE-FINISHED

  • MTL. TO MATCH R-MR - TYP. @

GABLE ROOF CONDITIONS HALF ROUND GUTTERS IN PRE-FINISHED MTL. TO MATCH R-MR - TYP.

  • CONT. 2 STRIPS STACKED OF

COR-A-VENT S-400 BEHIND FASCIA 2X4 FASCIA TO MATCH SIDING DRIP CAP OVER GUTTER PRE-FINISHED MTL. FLASH'G. TO MATCH R-MR UNDER VENT & CLIPPED OVER SIDING - PROVIDE AIR GAP BEHIND TO VENT BACK OF SIDING INFILL BLOCK INCLUDED W/ TRUSSES 1/2" OSB WALL CAP/TIE RICHLITE WINDOW FRAME EXTENSION TO STAND PROUD OF SIDING BY 1" CAP FLASH'G. @ TOP OF R-SPM & PARTIALLY BEHIND SIDING - TYP. R-SPM LEDGER - SEE STRUCT. DRW'GS. - TO BE INSTALLED OVER WRB - TYP. C-S - TYP. C-S

  • GYP. BD. RETURNS

@ HEAD & JAMBS - TYP.

  • WD. SILL W/ 1/4"

REVEAL - WRAP

  • GYP. BD. BELOW

DASHED RED LINE INDICATES VAPOR BARRIER LOCATION - SEE SYSTEM NOTES - TYP. DASHED BLUE LINE INDICATES WRB LOCATION - SEE SYSTEM NOTES - TYP. GAP/SCREEN @ T.O. SIDING - TYP.

  • ALUM. SILL PROVIDED BY DOOR
  • MANUF. TO PROJECT BEYOND
  • FOUND. INSUL.
  • FOUND. INSUL. - SEE SYSTEM

NOTES

  • FOUND. - SEE STRUCT.

DRW'GS. - TYP. SLAB INSUL. & VAPOR BARRIER - SEE SYSTEM NOTES - TYP. F-C4U

  • FOUND. TO BE DROPPED @

DOOR OPENINGS & SLAB POURED THROUGH - TYP. METAL FLASHING T.O. INSUL. @ NON-DOOR LOCATIONS CAP FLASH'G. - TYP. NOTE: SEE DETAILS PROVIDED BY EMU BUILDING SYSTEMS FOR FURTHER EXPLANATION OF SILL, JAMB & HEAD DETAILS & INSTALLATION OF WINDOWS GUTTMAN GS25 195 WINDOW SILLS PROVIDED BY WINDOW

  • MANUF. - TYP. @ W-PS

2 9/16" +- WINDOW HD. 1B 108' - 0"

CURRENT ISSUE: DRAWN BY: BIDDING ISSUE: PERMIT ISSUE: P.H. ISSUE: REVISIONS:

Architect

3115 Clyde St. | Fort Collins, CO 80524 | 90.484.8433

3/14/19 5/24/19

7/2/2019 3:51:46 PM

A-4.1

7/2/19 GDF

26.0 Millhaus

3070 Terry Lake Road | Fort Collins, Colorado 80524

  • Bldg. Sections

1/4" = 1'-0" 1 N/S Studio 1/4" = 1'-0" 2 N/S Office/Attic 1 1/2" = 1'-0" 3 Wall Section - Southwest Walls

slide-18
SLIDE 18
  • DR. WIDTH

DOOR HEIGHT

1 3

4" W. GLASS LITE

  • DR. WIDTH

DOOR HEIGHT FLUSH PANEL

2

FULL GLASS LITE

  • DR. WIDTH

DOOR HEIGHT

4

HALF GLASS LITE

  • DR. WIDTH

DOOR HEIGHT INSUL. OVERHEAD SECTIONAL DOOR

  • DR. WIDTH

DOOR HEIGHT

5

6" 6" 10"

SYSTEM NOTES:

FLOORS: WALLS:

GENERAL NOTES:

CEILINGS / SOFFITS: ROOFS: THERMAL & MOISTURE RESISTANCE:

C-S (SIDING):

  • SIDING
  • CONTINUOUS GALV. STEEL VENTING @ EXT.
  • ROOF FRAMING PER STUCT. DRW'GS. & ARCH.

SECTIONS C-GB (GYPSUM BOARD):

  • 1/2" GYPSUM BOARD
  • ROOF, FLOOR OR SERVICE CAVITY FRAMING PER
  • STRUCT. DRW'GS. & ARCH. SECTIONS

R-CTF (CORRUGATED TRANSLUCENT FIBERGLASS):

  • CORRUGATED TRANSLUCENT FIBERGLASS PANELS
  • 2X6 RAFTERS @ 24" O.C.

R-MR (METAL ROOF):

  • 24 GA. PRE-FINISHED STANDING SEAM METAL

ROOFING INSTALLED PER MANUF. REQ'MTS.

  • CONTINUOUS ICE & WATER UNDERLAYMENT
  • ROOF FRAMING & CEILING TYPE PER STRUCT.

DRW'GS. & ARCH. SECTIONS R-RC (RAFTERS CONDITIONED):

  • RAFTERS @ 24" O.C. PER STRUCT. DRW'GS. & ARCH.

SECTIONS

  • 2X4 CEILING JOISTS @ 24" O.C.
  • VAPOR BARRIER PER SYSTEM NOTES BELOW
  • 2X4 PURLINS @ 24" O.C. (SERVICE CAVITY)
  • INSUL. PER SYSTEM NOTES BELOW
  • C-S OR C-WD PER CEILING PLAN & SECTIONS

R-SPM (SINGLE PLY MEMBRANE):

  • TPO MEMBRANE SYSTEM
  • 1/4" DENSDECK SUBSTRATE BOARD PRIMER
  • ROOF FRAMING & CEILING TYPE PER STRUCT.

DRW'GS. & ARCH. SECTIONS R-TC (TRUSSES CONDITIONED):

  • PRE-ENG'D. PARALLEL OR CONVENTIONAL TRUSSES

@ 24" O.C. PER STRUCT. DRW'GS. & ARCH. SECTIONS

  • VAPOR BARRIER PER SYSTEM NOTES BELOW
  • 2X4 PURLINS @ 24" O.C. (SERVICE CAVITY)
  • INSUL. PER SYSTEM NOTES BELOW
  • C-GB OR C-WD PER CEILING PLAN & SECTIONS

R-TS (TRUSSES SEMI-CONDITIONED):

  • PRE-ENG'D. CONVENTIONAL TRUSSES @ 24" O.C.

PER STRUCT. DRW'GS. & ARCH. SECTIONS

  • VAPOR BARRIER PER SYSTEM NOTES BELOW
  • INSUL. PER SYSTEM NOTES BELOW
  • C-GB PER CEILING PLAN & SECTIONS

R-U (UNCONDITIONED RAFTERS OR TRUSSES):

  • ROOF FRAMING & CEILING TYPE PER STRUCT.

DRW'GS. & ARCH. SECTIONS FOUNDATION INSULATION:

  • DAMPROOFING
  • 2" EPS (R-10)

SLAB INSULATION:

  • POLY VAPOR BARRIER W/ ALL JOINTS TAPED
  • 8" EPS (R-40) @ HOUSE / 5" EPS @ SHOP

WALL/ROOF CAVITY INSULATION:

  • DENSE-PACK FIBERGLASS OUTSIDE VB - 10 1/2" @

CONDITIONED WALLS (R-42), 5 1/2" @ SEMI-CONDIT- IONED WALLS (R-22), 14" @ ROOFS (R-56)

  • MINERAL WOOL BATTS @ SERVICE CAVITIES - 2 1/2"

@ WALLS (R-8), 3 1/2" @ CEILINGS (R-12) ATTIC INSULATION:

  • 20" LOOSE FILL FIBERGLASS (R-80)

WEATHER RESISTIVE BARRIER (WRB):

  • SIGA MAJVEST OR SOLITEX MENTO 1000
  • ALL JOINTS TAPED

VAPOR BARRIER (VB):

  • SIGA MAJREX OR INTELLO PLUS STANDARD
  • ALL JOINTS TAPED

WINDOWS & DOORS:

  • ALL EXT. WINDOWS & DOORS TO HAVE 1 7/8" TRIPLE

PANE LOW E GLAZING (U - .14 / SHGC - .56)

  • GARAGE DOORS TO BE INSULATED
  • ALL OPENINGS TO BE WRAPPED, TAPED & SEALED

MISCELLANEOUS:

  • ALL INTERIOR WALLS @ BEDROOMS, BATHROOMS,

STUDIO & OFFICE TO BE INSULATED F-C5R (CONCRETE - 4" REINFORCED):

  • 5" POLISHED CONCRETE SLAB W/ RADIANT HEATING
  • #4 REBAR MATT @ 24" O.C. ABOVE RADIANT
  • 6X6 10/10 W.W.F. BELOW RADIANT
  • INSUL. PER SYSTEM NOTES BELOW
  • SUBGRADE PER SOILS REPORT REQ'MTS.

F-C4U (CONCRETE - 4" UN-REINFORCED):

  • 4" CONCRETE SLAB
  • COLORED & ARCHITECTURALLY SCORED WHERE

INDICATED

  • SUBGRADE PER SOILS REPORT REQ'MTS.

F-OSB

  • SEALED OSB DECKING OVER FLOOR FRAMING

PER STRUCT. DRW'GS.

  • 1. SUBCONTRACTORS TO REVIEW DRAWINGS PRIOR

TO CONSTRUCTION. NOTIFY ARCHITECT OF ANY DISCREPANCIES PRIOR TO PROCEEDING W/ CON- STRUCTION.

  • 2. ALL DIMENSIONS ARE TO OUTSIDE FACE OF

CONC., FACE OF MASONRY, FACE OF STUD UNLESS INDICATED W/ A CENTERLINE ( ) SYMBOL OR UN- LESS NOTED OTHERWISE.

  • 3. SEE WALL SECTIONS FOR FURTHER DIMENSIONAL

RELATIONSHIPS.

  • 4. ALL EXCESS MATERIALS ARE TO BE DIVERTED

FROM THE LANDFILL WHEREVER POSSIBLE.

  • 5. INSTALL ALL PRODUCTS PER MANUFACTURERS

REQ'MTS.

  • 6. COORDINATE ALL INTERIOR FINISH & FIXTURE

SELECTIONS W/ OWNER/ARCHITECT.

  • 7. COORDINATE ALL EXTERIOR FINISH SELECTIONS

W/ OWNER/ARCHITECT. C L W-BS (BARK SIDING):

  • 26" BARK SIDING BY BARKHOUSE
  • 1X4 HORIZ. BATTS @ 24" O.C.
  • 1X4 VERT. BATTS @ WALL STUD SPACING
  • WALL TYPE W-EC OR W-ES

W-BV (BRICK VENEER):

  • BRICK VENEER
  • 1/2" OSB
  • 2X4 STUDS @ 16" O.C.

W-EC (EXTERIOR CONDITIONED):

  • SIDING TYPE PER ELEVATIONS OR 1/2" GYP. BD. @

HOUSE TO SHOP WALL

  • WEATHER BARRIER PER SYSTEM NOTES BELOW

(NOT REQ'D. @ HOUSE TO SHOP WALL)

  • 1/2" OSB SHEATHING (NOT REQ'D. @ SHOP)
  • 2X6 STUDS @ 16" O.C.
  • 1 1/2" GAP
  • 2X4 STUDS @ 24" O.C.
  • VAPOR BARRIER PER SYSTEM NOTES BELOW
  • 2X3 STUDS @ 24" O.C.
  • 1/2" GYP. BD. OR 1/2" DUROCK @ WET AREAS
  • INSUL. PER SYSTEM NOTES BELOW

W-ES (EXTERIOR SEMI-CONDITIONED):

  • SIDING TYPE PER ELEVATIONS
  • WEATHER BARRIER PER SYSTEM NOTES BELOW
  • 1/2" OSB SHEATHING
  • 2X6 STUDS @ 16" O.C.
  • VAPOR BARRIER PER SYSTEM NOTES BELOW
  • 1/2" GYP. BD.
  • INSUL. PER SYSTEM NOTES BELOW

W-IW4 (INTERIOR - 2X4):

  • 1/2" GYP. BD. TO FINISHED SIDES OR 1/2" DUROCK

@ WET AREAS

  • 2X4 STUDS @ 16" O.C.
  • INSUL. PER SYSTEM NOTES BELOW

W-IW6 (INTERIOR - 2X6):

  • 1/2" GYP. BD. TO FINISHED SIDES OR 1/2" DUROCK

@ WET AREAS

  • 2X6 STUDS @ 16" O.C.
  • INSUL. PER SYSTEM NOTES BELOW

W-PS (PANEL SIDING):

  • PANEL SIDING
  • 1X4 VERT. BATTS @ WALL STUD SPACING
  • WALL TYPE W-EC OR W-ES

T.O. BEAM PLATE 109' - 1 1/8"

D

B.O. SIDING 1 110' - 4 1/2" 2" 2' - 2" - TYP. (4' - 2" @ SCREENED PORCH) C-S - TYP. CHAIN DOWNPOUT - TYP. @ "FLAT" ROOF CONDITIONS HALF ROUND GUTTERS IN PRE-FINISHED MTL. TO MATCH R-MR - TYP. DRIP CAP OVER GUTTER 2X4 PLATE (PAINTED) TO T.O.

  • STL. BEAM - SEE STRUCT.

DRW'GS. - TYP. 10" CEMENT FIBER FASCIA - TYP. R-SPM

  • CONT. MTL. SOFFIT

VENT - TYP. WINDOW HD. 1B 108' - 0" T.O. BEAM PLATE 109' - 1 1/8" T.O. SLAB/FND. 100' - 0" T.O. FOOTING 97' - 2" WINDOW HD. 1A 107' - 0" GRADE 99' - 6"

2

W-BS - SEE ELEVS. FOR LOCATIONS - TYP. NOTE: SEE DETAILS PROVIDED BY EMU BUILDING SYSTEMS FOR FURTHER EXPLANATION OF SILL, JAMB & HEAD DETAILS & INSTALLATION OF WINDOWS RICHLITE WINDOW FRAME EXTENSION TO STAND PROUD OF SIDING BY 1" GUTTMAN GS25 240 WINDOW SILLS PROVIDED BY WINDOW

  • MANUF. - TYP. @ BARK SIDING

CONDITIONS EXCEPT @ GAR. R-SPM LEDGER - SEE STRUCT. DRW'GS. - TO BE INSTALLED OVER WRB - TYP. C-S - TYP. C-GB

  • GYP. BD. RETURNS

@ HEAD & JAMBS - TYP.

  • WD. SILL W/ 1/4"

REVEAL - WRAP

  • GYP. BD. BELOW

DASHED RED LINE INDICATES VAPOR BARRIER LOCATION - SEE SYSTEM NOTES - TYP. DASHED BLUE LINE INDICATES WRB LOCATION - SEE SYSTEM NOTES - TYP. GAP/SCREEN @ T.O. SIDING - TYP.

  • FOUND. INSUL. - SEE SYSTEM

NOTES

  • FOUND. - SEE STRUCT.

DRW'GS. - TYP. SLAB INSUL. & VAPOR BARRIER - SEE SYSTEM NOTES - TYP. F-C4U - BEYOND METAL FLASHING @ T.O. INSUL. -

  • TYP. @ NON-DOOR LOCATIONS

CAP FLASH'G. OVER FRAME

  • EXT. - TYP.

4 5/16" +- WINDOW HD. 1B 108' - 0"

CURRENT ISSUE: DRAWN BY: BIDDING ISSUE: PERMIT ISSUE: P.H. ISSUE: REVISIONS:

Architect

3115 Clyde St. | Fort Collins, CO 80524 | 90.484.8433

3/14/19 5/24/19

7/2/2019 3:53:24 PM

A-5.1

7/2/19 GDF

26.0 Millhaus

3070 Terry Lake Road | Fort Collins, Colorado 80524 Schedules / Details

1/4" = 1'-0" 5 Door Types

Door Schedule Door Number Operation Door Door Type Hardware Frame Comments Width Height Material Material

101 Swing 5' - 0" 8' - 0" Clad Wood 4 By Door Manuf. Clad Wood 42" w. door / 18" sidelite 104 Lift & Slide 10' - 0" 9' - 0" Clad Wood 3 By Door Manuf. Clad Wood 106 Lift & Slide 10' - 0" 9' - 0" Clad Wood 3 By Door Manuf. Clad Wood 107 Barn 2' - 8" 7' - 0" Wood 1 Barn Door Track/Rollers & Pulls Wood 108 Barn 5' - 0" 7' - 0" Wood 1 Barn Door Track/Rollers & Pulls Wood 110A Lift & Slide 10' - 0" 9' - 0" Clad Wood 3 By Door Manuf. Clad Wood 110B Swing 2' - 6" 8' - 0" Wood 3 Office Lockset, Hinges Wood 112A Swing 3' - 6" 7' - 0" Clad Wood 3 By Door Manuf. Clad Wood 112B Pocket 2' - 6" 8' - 0" Wood 1 Pocket Door Track & Pulls Wood 113 Swing 2' - 6" 8' - 0" Wood 1 Passage Lockset, Hinges Wood 114 Swing 3' - 0" 8' - 0" Wood 1 Passage Lockset, Hinges Wood 115 Swing 2' - 4" 8' - 0" Wood 1 Privacy Lockset, Hinges Wood 116 Swing 2' - 6" 8' - 0" Wood 1 Privacy Lockset, Hinges Wood 117 Bi-Pass - 2 Panels 5' - 0" 8' - 0" Wood 1 Track/Rollers & Pulls Wood 118 Swing 2' - 6" 8' - 0" Wood 1 Privacy Lockset, Hinges Wood 121A Lift & Slide 10' - 0" 9' - 0" Clad Wood 3 By Door Manuf. Clad Wood 121B Barn 3' - 0" 8' - 0" Wood 1 Barn Door Track/Rollers & Pulls Wood 122A Overhead 9' - 1" 8' - 0 3/4" Metal 5 Track/Rollers & Operator by Door Manuf. Wood Door to be insulated 122B Barn 9' - 0" 8' - 0" Metal 1 Barn Door Track/Rollers & Pulls Wood Door to be insulated 123A Overhead 9' - 1" 8' - 0 3/4" Metal 5 Track/Rollers & Operator by Door Manuf. Wood Door to be insulated 123B Overhead 9' - 1" 8' - 0 3/4" Metal 5 Track/Rollers & Operator by Door Manuf. Wood Door to be insulated 123C Swing 3' - 0" 7' - 0" Metal 5 Entrance Lockset, Self-closing Hinges, Weatherstipping Wood Door to be insulated

Room Schedule Room Number Room Name Floor Base Wall Material Wall Finish Ceiling Material Ceiling Finish Ceiling Height Comments

101 Entry Polished Conc. Steel

  • Gyp. Bd. / Brick

Paint

  • Gyp. Bd.

Paint 9' - 0 5/8" 102 Pantry Polished Conc. Steel

  • Gyp. Bd.

Paint

  • Gyp. Bd.

Paint 9' - 0 5/8" 103 Kitchen Polished Conc. Steel

  • Gyp. Bd. / Brick

Paint

  • Wd. Siding

Seal 104 Dining Polished Conc. Steel

  • Gyp. Bd. / Brick

Paint

  • Wd. Siding

Seal 105 Coffee Polished Conc. Steel

  • Gyp. Bd. / Brick

Paint

  • Gyp. Bd.

Paint 9' - 0 5/8" 106 Living Polished Conc. Steel

  • Gyp. Bd. / Brick

Paint

  • Gyp. Bd.

Paint 107 Piano Polished Conc. Steel

  • Gyp. Bd. / Brick

Paint

  • Gyp. Bd.

Paint 9' - 0 5/8" 108 Stor. Polished Conc. Steel

  • Gyp. Bd.

Paint

  • Gyp. Bd.

Paint 9' - 0 5/8" 109 Hall Polished Conc. Steel

  • Gyp. Bd. / Brick

Paint

  • Gyp. Bd.

Paint 9' - 0 5/8" 110 Studio Polished Conc. Steel

  • Gyp. Bd.

Paint

  • Gyp. Bd. / Wd. Siding

Paint / Seal 111 Office Polished Conc. Steel

  • Gyp. Bd.

Paint

  • Gyp. Bd.

Paint 9' - 0 5/8" 112 Mud Polished Conc. Steel

  • Gyp. Bd.

Paint

  • Gyp. Bd.

Paint 9' - 0 5/8" 113 Coats Polished Conc. Steel

  • Gyp. Bd.

Paint

  • Gyp. Bd.

Paint 9' - 0 5/8" 114 Mech./Stor. Polished Conc. None Plywd. Unfinished

  • Gyp. Bd.

Paint 9' - 0 5/8" 115 Bath Polished Conc. Steel/Tile

  • Gyp. Bd. / Tile

Paint

  • Gyp. Bd.

Paint 9' - 0 5/8" 116

  • Br. 2

Polished Conc. Steel

  • Gyp. Bd.

Paint

  • Gyp. Bd.

Paint 9' - 0 5/8" 117 Cl. Polished Conc. Steel

  • Gyp. Bd.

Paint

  • Gyp. Bd.

Paint 9' - 0 5/8" 118 Hall Polished Conc. Steel

  • Gyp. Bd.

Paint

  • Gyp. Bd.

Paint 9' - 0 5/8" 119 Bath Polished Conc. Steel/Tile

  • Gyp. Bd. / Tile

Paint

  • Gyp. Bd.

Paint 9' - 0 5/8" 120 Cl. Polished Conc. Steel

  • Gyp. Bd.

Paint

  • Gyp. Bd.

Paint 9' - 0 5/8" 121 Master Polished Conc. Steel

  • Gyp. Bd.

Paint

  • Wd. Siding

Seal 122 Shop Sealed Conc. None

  • Gyp. Bd.

Paint

  • Gyp. Bd.

Paint 10' - 6 7/8" 123 Garage Sealed Conc. None

  • Gyp. Bd.

Paint

  • Gyp. Bd.

Paint 10' - 7 1/8" 201 Storage Sealed OSB Steel

  • Gyp. Bd.

Paint

  • Wd. Siding

Seal

1 1/2" = 1'-0" 1 Detail - Overhang 1 1/2" = 1'-0" 2 Wall Section - Typ.

slide-19
SLIDE 19
slide-20
SLIDE 20
