Context Review Dynamic PD FBAM Conclusions Sound synthesis with Periodically Linear Time Varying Filters Antonio Goulart, Marcelo Queiroz Joseph Timoney, Victor Lazzarini Computer Music Research Group - IME/USP - Brazil Sound and Digital

slide-1

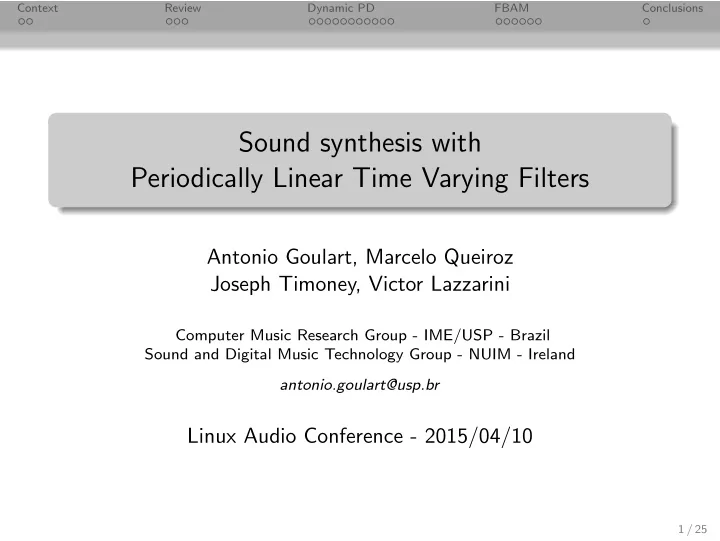

SLIDE 1

Context Review Dynamic PD FBAM Conclusions

Sound synthesis with Periodically Linear Time Varying Filters

Antonio Goulart, Marcelo Queiroz Joseph Timoney, Victor Lazzarini

Computer Music Research Group - IME/USP - Brazil Sound and Digital Music Technology Group - NUIM - Ireland antonio.goulart@usp.br

Linux Audio Conference - 2015/04/10

1 / 25

slide-2
SLIDE 2

Context Review Dynamic PD FBAM Conclusions

Motivations

New synth sounds ⊲ Low computational cost Virtual Analog Oscillators Usage as audio effect

2 / 25

slide-3
SLIDE 3

Context Review Dynamic PD FBAM Conclusions

Motivations

New synth sounds ⊲ Low computational cost Virtual Analog Oscillators Usage as audio effect The challenge: ⊲ “When I first got some - I won’t call it music - sounds out of a computer in 1957, they were pretty horrible. (...) Almost all the sequence of samples - the sounds that you produce with a digital process - are either uninteresting, or disagreeable, or downright painful and dangerous. It’s very hard to find beautiful timbres.” Max Mathews, 2010.

3 / 25

slide-4
SLIDE 4

Context Review Dynamic PD FBAM Conclusions

Contribution

LTV theory approach to distortion techniques h(p, n) H(z, n) H(ω, n)

4 / 25

slide-5
SLIDE 5

Context Review Dynamic PD FBAM Conclusions Phase Distortion

Phaseshaping - US patent 4658691 Casio - CZ

Add a phase distortion function to the regular phase generator Sawtooth: Inflection point on the regular (dashed) index t + g(t) =

  • 0.5 t

d ,

0 ≤ t ≤ d 0.5 t−d

1−d + 0.5,

d < t < 1 For d = 0.05

5 / 25

slide-6
SLIDE 6

Context Review Dynamic PD FBAM Conclusions

The allpass filter

H(z) = −a + z−1 1 − az−1 Flat magnitude response Frequency dependent phase shift φ(ω) = −ω + 2 tan−1 −a sin (ω) 1 − a cos (ω)

  • Reverb, chorus, flanger, phaser, spectral delay

6 / 25

slide-7
SLIDE 7

Context Review Dynamic PD FBAM Conclusions

Amplitude modulation

cos (2πfcn) cos (2πfmn) = 1 2 cos (2πfcn + 2πfmn)+1 2 cos (2πfcn − 2πfmn)

7 / 25

slide-8
SLIDE 8

Context Review Dynamic PD FBAM Conclusions Allpass filters coefficient modulation

Jussi Pekonen, 2008

Coefficient-modulated first-order allpass filter as distortion effect Suggests the method for sound synthesis and audio effects Recall that classic PD is restricted to cyclic tables Derives stability condition |m(n)| ≤ 1 ∀n Recommends appropriate values for m(n) Allpass Dispersion on low frequencies φDC(n) = 1 − m(n) 1 + m(n)

8 / 25

slide-9
SLIDE 9

Context Review Dynamic PD FBAM Conclusions Allpass filters coefficient modulation

J.Timoney, V.Lazzarini, J.Pekonen, V.Valimaki, 2009

Spectrally rich phase distortion sound synthesis using allpass filter Time-varying allpass transfer function H(z, n) = −m(n) + z−1 1 − m(n)z−1 Phase distortion φ(ω, n) = −ω + 2 tan−1 −m(n) sin (ω) 1 − m(n) cos (ω)

  • 9 / 25
slide-10
SLIDE 10

Context Review Dynamic PD FBAM Conclusions Allpass filters coefficient modulation

J.Timoney, V.Lazzarini, J.Pekonen, V.Valimaki

φ(ω, n) = −ω + 2 tan−1 −m(n) sin (ω) 1 − m(n) cos (ω)

  • Knowing φ(ω, n), use tan(x) ≈ x,

m(n) = −(φ(ω, n) + ω) 2 sin (ω) − (φ(ω, n) + ω) cos (ω)

10 / 25

slide-11
SLIDE 11

Context Review Dynamic PD FBAM Conclusions Allpass filters coefficient modulation

J.Timoney, V.Lazzarini, J.Pekonen, V.Valimaki

Emulate the classic phase distortion technique t + g(t) =

  • 0.5 t

d ,

0 ≤ t ≤ d 0.5 t−d

1−d + 0.5,

d < t < 1 Subtract linear phase from the phase distortion function g(t) =

  • ( 1

2 − d) t d ,

0 ≤ t ≤ d ( 1

2 − d) 1−t 1−d + 0.5,

d < t < 1

11 / 25

slide-12
SLIDE 12

Context Review Dynamic PD FBAM Conclusions Allpass filters coefficient modulation

J.Timoney, V.Lazzarini, J.Pekonen, V.Valimaki

Range for the allpass modulation should be [−ω, −π] φ(ω, t) = g(t)((1 − 2d)π − ω) (1 − 2d)π − (1 − 2d)π − ω Get the modulation function m(n) = −(φ(ω, n) + ω) 2 sin (ω) − (φ(ω, n) + ω) cos (ω) Implementation with difference equations y(n) = x(n − 1) − m(n)(x(n) − y(n − 1)) ⊲

12 / 25

slide-13
SLIDE 13

Context Review Dynamic PD FBAM Conclusions Allpass filters coefficient modulation

J.Timoney, V.Lazzarini, J.Pekonen, V.Valimaki

Phase distortion and coefficient modulation functions

13 / 25

slide-14
SLIDE 14

Context Review Dynamic PD FBAM Conclusions Allpass filters coefficient modulation

J.Timoney, V.Lazzarini, J.Pekonen, V.Valimaki

Outputs with classic PD (solid) and modulated allpass (dashed)

14 / 25

slide-15
SLIDE 15

Context Review Dynamic PD FBAM Conclusions Allpass filters coefficient modulation

J.Timoney, V.Lazzarini, J.Pekonen, V.Valimaki

Classic PD and Modulated allpass spectra

15 / 25

slide-16
SLIDE 16

Context Review Dynamic PD FBAM Conclusions Allpass filters coefficient modulation

Arbitrary distortion function

y(n) = 0.4 cos (f0) + 0.4 cos

  • 2f0 − π

3

  • +

0.35 cos

  • 3f0 + π

7

  • + 0.3 cos
  • 4f0 + 4π

3

  • Shift it to the appropriate range

ys(n) = −π 2 (y(n) + 1) 2 Create your own (: ⊲

16 / 25

slide-17
SLIDE 17

Context Review Dynamic PD FBAM Conclusions Allpass filters coefficient modulation

Arbitrary distortion function

Phase distortion and derived modulation functions

17 / 25

slide-18
SLIDE 18

Context Review Dynamic PD FBAM Conclusions Allpass filters coefficient modulation

Arbitrary distortion function

Waveform and spectrum

18 / 25

slide-19
SLIDE 19

Context Review Dynamic PD FBAM Conclusions

J.Kleimola, V.Lazzarini, J.Timoney, V.Valimaki, 2009

FeedBack Amplitude Modulation (FBAM) Revisiting of an old idea by A.Layzer tested by Risset in the catalogue ⊲ Modulate oscillator amplitude using its output y(n) = cos (ω0n)[1 + βy(n − 1)] with ω0 = 2πf0 and y[0] = 0

19 / 25

slide-20
SLIDE 20

Context Review Dynamic PD FBAM Conclusions

FeedBack Amplitude Modulation

y(n) = cos(ω0n)[1 + y(n − 1)] y(n) = cos(ω0n) + cos(ω0n) cos(ω0[n − 1]) + cos(ω0n) cos(ω0[n − 1]) cos(ω0[n − 2]) + ... = ∞

k=0

k

m=0 cos[ω0(n − m)]

cos2(p) = 1

2(1 + cos(2p))

cos3(p) = 1

4(3 cos(p) + cos(3p))

20 / 25

slide-21
SLIDE 21

Context Review Dynamic PD FBAM Conclusions

FeedBack Amplitude Modulation

LPTV interpretation y(n) = x(n) + βa(n)y(n − 1) x(n) = a(n) = cos (ω0n) in this case (but could be =) 1 pole coefficient modulated IIR → Dynamic PD ⊲

21 / 25

slide-22
SLIDE 22

Context Review Dynamic PD FBAM Conclusions

Feedback Amplitude Modulation

β similar to FM’s modulation index

22 / 25

slide-23
SLIDE 23

Context Review Dynamic PD FBAM Conclusions

Feedback Amplitude Modulation

Stability condition

  • β

N

  • m=1

cos (ω0m)

  • < 1

Aliasing before instability

23 / 25

slide-24
SLIDE 24

Context Review Dynamic PD FBAM Conclusions

2nd order FBAM

Two previous outputs with individual βs y(n) = cos (ω0n)[1 + β1y(n − 1) + β2y(n − 2)] Narrower pulse and wider band ⊲

24 / 25

slide-25
SLIDE 25

Context Review Dynamic PD FBAM Conclusions

Conclusions

Reissue of a classic technique Different kind of implementation Input and modulation can be arbitrary signals Deeper investigation of LTV Studying 2nd and higher order systems stability Thanks a lot! antonio.goulart@usp.br

25 / 25
