Solutions: Formation and Properties www.njctl.org Slide 3 / 48 - - PDF document

This material is made freely available at www.njctl.org and is intended for the non-commercial use of students and teachers. These materials may not be used for any commercial purpose without the written permission of the owners. NJCTL maintains its website for the convenience of teachers who wish to make their work available to other teachers, participate in a virtual professional learning community, and/or provide access to course materials to parents, students and others.

Click to go to website: www.njctl.org New Jersey Center for Teaching and Learning Progressive Science Initiative

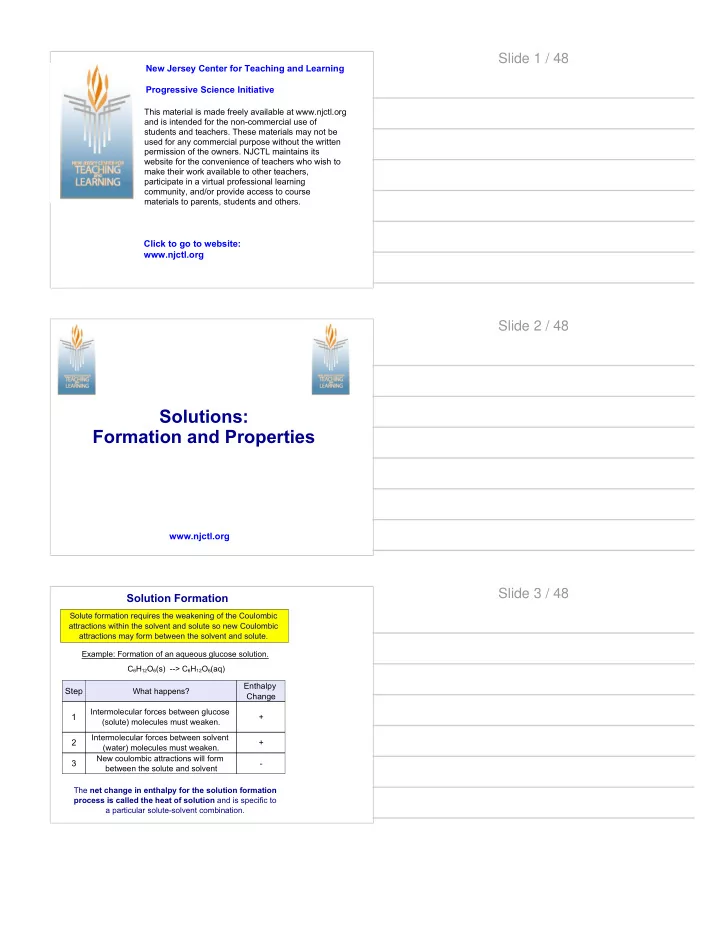

Slide 1 / 48

www.njctl.org

Solutions: Formation and Properties

Slide 2 / 48

Solution Formation

Solute formation requires the weakening of the Coulombic attractions within the solvent and solute so new Coulombic attractions may form between the solvent and solute. Example: Formation of an aqueous glucose solution. C6H12O6(s) --> C6H12O6(aq) Step What happens? Enthalpy Change 1 Intermolecular forces between glucose (solute) molecules must weaken. + 2 Intermolecular forces between solvent (water) molecules must weaken. + 3 New coulombic attractions will form between the solute and solvent

• The net change in enthalpy for the solution formation

process is called the heat of solution and is specific to a particular solute-solvent combination.

Slide 3 / 48

Heats of Solution

The heat of solution will vary depending on the affinity of the solute for the solvent. Ethanol (CH3CH2OH) has very different heats of solution when dissolved in water (H2O) and hexane (C6H14). Ethanol dissolved in water ( H = -10.7 kJ/mol) The hydrogen bonds between the solute and solvent release large amounts of energy when formed. Ethanol dissolved in hexane ( H = +23 kJ/mol) Since ethanol is polar and hexane is non-polar, very few coulombic attractions form to offset the energy required to weaken the solute-solute and solvent-solvent attractions.

Slide 4 / 48

Heats of Solution

Ideal solutions are solutions in which when the solutes are mixed the heat of solution would be equal to zero. Solutions behave most ideally when the solute and solvent are extremely similar in molecular structure and polarity. Examples of nearly ideal solutions CH3OH and CH3CH2OH C6H14 and C7H14 C6H6 and C7H8 The heat of solution for these solutions is near zero because the the Coulombic attractions between the solute molecules and solvent molecules are almost identical to those that would form between solute and solvent.

Slide 5 / 48 Heats of Solution

The heat of solution can be calculated by monitoring the temperature change when the solute and solvent are mixed. Example: When 5.3 grams of NH4Cl are dissolved in 100 grams

• f water @22.0 C, the temperature of the solution drops to 18.7
• C. Assuming the specific heat of the solution is 4.2 J/gC, what is

the heat of solution? Energy lost by solution = 105.3 g x 3.3 C x 4.2 J = 1460 J g C Expressed in kJ/mol = 1.460 kJ /0.1 mol NH4Cl = 14.6 kJ/mol This process is endothermic and therefore will likely become more favorable as the temperature increases.

Slide 6 / 48

Solution Formation

Ionic solutes dissociate into ions in aqueous solvent while covalent molecular solutes do not. Dissolution of NaCl in H2O NaCl(s) --> Na+(aq) + Cl-(aq) Each ion becomes solvated by water molecules Dissolution of glucose (C6H12O6) in H2O C6H12O6(s) --> C6H12O6(aq) The entire glucose molecule becomes solvated by water molecules Ionic solutes are called electrolytes. Why? Since ionic solutes produce ions in solution resulting in increased electrical conductivity, there are referred to as electrolytes

Slide 7 / 48

Electrolytes

Soluble ionic compounds and strong acids make excellent

• electrolytes. Covalent molecular materials make poor

electrolytes as they do not dissociate into ions. The more ions that are produced in solution, the stronger the electrolyte. Comparing equimolar NaCl(aq) and MgCl2(aq) NaCl(s) --> Na+(aq) + Cl-(aq) MgCl2(s) --> Mg2+(aq) + 2Cl-(aq) MgCl2 produces 1 ion of Mg2+ and 2 ions of Cl- when it dissociates, so it is the stronger electrolyte. Which compound is the stronger electrolyte? Move to see answer

Slide 8 / 48

Electrolytes

Soluble ionic compounds and strong acids make excellent

• electrolytes. Covalent molecular materials make poor

electrolytes as they do not dissociate into ions. The more ions that are produced in solution, the stronger the electrolyte. Comparing equimolar HF(aq) and HBr(aq) HF(aq) --> H+(aq) + F-(aq) HBr(aq) --> H+(aq) + Br-(aq) Which compound is a stronger electrolyte? Since HBr is a strong acid, it produces many more ions compared to HF, a weak acid in which very few of the HF molecules have ionized. Move to see answer

Slide 9 / 48

1 Which of the following is NOT true regarding the formation of an aqueous glucose solution?

Answer

ACovalent bonds within the glucose molecule must be broken B Intermolecular coulombic forces will form between glucose molecules and water molecules C The hydrogen bonding network between water molecules must be disrupted D The glucose molecule remains un-ionized E All of these are true

Slide 10 / 48

2 What is the heat of solution in (kJ/mol) of KCl if when 14.8 grams of KCl was dissolved in 400 grams of water, the temperature dropped 4.3 C? Assume a specific heat of solution of 4.2 J/gC.

Answer

Slide 11 / 48

3 How much would the temperature of a solution prepared by dissolving 10.6 grams of LiNO2 in 300 grams of water increase? Assume a specific heat of solution of 4.2 J/gC and a heat of solution of LiNO2 of

• 11.0 kJ/mol.

Answer

Slide 12 / 48

4 Which of the following would be the strongest electrolyte when dissolved in water?

Answer

A HCN B CH3OH C C6H12O6 D H2SO4 E HC2H3O2

Slide 13 / 48

5 Which of the following correctly ranks the solutions from highest to lowest conductivity?

Answer

A 0.1 M NaF > 0.1 M CH3OH > pure water B 0.2 M AlCl3 > 0.2 M NaF > pure water C pure water > 0.1 M NaF > 0.1 M CH3OH D 0.1 M CH3OH > 0.1 M AlCl3 > 0.1 M NaF E None of these

Slide 14 / 48

6 Which of the following pairs of liquids would form the most IDEAL solution?

Answer

A C6H14(l) and H2O(l) B CH3OH(l) and C6H14(l) C CH3OH(l) and CH3COCH3(l) D C5H12(l) and C6H14(l) E None of these

Slide 15 / 48

Colligative Properties

Colligative properties of solutions depend exclusively on the number of solute particles in the solution, not on their kind. Examples of colligative properties Vapor pressure lowering Boiling point elevation Freezing point depression Osmotic pressure elevation In essence, the addition of solute to any solvent will decrease the vapor pressure and hence raise the boiling point. The solution will freeze at a lower temperature and require more pressure to prevent osmosis into the solution.

Slide 16 / 48 Vapor Pressure

When a liquid or solid evaporates, the vapor above the liquid exerts pressure on the surface of the liquid.

Vapor Liquid

When condensation and evaporation occur at equal rates, the vapor is in equilibrium with its liquid.

Slide 17 / 48 Vapor Pressure

The vapor pressure is influenced by the strength of the solvent's particle interactions. The stronger the particle interactions, the lower the vapor pressure of a pure liquid at a given temperature.

H2O CH3COCH3

VP = 55.3 mm Hg @ 40 C VP = 400 mm Hg @ 40 C H-Bonds no H-bonds less evaporation more evaporation

Slide 18 / 48

Vapor Pressure

The vapor pressure is directly proportional to the temperature. As heat is added, more evaporation results, leading to a higher vapor pressure. Note the relationship is not linear. VP H2O vs Temp

Slide 19 / 48

Vapor Pressure

VP of Various Substances vs. Temp. Note the larger hydrocarbons have a lower vapor pressure at a given temperature due to higher LDF's. When a liquid's vapor pressure equals the atmospheric/ external pressure it will boil. The stronger the particle interactions, the more energy must be added to raise the vapor pressure hence the higher boiling points.

Slide 20 / 48 Vapor Pressure

To reach the boiling point, either the vapor pressure must be increased, the atmospheric pressure must be lowered, or both. The BP can be reached by raising the vapor pressure by heating

Vapor Pressure Status @ 1 atm external pressure H2O @25 C 23.88 mm Hg not boiling! H2O @100 C 760 mm Hg boiling!

The BP can also be reached by lowering the atmospheric pressure The atmospheric pressure at the peak of Mt. Everest is just 253 mm Hg so water must be heated only to roughly 72 C to

• btain a vapor pressure of 253 mm Hg and thus boil.

Slide 21 / 48

7 Which of the following would NOT occur when a solute is added to a solvent?

Answer

AThe freezing point of the solution will be lower than
 the pure solvent B The boiling point of the solution will be higher than the pure solvent C The osmotic pressure of the solution will be higher than the pure solvent D The vapor pressure of the solution will be lower than the pure solvent E All of these would occur

Slide 22 / 48

8 Which of the following would have the lowest vapor pressure at a given temperature?

Answer

A C6H14(l) B C4H10(l) C H2O(l) D CH3COCH3(l)

Slide 23 / 48

9 Which of the following would be TRUE?

Answer

A Water will boil at a lower temperature at high altitude because its Coulombic attractions are stronger at these pressures B Water will boil at a lower temperature at high altitude because its vapor pressure is higher at these altitudes. C Water will boil at a lower temperature at high altitude because atmospheric pressure is lower D Water will boil at a higher temperature at high altitude because atmospheric pressure is higher

Slide 24 / 48

Vapor Pressure of Solutions

Adding solute to create a solution lowers the solutions vapor pressure and raises the boiling point. When solute is mixed with the solvent, attractions form between the two, resulting in less solvent molecules evaporating and thereby lowering the vapor pressure. Pure H2O 0.1 M NaCl(aq)

Na+ Cl-

Attractions between the ions and water reduce evaporation and the vapor pressure. Higher VP Lower VP

Slide 25 / 48 Vapor Pressure of Solutions

The amount of solute particles produced per solute molecule is called the Van't Hoff factor. The higher the Van't Hoff factor, the greater the impact on the colligative properties of the solution. Molecular solutes all have Van't Hoff factors of 1 CH3OH, C6H12O6, CH3COCH3 Ionic solutes have Van't Hoff factors that correlate to the number of ions present NaCl(aq) --> Na+(aq) + Cl-(aq) VHF = 2 Al(NO3)3(aq) --> Al3+(aq) + 3NO3-(aq) VHF = 4

A given quantity of Al(NO

3)3 will have 4x the impact of a molecule solute

and 2x the impact of NaCl(aq) on the vapor pressure of a solution.

Slide 26 / 48 Vapor Pressure of Solutions

The vapor pressure of a solution can be calculated using Raoult's Law. VPsolution = (Xsolvent)(Psolvent) where.... Xsolvent = mole fraction of solvent Psolvent = pressure of pure solvent As can be seen, as the mole fraction of solvent decreases - due to high moles of solute particles - the vapor pressure of the solution will diminish.

Slide 27 / 48

Vapor Pressure of Solutions

The vapor pressure of a solution can be calculated using Raoult's Law. Example: If 2.3 grams of NaCl is added to 108 grams of water, what is the vapor pressure of the resulting solution assuming the partial pressure of water vapor at this temperature is 18.9 mm Hg? Find mole fraction of solvent 2.3 g NaCl = 0.05 moles NaCl x VHF(2) = 0.10 mol solute 108 g H2O = 6 moles H2O mole fraction = 6/6.1 = 0.98 Find VP solution VPsolution = (0.98)(18.9 mm Hg) = 18.6 mm Hg

Slide 28 / 48 Vapor Pressure of Solutions

The vapor pressure of solution made from two liquids can be determined using an expanded version of Raoult's Law VPsolution = (XliquidA)(Pliquid A) + (XliquidB)(Pliquid B) Example: What is the vapor pressure of a solution made by mixing 1 mole

• f acetone (C3H6O) with 4 moles of ethanol (CH3CH2OH);

assuming vapor pressures of each being 28 mm Hg and 17.4 mm Hg at a given temperature. Both liquids evaporate and therefore contribute to the vapor pressure of the solution VPsolution = (1/5)28 mm Hg + (4/5)17.4 mm Hg = 19.5 mm Hg

Slide 29 / 48

10 When a solute is mixed with a solvent, the resulting solution will have... A A higher vapor pressure and boiling point B A higher vapor pressure and lower boiling point C A lower vapor pressure and a higher boiling point D A lower vapor pressure and a lower boiling point

Answer

Slide 30 / 48

11 Which of the following substances/mixtures would have the highest vapor pressure? A 0.1 M NaCl B 0.2 M CH3OH C 0.1 M CH3CH2OH D 0.1 M MgCl2 E 0.05 M Al(NO3)3

Answer

Slide 31 / 48

12 Which of the following substances/mixtures would have the lowest vapor pressure? A 0.2 M LiC2H3O2 B 0.3 M HNO3 C 0.4 M HC2H3O2 D 0.1 M Al(NO3)3 E Pure H2O

Answer

Slide 32 / 48

13 What is the vapor pressure of a solution prepared by adding 1.8 grams of glucose (C6H12O6) to 200 mL

• f water (D =1 g/mL). Assume water vapor has a

vapor pressure of 12.3 mm Hg at this temperature.

Answer

Slide 33 / 48

14 Equi-molar amounts of liquid methanol (VP = 19 mm Hg) and water (VP = 17 mm Hg) are mixed, what would be the vapor pressure of the solution?

Answer

Slide 34 / 48

15 If equi-molar amounts of liquid methanol (VP = 19 mm Hg) and water (VP = 17 mm Hg) are mixed, what would be the mole fraction of methanol in the vapor phase?

(Hint: For each liquid - its vapor pressure is calculated by Xsolvent*Psolvent. Remember also that the mole fraction can be determined as a pressure fraction (P/Ptot)

Answer

Slide 35 / 48 Boiling Point Elevation

The increase in boiling point of a solution compared to the pure solvent is directly proportional to the molal concetration (m) of solute, the boiling point constant (Kb) and the Van't Hoff factor of the solute (i). Pure H2O 0.1 m NaCl(aq) Lower BP Higher BP Tb = Kb*m*i The solute impedes evaporation thereby requiring more heat to be added to get the vapor pressure = atmospheric pressure.

Slide 36 / 48

Boiling Point Elevation

Measuring the boiling point elevation of a solution can be used to determine the molar mass of a non-volatile molecular solute. Example: What is the molar mass of a solute that when 3.4 grams of it are mixed with 300 grams of benzene (Tb = 80.1C, Kb = 2.53 C/m), the boiling point is 80.6 C. Use Tb and Kb to find molality 0.5 C x 1 m = 0.198 m 2.53 C Use molality and kg of solvent to get moles solute 0.300 kg solvent x 0.198 mol solute = 0.059 mol 1 kg solvent Divide the grams by moles 3.4 g/0.059 mol = 57.6 g/mol

Slide 37 / 48 Freezing Point Depression

The addition of solute disrupts the formation of the crystal lattice to freeze the solvent, thereby requiring a lower temperature to freeze the solution. The degree to which the freezing point has been depressed can be calculated by... Tf = Kf*m*i where Kf = freezing point constant of solvent The molar mass of solute can be calculated as done with boiling point elevation.

Slide 38 / 48

Freezing Point Depression

Depressing the freezing point of a solvent has many applications. Antifreeze is a mixture of water and ethylene glycol and it allows the coolant in your engine to stay liquid even below the normal freezing point

• f either material.

Some frogs release glucose into their bloodstream in cold temperatures so their blood doesn't freeze!

Slide 39 / 48

Osmotic Pressure

The osmotic pressure of a solution is the pressure required to prevent the osmosis (flow) of water into it. Pure H2O Pure H2O No net movement of water Osmotic Pressure = 0 Pure H2O 0.1 M NaCl Net movement of water into solution Pure H2O 0.1 M NaCl Osmotic Pressure of 2.44 mmHg needed to prevent net-flow of water

Slide 40 / 48

Osmotic Pressure = iM*R*T

M = Molarity, R = 0.0821 L*atm/mol K, T = Kelvin temperature, i = VHF

Osmotic Pressure

The osmotic pressure is directly proportional to the M of the solution, the Van't Hoff factor of the solute, and the temperature. Plants use high concentrations of solute within their cells to draw water in to create the turgor pressure necessary to keep the cells rigid.

Slide 41 / 48

16 Compared to the pure solvent, a solution will have a...

A

higher boiling point and lower freezing point

B

higher boiling and freezing point

C

lower boiling point and higher freezing point

D

lower boiling point and lower freezing point

E

the same freezing and boiling points

Answer

Slide 42 / 48

17 Which of the following solutions would have the lowest freezing point?

A

0.02 M CH3OH

B

0.02 M KNO3

C

0.02 M HC2H3O2

D

0.02 M CaCl2

E

Pure water

Answer

Slide 43 / 48

18 Which of the following solutions would have the lowest boiling point?

A

0.45 M HC2H3O2

B

0.45 M HI

C

0.15 M Al(NO3)3

D

0.15 M HC2H3O2

E

0.15 M HI

Answer

Slide 44 / 48

19 What would be the boiling point of a 200 mL solution of 0.78 M MgCl2? Assume a Kb of 0.51 C/m for water and a density of the solution of 1.01 g/mL.

Answer

Slide 45 / 48

20 When a 2.3 gram sample of a non-ionic solute is added to 250 grams of water, the freezing point is found to be -3.45 C. Assuming a Kf of -1.86 C/m for water, what is the molar mass of the solute?

Answer

Slide 46 / 48

21 What is the osmotic pressure of a solution created by adding 5.8 grams of NaCl to water to produce a 340 mL solution @10 C?

Answer

Slide 47 / 48 Next up....Equilibrium!!! Slide 48 / 48
