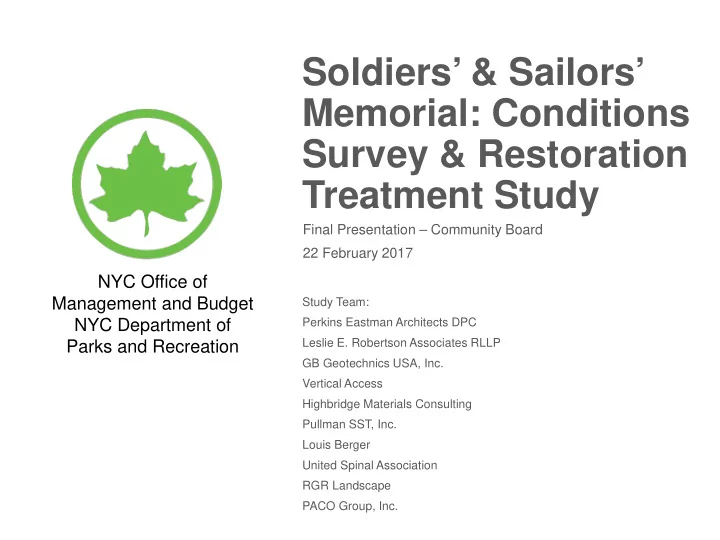

Soldiers’ & Sailors’ Memorial: Conditions Survey & Restoration Treatment Study

Final Presentation – Community Board 22 February 2017

Study Team: Perkins Eastman Architects DPC Leslie E. Robertson Associates RLLP GB Geotechnics USA, Inc. Vertical Access Highbridge Materials Consulting Pullman SST, Inc. Louis Berger United Spinal Association RGR Landscape PACO Group, Inc.

NYC Office of Management and Budget NYC Department of Parks and Recreation

slide-2
SLIDE 2

Study Components

Research: Construction and Historic Significance Conditions Assessment: Findings and Recommendations ADA Assessment & Recommendations Cost Estimates

2 Soldiers’ & Sailors’ Final Presentation

slide-3
SLIDE 3

Soldiers’ & Sailors’ Today

3 Soldiers’ & Sailors’ Final Presentation

slide-4
SLIDE 4

Soldiers’ & Sailors’ Today

4 Soldiers’ & Sailors’ Final Presentation

slide-5
SLIDE 5

Soldiers’ & Sailors’ Today

5 Soldiers’ & Sailors’ Final Presentation

slide-6
SLIDE 6

Construction and Historic Significance

6 Soldiers’ & Sailors’ Final Presentation

1902 Dedication

slide-7
SLIDE 7

Construction and Historic Significance

7 Soldiers’ & Sailors’ Final Presentation

1917 Decoration Day 1945 Viewing Navy War Ships from the Memorial

slide-8
SLIDE 8

Site Significance and Prominence

1910 to1935 (MCNY/DPR)

8 Soldiers’ & Sailors’ Final Presentation

slide-9
SLIDE 9

Site Significance and Prominence

1940 to 1975 (DPR/MCNY)

9 Soldiers’ & Sailors’ Final Presentation

slide-10
SLIDE 10

Background Research Findings

10 Soldiers’ & Sailors’ Final Presentation

slide-11
SLIDE 11

Historical Background

1899 Plan and Section Details of Plaza Drainage

11 Soldiers’ & Sailors’ Final Presentation

N

slide-12
SLIDE 12

Historical Background/Previous Repairs

1920s and 1935 Plaza Images

12 Soldiers’ & Sailors’ Final Presentation

N

slide-13
SLIDE 13

1960 – Pre-Restoration Conditions

13 Soldiers’ & Sailors’ Final Presentation

N

slide-14
SLIDE 14

Historical Background

1960-62: Last Comprehensive Restoration Campaign

14 Soldiers’ & Sailors’ Final Presentation

N

slide-15
SLIDE 15

Findings and Recommendations:

Conditions Assessment

15 Soldiers’ & Sailors’ Final Presentation

slide-16
SLIDE 16

Conditions Assessment

Monument and Plazas: ~ Findings: Fair to Poor overall condition (Deterioration due to age and lack of drainage) ~ Recommendations: Comprehensive rehabilitation

(Immediate hazards currently stabilized)

16 Soldiers’ & Sailors’ Final Presentation

slide-17
SLIDE 17

Conditions Assessment

17

Total Area:

  • approx. 20,000 SF or .5 acres

Soldiers’ & Sailors’ Monument

N

slide-18
SLIDE 18

Visual Survey 2016

18 Soldiers’ & Sailors’ Final Presentation

slide-19
SLIDE 19

Visual Survey

Monument Exterior

19 Soldiers’ & Sailors’ Final Presentation

slide-20
SLIDE 20

20 Soldiers’ & Sailors’ Final Presentation

slide-21
SLIDE 21

Findings and Recommendations

Monument Exterior: ~ Findings: Cracks ~ Recommendations: Crack filler, pinning, Dutchman repairs

21 Soldiers’ & Sailors’ Final Presentation

slide-22
SLIDE 22

Findings and Recommendations

Monument Exterior: Finial and Consoles ~ Finding: Spalls, failed patches, and fissures ~ Recommendation: Dutchman, patch and crack filler

22 Soldiers’ & Sailors’ Final Presentation

slide-23
SLIDE 23

Findings and Recommendations

Monument Exterior: Upper and Lower Modillions ~ Findings: Failed Dutchman, crack repairs and ACM in sealant, typ., fissures, and spalls ~ Recommendations: New Dutchman, consolidation, sealant abatement

23 Soldiers & Sailors Final Presentation

slide-24
SLIDE 24

Findings and Recommendations

Monument Exterior ~ Findings: Deteriorated mortar, biological growth and open joints ~ Recommendations: 100% Repointing

24 Soldiers’ & Sailors’ Final Presentation

slide-25
SLIDE 25

Findings and Recommendations

Monument Exterior – Sheet Metal Roofing ~ Findings: Main Roof, Gutter Infill, Cornice – repairable Base of Drum – excessive tears and holes ~ Recommendations: Repair Main Roof, Gutter Infill, Cornice; Replace lower drum roof with liquid-applied membrane

25 Soldiers’ & Sailors’ Final Presentation

slide-26
SLIDE 26

Findings and Recommendations

Monument Bronze Door ~ Findings: Severe deterioration and inoperable condition ~ Recommendations: Refurbish in off-site facility and reinstall

26 Soldiers’ & Sailors’ Final Presentation

slide-27
SLIDE 27

Findings and Observations

Monument Interior: Marble and Mosaic Floor ~ Findings: Cracked marble, missing and eroded tesserae ~ Recommendations: Crack repair and replace missing tesserae; repair concrete slab at manhole cover; clean and repatinate bronze

27 Soldiers’ & Sailors’ Final Presentation

slide-28
SLIDE 28

Findings and Recommendations:

Monument Interior via Drone Survey ~ Findings: Open Joints and efflorescence, typ., selected spalls ~ Recommendations: 100% repointing, Dutchman repairs

28 Soldiers’ & Sailors’ Final Presentation

slide-29
SLIDE 29

Findings and Recommendations

Monument Interior: Brickwork between Oculus and Guastavino Vault ~ Findings: Open joints and vertical cracks ~ Recommendations: 100% repointing and selective brick stitching

29 Soldiers’ & Sailors’ Final Presentation

slide-30
SLIDE 30

Findings and Recommendations

Monument Interior – Brick Vault and Adjacent Brick Chamber ~ Findings: Overall good condition with excessive moisture ~ Recommendations: Repair concrete slab at manhole cover

30 Soldiers’ & Sailors’ Final Presentation

slide-31
SLIDE 31

Findings and Recommendations

Mobilization ~ Recommendations: Enclosed scaffold system

31 Soldiers’ & Sailors’ Final Presentation

slide-32
SLIDE 32

Visual Survey

Monument Plazas

32 Soldiers’ & Sailors’ Final Presentation

N

Belvedere North Approach Esplanade Upper Terrace Lower Terrace

slide-33
SLIDE 33

Findings and Recommendations

1959 Plan and Section Details of New Drainage Scuppers

33 Soldiers’ & Sailors’ Final Presentation

N

slide-34
SLIDE 34

Findings and Recommendations

Site Drainage ~ Findings: Failed drainage system causing collateral deterioration ~ Recommendations: Replace complete paving and drainage system

34 Soldiers’ & Sailors’ Final Presentation

N

slide-35
SLIDE 35

Findings and Recommendations

Marble and Sandstone Paving ~ Findings: Heaving and displacement, severe sandstone deterioration ~ Recommendations: Remove and reset marble; replace sandstone with granite or marble pavers; replace substrate and introduce new drainage

35 Soldiers’ & Sailors’ Final Presentation

N

slide-36
SLIDE 36

N

Findings and Recommendations

Granite Veneer Foundation Stones ~ Findings: 100% deteriorated mortar joints, plant growth, displacement, and selective failure ~ Recommendations: Remove plants, grout injection, 100% repointing, selective rebuild of missing and severely displaced units; cordon off areas of loose stone at northern retaining wall

36 Soldiers’ & Sailors’ Final Presentation

slide-37
SLIDE 37

Findings and Recommendations

Semi-Circular Marble Bench Backs at Belvedere and Flagpole Platform ~ Findings: Severe displacement and outward bowing of stonework ~ Recommendations: Remove and reset marble units above granite benches

37 Soldiers’ & Sailors’ Final Presentation

N

slide-38
SLIDE 38

N

Findings and Recommendations

Limestone Balustrades ~ Findings: Plaza settlement cracks at plinth and full-depth baluster cracks ~ Recommendations: Remove, repair, reset

38 Soldiers’ & Sailors’ Final Presentation

slide-39
SLIDE 39

Findings and Recommendations

Marble Piers ~ Findings: Missing and failed Dutchman repairs, erosion fissures and cracks ~ Recommendations: Install new marble Dutchman with surgical pins, fill with hydraulic lime patch filler, pin other cracks

39 Soldiers’ & Sailors’ Final Presentation

N

slide-40
SLIDE 40

Findings and Recommendations

Marble and Limestone Surfaces (Monument and Balustrades) ~ Findings: Graffiti and soiling ~ Recommendations: Peel Away 7 and Rotec Vortex Micro-abrasion

40 Soldiers’ & Sailors’ Final Presentation

slide-41
SLIDE 41

Findings and Recommendations:

Structural Assessment

41 Soldiers’ & Sailors’ Final Presentation

slide-42
SLIDE 42

42

Structural Assessment

Soldiers’ & Sailors’ Final Presentation

slide-43
SLIDE 43

Rhino model

43

Sectional view of the model ready for SAP

Structural Assessment

Soldiers’ & Sailors’ Final Presentation

slide-44
SLIDE 44

Structural Assessment

44 Soldiers’ & Sailors’ Final Presentation

slide-45
SLIDE 45

Structural Assessment

45 Soldiers’ & Sailors’ Final Presentation

slide-46
SLIDE 46

Structural Assessment

46 Soldiers’ & Sailors’ Final Presentation

slide-47
SLIDE 47

Structural Assessment

47 Soldiers’ & Sailors’ Final Presentation

slide-48
SLIDE 48

Structural Assessment

48 Soldiers’ & Sailors’ Final Presentation

slide-49
SLIDE 49

Structural Assessment

49 Soldiers’ & Sailors’ Final Presentation

Monument

  • Structurally stable under gravity and

NYCBC wind loads

  • Can resist NYCBC earthquake loads but

will experience damage

  • Masonry exterior and interior joints need

to be restored to ensure full bearing contact

slide-50
SLIDE 50

Subsurface Investigation/Scanning/Testing

50 Soldiers’ & Sailors’ Presentation

slide-51
SLIDE 51

Subsurface Investigation/Scanning/Testing Monument Tower Exterior and Interior:

  • Infrared Thermal Imaging
  • Ground penetrating radar/

Metal detectors

  • Ultrasonic pulse velocity
  • Video scoping/Fiber-optic borescope

51 Soldiers’ & Sailors’ Final Presentation

slide-52
SLIDE 52

52 Soldiers’ & Sailors’ Final Presentation

slide-53
SLIDE 53

Subsurface Investigation/Scanning/Testing

Monument Exterior and Interior – IR scanning performed by GBG

53 Soldiers’ & Sailors’ Presentation – 29 November 2016

slide-54
SLIDE 54

Findings and Recommendations

54 Soldiers’ & Sailors’ Final Presentation

Hazardous Materials

  • Confirmed ACM – Caulking at modillions
  • Assumed ACM – Caulking at window frame and

roofing

  • Confirmed Lead-based Paint – Monument

marble façade wall beige paint

  • Confirmed PCB-containing Materials – Caulking

at balustrade, caulking at terrace paving stones, and caulking at edges of stairways

  • Remediation required as part of restoration
slide-55
SLIDE 55

Findings and Recommendations:

ADA Compliance/Landscape Study

55 Soldiers’ & Sailors’ Final Presentation

slide-56
SLIDE 56

Walkway To Upper Terrace - Model

56 Soldiers’ & Sailors’ Final Presentation

slide-57
SLIDE 57

Walkway To Upper Terrace - Rendering

57 Soldiers’ & Sailors’ Final Presentation

slide-58
SLIDE 58

Walkway To Esplanade - Model

58 Soldiers’ & Sailors’ Final Presentation

slide-59
SLIDE 59

Potential Bio-swale / Rain Garden

59 Soldiers’ & Sailors’ Final Presentation

slide-60
SLIDE 60

Cost Estimate

60 Soldiers’ & Sailors’ Final Presentation

slide-61
SLIDE 61

Cost Estimate

61

Total Program Cost, contingent on being bid as a single project:

  • approx. $29- $30 Mil.

Soldiers’ & Sailors’ Monument

N

slide-62
SLIDE 62

Cost Estimate

62

Cost Breakdown*

Monument $10,500,000

  • Scaffolding, interior and exterior repairs and repointing, roof

repair, door restoration, interior floor restoration

Plazas, retaining walls, and stairs $17,000,000

  • Demolish and replace foundation slab, remove and reset all

marble stonework, install new marble in place of sandstone, remove, repair and reset balusters, repair and repoint all walls, remove and reset stairs, benches, ornamental bronze

ADA compliant access ramps $1,200,000 Landscaping $700,000

*If project is phased, cost of each phase increases due to escalation and multiple mobilizations.

Soldiers’ & Sailors’ Monument

N

slide-63
SLIDE 63
