Solar Team Six Solar Powered 3D Printer Leah Jones, Aaron Edelman, Rob Mejia, Sienna Fisher, Olohirere Aruya , Alex Holden Agenda Norms and Values Project Background Problem Statement Use Case Scenario Customer

SLIDE 1

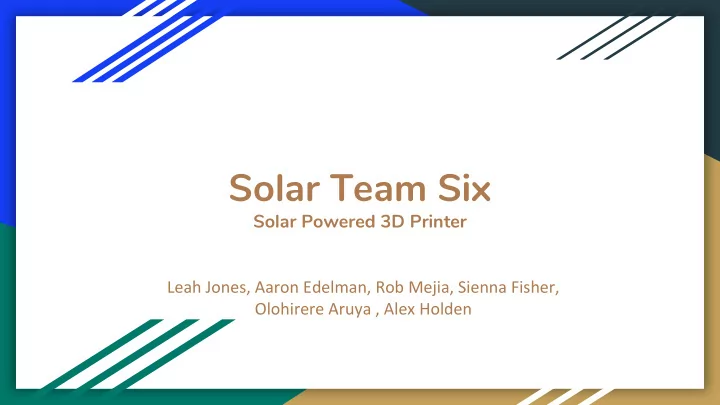

Solar Team Six

Solar Powered 3D Printer Leah Jones, Aaron Edelman, Rob Mejia, Sienna Fisher, Olohirere Aruya , Alex Holden

SLIDE 2

Agenda

Norms and Values
Project Background
Problem Statement
Use Case Scenario
Customer Requirements
Engineering Requirements
QFD Matrix
Future Risks
Draft Project Plan

SLIDE 3

Norms and Values

Communication
Time Management
Documentation
Complete current task before moving on to future tasks
SMILE:)

SLIDE 4

Project Background

Stakeholders

P19462 (Us)
RIT MSD
RIT Global
Universidad Autónoma de Occidente
Bill Hard Fund
Fundautónoma

SLIDE 5

Problem Statement

Current State : In 2017, an RIT MSD team (P18462) developed a 3D printing solution that combined solar energy and battery storage to overcome an unreliable power grid system. Desired State : The key goals of the project are to make improvements on the existing solar-powered 3D printer developed by RIT students. Project Goals : The power management system should be made more efficient and robust. Switching between solar and grid power should be seamless and the printer should fail gracefully when power cuts out. Constraints : The printer should be easy to package, assemble, disassemble and transport. The resulting solution should be sustainable with easily obtained materials.

SLIDE 6

Use Case Scenario

SLIDE 7

Customer Requirements & Engineering Requirements

Capable of operation off of solar energy
Consumes Plastic Pellets (not a Filament)
Increased functionality
Fails gracefully when power runs out in the

middle of the print job

Compact
Reliable
Capable of operating without connection to

the grid

Easy to Use
Easy to assemble and disassemble
Minimum print volume
Low unit manufacturing cost
Easy to transportation
Minimum print Speed
Power Consumption - Time (hrs)
Build Volume - cm^3
Start up time - Time (min)
Total Mass - Kg
Print Speed - mm/s
Device Size - m^3
Resolution - µm
% Failures - %
Time to swap functionality - Time (min)
Assembly & Disassembly Time - Time (hrs)
Time to connect/disconnect to solar - Time (hrs)
Unit manufacturing cost - $
Accepts Plastic Pellets - Binary(y/n)

*Key scope constraints given by the customer

SLIDE 8

CR & ER Matrix

Keys to Success

% Failure
Power

Consumption

Build Volume
Device Size

SLIDE 9

Future Risk

Technical Risks:

○ Failure to integrate power management system ○ Faulty integration of pellet extruder

Resource-related Risks:

○ System components/parts not available for purchase in Colombia ○ Lack of sunlight

Safety Risks:

○ Toxic fumes from melting plastic ○ Electrocution

Environmental + Social Risks:

○ Weather change causing damage to printer (e.g. rain) ○ Plastic waste generated from failed print jobs

SLIDE 10

Project Plan - Going Forward

MSD I: Milestones will be set at each phase review

SLIDE 11
