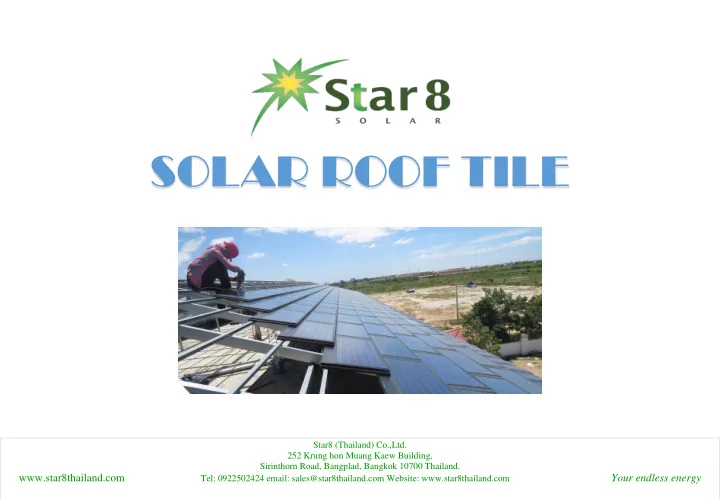

SOLAR ROOF TILE Star8 (Thailand) Co.,Ltd. 252 Krung hon Muang Kaew Building, Sirinthorn Road, Bangplad, Bangkok 10700 Thailand. www.star8thailand.com Tel: 0922502424 email: sales@star8thailand.com Website: www.star8thailand.com Your endless energy
Star 8 is an innovative solar company, continuously introducing new solar products and applications to the market. As a leader in residential and commercial installations in Australia and holder of innovation patents for Flexible solar, solar transparency glass and Cement solar tile we strive to offer the best custom solution for every solar power installation project. With pending patents on additional solar tile technologies and a revolutionary SolarTuk, Star 8 is leading the way in innovative and functional solar. Our manufacturing complex in Phnom Penh opened in Feb of 2014 producing a full range of solar products from the Solar Street Light, to Solar electric buses and just about everything in-between Star8 (Thailand) Co.,Ltd. 252 Krung hon Muang Kaew Building, Sirinthorn Road, Bangplad, Bangkok 10700 Thailand. www.star8thailand.com Tel: 0922502424 email: sales@star8thailand.com Website: www.star8thailand.com Your endless energy
Imagine – no more ugly solar panels spoiling the look of your roof! The Star 8 Solar Tile takes the best of Australian traditional roof tile design and combines it with the latest solar technology. Star 8 Solar Tiles provide the homeowner with a fully integrated solar solution, removing the need for a retrofitted ‘bolt on’ system which has the potential to damage the existing roof. Star 8 Solar Tiles combine high efficiency Solar Photovoltaic modules and traditional roofing tiles, creating an integrated, functional solar roof tile. Star 8 solar tiles are fully compatible with the majority of Australian tiled roof so retrofitting the solar tiles to your roof has just become an attractive option. The Star 8 roof tile range includes mono-crystalline and poly-crystalline technology, enabling even the shady roofs to produce power – direct sunlight is no longer an essential requirement. Star8 (Thailand) Co.,Ltd. 252 Krung hon Muang Kaew Building, Sirinthorn Road, Bangplad, Bangkok 10700 Thailand. www.star8thailand.com Tel: 0922502424 email: sales@star8thailand.com Website: www.star8thailand.com Your endless energy
SOLAR TILE SPECIFICATION Maximum Power (pm) 40W Power tolerance +3% Open-Circuit voltage (Voc) 6.5V Short-circuit current (Isc) 9.05A Voltage at Pmax (Vmp) 5.02V Current at Pmax (Imp) 8.37A Solar panel weight 2.7kg Total tile weight 10.2kg Solar panel dimension 815x335mm Tile dimension 930x435x30mm Star8 (Thailand) Co.,Ltd. 252 Krung hon Muang Kaew Building, Sirinthorn Road, Bangplad, Bangkok 10700 Thailand. www.star8thailand.com Tel: 0922502424 email: sales@star8thailand.com Website: www.star8thailand.com Your endless energy
SOLAR ROOF TILES Star 8 Solar Roof Tiles are a modular photovoltaic , flat tile system integrated into the roof alongside standard roof tiles, putting an end to unsightly solar traditional solar panels. The tile is as wide as three standard tiles. Each tile is produced with a watercourse so as it is fully integrated with the standard roof tiles. Increased efficiencies allow a 5kw system to replace approximately 340 standard roof tiles, which is around 10-15% of the average roof space. If you want to produce more power, just add more tiles... Star8 (Thailand) Co.,Ltd. 252 Krung hon Muang Kaew Building, Sirinthorn Road, Bangplad, Bangkok 10700 Thailand. www.star8thailand.com Tel: 0922502424 email: sales@star8thailand.com Website: www.star8thailand.com Your endless energy
Thank you! Star8 (Thailand) Co.,Ltd. 252 Krung hon Muang Kaew Building, Sirinthorn Road, Bangplad, Bangkok 10700 Thailand. www.star8thailand.com Tel: 0922502424 email: sales@star8thailand.com Website: www.star8thailand.com Your endless energy
