SLIDE 1

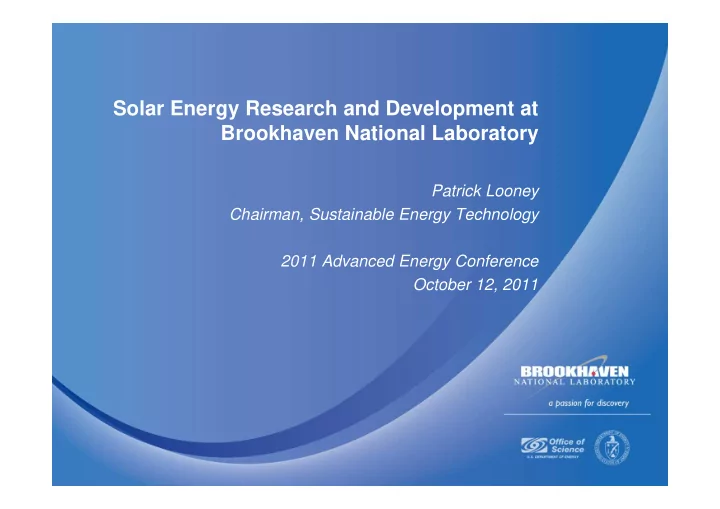

Solar Energy Research and Development at Brookhaven National Laboratory
Patrick Looney Chairman, Sustainable Energy Technology 2011 Advanced Energy Conference October 12, 2011
SLIDE 2 2
BNL’s research agenda for the electric grid focuses on developing applied research capabilities in key areas
- Smart Grid Development in the Northeast
- Evaluation/validation of advanced approaches to simulation of distribution
networks and systems (e.g. graph trace analysis using iterators)
- Using large data sets to inform decisions on grid operation, validate/improve
simulation
- Evaluation of new grid technologies and control strategies for improved
efficiency and reliability
- Implementation of automated demand response, particularly in high density
urban applications
- Improving grid security and resilience
- The role of micro-grids and how to manage them
- Integration of Renewable Energy Generation on the Grid
- Characterization of renewable generation in terms of variability, reliability and
capacity credit
- Impact of renewables on the grid in terms of controllability, reliability and
power quality (e.g., solar, wind)
- The role of storage and how it might mitigate the impacts of renewables
- Implementation of advanced inverter control schemes to improve grid control
(e.g., DVAR, Voltage regulation)
SLIDE 3
3
BNL has several ongoing initiatives that GARS will leverage as part of this research initiative
NSERC LISF AEGIS* Energy Storage Hub BNL Sustainability Program Smart-Grid Demo Grid Research
* GARS is lead
SLIDE 4 Long Island Solar Farm, LLC
- 32 MWac grid-connected solar
photovoltaic plant being built at BNL
- Owned by Long Island Solar Farm, LLC
(company partially owned by BP Solar)
- Purpose is to sell power to LIPA under a PPA
- Commercial operation expected Nov. 1, 2011
- GARS will evaluate data from LISF to
investigate the impacts of utility-scale renewable energy generation on the grid LISF Solar Energy Research
SLIDE 5 5
The BNL Northeast Solar Energy Research Center will include a dedicated research array that will be connected to the BNL distribution system
- Solar PV Array Size
- 700kw to 1MW
- Connected to BNL electrical distribution
system
- Research Enabled
- Data to validate electrical system models
with integrated renewables
- Role of innovative inverter controls (DVAR,
voltage regulation) NSERC Solar Energy Research Facility
SLIDE 6 The installation of smart sensors in the BNL distribution system enables using the site as a microgrid test area
- BNL has a 50 MW base load
representative of a typical industrial complex; 13.8 kV primary distribution
- An active collaboration is in
place for placing a network of new generation grid sensors in the BNL distribution system
generation on the BNL grid.
- Beyond solar, there may be
- ptions for wind and CHP
installations as well.
Smart Micro-Grid Demonstration Project
SLIDE 7 A key motivation for pursuing solar energy research at BNL is the construction of a solar plant on site …
- 32 MWac grid-connected solar
photovoltaic plant being built at BNL
- Owned by Long Island Solar Farm, LLC
(company partially owned by BP Solar)
- Purpose is to sell power to LIPA under a PPA
- Commercial operation expected Nov. 1, 2011
- Located on 195 acres on BNL campus
under an easement from DOE
- Consideration (in-kind funds) provided to DOE
- BNL can instrument and collect data from the
array for research purposes
- BNL has developed a research agenda
to leverage this unique opportunity
SLIDE 8
North Array Field South Array Field LIPA Substation
The solar plant includes two array fields located on the BNL campus in close proximity to the LIPA substation
SLIDE 9
SLIDE 10
Aerial view of the LISF plant as of May 11, 2011 Aerial view of the LISF plant as of June 30, 2011
SLIDE 11 11
Our research agenda focuses on issues that will foster the deployment of utility-scale solar PV systems
- Solar Variability
- Characterize solar variability for plants in the northeast
- Forecasting the solar resource – Min/Hours/Day ahead
- Leverage BNL core capability in cloud physics
- Leverage access to NOAA facility on site
- Predicting solar plant power output
- Tie forecasting models to electrical models
- Capacity credit for solar PV plants
- Grid Integration
- Impact of solar variability on grid management
- Different penetration levels
- Impact of distributed generation on the grid
- Grid control, power quality, reliability
- The role of storage
- The role of advanced solar technologies
- Inverters with DVAR, voltage regulation
- Environmental Impacts
- Impact of utility-scale solar PV plants on local
environment and ecology:
- In what ways? - how can adverse impacts be
minimized?
SLIDE 12 12
BNL has made significant investments to provide research instruments for the array
- Solar Resource Data
- Field-based pyranometers: 32 pairs to measure direct
and diffuse irradiance across the entire array
- Baseline irradiance: precision measurement of irradiance
at base station to quantify uncertainties in field data
- Solar tracking measurements
- Rotating shadowband radiometer
- Meteorological Data
- Temperature (air and panel)
- Relative Humidity
- Barometric Pressure
- Wind speed and direction
- Rain gauge
Total Sky Imagers – Clouds Electrical Performance Data
- Power quality monitors at all inverters, collection
substation, and LIPA feeders to BNL
- DC current and voltage at all strings
SLIDE 13
13
BNL’s solar energy research agenda will require LISF plant data plus other capabilities…
Challenge Issue LISF Data Other Capabilities Variability and Non-Dispatchability Reliable Data Sets X Impacts of Weather X X Managing Non-Dispatchability X Forecasting Models X X Grid Integration Impact of Penetration Levels X X Advanced Grid Communication/Control X Load Flow and Fault Currents X Deployment of New Technologies X Environmental and Ecological Impacts to Local Vegetation/Animals X Impacts to Regional/Global Climate X Life-Cycle Assessments X Recycling Options X X System Performance In Northeast Compare Different Technologies X Performance Degradation X O&M Processes X X
SLIDE 14 14
BNL is developing a separate solar research facility: Northeast Solar Energy Research Center (NSERC)
- NSERC Research will supplement
research capabilities offered by the LISF and enable research in various
- ther areas of interest to the solar
industry
- Dedicated research array for field
testing
- Laboratory space for standardized
testing
- Technology development test bed
- Testing in Northeast conditions
- Solar PV Array Size
- 700kw to 1MW
- Connected to BNL electrical distribution
system (13.8 kV)
- Crystalline Silicon PV modules
- Open racks for comparison tests of
- ther PV technologies
- Configuration
- Re-configurable to simulate different
- perating scenarios
- e.g. Multiple, small (100kw) arrays, one
block,
- Fixed tilt with capability for Trackers
- BOP Equipment
- Capability for running macro and micro
inverters
- Capability to include storage
- Research instrumentation
- Similar to LISF (meteorological, solar
resource, power quality)
- High Sample Rates – 1 sec data
SLIDE 15 15
Preliminary Research Agenda for the NSERC
- Smart Grid Integration Studies
- Research on strategies that improve communication and control
- Techniques for integrating large numbers of systems into utility grids
- Energy Storage Research
- Value propositions for integrated grid-level storage
- Evaluation of storage and control alternatives
- Reduce intermittency, resource extension
- Frequency regulation capability
- Field Testing for Deployment of New Technologies
- Evaluation and testing of new design concepts, such as inverters with
capability for voltage regulation and VAR control
- Comparison of performance for components and systems using different
technologies
- Reliability and Degradation Studies
- Long-term reliability and degradation studies under Northeast conditions
- Standardized test conditions to evaluate component degradation
- Post mortem testing and failure analyses
SLIDE 16 16
NSERC would include laboratories to support solar energy research projects…
- Solar Energy Research
- Standardized testing of solar system
components
- Solar Resource Simulators
- Load simulators
- Environmental chambers
- Failure Analyses
- National PV Environmental Research
Center
- Environmental, health and safety
aspects of photovoltaic systems
- Life-cycle analyses
- Meteorological Services program
- On site Met services
SLIDE 17
17
Collaborations and Partnerships are welcome!
For more information: Patrick Looney Chairman Sustainable Energy Technologies jlooney@bnl.gov 631-344-3798
