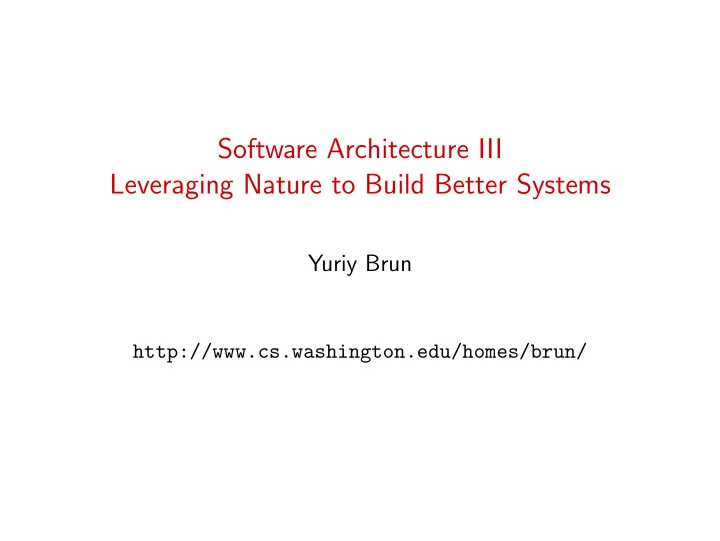

Software Architecture III Leveraging Nature to Build Better Systems

Yuriy Brun

http://www.cs.washington.edu/homes/brun/

slide-2
SLIDE 2

Why Nature? Nature Computes Tiles Tile Software Conclusions

Outline

1 Why Nature? 2 Using Nature to Compute 3 Tiles 4 Tile Software 5 Conclusions

Yuriy Brun (brun@cs.washington.edu) From Nature to Software CSEP 504 Winter 2010 2 / 62

slide-3
SLIDE 3

Why Nature? Nature Computes Tiles Tile Software Conclusions

Outline

1 Why Nature? 2 Using Nature to Compute 3 Tiles 4 Tile Software 5 Conclusions

Yuriy Brun (brun@cs.washington.edu) From Nature to Software CSEP 504 Winter 2010 3 / 62

slide-4
SLIDE 4

Why Nature? Nature Computes Tiles Tile Software Conclusions

Systems in Nature

Resilient to

death malfunction malicious agents

Self-healing Fault-tolerant

Yuriy Brun (brun@cs.washington.edu) From Nature to Software CSEP 504 Winter 2010 4 / 62

slide-5
SLIDE 5

Why Nature? Nature Computes Tiles Tile Software Conclusions

In Contrast: Software

Less-complex systems Fault-tolerance is “intelligently designed” Not expected to recover from catastrophes

Yuriy Brun (brun@cs.washington.edu) From Nature to Software CSEP 504 Winter 2010 5 / 62

slide-6
SLIDE 6

Why Nature? Nature Computes Tiles Tile Software Conclusions

Genetic Algorithms

Have been used to:

Design of fighter-planes airfoils [HO03] Train scheduling Automatic software bug patching [WNGF09] Data mirroring [RKCM09]

Yuriy Brun (brun@cs.washington.edu) From Nature to Software CSEP 504 Winter 2010 6 / 62

slide-7
SLIDE 7

Why Nature? Nature Computes Tiles Tile Software Conclusions

Neural Networks

Have been used to:

Classification Sales forecasting / marketing Medical diagnoses [SKR01] Credit evaluation [Wes00]

Yuriy Brun (brun@cs.washington.edu) From Nature to Software CSEP 504 Winter 2010 7 / 62

slide-8
SLIDE 8

Why Nature? Nature Computes Tiles Tile Software Conclusions

Distributed Robotics

Have been used to:

Search and rescue scenarios [MEB+10] Vacuum design Sensor networks [AAC+00] Education

Yuriy Brun (brun@cs.washington.edu) From Nature to Software CSEP 504 Winter 2010 8 / 62

slide-9
SLIDE 9

Why Nature? Nature Computes Tiles Tile Software Conclusions

Robofish

Yuriy Brun (brun@cs.washington.edu) From Nature to Software CSEP 504 Winter 2010 9 / 62

slide-10
SLIDE 10

Why Nature? Nature Computes Tiles Tile Software Conclusions

Outline

1 Why Nature? 2 Using Nature to Compute

DNA Computing Bacteria Gates Tile Assembly Model

3 Tiles 4 Tile Software 5 Conclusions

Yuriy Brun (brun@cs.washington.edu) From Nature to Software CSEP 504 Winter 2010 10 / 62

slide-11
SLIDE 11

Why Nature? Nature Computes Tiles Tile Software Conclusions

Leonard M. Adleman

“The manipulation of DNA to solve mathematical problems is redefining what is meant by ‘computation’ .”

Yuriy Brun (brun@cs.washington.edu) From Nature to Software CSEP 504 Winter 2010 11 / 62

slide-12
SLIDE 12

Why Nature? Nature Computes Tiles Tile Software Conclusions

A Bit of History

Adleman’s research

RSA public key cryptosystem [RSA78] Computer viruses [Adl90] HIV modeling [AW93] DNA computation [Adl94]

Yuriy Brun (brun@cs.washington.edu) From Nature to Software CSEP 504 Winter 2010 12 / 62

slide-13
SLIDE 13

Why Nature? Nature Computes Tiles Tile Software Conclusions

DNA Turing Machine

[Adl98] A, T, C, and G can encode information A DNA strand is a data-storing tape Enzymes can encode states and rules for manipulating the tape

Yuriy Brun (brun@cs.washington.edu) From Nature to Software CSEP 504 Winter 2010 13 / 62

slide-14
SLIDE 14

Why Nature? Nature Computes Tiles Tile Software Conclusions

Hamiltonian Path Problem

[Adl98]

Yuriy Brun (brun@cs.washington.edu) From Nature to Software CSEP 504 Winter 2010 14 / 62

slide-15
SLIDE 15

Why Nature? Nature Computes Tiles Tile Software Conclusions

Hamiltonian Path Problem with DNA

[Adl98]

Yuriy Brun (brun@cs.washington.edu) From Nature to Software CSEP 504 Winter 2010 15 / 62

slide-16
SLIDE 16

Why Nature? Nature Computes Tiles Tile Software Conclusions

Implementing the DNA Algorithm

Conventional algorithm DNA algorithm 1. Generate a set of random paths Mix city and flight strands 2. Select paths that start and end at proper cities PCR 3. Select proper-length paths Electrophoresis gel 4. Select paths that visit each city Watson & Crick pairing 5. The remaining paths represent the solution PCR, electrophoresis, and se- quencing

Yuriy Brun (brun@cs.washington.edu) From Nature to Software CSEP 504 Winter 2010 16 / 62

slide-17
SLIDE 17

Why Nature? Nature Computes Tiles Tile Software Conclusions

3-SAT With DNA

In 2002, Braich et al. [BCJ+02] developed a DNA computer to solve 20-variable 3-SAT problems.

Worked most of time Error rates grew proportionally to the number of variables

A few other models emerged

Sticker model Tile assembly model

more on this later. . .

Yuriy Brun (brun@cs.washington.edu) From Nature to Software CSEP 504 Winter 2010 17 / 62

slide-18
SLIDE 18

Why Nature? Nature Computes Tiles Tile Software Conclusions

Protein Production Control

BioBricks [KS97]

Controlling what proteins a cell produces Basis for the International Genetically Engineered Machine (iGEM) competition

Yuriy Brun (brun@cs.washington.edu) From Nature to Software CSEP 504 Winter 2010 18 / 62

slide-19
SLIDE 19

Why Nature? Nature Computes Tiles Tile Software Conclusions

DNA Gates

mRNA 2 mRNA 1 Drug Drug Drug Drug mRNA 1 m R N A 2 Drug Drug Drug Drug

Binary gates that act on DNA-strand inputs [BG06] Previous work used enzymes [BGBD+04] Later work at Caltech improved the design [QW08]

Yuriy Brun (brun@cs.washington.edu) From Nature to Software CSEP 504 Winter 2010 19 / 62

slide-20
SLIDE 20

Why Nature? Nature Computes Tiles Tile Software Conclusions

Self-Assembly in Nature

Yuriy Brun (brun@cs.washington.edu) From Nature to Software CSEP 504 Winter 2010 20 / 62

slide-21
SLIDE 21

Why Nature? Nature Computes Tiles Tile Software Conclusions

Self-Assembly in Nature

Yuriy Brun (brun@cs.washington.edu) From Nature to Software CSEP 504 Winter 2010 20 / 62

slide-22
SLIDE 22

Why Nature? Nature Computes Tiles Tile Software Conclusions

Self-Assembly in Nature

Yuriy Brun (brun@cs.washington.edu) From Nature to Software CSEP 504 Winter 2010 21 / 62

slide-23
SLIDE 23

Why Nature? Nature Computes Tiles Tile Software Conclusions

Self-Assembly in Nature

Yuriy Brun (brun@cs.washington.edu) From Nature to Software CSEP 504 Winter 2010 21 / 62

slide-24
SLIDE 24

Why Nature? Nature Computes Tiles Tile Software Conclusions

Self-Assembly in Nature

Yuriy Brun (brun@cs.washington.edu) From Nature to Software CSEP 504 Winter 2010 22 / 62

slide-25
SLIDE 25

Why Nature? Nature Computes Tiles Tile Software Conclusions

Self-Assembly in Nature

Yuriy Brun (brun@cs.washington.edu) From Nature to Software CSEP 504 Winter 2010 22 / 62

slide-26
SLIDE 26

Why Nature? Nature Computes Tiles Tile Software Conclusions

Tile Assembly Model [Win98b]

Tile: a square with labels Each label has a strength Tiles attach if labels are strong enough

1 1 #0 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 #1 #2 #0 #1 1 #0 1 1 1 1 1 1 1 1 1 1 #2 #3 #1 #2 1 1 #0 #1 1 1 1 #0 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 #4 #5 #3 #4 1 1 #2 #3 1 #1 #2 #0 #1 1 1 #0 1 1 1 1 1 1 1 1 1 1 #0 1 #2 1 #3 1 #5 1 Yuriy Brun (brun@cs.washington.edu) From Nature to Software CSEP 504 Winter 2010 23 / 62

slide-27
SLIDE 27

Why Nature? Nature Computes Tiles Tile Software Conclusions

Tile Assembly Model [Win98b]

Tile: a square with labels Each label has a strength Tiles attach if labels are strong enough

1 1 #0 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 #1 #2 #0 #1 1 #0 1 1 1 1 1 1 1 1 1 1 #2 #3 #1 #2 1 1 #0 #1 1 1 1 #0 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 #4 #5 #3 #4 1 1 #2 #3 1 #1 #2 #0 #1 1 1 #0 1 1 1 1 1 1 1 1 1 1 #0 1 #2 1 #3 1 #5 1 Yuriy Brun (brun@cs.washington.edu) From Nature to Software CSEP 504 Winter 2010 23 / 62

slide-28
SLIDE 28

Why Nature? Nature Computes Tiles Tile Software Conclusions

Tiles Can:

Assemble

linear polymers [ACG+01] squares [RW00, AGHM02, ACG+02] computable shapes [SW07]

Count [Win98a, Moi05, BRW05] Compute Binomial Coefficients [Win98a, RPW04] Emulate Turing Machines [Win98b]

Yuriy Brun (brun@cs.washington.edu) From Nature to Software CSEP 504 Winter 2010 24 / 62

slide-29
SLIDE 29

Why Nature? Nature Computes Tiles Tile Software Conclusions

Outline

1 Why Nature? 2 Using Nature to Compute 3 Tiles

Adding and Multiplying Solving 3-SAT

4 Tile Software 5 Conclusions

Yuriy Brun (brun@cs.washington.edu) From Nature to Software CSEP 504 Winter 2010 25 / 62

slide-30
SLIDE 30

Why Nature? Nature Computes Tiles Tile Software Conclusions

Computing with Tiles

Yuriy Brun (brun@cs.washington.edu) From Nature to Software CSEP 504 Winter 2010 26 / 62

slide-31
SLIDE 31

Why Nature? Nature Computes Tiles Tile Software Conclusions

Adding with Tiles [Bru07]

1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1

Yuriy Brun (brun@cs.washington.edu) From Nature to Software CSEP 504 Winter 2010 27 / 62

slide-32
SLIDE 32

Why Nature? Nature Computes Tiles Tile Software Conclusions

Adding with Tiles [Bru07]

1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1

34 + 27

1 1 1 1 1 1 1 1 1 1 1 1

Yuriy Brun (brun@cs.washington.edu) From Nature to Software CSEP 504 Winter 2010 27 / 62

slide-33
SLIDE 33

Why Nature? Nature Computes Tiles Tile Software Conclusions

Adding with Tiles [Bru07]

1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1

34 + 27 = 61

1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1

Yuriy Brun (brun@cs.washington.edu) From Nature to Software CSEP 504 Winter 2010 27 / 62

slide-34
SLIDE 34

Why Nature? Nature Computes Tiles Tile Software Conclusions

Multiplying with Tiles [Bru07]

1 1

11 11 21 21

1

10 10 21 21

1 1

11 01 21 20

1

01 10 11 20 00 11 21 20 00 01 20 20

1

01 00 10 20

1 1

11 10 11 11

1

10 11 11 21

1

10 01 11 20

1 1

11 00 11 10 00 10 11 10

1

01 11 11 10

1

01 01 10 10 00 00 10 10

1

10 10 01 01

1 1

11 11 01 01

1 1

11 01 00 01

1

10 00 00 01

1

01 11 01 00 00 10 01 00 00 00 00 00

1

01 01 00 00

1 1

11 1 1 1

1

10 1 00 00 1 1

1

10 00 21 20
