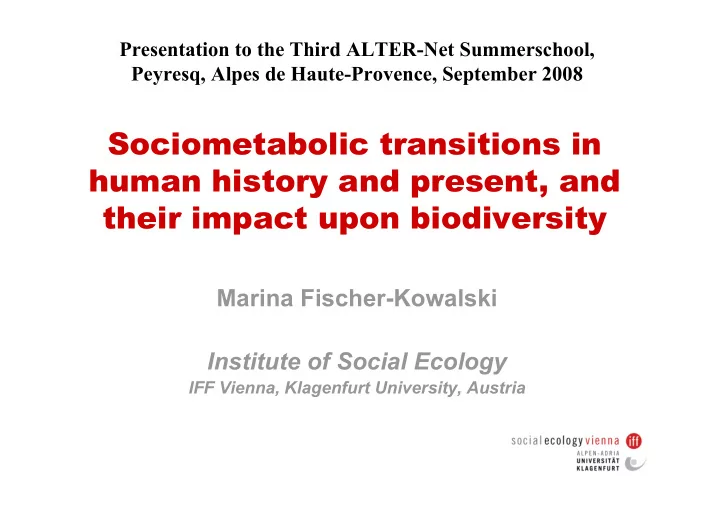

Presentation to the Third ALTER-Net Summerschool, Peyresq, Alpes de Haute-Provence, September 2008 Sociometabolic transitions in human history and present, and their impact upon biodiversity Marina Fischer-Kowalski Institute of Social Ecology
Fischer-Kowalski | Peyresq | 9-2008| 2
Outline
- 1. Conceptual clarifications: social metabolism and metabolic
profiles, sociometabolic regimes, transitions
- 2. key features of the historical transition from the agrarian to
the industrial regime
- 3. patterns of ongoing transformations in the South, in relation
to the historical Northern transition, and in the context of global interdepency
- 4. How does all this relate to biodiversity, and to
understanding trajectories of change?
Fischer-Kowalski | Peyresq | 9-2008| 3
Social metabolism – metabolic profile
- Organismic analogy: any social system, like an organism, requires a
steady flow of energy and matter to reproduce itself
- How much, and what kind of energy and matter it requires, is deeply
built into the structures and functioning of the social system, and beyond certain points hard to change (metabolic profile).
- The toolbox and indicators of material & energy flow analysis (MEFA)
match, in units of tonnes and joules, the toolbox of macroeconomic accounting, in monetary units.
- The social system‘s material and energy requirements, both on the input
side (resource extraction) and on the output side (wastes and emissions) constitute pressures upon the environment, and induce changes.
- Social metabolism: hinge concept/methodology between socioeconomic
systems and ecological systems
Fischer-Kowalski | Peyresq | 9-2008| 4
Model of material social metabolism (according to MEFA)
Stocks Domestic Environment Economic Processing DE DPO
Air, Water Water Vapour
Imports Exports
Immigrants Emigrants
DMI DE=domestic extraction DMI=domestic material input DPO=domestic processed output DMC= domestic material consumpti
- n =DMI -
exports
Fischer-Kowalski | Peyresq | 9-2008| 5
composition of materials input (DMC)
material input EU15 (tonnes, in %)
Biomass construction minerals industr.minerals fossil fuels
total: 17 tonnes/cap*y
source: EUROSTAT 2003
Fischer-Kowalski | Peyresq | 9-2008| 6
Composition of DPO: Wastes and emissions (outflows)
D PO t o air ( C O2 ) D PO t o air* D PO t o land ( wast e) D PO t o land ( dissipat ive use) D PO t o wat er
Source: WRI et al., 2000; own calculations unweighted means of DPO per capita for A, G, J, NL, US; metric tons
DPO total: 16 tons per capita
Fischer-Kowalski | Peyresq | 9-2008| 7
Sociometabolic regimes
The theory of sociometabolic regimes (Sieferle) claims that, in world history, certain modes of human production (Ricardo, Marx) and subsistence (Adam Smith, Diamond) can be broadly distinguished that share, at whatever point in time and irrespective of biogeographical conditions, certain fundamental systemic characteristics, derived from the way they utilize and thereby modify nature. Key constraint: energy system (sources of energy and main technologies of energy conversion). Result: characteristic metabolic profile (range of materials and energy use per capita)
Fischer-Kowalski | Peyresq | 9-2008| 8
Sociometabolic regimes can be characterized by ...
- 1. a metabolic profile, that is a certain structure and level of energy and
materials use (range per capita of human population)
- 2. secured by certain infrastructures and a range of technologies, as well
as
- 3. certain economic and governance structures.
- 4. A certain pattern of demographic reproduction, human life time and
labor structure, and
- 5. a certain pattern of environmental impact: land-use, resource
exploitation, pollution and impact on the biological evolution
- 6. Key regulatory positive and negative feedbacks between the socio-
economic system and its natural environment that mould and constrain the reproduction of the socioecological regime.
Fischer-Kowalski | Peyresq | 9-2008| 9
Transitions between sociometabolic regimes – research strategy
?
transition
Hunters and gatherers Agrarian Industrial Socio-metabolic regimes Sustainable ? Postindustrial? Knowledge society?
Source: Sieferle et al. 2006, modified
Fischer-Kowalski | Peyresq | 9-2008| 10
Transitions
Within regimes gradualism and path dependency prevail: the system moves along a path, „maturing“ into a certain direction, often towards a „high level equilibrium trap“ (Boserup 1965, Sieferle 2003), until:
– that path is either interrupted from outside (such as: Mongol invasion, major volcano eruption), or – the system implodes / collapses, and possibly falls back to an earlier stage of that same path (Diamond 2005) – or particular (contingent) conditions allow for a transition into another sociometabolic regime
Transitions between regimes can be turbulent and chaotic; they are usually irreversible; there is no predetermined outcome or directionality.
Fischer-Kowalski | Peyresq | 9-2008| 11
Part 2: The transition from the agrarian to the industrial socioecological regime in history (1600-2000)
Fischer-Kowalski | Peyresq | 9-2008| 12
the energy transition 1700-2000: from biomass to fossil fuels
Share of energy sources in primary energy consumption (DEC)
United Kingdom
10 20 30 40 50 60 70 80 90 100 1700 1725 1750 1775 1800 1830 1850 1875 1900 1925 1950 1960 1970 1980 1990 2000 Biomass Coal OIL/Gas/Nuclear
Source: Social Ecology Data Base
biomass coal Oil / gas / nuc
Fischer-Kowalski | Peyresq | 9-2008| 13
the energy transition 1700-2000 - latecomers
Share of energy sources in primary energy consumption (DEC)
United Kingdom
10 20 30 40 50 60 70 80 90 100 1700 1725 1750 1775 1800 1830 1850 1875 1900 1925 1950 1960 1970 1980 1990 2000 Biomass Coal OIL/Gas/Nuclear
Austria
10 20 30 40 50 60 70 80 90 100 1700 1725 1750 1775 1800 1830 1850 1875 1900 1925 1950 1960 1970 1980 1990 2000 Biomass Coal OIL/Gas/Nuclear
Japan
10 20 30 40 50 60 70 80 90 100 1700 1725 1750 1775 1800 1830 1850 1875 1900 1925 1950 1960 1970 1980 1990 2000 Biomass Coal OIL/Gas/Nuclear
Source: Social Ecology Data Base
Japan Austria UK
Fischer-Kowalski | Peyresq | 9-2008| 14
Increasing population (density) 1600-2000
Population density (UK incl. Ireland) (cap/km2)
50 100 150 200 250 300 350 1600 1650 1700 1750 1800 1850 1900 1950 2000
UK & Ireland Japan Austria
Source: Maddison 2002, Social Ecology DB
Fischer-Kowalski | Peyresq | 9-2008| 15
Reduction of agricultural population, and gain in income 1600-2000
Share of agricultural population
0% 20% 40% 60% 80% 100% 1 6 0 0 1 6 5 0 1 7 0 0 1 7 5 0 1 8 0 0 1 8 5 0 1 9 0 0 1 9 5 0 2 0 0 0
GDP per capita [1990US$]
5.000 10.000 15.000 20.000 25.000 1 6 0 0 1 6 5 0 1 7 0 0 1 7 5 0 1 8 0 0 1 8 5 0 1 9 0 0 1 9 5 0 2 0 0 0
Source: Maddison 2002, Social Ecology DB
Fischer-Kowalski | Peyresq | 9-2008| 16
Longterm increase in economic energy effciency (1900-2005)
Energy Efficiency ($ GDP / GJ primary energy)
- 20
40 60 80 100 120 140 1900 1910 1920 1930 1940 1950 1960 1970 1980 1990 2000 [$/GJ] Austria United Kingdom Japan
Efficiency increases: Average 11 % per decade, or roughly 1% annually.
Source: Social Ecology DB
Fischer-Kowalski | Peyresq | 9-2008| 17
Increasing economic material efficiency (while metabolic profile fairly constant)
EU-15 0,8 1,0 1,2 1,4 1,6 1,8 2,0 2,2 2,4 1970 1973 1976 1979 1982 1985 1988 1991 1994 1997 2000 2003 DMC Population GDP Resource Productivity (GDP/DMC)
Social Ecology DB
On average 20 - 23% increase in economic material effciency per decade
Fischer-Kowalski | Peyresq | 9-2008| 18
Metabolic profiles of the agrarian and industrial regime: transition = explosion
Agrarian Industrial Factor Energy use (DEC) per capita [GJ/cap] 40-70 150-400 3-5 Material use (DMC) per capita [t/cap] 3-6 15-25 3-5 Population density [cap/km²] <40 < 400 3-10 Agricultural population [%] >80% <10% 0.1 Energy use (DEC) per area [GJ/ha] <30 < 600 10-30 Material use (DMC) per area [t/ha] <2 < 50 10-30 Biomass (share of DEC) [%] >95 10-30 0.1-0.3
Source: Social Ecology DB
Fischer-Kowalski | Peyresq | 9-2008| 19
0,0 5,0 10,0 15,0 20,0 25,0
SangSaeng, Thailand 1998 Trinket, Nicobars 2000 Törbel, Switzerland 1875 Austria 1830 UK 1884* Austria 1991 Germany 1991 Japan 1991 Netherlands 1991 USA 1991 Sweden 1991 UK 1991
t/capita Biomass Minerals Fossils Products
Metabolic profiles by sociometabolic regimes (DMC/capita)
Agrarian Societies Industrial Societies Means
* UK 1884: DMI data
Fischer-Kowalski | Peyresq | 9-2008| 20
Historical sociometabolic regimes
Agrarian regime:
- 1. Solar energy, resource base flow
- f biomass.
- 2. infrastructures decentralized. key
technology: use of land through agriculture;
- 3. subsistence economies & market;
if more complex, strong hierarchical differentiation;
- 4. tendency of population growth
and increasing workload;
- 5. potentially sustainable, but soil
erosion, wildlife / habitat reduction;
- 6. distinct limits for physical growth
(low energy density); Industrial regime:
- 1. Fossil fuel based; exploitation of
large stocks;
- 2. centralized infrastructures, industrial
technologies;
- 3. capitalism and functional
differentiation;
- 4. thrifty reproduction, prolonged
socialization, somewhat lesser workload;
- 5. large-scale pollution (air, water and
soil), alteration of atmospheric composition, depletion of mineral resources, biodiversity reduction;
- 6. abolishment of limits to physical
growth; decoupling of land and energy and labour;
Fischer-Kowalski | Peyresq | 9-2008| 21
Part 3: Ongoing transitions
- Is „development“ such a transition from an agrarian to an
industrial regime?
– does it follow the same historical trajectory? – Does it lead to similar outcomes, that is for example a factor 3-4 increase in material and energy use? – What are the relevant framework conditions influencing these transitions? How do they differ from history?
- Is a contemporary industrial metabolic profile possible for all
and everywhere?
– What are indications of local / regional constraints? – What are the global constraints? – What are the ways out?
Fischer-Kowalski | Peyresq | 9-2008| 22
Country classification (N=165 countries for the year 2000)
Development status: according to UN classification; differentiation between industrialized countries (incl. Transition Markets) and developing countries (all others; wide range from least developed to newly industrialized countries) Population Density: low and high density countries (50 persons/km² as dividing line) Length of history of agrarian colonization: “Old World” countries versus “New World” countries
Fischer-Kowalski | Peyresq | 9-2008| 23
Country classification (165 countries worldwide, by the year 2000)
Developing low density –
- ld world: Arid countries in Asia
and Africa (N = 41)
Industrial low density – old world: Former Soviet Union,
Scandinavian countries. (N = 15)
Population density low (<50/km2) OLD WORLD
Developing low density – new world: South America.
(N = 22)
Industrial low density - new world: North America,
Australia, New Zealand. (N= 4)
Population density low (<50/km2) NEW WORLD
Developing high density
Most of S-E Asia incl. India, China, Central America, some African countries. (N= 65)
Industrial high density
European countries, Japan, South Korea (N=30)
Population density high (>50/km2) Developing Industrial I - Hd I – Ld - nw I – Hd - ow D - Hd D – Ld - nw D – Hd - ow
Fischer-Kowalski | Peyresq | 9-2008| 24
Unequal distribution of global resources (for the year 2000)
0% 10% 20% 30% 40% 50% 60% 70% 80% 90% 100% S hare of population S hare of territory S hare of G D P D - Ld - ow D - Ld - nw D - H d I - Ld - ow I - Ld - nw I - H d
Fischer-Kowalski | Peyresq | 9-2008| 25
Transition tracks: Population and Economy (2000)
Population density [cap/km2] Agricultural population [%] GDP [US$ PPP/cap] I - Hd 149 9% 18,364 I – Ld - nw 12 2% 30,540 I – Ld - ow 12 14% 6,333 D - Hd 140 56% 2,866 D – Ld - nw 19 19% 6,312 D – Ld - ow 17 52% 2.802 World 45 42% 6,665 China 134 67% 3,491 Australia 2 5% 24,090
Source: Maddison 2002, Social Ecology DB
Fischer-Kowalski | Peyresq | 9-2008| 26
Metabolic profiles in 2000: Material and Energy use per capita
Source: Maddison 2002, Social Ecology DB
Conclusion: Factor 2 difference between high and low density countries Material use (DMC) per capita [t/cap ] Energy use (DEC) per capita [GJ/cap ] Electricity use per capits [GJ/cap ] I - Hd 15 190 22 I – Ld - nw 29 443 52 I – Ld - ow 14 192 20 D - Hd 6 49 3 D – Ld - nw 15 131 7 D – Ld - ow 6 76 4 World 10 102 9 China 8 75 4 Australia 42 470 40
Fischer-Kowalski | Peyresq | 9-2008| 27
Metabolic profiles in 2000: Material and Energy use per capita
M ate rial us e (D M C ) pe r ca p ita [t/cap ] E ne rgy us e (D EC ) pe r capita [G J /cap] Ele ctric ity us e pe r capits [G J /cap] I - H d 15 190 22 I – Ld - nw 29 443 52 I – Ld - ow 14 192 20 D - H d 6 49 3 D – Ld - nw 15 131 7 D – Ld - ow 6 76 4 W orld 10 102 9 C hina 8 75 4 A ustra lia 42 470 40
Source: Maddison 2002, Social Ecology DB
Conclusion: Factor 2 difference between high and low density countries
Fischer-Kowalski | Peyresq | 9-2008| 28
Environmental pressures 2000
Source: Maddison 2002, Social Ecology DB
Conclusion: Regional environmental pressure already high in high density developing countries
E n e rg y us e (D E C ) pe r h a
[G J / ha ]
M a te ria l u se (D M C ) pe r h a
[t/ ha ]
H A N P P a p p ro p ria te d p la n t e n e rg y
[% ] I - H d 2 8 4 2 3 4 2 % I – L d - n w 5 4 4 1 9 % I – L d - o w 2 4 2 1 5 % D - H d 6 9 9 4 0 % D – L d - nw 2 5 3 1 4 % D – L d - o w 1 3 1 1 5 % W o r ld 4 6 4 2 2 % C h ina 7 3 1 0 3 8 % A ust ra lia 1 2 1 1 1 %
Fischer-Kowalski | Peyresq | 9-2008| 29
Developing countries: Achieve the same p/c energy consumption as industrial countries of same density class
Convergence scenario: World energy consumption (DEC) by the year 2050
- 600
1.200 1.800 DEC 2000 DEC 2050 [EJ]
High denisty developing Low density Africa/Asia Low density New world Former Soviet Union Old world industrial core New world industrial core
Industrial countries: p/c energy consumption
- f 2000 – 30%
(high density: 135 Gj/cap, low density: 310 Gj/cap) Scenario assumptions for the year 2050
Fischer-Kowalski | Peyresq | 9-2008| 30
Additional factor explaining variation within regimes: population density
- High population density is associated with lower resource
use (about factor 2), but the relationship remains complex.
– If there are few resources, such as very arid land or cold climate, there is a limit to the number of people that can be sustained under agrarian conditions (>low density + low resource consumption) – If a few people come to a rich environment, such as to a newly conquered continent, they will generously consume (>low density + high resource consumption). – If many people populate a rich environment, resources will become scarce, but each person will need less for a good standard of living because of economies of scale (>high density + low resource consumption)
Fischer-Kowalski | Peyresq | 9-2008| 31
Part 4: How does all that relate to biodiversity??? (some loose ideas, based in part on RP Sieferle (2003), and Social Ecology team work)
Fischer-Kowalski | Peyresq | 9-2008| 32
Principal mechanisms
- Impacts of social metabolism:
– Outcompeting other species of (certain) general life sustaining resources, such as land, water and plant biomass – Pollution of environmental media by wastes and emissions – Creation of new opportunities and niches
- Impacts of human colonization strategies:
– Interventions into ecosystems (biotopes) – Interventions into organisms / populations – Interventions into evolution
> Both depend on sociometabolic regime!
Fischer-Kowalski | Peyresq | 9-2008| 33
Colonization of natural systems
Social system Natural system Colonized system
Work / energy invested
Resources / services gained
Change induced
through colonization
Fischer-Kowalski | Peyresq | 9-2008| 34
Colonization intensity of terrestrial ecosystems: HANPP
Society
Harvest of biomass for food, energy, fibre, etc. Agricultural work, fuel for tractors, energy for fertilizer, etc.
NPP0 NPPt HANPP
Fischer-Kowalski | Peyresq | 9-2008| 35
Definition of HANPP
Rationale: HANPP measures changes in the availability of trophic energy for wild-living heterotrophic organisms in ecosystems induced by human activities
Some papers on HANPP: Vitousek et al. 1986. BioScience 36, 363- 373. Wright 1990. Ambio 19, 189-194. Haberl 1997. Ambio 26(3), 143-146. Haberl et al. 2001. Global Biogeochemical Cycles 15, 929-942. Imhoff et al. 2004. Nature 429, 870-873.
NPP of the potential natural vegetation = NPP0 NPP = remaining in ecosystems after harvest
t
Net primary production (NPP) [tC/yr] NPP of the actually prevailing vegetation = NPPact HANPP NPP : NPP changes induced by soil degradation, sealing, and ecosystem changes
LUCC
NPP = harvested by humans
h
HANPP = NPP +NPP HANPP = NPP - NPP
LUCC h t
Fischer-Kowalski | Peyresq | 9-2008| 36
The species-energy hypothesis
- Basic claim: The number of
species is positively related to the flow of energy in an ecosystem.
- Corollary: If humans reduce
energy flow (e.g., through HANPP), then species richness will decline.
- Notes
– Can explain species diversity gradient from equator to poles. – Not undisputed. Competing (complementary) hypotheses exist (e.g., intermediate disturbance hypothesis). HANPP
Brown, J.H. (1981) Am. Zool. 21, 877-888. Gaston, K.L. (2000) Nature 405, 220-227. Hutchinson, G.E. (1959) Am. Nat. 93, 145-159. Rapson, G.L. et al. (1997) J. Ecol. 85, 99-100. Waide, R.B. et al. (1999) Ann. Rev. Ecol. Syst. 30, 257-300. Wright, D.H. (1983) Oikos 41, 495-506. Wright, D.H. (1990) Ambio 19, 189-194.
Fischer-Kowalski | Peyresq | 9-2008| 37
Empirical studies support the HANPP / biodiversity hypothesis
1 2 3 4 5 6 7 8 910 20 20 10
- 2
4x10
- 2
Y = -1.975 +0.485 X R² =0 .549, p < 0.0001
i)
all heterotrophs NPPt
0.1 1 10 1 10 100
Y =1.32916+0.69916 X-0.22962 X
2
- Adj. R
2 = 0.69
breeding bird species richness NPPt [MJ/m²*a]
Case study 1: Correlation between NPPt and autotroph species richness (5 taxa) on 38 plots sized 600x600 m, East Austria
Haberl et al., 2004, Agric., Ecosyst. & Envir. 102, p213ff
Case study 2: Correlation between NPPt and breeding bird richness in Austria, 328 randomly chosen 1x1 km squares.
Haberl et al., 2005. Agric., Ecosyst. & Envir. 110, p119ff
Fischer-Kowalski | Peyresq | 9-2008| 38
Hunters & gatherers
- Metabolism:
– Risk of regional eradication of prey species (particularly large herbivores). Particularly high in „pioneer situations“ (new immigration). [example: eradication of North and middle American megafauna?] Cultural regulation through hunting, area and food taboos, leisure culture, control of population growth (Sahlins) – barely pollution, no particular niches
- Colonization:
– Mainly self-colonization (sex and reproduction regulation, body tattooos …) – Sometimes: use of fire in hunting [example: modification of Australian flora & fauna by aborigines]
Fischer-Kowalski | Peyresq | 9-2008| 39
Agrarian societies
- Metabolism:
– Metabolism (almost) completely based on local biomass; monopolization of terrestrial ecosystems for human and livestock nutrition (gradual eradication
- f forest – „clear the land“. But dependence on functionally diverse land
cover). Eradication of competitors (large carnivores). – More or less closed cycles, barely pollution – Great time for parasites: dense homogenous man, animal and plant populations create new niches for plants, animals and microorganisms (McNeill, Cohen, Crosby)
- Colonization:
– Colonization of terrestrial ecosystems: modification of plant and soil species. Increase of erosion. [cult. measures for erosion control] – Breeding and importing of functional species. Risk of bioinvasions. – Self-colonization for production of labor power (many children), diligence and
- thriftiness. Move themselves into lock-in of high population density, high
yields per area, low labor effciency. (Boserup, Netting)
Fischer-Kowalski | Peyresq | 9-2008| 40
Industrial society
- Metabolism:
– Energy base = fossil fuels, no competitors (relief on land and biomass). Nutritional base: much more animal protein, increase in
- livestock. Energy surplus allows mobilisation and transport of huge
amounts of materials, restructuring of earth surface and water bodies. – Large scale pollution; local impacts can be controlled, global impacts (CO2) not (yet?) – Niches: diversity of plant and animal pets, protected areas. Less aggressive attitude towards „useless“ plant and animal life.
- Colonization:
– New strategies to invervene in organisms and evolution (medicine and bio-technologies)
Fischer-Kowalski | Peyresq | 9-2008| 41
Results: HDI vs. Energy
Source: Steinberger & Roberts 2008 2005 2000 1995 1990 1985 1980 1975
HDI
Energy R2 = 0,85 – 0,90
Fischer-Kowalski | Peyresq | 9-2008| 42
Results: HDI vs. Carbon
Source: Steinberger & Roberts 2008 2000 1995 1990 1985 1980 1975 R2 = 0,75 – 0,85 Carbon
HDI
2005
Fischer-Kowalski | Peyresq | 9-2008| 43
How does the energy threshold compare to global energy per capita?
Fischer-Kowalski | Peyresq | 9-2008| 44
And how does the carbon threshold compare to carbon emissions per capita?
Fischer-Kowalski | Peyresq | 9-2008| 45
Global energy use
Fischer-Kowalski | Peyresq | 9-2008| 46
Global carbon emissions
Fischer-Kowalski | Peyresq | 9-2008| 47
