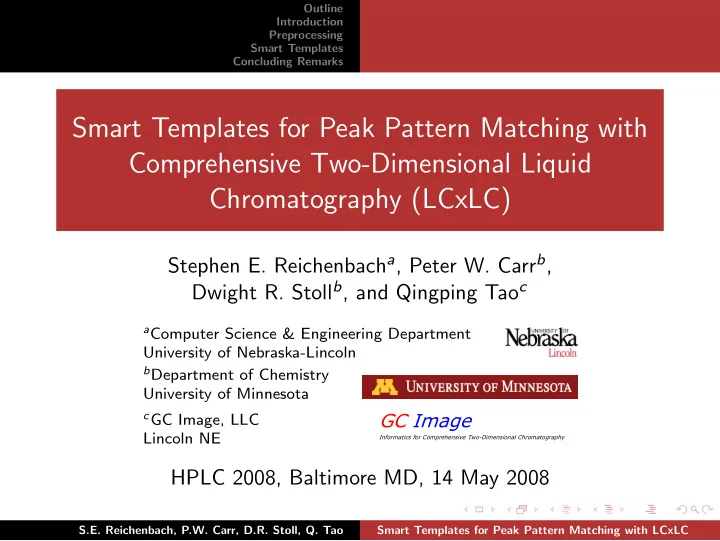

Smart Templates for Peak Pattern Matching with Comprehensive Two-Dimensional Liquid Chromatography (LCxLC)

Stephen E. Reichenbacha, Peter W. Carrb, Dwight R. Stollb, and Qingping Taoc

aComputer Science & Engineering Department

University of Nebraska-Lincoln

bDepartment of Chemistry

University of Minnesota

cGC Image, LLC

Lincoln NE

GC Image

Informatics for Comprehensive Two-Dimensional Chromatography

HPLC 2008, Baltimore MD, 14 May 2008

S.E. Reichenbach, P.W. Carr, D.R. Stoll, Q. Tao Smart Templates for Peak Pattern Matching with LCxLC
