Smart Corner TM Modular Platform Expertly integrated sensors to enable autonomous driving Sebastien Richer Head of Innovation North America Lightingin constant evolution PAG / 2 Lightingin vehicle headlamps Acetylene & Oil LED


slide-1
SLIDE 1

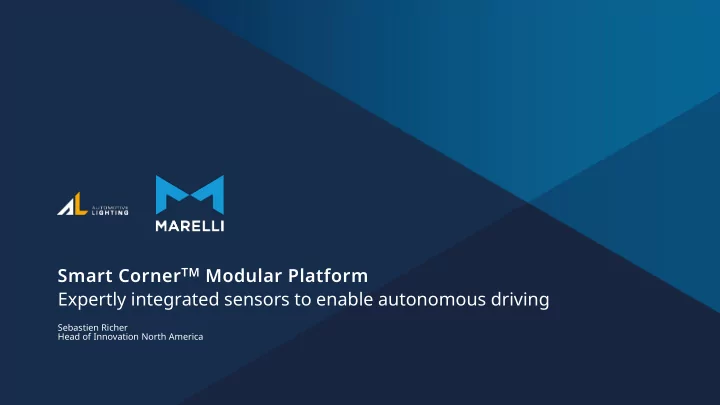

Smart CornerTM Modular Platform

Sebastien Richer Head of Innovation North America

Expertly integrated sensors to enable autonomous driving

slide-2
SLIDE 2

PAG / 2

Lighting…in constant evolution

slide-3
SLIDE 3

PAG / 3

Lighting…in vehicle headlamps

1880s

Acetylene & Oil

1990s 2000s 2010s 1910s 1960s

Electric Bulb Halogen Xenon LED Laser

slide-4
SLIDE 4

PAG / 4

Lighting as integral style element

slide-5
SLIDE 5

PAG / 5

New “lighting” functions Warning Welcome Crosswalk

slide-6
SLIDE 6

PAG / 6

New “lighting” functions Warning Welcome Crosswalk

slide-7
SLIDE 7

PAG / 7

The path to autonomous driving (and ADAS+)

Highly functioning ADAS and AV will require 20-25 sensors, compromising the car aesthetic

slide-8
SLIDE 8

PAG / 8

The path to autonomous driving (and ADAS+)

Highly functioning ADAS and AV will require 20-25 sensors, compromising the car aesthetic

slide-9
SLIDE 9

PAG / 9

The path to autonomous driving (and ADAS+)

Highly functioning ADAS and AV will require 20-25 sensors, compromising the car aesthetic

slide-10
SLIDE 10

PAG / 10

Smart Corner Modularity and Aesthetic Integration Enables Efficiencies

Se Sensors rs

  • LiDAR
  • Radar
  • Cameras
  • Open

Architecture

Sa Savings

  • Brackets
  • Wire Harnesses
  • Installation Time
  • Space
  • Weight

Complexity ty

  • Management of
  • ptions and trim

levels

Clea leaning

  • Washer System
  • Heating System
  • Protective

Coatings

New New Tech Technologies Ad Advanced Li Ligh ghtin ing Sys System

slide-11
SLIDE 11

PAG /

2017 – The Concept

11

Smart Corner Evolution From concept to reality…

slide-12
SLIDE 12

PAG /

2018 – First Proof of Concept (PoC) To Enable Autonomous Driving

12

Smart Corner Evolution From concept to reality…

slide-13
SLIDE 13

PAG / 13

Smart Corner Evolution Third Generation…Looking Ahead 2019 - ADAS, Autonomous and Communication

slide-14
SLIDE 14

PAG / 14

Smart Corner Evolution Third Generation…Looking Ahead

slide-15
SLIDE 15

PAG / 15

Third Generation Smart Corner Headlamp

Li LiFi (Li Light Fidelity) Device using light to transmit and receive data HD Ca Camera Sh Short t Ra Range Li LiDAR Fa Far r Infr Infrared Th Thermal Ca Camera Lon Long Ra Range Ra Radar Ult ltra Sh Short Ra Range Ra Radar

slide-16
SLIDE 16

PAG / 16

Third Generation Smart Corner Tail Lamp

Sh Short t Ra Range Li LiDAR Lon Long Ra Range Ra Radar HD Ca Camera Sp Speaker Sy Syste tem Ult ltra Sh Short Ra Range Ra Radar Corn Corner Ra Radar

slide-17
SLIDE 17

PAG / 17

Smart Corner Sensor Coverage 360⁰ Field of View Coverage from Integrated Sensors

LR LIDAR SR LIDAR CAM AMER ERA COR ORNER ER RAD ADAR AR SR RAD ADAR LR RADAR FIR CAM AMER ERA

slide-18
SLIDE 18

PAG / 18

Smart Corner as Development Platform Integrated Connected Vehicle Technology

slide-19
SLIDE 19

PAG / 19

Smart Corner as Development Platform Integrated Connected Vehicle Technology

slide-20
SLIDE 20

PAG /

The 2019 car has integrated displays bonded on a curved surface with black panel effect

  • Front grill : 1x 12.3” + 2 x7” displays / Rear applique: 3 x 12.3” displays
  • HMI developed to show use cases (communication with pedestrians and other

drivers)

  • Avatar to interact with the car: open the door/open the trunk using voice command

20

Communication Features

slide-21
SLIDE 21

PAG /

The 2019 car has integrated displays bonded on a curved surface with black panel effect

  • Front grill : 1x 12.3” + 2 x7” displays / Rear applique: 3 x 12.3” displays
  • HMI developed to show use cases (communication with pedestrians and other

drivers)

  • Avatar to interact with the car: open the door/open the trunk using voice command

21

Communication Features

slide-22
SLIDE 22
