Small-Angle Scattering Atomic Structure Based Modeling Alejandro Panjkovich EMBL Hamburg 07.12.2017 A. Panjkovich (EMBL) BioSAS atomic modeling 07.12.2017 1 / 49 From the forest to the particle accelerator A. Panjkovich (EMBL) BioSAS

slide-1

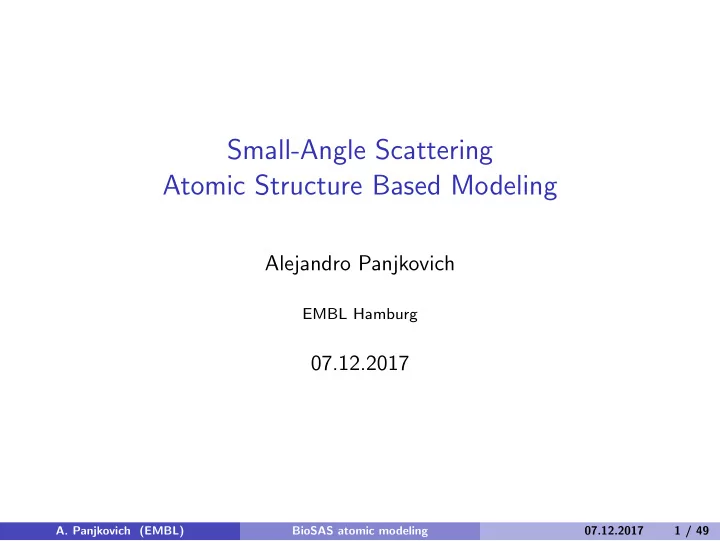

SLIDE 1

Small-Angle Scattering Atomic Structure Based Modeling

Alejandro Panjkovich

EMBL Hamburg

07.12.2017

  • A. Panjkovich (EMBL)

BioSAS atomic modeling 07.12.2017 1 / 49

slide-2
SLIDE 2

From the forest to the particle accelerator

  • A. Panjkovich (EMBL)

BioSAS atomic modeling 07.12.2017 2 / 49

slide-3
SLIDE 3

Outline - Combining SAS data and atomic models

Introduction Comparison of atomic models to scattering data (CRYSOL/CRYSON) Graphical interface to modeling (SASpy) Rigid-body modeling (SASREF) Missing fragments (BUNCH & CORAL) Flexible refinement (SREFLEX)

  • A. Panjkovich (EMBL)

BioSAS atomic modeling 07.12.2017 3 / 49

slide-4
SLIDE 4

Structural biology techniques

Macromolecular crystallography (up to atomic resolution) Nuclear magnetic resonance (up to atomic resolution) Electron microscopy (resolution revolution, already beyond 3 ˚ A) Small angle X-ray scattering (nominal resolution 10 ˚ A)

High brilliance EMBL beamline P12 at DESY synchrotron, Hamburg

  • A. Panjkovich (EMBL)

BioSAS atomic modeling 07.12.2017 4 / 49

slide-5
SLIDE 5

Small angle X-ray scattering (SAXS)

homogeneous and monodisperse solution (no crystal) sample can be at room temperature ‘no limitation’ in terms of size or oligomeric state requisites: 1.0 mg purified material, concentration > 0.5 mg/ml

  • A. Panjkovich (EMBL)

BioSAS atomic modeling 07.12.2017 5 / 49

slide-6
SLIDE 6

Shape

  • A. Panjkovich (EMBL)

BioSAS atomic modeling 07.12.2017 6 / 49

slide-7
SLIDE 7

Size

  • A. Panjkovich (EMBL)

BioSAS atomic modeling 07.12.2017 7 / 49

slide-8
SLIDE 8

SAXS applications in structural biology

ab-initio shape determination atomistic (hybrid) modeling

◮ validation ◮ rigid-body ◮ missing fragments ◮ refinement ◮ conformational transitions

mixtures ensemble approach

  • A. Panjkovich (EMBL)

BioSAS atomic modeling 07.12.2017 8 / 49

slide-9
SLIDE 9

ATSAS software package http://www.embl-hamburg.de/biosaxs/

Large collection of programs for SAS data analysis. Online and standalone versions (Windows, Mac & Linux). Multiple algorithms and modeling approaches:

◮ ab-initio (simulated annealing) ◮ Rigid-body (Monte Carlo) ◮ Ensemble approach (genetic algorithm) ◮ Reference-less superposition ◮ kd-trees search, PCA, etc.

  • A. Panjkovich (EMBL)

BioSAS atomic modeling 07.12.2017 9 / 49

slide-10
SLIDE 10

Computing SAS from atomic model

Scattering from the particles can be obtained by subtracting solvent scattering, yielding effective density distribution: ∆ρ = ρ(r) − ρs (1) where ρs is the scattering density of the solvent. Bound solvent density may differ from that of the bulk.

  • A. Panjkovich (EMBL)

BioSAS atomic modeling 07.12.2017 10 / 49

slide-11
SLIDE 11

Scattering from a macromolecule in solution

I(s) =

  • |A(s)|2

Ω =

  • |Aa(s) − ρsAs + δρbAb(s)|2

Ω

(2) Aa(s): atomic scattering in vacuum As(s): scattering from the excluded volume Ab(s): scattering from the hydration shell Programs: CRYSOL (X-rays): Svergun et al. (1995) J. Appl. Cryst. 28, 768 CRYSON (neutrons): Svergun et al. (1998) P.N.A.S USA 95, 2267

  • A. Panjkovich (EMBL)

BioSAS atomic modeling 07.12.2017 11 / 49

slide-12
SLIDE 12

Multipole expansion

I(s) =

  • |A(s)|2

Ω =

  • |Aa(s) − ρsE(s) + δρbB(s)|2

Ω

(3) If the intensity of each contribution is represented using spherical harmonics I(s) = 2π2

inf

  • l=0

l

  • m=−l

|Alm(s)|2 (4) the average is performed analytically: I(s) = 2π2

L

  • l=0

l

  • m=−l

|Alm(s) − ρ0Elm(s) + δρBlm(s)|2 (5) This approach permits to further use rapid algorithms for rigid body refinement.

  • A. Panjkovich (EMBL)

BioSAS atomic modeling 07.12.2017 12 / 49

slide-13
SLIDE 13

CRYSOL (X-ray) and CRYSON (neutron) scattering from macromolecules

I(s) = 2π2

L

  • l=0

l

  • m=−l

|Alm(s) − ρ0Elm(s) + δρBlm(s)|2 (6) The programs: either fit the experimental data by varying the density of the hydration layer δρ (affects the third term) and the total excluded volume (affects the second term)

  • r predict the scattering from the atomic structure using default

parameters (theoretical excluded volumen and bound solvent density

  • f 1.1 g/cm3)

provide output files (scattering amplitudes) for rigid body refinement routines compute particle envelope function F(ω)

  • A. Panjkovich (EMBL)

BioSAS atomic modeling 07.12.2017 13 / 49

slide-14
SLIDE 14

CRYSOL: SAXS data and atomic models

How does the atomic model fit the solution scattering profile? χ2 = 1 N

Np

  • i=1

Ie(si) − cI(si) σ(si) 2 (7)

  • A. Panjkovich (EMBL)

BioSAS atomic modeling 07.12.2017 14 / 49

slide-15
SLIDE 15

CRYSOL: how to run CRYSOL (+ other ATSAS programs)

command line, batch mode command line, interactive mode ATSAS-Online GUI, through Primus GUI, through SASpy

  • A. Panjkovich (EMBL)

BioSAS atomic modeling 07.12.2017 15 / 49

slide-16
SLIDE 16

SASpy: integrating ATSAS and PyMOL

SASpy combines ATSAS and PyMOL ATSAS SAS analysis software package

◮ Freely available for academics ◮ Compiled for Win, Mac and Linux ◮ From initial data reduction to advanced

modeling

PyMOL Molecular visualization software

◮ Visualize and edit 3D molecular models ◮ Ray-rendering for publication quality figures ◮ Extensible through ‘plugins’

  • A. Panjkovich (EMBL)

BioSAS atomic modeling 07.12.2017 16 / 49

slide-17
SLIDE 17

SASpy - ATSAS PyMOL plugin

Panjkovich A & Svergun DI (2016) Bioinformatics 32, 2062-64

  • A. Panjkovich (EMBL)

BioSAS atomic modeling 07.12.2017 17 / 49

slide-18
SLIDE 18

SUPALM, superposition of high- and low-resolution models

Konarev PV, Svergun DI. IUCrJ. 2015 Apr 21;2(Pt 3):352-60

  • A. Panjkovich (EMBL)

BioSAS atomic modeling 07.12.2017 18 / 49

slide-19
SLIDE 19

SAS modeling principle

  • A. Panjkovich (EMBL)

BioSAS atomic modeling 07.12.2017 19 / 49

slide-20
SLIDE 20

The idea of rigid body modeling

The structures of two subunits in reference positions are known. Arbitrary complex can be constructed by moving and rotating the second subunit. This operation depends on three Euler rotation angles and three Cartesian shifts.

  • A. Panjkovich (EMBL)

BioSAS atomic modeling 07.12.2017 20 / 49

slide-21
SLIDE 21

The idea of rigid body modeling

The structures of two subunits in reference positions are known. Arbitrary complex can be constructed by moving and rotating the second subunit. This operation depends on three Euler rotation angles and three Cartesian shifts.

  • A. Panjkovich (EMBL)

BioSAS atomic modeling 07.12.2017 21 / 49

slide-22
SLIDE 22

Equation for rigid body modeling

Using spherical harmonics, the amplitude(s) of arbitrarily rotated and displaced subunit(s) are analytically expressed via the initial amplitude and the six positional parameters: Clm(s) = Clm(Blmα, β, γ, x, y, z). The scattering from the complex is then rapidly calculated as: I(s) = IA(s) + IB(s) + 4π2

∞

  • l
  • −l

Re[Alm(s)C ∗

lm(s)]

(8)

Svergun, D.I. (1991). J. Appl. Cryst. 24, 485-492

  • A. Panjkovich (EMBL)

BioSAS atomic modeling 07.12.2017 22 / 49

slide-23
SLIDE 23

Constraints for rigid body modeling

interconnectivity absence of steric clashes symmetry intersubunit contacts (from chemical shifts by NMR or mutagenesis) Distances between residues (e.g. FRET) Relative orientations of subunits (RDC by NMR) Scattering data from subcomplexes

Petoukhov & Svergun (2005). Biophys J. 89, 1237; Petoukhov & Svergun (2006). Biophys J. 35, 567

  • A. Panjkovich (EMBL)

BioSAS atomic modeling 07.12.2017 23 / 49

slide-24
SLIDE 24

Global rigid body modeling (SASREF)

Fits (multiple X-ray and neutron) scattering curve(s) from partial constructs or contrast variation using simulated annealing Requires models of subunits, builds interconnected models without steric clashes. Uses constrains: symmetry, distance, relative orientation if applicable.

Petoukhov & Svergun (2005). Biophys J. 89, 1237; Petoukhov & Svergun (2006). Biophys J. 35, 567

  • A. Panjkovich (EMBL)

BioSAS atomic modeling 07.12.2017 24 / 49

slide-25
SLIDE 25

Addition of missing fragments (BUNCH)

BUNCH combines rigid body and ab-initio modelling to find the positions and orientations of rigid domains and probable conformations of flexible linkers represented as dummy residues chains Multiple experimental scattering data sets from partial constructs (e.g. deletion mutants) can be fitted simultaneously with the data of the full-length protein. accounts for symmetry, allows one to fix some domains and to restrain the model by contacts between specific residues

  • A. Panjkovich (EMBL)

BioSAS atomic modeling 07.12.2017 25 / 49

slide-26
SLIDE 26

Addition of missing fragments (CORAL)

A combination of SASREF and BUNCH to account for missing loops in multi-subunit biological macromolecules. Loops are modeled based on known high-resolution structures.

  • A. Panjkovich (EMBL)

BioSAS atomic modeling 07.12.2017 26 / 49

slide-27
SLIDE 27

User example: hybrid rigid-body modeling of a protein complex

  • A. Panjkovich (EMBL)

BioSAS atomic modeling 07.12.2017 27 / 49

slide-28
SLIDE 28

Rigid-body modeling - SAXS model (SASREF)

0.0 0.1 0.2 0.3 0.4 s, A ° -1 log I(s), relative sasref

χ2 = 1.0

  • A. Panjkovich (EMBL)

BioSAS atomic modeling 07.12.2017 28 / 49

slide-29
SLIDE 29

Crystallographic complex 1

0.0 0.1 0.2 0.3 0.4 s, A ° -1 log I(s), relative MX1

χ2 = 6.7

  • A. Panjkovich (EMBL)

BioSAS atomic modeling 07.12.2017 29 / 49

slide-30
SLIDE 30

Crystallographic complex 2

0.0 0.1 0.2 0.3 0.4 s, A ° -1 log I(s), relative MX2

χ2 = 3.0

  • A. Panjkovich (EMBL)

BioSAS atomic modeling 07.12.2017 30 / 49

slide-31
SLIDE 31

SAXS-model vs. crystallographic model 2

  • A. Panjkovich (EMBL)

BioSAS atomic modeling 07.12.2017 31 / 49

slide-32
SLIDE 32

Flexible refinement

  • A. Panjkovich (EMBL)

BioSAS atomic modeling 07.12.2017 32 / 49

slide-33
SLIDE 33

Mismatch between homology model and SAXS data (and ab-initio model)

0.0 0.1 0.2 0.3 0.4 s, A ° -1 log I(s), relative homologyModel

  • A. Panjkovich (EMBL)

BioSAS atomic modeling 07.12.2017 33 / 49

slide-34
SLIDE 34

SREFLEX fits SAS data by exploring conformational changes

0.0 0.1 0.2 0.3 0.4 s, A ° -1 log I(s), relative homologyModel sreflex

  • A. Panjkovich (EMBL)

BioSAS atomic modeling 07.12.2017 34 / 49

slide-35
SLIDE 35

Conformational change and ligand binding

  • A. Panjkovich (EMBL)

BioSAS atomic modeling 07.12.2017 35 / 49

slide-36
SLIDE 36

SAXS and conformational change

Crystalline and solution conformation may differ SAXS can provide insight into conformational transition

  • A. Panjkovich (EMBL)

BioSAS atomic modeling 07.12.2017 36 / 49

slide-37
SLIDE 37

SREFLEX: SAS REFinement through FLEXibility

  • A. Panjkovich (EMBL)

BioSAS atomic modeling 07.12.2017 37 / 49

slide-38
SLIDE 38

Estimating protein flexibility: normal mode analysis (NMA)

Delarue M, Sanejouand YH (2002) Simplified normal mode analysis of conformational transitions in dna-dependent polymerases: the elastic network model. J Mol Biol 320: 1011-1024.

  • A. Panjkovich (EMBL)

BioSAS atomic modeling 07.12.2017 38 / 49

slide-39
SLIDE 39

SREFLEX: SAS REFinement through FLEXibility

Input: SAXS data PDB coordinates Program stages:

1 Structure partition 2 Domain level refinement 3 Residue level refinement

  • A. Panjkovich (EMBL)

BioSAS atomic modeling 07.12.2017 39 / 49

slide-40
SLIDE 40

Automatic domain assignment based on dynamics

  • A. Panjkovich (EMBL)

BioSAS atomic modeling 07.12.2017 40 / 49

slide-41
SLIDE 41

SREFLEX web interface (ATSAS online)

www.embl-hamburg.de/biosaxs/atsas-online/sreflex.php Also available in Primus/qt, SASpy and through the command line

  • A. Panjkovich (EMBL)

BioSAS atomic modeling 07.12.2017 41 / 49

slide-42
SLIDE 42

SREFLEX advanced usage

Exploit options and parameters (more details in the manual)

◮ Provide domain definitions a priori ◮ Use CONCOORD refinement (protein only) ◮ Skip one of the refinement stages

Current limitations:

◮ Long linkers (better use BUNCH or CORAL) ◮ Bead models ◮ Future developments: ⋆ Very large assemblies ⋆ Symmetric complexes ⋆ Membrane proteins

  • A. Panjkovich (EMBL)

BioSAS atomic modeling 07.12.2017 42 / 49

slide-43
SLIDE 43

Model quality depends of SAXS data quality

monodispersity radiation damage aggregation concentration effects

  • verall parameters

signal-to-noise level (SHANUM) ambiguity (AMBIMETER)

  • A. Panjkovich (EMBL)

BioSAS atomic modeling 07.12.2017 43 / 49

slide-44
SLIDE 44

Ambimeter - ambiguity measurement

Petoukhov MV, Svergun DI Acta Crystallogr D Biol Crystallogr. 2015 May;71(Pt 5):1051-8.

  • A. Panjkovich (EMBL)

BioSAS atomic modeling 07.12.2017 44 / 49

slide-45
SLIDE 45

Ambimeter - different shapes, same scattering profile

  • A. Panjkovich (EMBL)

BioSAS atomic modeling 07.12.2017 45 / 49

slide-46
SLIDE 46

DARA: structural neighbours, dara.embl-hamburg.de

searches stuctural space available at PDB (∼150000 structures) fast query thanks to PCA and k-d trees. nearest neighbours suggest shape, Rg, MW, etc.

Kikhney AG, Panjkovich A, Sokolova AV, Svergun DI. Bioinformatics. 2016 Feb 15;32(4):616-8.

  • A. Panjkovich (EMBL)

BioSAS atomic modeling 07.12.2017 46 / 49

slide-47
SLIDE 47

Resources and references

ATSAS manuals: www.embl-hamburg.de/biosaxs/manuals/ ATSAS online: www.embl-hamburg.de/biosaxs/atsas-online/ SAXS forum: www.saxier.org/forum/ email: atsas@embl-hamburg.de, apanjkovich@embl-hamburg.de

  • A. Panjkovich (EMBL)

BioSAS atomic modeling 07.12.2017 47 / 49

slide-48
SLIDE 48

Summary on combining SAS data with high-res models

Comparison of atomic models to scattering data (CRYSOL/CRYSON) Graphical interface to modeling (SASpy) Rigid-body modeling (SASREF) Missing fragments (BUNCH & CORAL) Flexible refinement (SREFLEX)

  • A. Panjkovich (EMBL)

BioSAS atomic modeling 07.12.2017 48 / 49

slide-49
SLIDE 49

Acknowledgements

Dmitri Svergun and the whole BioSAXS team at EMBL Hamburg.

◮ BioStruct-X 283570 and iNext. ◮ Marie Curie Actions and EMBL for postdoc fellowship (EIPOD).

  • A. Panjkovich (EMBL)

BioSAS atomic modeling 07.12.2017 49 / 49
