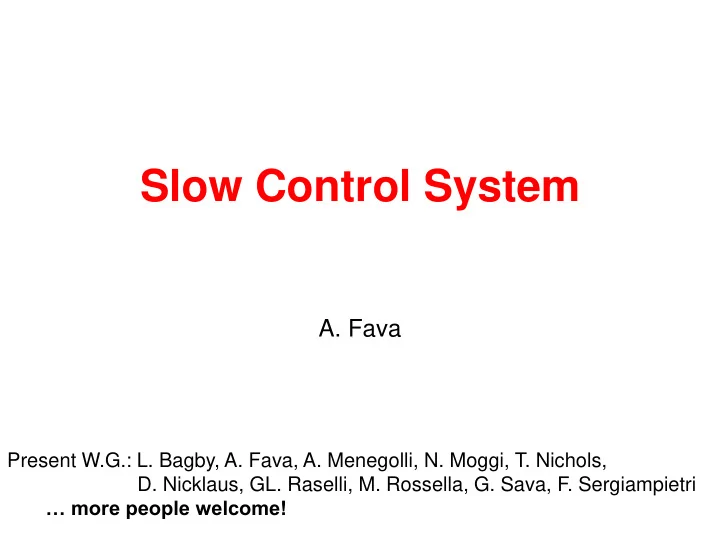

Slow Control System A. Fava Present W.G.: L. Bagby, A. Fava, A. Menegolli, N. Moggi, T. Nichols, D. Nicklaus, GL. Raselli, M. Rossella, G. Sava, F. Sergiampietri … more people welcome!
Scope of the Slow Control System Remote control of several components of ICARUS-T600 detector and • environment is mandatory for: guaranteeing the proper operation conditions continuously for the entire data taking period (3 years at least); minimizing potential hardware damages by taking prompt actions; complying with the safety guidelines at Fermilab; have offline access to the history of detector conditions. Slow control means: • measure the value of operational parameters (ex. temperatures, voltages and currents, status, etc.); generate alarms (light, sound, email, sms … ) under pre-defined circumstances; take actions, such as switch on/off modules or regulate voltages, upon either manual or automatic input; log the operational parameters, alarms, actions and changes of status. Fermilab, May 14th 2018 2 ICARUS Collaboration Meeting
Overall architecture PMT calibration Cryogenics Slow Control (IFIX) Graphical User Interface Slow Control central logic Database log GS108 RO S AFE 8 PORT GIGABIT SWITCH P On = Link Both=1000M Ethernet Blink = Act 100M 10M Auto (EPICS) Uplink 2 Power 1 2 3 4 5 6 7 8 Rack Beckhoff ICS 9065 Protection BK9100 Interface System Interface 1 2 PMT HV distributor 1 EDAS 1000 CAEN SY1527 UPS 2 8 EATON 1 6 PMT HV PS 1 PMT readout PS 6 Interface 13 1 Bertan 210-02R RS-232 25 14 VME DAQ server 7 pin (custom) D-Sub 25 pin 48 3 24 1 PMT readout Rack Temp. Wire bias PS Cathode HV PS Mezzanine IEEE-488 Bertan 225-01R Temp. probe probe Heizinger PNC5 Fiber D-Sub 15 pin racks GS105E 4 4 1632 5 Beckhoff� Beckhoff� 4 96 TPC readout 1 10M Both=1000M 3 EL3204-0200 EL3204-0200 100M Temp. probe Fiber TPC readout PS 2 Laser custom 1 Blink=ACT 4 4 Detector top On=Link Power 13 1 CF 100 CF 35 25 14 fla nge fla nge D-Sub 25 pin 8 pin 60 40 Temp. Level probe meter Inner detector Fermilab, May 14th 2018 3 ICARUS Collaboration Meeting
Inner sensors 60 temperature probes, 8 level meters. • 4 control panels on top of the • Control Panel (PLC cryostats, near corner chimneys. modules) Beckhoff EL3204-0200, universal RTD modules (100 Ω to 240k Ω ). Controlled by a PLC, • Beckhoff CX5120-0115 performance CPU, on the mezzanine. External Wiring Electrical isolation between panels for • grounding. DC excitation current to sensors • (low noise). Inside Cryostat Connected to main cryogenic controls. • Data accessible through cryogenic • control system (iFIX HMI), and available over Fermilab network (i.e. can be read by EPICS) Electrical Schematic Fermilab, May 14th 2018 4 ICARUS Collaboration Meeting
Power Supply for TPC readout electronics 96 Power Supplies, custom • design of INFN-Padova, with Ethernet connectivity. Web-based interface • for remote monitoring of voltages, currents and temperatures and remote setting of voltages and fan speed. Integration with Epics • still to be worked out. Fermilab, May 14th 2018 5 ICARUS Collaboration Meeting
Power supply for wire bias 6 Bertan 225-01R from past operations. • IEEE-488 (GPIB) connectivity, cabled in • daisy chain. DCS private network fiber Ethernet (copper) GPIB (copper) Switch AC distribution GPIB-Ethernet interface • Interfaced to Ethernet via ICS-9065 device. Power Suppy • Decoupled from building ground through 4-port Power Suppy switches with fiber uplink. Power Suppy • Existing Epics software (for a different detector hardware model of the interface) to be adapted. ground Fermilab, May 14th 2018 6 ICARUS Collaboration Meeting
Power supplies for PMT HV • 2 Bertan 210-02R for primary HV. • Analogue 7-pin I/O interface. • Interfaced to Ethernet through Beckhoff analogue I/O modules without PLC (BK9100, KL3132, KL4132, KL9010). Control of voltage with ramp up/down [0 ÷ -5 V] • @pin B [0 ÷ 2000 V]. Monitor of current signal [0 ÷ 5 V] @pin D and voltage signal [0 ÷ 5 V] @pin E • Epics software developed. • 2 CAEN SY1527 high voltage distribution crates, with Ethernet connectivity. • Epics software to be developed. Fermilab, May 14th 2018 7 ICARUS Collaboration Meeting
VME crates for PMT readout electronics • 8 VME crates, containing the CAEN V1730B digitizer boards. • 9-pin RS-232 I/O interface. • Interfaced to Ethernet through Beckhoff analogue I/O modules without PLC (BK9100, KL3132, KL4132, KL9010). • Male 9-pin plug with a voltage divider to bring the 12V down to the 10V of the Beckhoff in preparation. • Control of operation voltages (5 V, ± 12 V) @ pins 1, 2, 3. • Epics software developed, now under test. Fermilab, May 14th 2018 8 ICARUS Collaboration Meeting
HV system for TPC cathode • Control system of the cathode HV from previous operations based on 1 EDAS-1000 interface to Ethernet and LabView software. • To be integrated with Epics. 6 Fermilab, May 14th 2018 9 ICARUS Collaboration Meeting
Other components and high level software • Other components (ex: building webcams, managed power distribution units) common with SBND. • Most of the high level software in common with SBND: interface from cryogenic control (IFIX) to detector control (Epics); data log into database; graphical user interface based on CSS. • Shared development efforts in the framework of the SBN-DCS working group, still some customization for ICARUS will be needed. • Test-stand facility set-up at Fermilab D0 building: TPC electronics, power supplies for wire bias, power distribution units and servers. Fermilab, May 14th 2018 10 ICARUS Collaboration Meeting
Backup
Inner sensors Resistance Temperature Detector (RTD) • 30 per T300 cryostat • Pt1000 in cryostat 1, Pt10k in cryostat 2 • Provide interlock during initial LAr fill (T max −T min <50 ° C) • Monitor LAr temperature during normal operation Resistive Level Meters (RLM) • 4 per cryostat (five 470 Ω resistors per RLM) • Resistance lowers ~25% in LAr • Alert when nearing top during initial fill • Monitor LAr level during normal operation Fermilab, May 14th 2018 12 ICARUS Collaboration Meeting
Cathode HV control schematics Fermilab, May 14th 2018 13 ICARUS Collaboration Meeting
