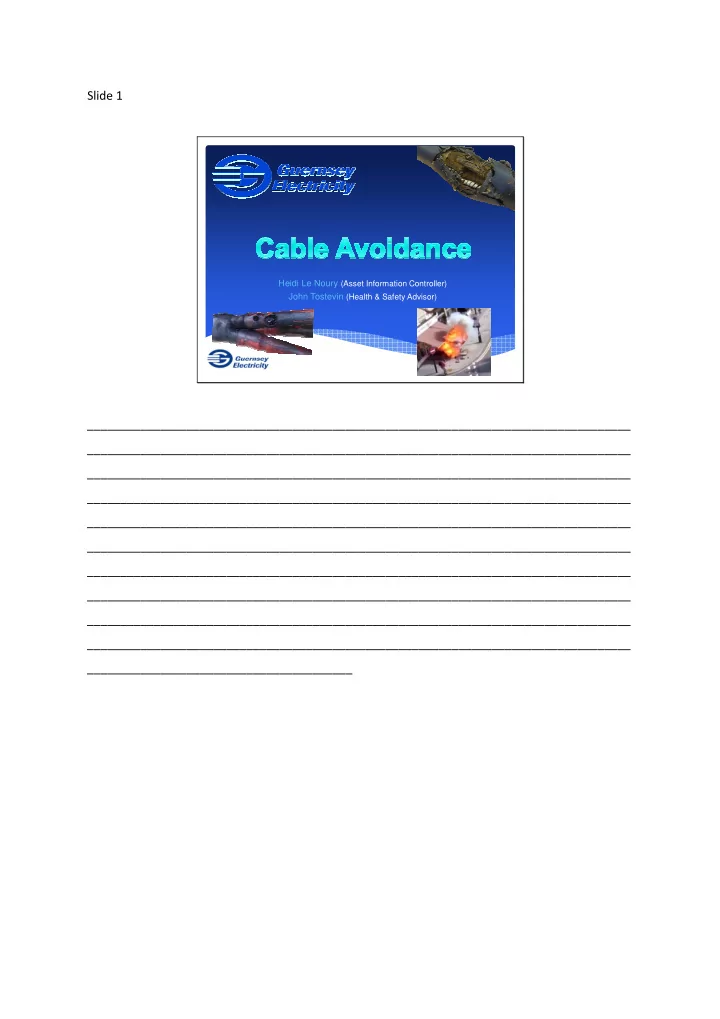

SLIDE 1

Slide 1

Heidi Le Noury (Asset Information Controller) John Tostevin (Health & Safety Advisor)

________________________________________

SLIDE 2

Slide 2

Extracted from the National Grid’s video “Avoiding Danger from underground services”

________________________________________

SLIDE 3

Slide 3

Planning

1. Obtain cable records prior to developing plans
2. Try and plan any building or excavation away from the

electrical network

3. Where properties are to be demolished contact Guernsey

Electricity and arrange to have the services Cut Off. This is not the same as a request for a Meter Disconnection.

4. Cable locations should be verified on site by using a cable

locating device (CAT) and by hand digging trial holes

________________________________________

SLIDE 4

Slide 4

1. Dig additional trial holes by hand to prove the exact location,

route and depth of all cables

2. Mark the cable route on the ground
3. Carefully expose the cable, digging by hand
4. Do not use a mechanical digger or power tools

within 50cm of any cable

Once the approximate location of the cable has been determined:

________________________________________

SLIDE 5

Slide 5

Cable Record Inquiries

________________________________________

SLIDE 6

Slide 6

DialB4UDig

________________________________________

SLIDE 7

Slide 7

ClickB4UDig Registration

Once your request has been accepted, you will be emailed login details and a user Guide. If you require further assistance we would be happy to provide on site training.

________________________________________

SLIDE 8

Slide 9

Ensure information provided is adequate and shows cables in their entirety, this will prevent assumptions from being made.

________________________________________

SLIDE 9

Slide 10

Cable record should only be used as a guide and verified on site.

by a competent person using a suitable Cable Tracing device (CAT) cables must be marked out on ground prior to any excavation work.

Pre1990 Sketches were drawn on to paper service cards 1990-2006 service cards and site sketches we gradually copied across to the paper copies of our electronic map and then added to the system. Since 2005 records have been updated directly from the site sketch onto the GIS. This now allows us to update daily.

________________________________________

SLIDE 10

Slide 11 ________________________________________

SLIDE 11

Slide 12 ________________________________________

SLIDE 12

Slide 13 ________________________________________

SLIDE 13

Slide 14

PPE can provide some protection

________________________________________

SLIDE 14

Slide 15 ________________________________________

SLIDE 15

Slide 16

Information on the Avoidance

f damage to underground

cables can be found at

www.hse.gov.uk/pubns/books/hsg47.htm

________________________________________

SLIDE 16

Slide 17

Thank you for your time

__

SLIDE 17

__________________________________________

SLIDE 18

Slide 8

Issuing records

When providing records to members of staff, Please ensure that it is printed to a scale where text is legible. It is the responsibility of supervisors to ensure that the records are understood by employees.
