SLIDE 1

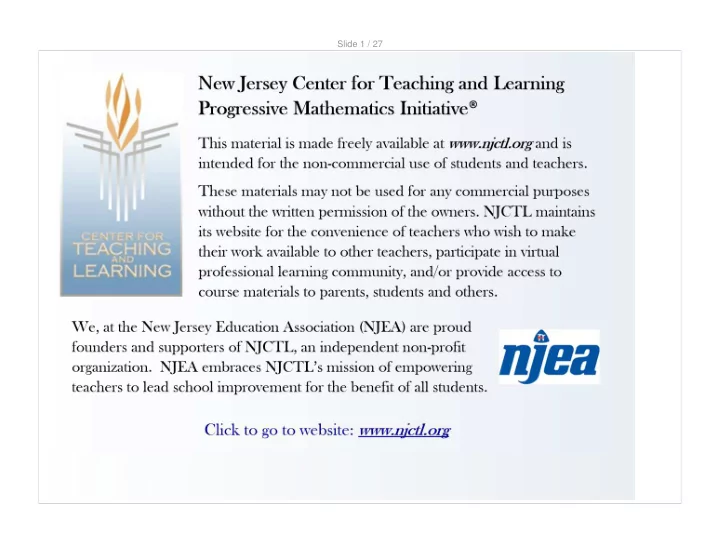

Slide 1 / 27
Slide 2 / 27
Slide 1 / 27 Slide 2 / 27 AP Chemistry Equilibrium Part B: - - PowerPoint PPT Presentation
Slide 1 / 27 Slide 2 / 27 AP Chemistry Equilibrium Part B: - - PowerPoint PPT Presentation
Slide 1 / 27 Slide 2 / 27 AP Chemistry Equilibrium Part B: Le-Chatelier's Principle, Q, and Calculating K values . 2014-10-29 www.njctl.org Slide 3 / 27 Table of Contents click on the topic to go to that section Le-Chatlier's Principle
SLIDE 2
SLIDE 3
Slide 3 / 27
Table of Contents
click on the topic to go to that section
Le-Chatlier's Principle Equilibrium Constant
SLIDE 4
Slide 4 / 27
Le-Chatlier's Principle
Return to Table of Contents
SLIDE 5
Slide 5 / 27
Equilibrium
The formation of rust (Fe2O3) is favorable and has a large K value. The reverse process ("unrusting") is therefore highly unfavorable.
SLIDE 6
Slide 6 / 27
Q and K
The reaction quotient, "Q", is the ratio of products to reactants at any stage in a reaction. Q = [Products]x [Reactants]y The value of Q and it's relation to K provides information as to which way a reaction will shift to reach equilibrium. Q > K Too many products Reaction shifts left to reach equilibrium Q < K Too many reactants Reaction shifts right to reach equilibrium Q = K At Equilibrium No shift
SLIDE 7
Slide 7 / 27
Q and K
Given initial amounts, the direction the reaction will shift to reach equilibrium can be determined by comparing Q to K. Given the following reaction, which way will the reaction shift to reach equilibrium given the following initial concentrations? N2(g) + 3H2(g) --> 2NH3(g) K = 0.037 [NH3]0 = [H2]0 = [N2]0 = 0.41 M Q = (0.41)2 / (0.41)*(0.41)3 = 5.94 Q > K = too many products Reaction will shift LEFT to reach equilibrium
SLIDE 8
Slide 8 / 27
Le-Chateliers' Principle
If a reaction at equilibrium is disturbed, it will shift to re-establish equilibrium. Effect of changing amount of reactant or product. A(g) --> 2B(g) Increasing the amount of B increases the value of "Q" making the reverse reaction happen more readily shifting the reaction left until equilibrium is re-established. A(g) --> 2B(g) Decreasing the amount of B makes the reverse reaction less likely thereby shifting the reaction towards the products until equilibrium is reestablished. Note: Changing the concentrations does NOT affect the favorability
- f a reaction, so the equilibrium constant is not changed.
SLIDE 9
Slide 9 / 27
Le-Chateliers' Principle
If a reaction at equilibrium is disturbed, it will shift to re-establish equilibrium. Effect of changing volume. Increasing the volume will shift the reaction to the side with more moles
- f gas, so in this case, to the right.
A(g) --> 2B(g) A(g) --> 2B(g) Changes in volume can be created by changing the pressure. In this case, increasing the pressure will lower the volume and shift the reaction to the side with fewer gaseous moles. Note: Since volume changes amount to changing concentrations, changing the concentrations does NOT affect the favorability of a reaction, so the equilibrium constant is not changed.
SLIDE 10
Slide 10 / 27
Le-Chateliers' Principle
If a reaction at equilibrium is disturbed, it will shift to reestablish equilibrium. Effect of changing temperature The effect of increasing or decreasing the temperature depends on whether the reaction is exo or endo thermic Endothermic Reaction E + A(g) --> 2B(g) Exothermic Reaction A(g) --> 2B(g) + E Increasing the temperature increases the thermal energy and will shift the reaction left. Increasing the temperature increases the thermal energy and will shift the reaction right. Unlike a change in concentration, V, or P, a change in the temperature DOES change the value of the equilibrium constant.
SLIDE 11
Slide 11 / 27
1 Given initial partial pressures of hydrogen and chlorine gas of 2.5 atm each, and an initial partial pressure of HCl
- f 1.5 atm, which of the following would occur?
A The concentration of HCl will increase due to Q > K B The concentration of HCl will increase due to Q < K C The concentration of H2 will decrease due to Q > K D The concentration of Cl2 will decrease due to Q < K
H2(g) + Cl2(g) --> 2HCl(g) K = 2.3
SLIDE 12
Slide 11 (Answer) / 27
1 Given initial partial pressures of hydrogen and chlorine gas of 2.5 atm each, and an initial partial pressure of HCl
- f 1.5 atm, which of the following would occur?
A The concentration of HCl will increase due to Q > K B The concentration of HCl will increase due to Q < K C The concentration of H2 will decrease due to Q > K D The concentration of Cl2 will decrease due to Q < K
H2(g) + Cl2(g) --> 2HCl(g) K = 2.3
[This object is a pull tab]
Answer B or D
SLIDE 13
Slide 12 / 27
2 Will a precipitate form if 100 mL of 0.003 M AgNO
3 is
mixed with 100 mL of 0.005 M NaCl? Yes No
AgCl(s) --> Ag+(aq) + Cl-(aq) K = 1.77 x 10-10
SLIDE 14
Slide 12 (Answer) / 27
2 Will a precipitate form if 100 mL of 0.003 M AgNO
3 is
mixed with 100 mL of 0.005 M NaCl? Yes No
AgCl(s) --> Ag+(aq) + Cl-(aq) K = 1.77 x 10-10
[This object is a pull tab]
Answer
Yes – Q > K
SLIDE 15
Slide 13 / 27
3 Which of the following would shift the reaction towards the products? A Increasing the temperature B Decreasing the volume C Decreasing the pressure D Increasing the concentration of CO(g) E Adding an inert gas such as helium
CO(g) + H2O(g) --> CO2(g) + H2(g) H = -45 kJ
SLIDE 16
Slide 13 (Answer) / 27
3 Which of the following would shift the reaction towards the products? A Increasing the temperature B Decreasing the volume C Decreasing the pressure D Increasing the concentration of CO(g) E Adding an inert gas such as helium
CO(g) + H2O(g) --> CO2(g) + H2(g) H = -45 kJ
[This object is a pull tab]
Answer
D
SLIDE 17
Slide 14 / 27
4 Which of the following changes would dissolve more precipitate? A Removing chloride ions by precipitating them with Cu+ ions B Increasing amount of solid AgCl C Lowering the temperature D Increasing the pressure E None of these
AgCl(s) --> Ag+(aq) + Cl-(aq) H = +12 kJ
SLIDE 18
Slide 14 (Answer) / 27
4 Which of the following changes would dissolve more precipitate? A Removing chloride ions by precipitating them with Cu+ ions B Increasing amount of solid AgCl C Lowering the temperature D Increasing the pressure E None of these
AgCl(s) --> Ag+(aq) + Cl-(aq) H = +12 kJ
[This object is a pull tab]
Answer
A
SLIDE 19
Slide 15 / 27
5 What would be true if the pressure was increased in the reaction vessel containing the reaction below? A The partial pressure of O2(g) will diminish B No change will occur C The temperature will decrease D The amount of solid KCl will increase E None of these
2KClO3(s) --> 2KCl(s) + 3O2(g) H = +35 kJ
SLIDE 20
Slide 15 (Answer) / 27
5 What would be true if the pressure was increased in the reaction vessel containing the reaction below? A The partial pressure of O2(g) will diminish B No change will occur C The temperature will decrease D The amount of solid KCl will increase E None of these
2KClO3(s) --> 2KCl(s) + 3O2(g) H = +35 kJ
[This object is a pull tab]
Answer
A
SLIDE 21
Slide 16 / 27
6 Which of the following would decrease the value of K for the reaction below? A Increasing the temperature B Decreasing the temperature C Adding H2O D Decreasing solid Ca(OH)2 E Adding a strong acid
Ca(OH)2(s) --> Ca2+(aq) + 2OH-(aq) H = -32 kJ
SLIDE 22
Slide 16 (Answer) / 27
6 Which of the following would decrease the value of K for the reaction below? A Increasing the temperature B Decreasing the temperature C Adding H2O D Decreasing solid Ca(OH)2 E Adding a strong acid
Ca(OH)2(s) --> Ca2+(aq) + 2OH-(aq) H = -32 kJ
[This object is a pull tab]
Answer
A
SLIDE 23
Slide 17 / 27
Application
Shower scale is typically composed partly of metal carbonate precipitates which do not readily dissolve in tap water. CaCO3(s) --> Ca2+(aq) + CO32-(aq) Ksp = 6 x 10-9 Using an acidic cleaning agent however can shift the equilibrium to the right via the depletion of carbonate ions through the reaction of them with H+ ions. CaCO3(s) --> Ca2+(aq) + CO32-(aq)
SLIDE 24
Slide 18 / 27
Equilibrium Constant
Return to Table of Contents
SLIDE 25
Slide 19 / 27
The Equilibrium Constant
The equilibrium constant for a reaction is specific to how the reaction is written. If a reaction is reversed, the new K value will be the inverse of the original K value. CaCO3(s) --> Ca2+(aq) + CO32-(aq) Ksp = 6 x 10-9 Ca2+(aq) + CO32-(aq) --> CaCO3(s) Ksp = 2 x 108 This makes intuitive sense. If a reaction is favored in one direction, it will be unfavorable in the reverse direction.
SLIDE 26
Slide 20 / 27
The Equilibrium Constant
The equilibrium constant for a reaction is specific to how the reaction is written. If the coefficients of a reaction are changed, the exponents of each substance will change in the expression thereby exponentially changing K. CaCO3(s) --> Ca2+(aq) + CO32-(aq) Ksp = 6 x 10-9 1/2CaCO3(s) --> 1/2Ca2+(aq) + 1/2CO32-(aq) Ksp = (6 x 10-9)1/2 Ksp = 8 x 10-5
SLIDE 27
Slide 21 / 27
The Equilibrium Constant
If reactions are added together, the equilibrium constants are multiplied. Many reactions occur as a series of steps. Consider the production of Ag(NH3)2+ Step 1: AgCl(s) --> Ag
+(aq) + Cl-(aq) Ksp = 1.8 x 10-10
Step 2: Ag+(aq) + 2NH3(aq) --> Ag(NH3)2+(aq) Kf = 1.6 x 108 Overall AgCl(s) + 2NH3(aq) --> Ag(NH3)2+ + Cl-(aq) Ksp*Kf = Koverall =0.028
SLIDE 28
Slide 22 / 27
7 At 300 K, the production of 2 moles of ammonia from nitrogen and hydrogen gas has a K = 4.3 x 10-3. What is the value of K for the production of 3 moles of ammonia?
SLIDE 29
Slide 22 (Answer) / 27
7 At 300 K, the production of 2 moles of ammonia from nitrogen and hydrogen gas has a K = 4.3 x 10-3. What is the value of K for the production of 3 moles of ammonia?
[This object is a pull tab]
Answer
2.82 x 10-4
SLIDE 30
Slide 23 / 27
8 At 300 K, the production of 2 moles of ammonia from nitrogen and hydrogen gas has a K = 4.3 x 10-3. What is the value of K for the decomposition of 1 mole of ammonia?
SLIDE 31
Slide 23 (Answer) / 27
8 At 300 K, the production of 2 moles of ammonia from nitrogen and hydrogen gas has a K = 4.3 x 10-3. What is the value of K for the decomposition of 1 mole of ammonia?
[This object is a pull tab]
Answer
15.2
SLIDE 32
Slide 24 / 27
9 Given the reactions below, what would be the value of K for the reaction: Mn2+(aq) + H2S(aq) --> CaS(s) + 2H+(aq)
MnS(s) --> Mn2+(aq) + S2-(aq) Ksp = 3 x 10-14 H2S(aq) --> H+(aq) + HS-(aq) Ka = 1.0 x 10-7 HS-(aq) --> H+(aq) + S2-(aq) Ka = 1.3 x 10-13
SLIDE 33
Slide 24 (Answer) / 27
9 Given the reactions below, what would be the value of K for the reaction: Mn2+(aq) + H2S(aq) --> CaS(s) + 2H+(aq)
MnS(s) --> Mn2+(aq) + S2-(aq) Ksp = 3 x 10-14 H2S(aq) --> H+(aq) + HS-(aq) Ka = 1.0 x 10-7 HS-(aq) --> H+(aq) + S2-(aq) Ka = 1.3 x 10-13
[This object is a pull tab]
Answer
4.33 X10-7
SLIDE 34
Slide 25 / 27
10 Given the following data below, what would be the value
- f K for the reaction:
Ca2+(aq) + Ag2CO3(s) --> 2Ag+(aq) + CaCO3(s)
CaCO3(s) --> Ca2+(aq) + CO32-(aq) Ksp = 6 x 10-9 Ag2CO3(s) --> 2Ag+(aq) + CO32-(aq) Ksp = 8 x 10-12
SLIDE 35
Slide 25 (Answer) / 27
10 Given the following data below, what would be the value
- f K for the reaction:
Ca2+(aq) + Ag2CO3(s) --> 2Ag+(aq) + CaCO3(s)
CaCO3(s) --> Ca2+(aq) + CO32-(aq) Ksp = 6 x 10-9 Ag2CO3(s) --> 2Ag+(aq) + CO32-(aq) Ksp = 8 x 10-12
[This object is a pull tab]
Answer
1.33 X10-3
SLIDE 36
Slide 26 / 27
11 Given the following data, which of the following would be MOST favorable? A Formation of 4 moles of ammonia B Formation of 2 moles of Ca2+ ions C Decomposition of 6 moles of ammonia D Formation of 0.1 moles of CaCO3(s) from the ions E All are equally favorable
CaCO3(s) --> Ca2+(aq) + CO32-(aq) Ksp = 6.0 x 10-9 3H2(g) + N2(g) --> 2NH3(g) K = 4.3 x 10-3
SLIDE 37
Slide 26 (Answer) / 27
11 Given the following data, which of the following would be MOST favorable? A Formation of 4 moles of ammonia B Formation of 2 moles of Ca2+ ions C Decomposition of 6 moles of ammonia D Formation of 0.1 moles of CaCO3(s) from the ions E All are equally favorable
CaCO3(s) --> Ca2+(aq) + CO32-(aq) Ksp = 6.0 x 10-9 3H2(g) + N2(g) --> 2NH3(g) K = 4.3 x 10-3
[This object is a pull tab]
Answer
C
SLIDE 38
Slide 27 / 27
Application
Coupling a non-favorable reaction with a small K value with one that is highly favorable with a large K value is a common way to drive a process towards product. For example, Co(OH)3(s) is rather insoluble... Co(OH)3 --> Co3+(aq) + 3OH-(aq) Ksp = 1.6 x 10-44 But can be made more soluble by coupling it with a reaction that forms the complex Co(NH3)63+(aq) Co3+(aq) + 6NH3(aq) --> Co(NH3)63+(aq) Kf = 4.5 x 1031 Coupled Reaction Co(OH)3 + 6NH3(aq) --> Co(NH3)63+ + 3OH- Koverall = 7.2 x 10-13
