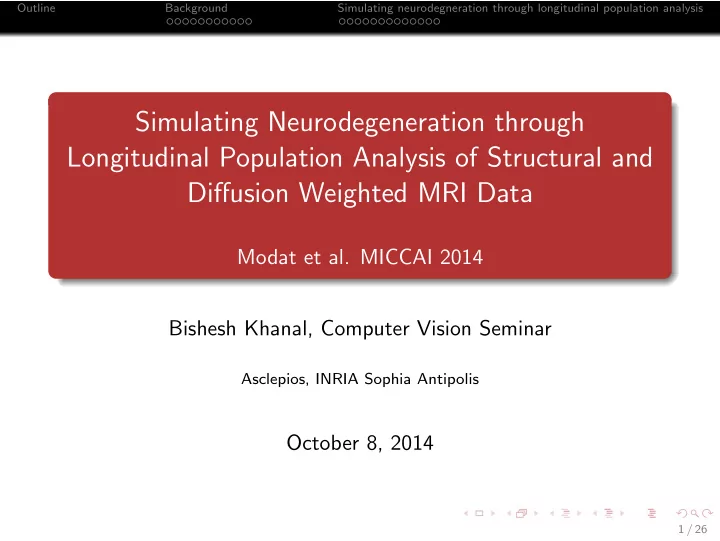

Simulating Neurodegeneration through Longitudinal Population Analysis of Structural and Diffusion Weighted MRI Data

Modat et al. MICCAI 2014 Bishesh Khanal, Computer Vision Seminar

Asclepios, INRIA Sophia Antipolis

October 8, 2014

1 / 26

Outline Background Simulating neurodegneration through longitudinal population analysis

1

Background Brain and Neurodegeration Alzheimer’s Disease and Multimodal NeuroImaging Atrophy Measurement and Registration

2

Simulating neurodegneration through longitudinal population analysis Overall Framework Multimodal Registration and Template database Simulating Flows Discussion

2 / 26

Outline Background Simulating neurodegneration through longitudinal population analysis

1

Background Brain and Neurodegeration Alzheimer’s Disease and Multimodal NeuroImaging Atrophy Measurement and Registration

2

Simulating neurodegneration through longitudinal population analysis Overall Framework Multimodal Registration and Template database Simulating Flows Discussion

3 / 26

Outline Background Simulating neurodegneration through longitudinal population analysis

Neurons, Gray Matter(GM), White Matter(WM) and Cerbral Spinal Fluid (CSF)

Figure:

Cortex.[http://en.wikipedia.org/wiki/File: Neuron_Hand-tuned.svg. Accessed on 08-01-2014]

Figure:

GM/WM.[http://www.medinewsdigest.com/?p=3249. Accessed on 08-01-2014] 4 / 26

Outline Background Simulating neurodegneration through longitudinal population analysis

Neurodegeneration and Longitudinal images

Figure: Baseline and follow-up images of an Alzheimer’s Disease patient.

Neurodegenration: Progressive loss of structure or function

• f neurons, including death of neurons [wikipedia]

Longitudinal images: Time series images of a same subject.

5 / 26

Outline Background Simulating neurodegneration through longitudinal population analysis

1

Background Brain and Neurodegeration Alzheimer’s Disease and Multimodal NeuroImaging Atrophy Measurement and Registration

2

Simulating neurodegneration through longitudinal population analysis Overall Framework Multimodal Registration and Template database Simulating Flows Discussion

6 / 26

Outline Background Simulating neurodegneration through longitudinal population analysis

Dementia and Alzheimer’s Disease

Dementia: Progressive decline of cognitive functions.

Loss of memory, mood changes, and problem with communication and reasoning.

AD: Most common cause of Dementia, mostly affects older people.

Characterized by atrophy, Amyloid β (Aβ) plaques and Neurofibrillary tangles (NFTs). Figure: Aβ plaques and NFTs in AD [2000 BrightFocus Foundation]

7 / 26

Outline Background Simulating neurodegneration through longitudinal population analysis

Multimodal neuroimaging for AD

Different modalities required to get different types of information.

Figure: Amyloid imaging and structural MRI Figure: Tractography example

[http://en.wikipedia.org/wiki/File: DTI-sagittal-fibers.jpg] 8 / 26

Outline Background Simulating neurodegneration through longitudinal population analysis

1

Background Brain and Neurodegeration Alzheimer’s Disease and Multimodal NeuroImaging Atrophy Measurement and Registration

2

Simulating neurodegneration through longitudinal population analysis Overall Framework Multimodal Registration and Template database Simulating Flows Discussion

9 / 26

Outline Background Simulating neurodegneration through longitudinal population analysis

Atrophy Measurement

Figure: Baseline and follow-up images of an Alzheimer’s Disease patient.

Segmentation based methods. Registration based methods. How to validate these methods ?

10 / 26

Outline Background Simulating neurodegneration through longitudinal population analysis

Registration

Figure: Nonlinear registeration of longitudinal images

11 / 26

Outline Background Simulating neurodegneration through longitudinal population analysis

Registration

Figure: Example displacement fields of longitudinal evolution

12 / 26

Outline Background Simulating neurodegneration through longitudinal population analysis

Registration

Figure: Registration overview [ Sotiras et al BIASS2013 ]

13 / 26

Outline Background Simulating neurodegneration through longitudinal population analysis

1

Background Brain and Neurodegeration Alzheimer’s Disease and Multimodal NeuroImaging Atrophy Measurement and Registration

2

Simulating neurodegneration through longitudinal population analysis Overall Framework Multimodal Registration and Template database Simulating Flows Discussion

14 / 26

Outline Background Simulating neurodegneration through longitudinal population analysis

Figure: Framework of the overall pipeline

15 / 26

Outline Background Simulating neurodegneration through longitudinal population analysis

1

Background Brain and Neurodegeration Alzheimer’s Disease and Multimodal NeuroImaging Atrophy Measurement and Registration

2

Simulating neurodegneration through longitudinal population analysis Overall Framework Multimodal Registration and Template database Simulating Flows Discussion

16 / 26

Outline Background Simulating neurodegneration through longitudinal population analysis

Weighting similarity measures from different modalities

Similarity measure M that drives the registration: M(B, F; µ) = α × Ms(Bs, F s(u; µ)) + α × Ms(Bs(u−1; µ), F s) +β × Md(Bd, F d(u; µ)) + β × Md(Bd(u−1; µ), F d) (1) where,

s: Structural T1 image d: Diffusion weighted image

B: Baseline image F: Followup image Ms: locally normalised cross correlation summed over all voxels. Md: distance between the tensors, summed over all voxels. α, β: Weights (empirically set to 0.5) u: Deformation field µ: parameters, the cubic b-spline parameters.

17 / 26

Outline Background Simulating neurodegneration through longitudinal population analysis

Template database

Figure: Template database

18 / 26

Outline Background Simulating neurodegneration through longitudinal population analysis

1

Background Brain and Neurodegeration Alzheimer’s Disease and Multimodal NeuroImaging Atrophy Measurement and Registration

2

Simulating neurodegneration through longitudinal population analysis Overall Framework Multimodal Registration and Template database Simulating Flows Discussion

19 / 26

Outline Background Simulating neurodegneration through longitudinal population analysis

Registering new subject

For a new subject i with its T1w and DTI image Bi, Register all baseline images from the template database to Bi.

Figure: Schematic for registrations between template and the subject

20 / 26

Outline Background Simulating neurodegneration through longitudinal population analysis

Weighting the flows to create a new one

Weight flows based on the distance of the template’s basline image to subject image distance. vgrp

i

=

• j∈grp
• ui

j ◦ vj

• × e−D

(Bi ,Bj ;ui j ) t

• j∈grp e−D

(Bi ,Bj ;ui j ) t

(2) Simulated follow-up images F NC

i

, F FTD

i

and F AD

i

simulated from Bi as: F grp

i

= exp(vgrp

i

) ◦ Bi

21 / 26

Outline Background Simulating neurodegneration through longitudinal population analysis

Simulation Example

Figure: Subject and disease-specific longtudinal changes simulator result

22 / 26

Outline Background Simulating neurodegneration through longitudinal population analysis

Simulation Results

Figure: Distance sorted in ascending order

23 / 26

Outline Background Simulating neurodegneration through longitudinal population analysis

Simulation Results

Figure: Distance sorted in ascending order

24 / 26

Outline Background Simulating neurodegneration through longitudinal population analysis

Discussion

Using multi-modal data decreases variance of registration

• results. (Needs further experimental verification).

Flow propagation method: Parallel transport and other techniques ? Can we extend to ”learning of deformation fields” ?

25 / 26

Outline Background Simulating neurodegneration through longitudinal population analysis

Thankyou!
