SLIDE 1

1

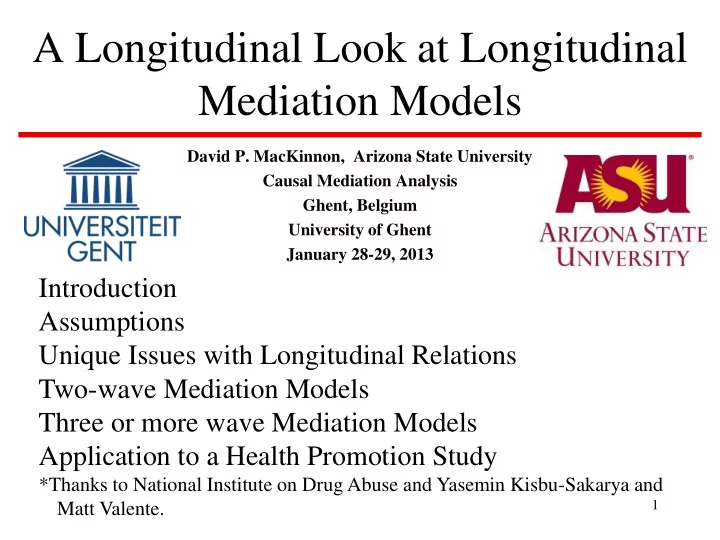

A Longitudinal Look at Longitudinal Mediation Models

David P. MacKinnon, Arizona State University Causal Mediation Analysis Ghent, Belgium University of Ghent January 28-29, 2013

Introduction Assumptions Unique Issues with Longitudinal Relations Two-wave Mediation Models Three or more wave Mediation Models Application to a Health Promotion Study

*Thanks to National Institute on Drug Abuse and Yasemin Kisbu-Sakarya and Matt Valente.

SLIDE 2

2

Mediator Definitions

• A mediator is a variable in a chain whereby an

independent variable causes the mediator which in turn causes the outcome variable (Sobel, 1990)

• The generative mechanism through which the

focal independent variable is able to influence the dependent variable (Baron & Kenny, 1986)

• A variable that occurs in a causal pathway from

an independent variable to a dependent

• variable. It causes variation in the dependent

variable and itself is caused to vary by the independent variable (Last, 1988)

SLIDE 3

3

Single Mediator Model

MEDIATOR M INDEPENDENT VARIABLE X Y DEPENDENT VARIABLE

a b c’

SLIDE 4

Directed Acyclic Graph

4

X Y M

SLIDE 5

5

Mediation is important because …

Central questions in many fields are about mediating processes Important for basic research on mechanisms of effects Critical for applied research, especially prevention and treatment Many interesting statistical and mathematical issues

SLIDE 6

6

Applications

Two overlapping applications of mediation analysis: (1) Mediation for Explanation (2) Mediation by Design

SLIDE 7

7

Mediation by Design

• Select mediating variables that are causally

related to an outcome variable.

• Intervention is designed to change these

mediators.

• If mediators are causally related to the
• utcome, then an intervention that changes

the mediator will change the outcome.

• Common in applied research like prevention

and treatment.

SLIDE 8

8

Intervention Mediation Model

MEDIATORS

M1, M2, M3, …

INTEREVENTION PROGRAM

X Y OUTCOMES

Action theory If the mediators selected are causally related to Y, then changing the mediators will change Y. Test of each theory is important when total effect is nonsignificant. Conceptual Theory

SLIDE 9

9

Mediation Regression Equations

• Tests of mediation for a single mediator use

information from some or all of three equations.

• The coefficients in the equations may be
• btained using methods such as ordinary least

squares regression, covariance structure analysis, or logistic regression. The following equations are in terms of linear regression and expectations. (Hyman, 1955; Judd & Kenny, 1981; Baron & Kenny, 1986)

SLIDE 10

10

Equation 1 Social Science

MEDIATOR M INDEPENDENT VARIABLE X Y DEPENDENT VARIABLE

c 1. The independent variable is related to the dependent variable:

SLIDE 11

11

Equation 1 Epidemiology

MEDIATOR M INDEPENDENT VARIABLE A Y DEPENDENT VARIABLE

ф1 1. The independent variable is related to the dependent variable:

SLIDE 12

12

Equation 2 Social Science

MEDIATOR M INDEPENDENT VARIABLE X Y DEPENDENT VARIABLE

• 2. The independent variable is related to the potential mediator:

a

SLIDE 13

13

Equation 2 Epidemiology

MEDIATOR M INDEPENDENT VARIABLE A Y DEPENDENT VARIABLE

• 2. The independent variable is related to the potential mediator:

β1

SLIDE 14

14

Equation 3 Social Science

MEDIATOR M INDEPENDENT VARIABLE X Y DEPENDENT VARIABLE

a

• 3. The mediator is related to the dependent variable controlling for

exposure to the independent variable: b c’

SLIDE 15

15

Equation 3 Epidemiology

MEDIATOR M INDEPENDENT VARIABLE A Y DEPENDENT VARIABLE

• 3. The mediator is related to the dependent variable controlling for

exposure to the independent variable: θ2 θ1

SLIDE 16

16

Effect Measures

Natural Indirect Effect = ab = c-c’ ab = c-c’ for ordinary least squares regression not nonlinear models like logistic regression. Direct effect= c’ Total effect= ab+c’=c Natural Indirect Effect = β1θ2 = ф1 - θ1 Direct effect= θ1 Total effect= β1θ2 + θ1 = ф 1

SLIDE 17

17

Social Science Equations with Covariate C.

E[Y|X=x, C=c] = i1+ c X + c2 C E[Y|X=x, M=m, C=c] = i2+ c’ X + b M + c3 C E[M|X=x, C=c] = i3+ a X + a2 C With XM interaction E[Y|X=x, M=m, C=c] = i4+ c’ X + b M + h XM + c4 C

SLIDE 18

18

Epidemiology Equations with Covariate C.

E[Y|A=a, C=c] = ф0+ ф1 A + ф2 C E[Y|A=a, M=m, C=c] = θ0+ θ1 A + θ2 M + θ4 C E[M|A=a, C=c] = β0+ β1 A + β2 C With AM interaction E[Y|A=a, M=m, C=c] = θ0+ θ1 A + θ2 M + θ3 AM + θ4 C VanderWeele (2010)

SLIDE 19

19

Identification Assumptions

• 1. No unmeasured X to Y confounders given

covariates.

• 2. No unmeasured M to Y confounders given

covariates.

• 3. No unmeasured X to M confounders given

covariates.

• 4. There is no effect of X that confounds the M to Y

relation. VanderWeele & VanSteelandt (2009)

SLIDE 20

20

Omitted Variables/Confounders

• (Judd & Kenny, 1981 p. 607): “… a mediational analysis may also

yield biased estimates because of omitted variables that cause both the outcome and one or more of the mediating variables. If variables that affect the outcome and ….mediating variables are not controlled in the analysis, biased estimates of the mediation process will result, even .. a randomized experimental research design ...”

• (James & Brett, 1984 p. 317-318): “… misspecification due to a

"serious" unmeasured variables problem. By a serious unmeasured variables problem is meant that a stable variable exists that (a) has a unique, nonminor, direct influence on an effect (either m or y, or both); (b) is related at least moderately to a measured cause of the effect (e.g., is related to x in the functional equation for m); and (c) is unmeasured—that is, is not included explicitly in the causal model and the confirmatory analysis (James, 1980; James et al., 1982).

SLIDE 21

21

Assumptions

• Reliable and valid measures.
• Data are a random sample from the population of

interest.

• Coefficients, a, b, c’ reflect true causal relations

and the correct functional form.

• Mediation chain is correct. Temporal ordering is

correct: X before M before Y.

• No moderator effects. The relation from X to M

and from M to Y are homogeneous across subgroups or other participant characteristics.

SLIDE 22

22

Significance Testing and Confidence Limits

Product of coefficients estimation, ab, of the mediated effect and standard error is the most general approach with best statistical properties for the linear model given

• assumptions. Best tests are the Joint Significance,

Distribution of the Product, and Bootstrap for confidence limit estimation and significance testing again under model assumptions. For nonlinear models and/or violation of model assumptions, the usual estimators are not necessarily

• accurate. New developments based on potential outcome

approaches provide more accurate estimators (Robins & Greenland, 1992; Pearl, 2001).

SLIDE 23

23

Testing Mediation When the Total Effect is Not Statistically Significant

• Test of ab can be more powerful than test of c, i.e.,

mediation more precisely explains how X affects Y.

• Lack of statistically significant c is very important for

mediation analysis because failure of treatment, relapse,

• r both theories is critical for future studies.
• Inconsistent mediation relations are possible because

adding a mediator may reveal a mediation relation.

• Note the test of c is important in its own right but is a

different test than the test for mediation. It is also a causal estimator.

SLIDE 24

24

More on Temporal Order Assumption

• Assume temporal ordering is correct: X before M

before Y.

• Assume that relations among X, M, and Y are at

equilibrium so the observed relations are not solely due to when they are measured, i.e., if measured 1 hour later a different model would apply.

• Assume correct timing and spacing of measures to

detect effects.

• But manipulations target specific times with many

patterns of change over time.

SLIDE 25

25

Judd & Kenny (1981)

• (Judd & Kenny, p. 613): While the estimation of

longitudinal multiple indicator process models is complex, it is also likely to be quite rewarding, since only through such an analysis can we glimpse the process whereby treatment effects are

• produced. Without knowledge of this process,

generalizing treatment effects may be difficult.

SLIDE 26

26

Judd & Kenny (1981)

• (Judd & Kenny, 1981 p. 611): Specifically we might include the

mediational and outcome constructs assessed at a point in time prior to the delivery of the treatment. … Here again we are assuming a randomized experimental research design, so that treatment is not related to any of the pretreatment measures. … we are reducing bias in the estimation of the mediational process by controlling for pretreatment differences on all mediating and outcome

• variables. … The success of this strategy depends on meeting two

assumptions besides the usual assumptions of ANCOVA … constructs must be assessed without error in order to adequately control for them. Second, assuming that the effects of all omitted variables that cause … Time 2 variables are mediated through the Time 1 variables

SLIDE 27

27

Mediation is a Longitudinal Model

• A mediator is a variable in a chain whereby an

independent variable causes the mediating variable which in turn causes the outcome variable—these are longitudinal relations. X, M, and Y in single mediator model imply longitudinal relations even if measured at the same time.

• For a single mediator model, temporal order for X

is clear when it represents random assignment, but the temporal order of M and Y must be based on prior research or theory.

SLIDE 28

28

Timing of Relations

• When does X affect M or M affect Y?
• Triggering, cascading, and other timing processes

(Tang & DeRubeis, 1999; Howe et al., 2002)

• Tang & DeRubeis (1999) found evidence that

change in therapy occurs within the first few sessions.

• How are decisions made about timing? Not often

considered in research projects except with respect to when a manipulation is made and the easiest time for data collection.

• Timing is crucial for deciding when to collect

longitudinal measures (Collins & Graham, 2003).

SLIDE 29

29

Cross-sectional models

Cross-section is a snapshot of relations. Models assume that a system has reached an equilibrium so observed relations are not just due to the particular point of observation. But systems may be dynamic and change over time in complicated ways. Meaning of cross-sectional relations (relation of rank order of level) is different from longitudinal relations (relation of rank order of change). Cross-sectional mediation may differ in many ways from longitudinal mediation. May take time for effects to occur. Size of effect depends on time lag- effect 1 day apart is likely different from an effect 1 year apart. (Cole & Maxwell, 2003; Gollob & Reichardt, 1991; MacKinnon, 2008; Maxwell & Cole 2007; Maxwell et al., 2012 and Commentaries in Multivariate Behavioral Research)

SLIDE 30

30

Benefits of Longitudinal Data

• Time-ordering of X to M to Y is
• investigated. Can shed light on whether

changes in M precede changes in Y.

• Both cross-sectional and longitudinal

relations can be examined.

• Removes some alternative explanations of

effects, e.g., effects of static variables can be removed.

SLIDE 31

31

What if repeated measures of X, M, and Y are available?

• Measures of X, M, and Y at two time points allow

for several options; difference score, ANCOVA, residualized change score, relative change…

• Measures of X, M, and Y at three or more time

points allow for many alternative longitudinal models.

• For many examples, X is measured once and

represents random assignment of participants to one

• f two groups. Other variables often do not

represent random assignment.

SLIDE 32

32

Stability, Stationarity, and Equilibrium

• Stability-the extent to which the mean of a

measure is the same across time.

• Stationarity-the extent to which relations among

variables are the same across time.

• Equilibrium-the extent to which a system has

stabilized so that the relations examined are the same over time. Cole & Maxwell, 2003; Dwyer, 1983; Kenny, 1979; MacKinnon, 2008; Wohlwill, 1973

SLIDE 33

33

Models for Two Waves

Difference Scores for X, M, and Y in the mediation regression equations. Analysis of Covariance where the baseline value of X, M, and Y is included as a predictor of the follow-up value

• f X, M, and Y.

Residual Change. Predict time 2 with time 1 and use the difference between the time 2 score and predicted time 2 score as the dependent variable. Relative Change. The change divided by the baseline measure or the natural logarithm of time 2 divided by time 1 (Tornqvist et al., 1985). Controversy over difference score versus ANCOVA models.

SLIDE 34

34

Regression to the Mean

Galton’s regression to mediocrity. Tall parents tend to have shorter children. Short parents tend to have taller children. Occurs when two variables are imperfectly related. Examples are the sophomore jinx and spontaneous remission. Galton squeeze diagrams to investigate regression to the mean. Lord’s (1967) paradox

SLIDE 35

35

Two-wave Longitudinal Model

BASELINE OUTCOME BASELINE MEDIATOR POST-TEST OUTCOME POST-TEST MEDIATOR PROGRAM

Mediated effect=a4b5 Direct effect = c’3 b1 c’3 a4 b5 b2

SLIDE 36

DAG with Confounder U X M1 Y1 Y2 M2 U

SLIDE 37

37

Summary of Two-Wave Models

Difference score versus ANCOVA models. For randomized X, ANCOVA has more statistical power. If there is a difference in the results between the two models, check for baseline differences. Difference score and residualized change measures are useful because they transform two measures to one measure, i.e., the difference score combines the time 1 mediator and time 2 mediator so all the models can be applied. Meaning of mediation with the different models differ: Correlated change scores, correlated adjusted time 2 scores. Note issue of Lord’s paradox for the M to Y relation because M is not randomized. More options with more waves of data. More complexity too though.

SLIDE 38

38

Models for Three or More Waves

Autoregressive Models Latent Growth Curve Models (LGM) Latent Change Score Models (LCS) Autoregressive and Latent Growth Curve Models (ALT) Differential Equation Models (DEM)

Others: Area Under the Curve, Multilevel Structural Equation Models, Survival Analysis, fractional polynomial (Royston & Altman, 1994), spline (Borghi et al., 2006), functional data analysis (Ramsay, 2005)

SLIDE 39

39

1

Χ

3

Χ

2

Χ

1

b

2

b

2



3



2 1 2 3 2 2 2 1 3 2 2 3 2 1 1 2

, , , , b b X b X X b X

x   

       

Autoregressive (Jöreskog, 1974)

SLIDE 40

40

Autoregressive Model with Time-Ordered Mediation, Cole & Maxwell, (2003); MacKinnon (1994, 2008)

1



1



1

X

2



2



3



3



2

b

2

c

1

a

2

s

1

c

2

s

3

s

3

s

1

b Note: Residuals at the same time are correlated

SLIDE 41

41

Autoregressive Models

• Many mediated effects. Standard error of the sum of

(or any function) the indirect effects can be derived with the multivariate delta method or resampling methods.

• Model does not allow for random effects for

individual change and does not include modeling of

• means. Change in growth of means is an important

aspect of longitudinal data.

SLIDE 42

42

Latent Growth Model (LGM) I S X1 X2 X3

1 1 1 1 2

ε1 ε2 ε3

Meredith & Tisak (1990)

Means S I X S I X S I X

IS S I

, , , , , , 2 1

2 2 2 3 2 2 2 1 3 3 2 2 1 1

        

  

        

SLIDE 43

43

Χ

1

Μ

2

Μ

3

Μ

1

Υ

2

Υ

3

Υ

m

s

y

i

y

s

m

i

Latent Growth Curve (Model Cheong et al., 2003)

b ' c a

SLIDE 44

44

Latent Growth Models (LGM)

• LGM models change over time by estimating an intercept

and slope for change in variables. These models can be used to investigate mediation by estimating change over time for the mediator and change over time for the outcome. The relation between the change in the mediator and change in the outcome represents the b path (Cheong et al. 2003).

• The causal direction of correlated change is ambiguous.

Another LGM estimates change in the mediator at earlier time points and relates to change in the outcome at later time points providing more evidence for temporal precedence of the mediator.

SLIDE 45

D.P. MacKinnon

Latent Change Score (LCS)

McArdle (2001) ε2 ε3

β1

D2

β2

D1

1 1

X1 X2 X3

1 1

Means X B D X B D D X X D X X

x

, , , , ,

2 1 2 3 2 2 2 1 2 2 2 1 1 1 3 2 2 3 2 1 1 2

      

 

       

SLIDE 46

D.P. MacKinnon

Latent Change Score Mediation Model

3

Y

2

Y

3

Y

1

M

2

M

3

M

1

Y

2

Y

3

Y

1

M

2

M

3

M

M



M



Y



Y



1 1 1 1 1 1 1 1 1 1 1

1

a

2

a

1

b

2

b

3

b

1

c

2

c

1

X

SLIDE 47

47

Latent Change Score Models (LCS)

• LCS parameterizes models so that change between adjacent

waves is analyzed.

• Really a special case of latent growth curve modeling but

with growth between adjacent waves.

• More complicated change over time can be made by picking

different coefficients and second order factors. Second order factors can be change in change or second derivatives.

• Promising model not often used for mediation analysis.

Promising in that often theory predicts effects at different change points.

SLIDE 48

48

Longitudinal models for a steroid prevention project (ATLAS)

• Adolescents Teaching and Learning to Avoid Steroids (ATLAS).

Randomized high school football teams in Oregon and Washington to receive the steroid prevention program or an information only group. Just individual data here.

• Measured the same persons over repeated occasions. Here we will

look at preliminary models for four repeated measures. The dependent variable is intentions to use steroids.

• Linn Goldberg (OHSU) principal investigator. For more on the

program see Goldberg et al. (1996) and for mediation see MacKinnon et al., (2001). LGM Cheong et al., (2003).

• Program delivered after baseline measurement. In general, timing
• f the mediators should be relatively quick for knowledge and

beliefs measures. It may take longer for norms measures. Four waves of measurement for the models studied.

SLIDE 49

49

Analysis decisions

• LGM model, slope coded as 0 1 * 1 where * indicates a

free parameter. Note that there was a booster after the 3rd measurement. If the model was not identified, then loadings were 0 2.5 * 14.5 to represent the months from

• baseline. All LGM models had RMSEA lower than .041

(lowest .019).

• Autoregressive model. Tested for stationarity in the a

and b paths. Stationarity observed more often for b paths and less often for a paths, as expected. All RMSEAs lower than .088 (lowest was .068).

SLIDE 50

50

LGM and Autoregressive mediation effects

Mediator LGM Autoregressive ab(se) z a1b2(se) z

Knowledge

• .28(.12) -4.88
• .08(.02) -4.90

Coach Tol

• .11(.05) -2.27
• .02(.01) -3.24

Team as info

• .21(.06) -3.42
• .04(.02) -3.30

Peer as info

• .12(.05) -2.43
• .04(.01)
• 2.30

Reasons not use -.12(.04) -2.98

• .02(.01) -3.01

Normative bel

• .12(.07) -1.64
• .00(.00) -0.14

SLIDE 51

51

Modern Causal Inference for Longitudinal Data 1

Time varying effects lead to complexities when interpreting causal effects. Changes at earlier waves could cause subsequent variables that complicate model interpretation. For example, the relation of M to Y at each wave can lead to complications. Should earlier measures of M or Y be included in the prediction of later waves of data? Problem of collider bias.

SLIDE 52

52

Modern Causal Inference for Longitudinal Data 2

Specify longitudinal models in a potential outcome and causal framework. G-computation ~ standardization where predictions are made for factual and counterfactual data. G-estimation to obtain a parameter value that removes effect of interest. Marginal Structural Model with inverse probability weighting to weight observations by amount of confounding. (Robins 1986, 1989, 1999 and colleagues)

SLIDE 53

53

Marginal Structural Model IPW Example

Obtain predictors of M that will render M unaffected by confounders L. Note that this assumes that all confounders are in the statistical model-the no unmeasured confounders assumption. The method uses inverse probability weighting to reweight participants according to exposure to treatment and values of confounders. (Coffman,

2011; Robins, Hernan, & Brumbeck, 2000).

SLIDE 54

54

ATLAS IPW Analysis

• Confounders may explain the relation of M to Y in

these data. It would be useful to apply a method that adjusts for this discrepancy.

• A large number of measures were used in the

propensity model.

• The effects of the intervention were not large so it is

possible that these effects would be attenuated after adjustment.

• Team social norm mediator and nutrition behavior
• utcome.

SLIDE 55

55

Predictors of M

Ethnicity, grade in school, school has a gym Baseline grade point average, peers as an information source, body image, intent to use steroids, communication skills, perceived susceptibility to steroid use, knowledge of anabolic steroid effects, positive aspects of steroids, self esteem, depression, win-at-all costs attitude, perceived severity of steroid use, coach tolerance for steroids, attitudes about steroid users.

SLIDE 56

56

ATLAS Data No Adjustment

Standard 95% Confidence Parameter Estimate Error Limits Z Pr > |Z| Intercept 0.0081 0.0389 -0.0682 0.0844 0.21 0.8351 X 0.4262 0.0668 0.2954 0.5571 6.38 <.0001 M 0.1715 0.0315 0.1098 0.2331 5.45 <.0001

SLIDE 57

57

ATLAS IPW Results

Standard 95% Confidence Parameter Estimate Error Limits Z Pr > |Z| Intercept -0.0035 0.0395 -0.0810 0.0739 -0.09 0.9290 X 0.4237 0.0681 0.2903 0.5572 6.22 <.0001 M 0.1287 0.0323 0.0655 0.1920 3.99 <.0001 Weights ranged from .2 to about 7 IPW Confidence Limits UCL=.113 LCL=.034 Usual Confidence Limiits UCL=.135 LCL=.059

SLIDE 58

58

More Complexities of Longitudinal Modeling

• Does the measure have the same meaning at each

wave? X, M, and Y at an earlier developmental stage may differ from X, M, and Y at a later stage. Relations between change in X on M and change in M on Y may differ.

• Timing of measurement should match theoretical
• change. Transitions are important, e.g., home to

elementary school, elementary to high school, high school to workforce/college. Sleeper Effects. Measure at appropriate times to capture effects.

SLIDE 59

59

Types of change over time

• Cumulative: There may be cumulative effects such that

more M yields more Y.

• Threshold: Once a mediator gets to a certain level, then it

will change Y. Once a level of a mediator is reached, the individual changes to a new level, e.g., learning a concept in algebra.

• Saltation and stasis: Change occurs rapidly after no

previous change, e.g., human growth (Lampl et al., 1992)

• The types of changes may differ over time. And change for

X to M to may differ for M to Y—nonlinear relations.

SLIDE 60

60

Person-oriented Methods

• Focus on patterns of responses by individuals.
• Classifies individuals based on their responses, such

as whether their responses are consistent with mediation or not.

• Configural Frequency Analysis, Latent Class

Analysis, Markov Models, are examples…

• Complement for variable-oriented methods, may

provide different information.

• Combination of both approaches for mediation in

mixture models is an active area of research.

SLIDE 61

61

Summary

• Mediation is a Longitudinal model.
• Many alternative models that provide different

information about mediation effects.

• Often requires an iterative process to model

longitudinal data.

• Lots of methods work needs to be done to

understand these models: causal inference, model equivalence, validity of assumptions.

• Need examples of applying the models to real data.

SLIDE 62

62

Thank You

References available by sending me an e-mail at David.MacKinnon@asu.edu

Most topics are covered in MacKinnon (2008). Introduction to Statistical Mediation Analysis, Erlbaum; Mahwah, NJ. e.g., Causal Inference circa 2008 Chapter 13, Longitudinal Mediation models in Chapter 8, and background for mediation in Chapters 1 and 2. See website for Research In Prevention Laboratory

http://www.public.asu.edu/~davidpm/

SLIDE 63

63

Hypothesized Effects of Ghent Mediation Analysis Presentation

Ghent Presentation # Accurate Mediation Analyses Mediation Awareness Knowledge of Longitudinal Models Models for different number of waves Importance of Causal Inference Methods

SLIDE 64

64

General Autoregressive Model

1



1



1

X

2



2



2

X

3



3



3

X

Note: All residuals are correlated at the same time are correlated

SLIDE 65

65

Autoregressive Model with Time-Ordered Mediation, Cole & Maxwell (2003)

1



1



1

X

2



2



2

X

3



3



3

X

2

b

2

c

1

s

2

a

1

a

2

s

1

s

1

c

2

s

3

s

3

s

1

b Note: All residuals at the same time are correlated

SLIDE 66

66

1

Χ

2

Χ

3

Χ

1

Μ

2

Μ

3

Μ

1

Υ

2

Υ

3

Υ

x

i

m

s

x

s

y

i

y

s

m

i

Latent Growth Curve Model

a b

1

c

SLIDE 67

Nutrit1 Nutrit2 Nutrit3 Nutrit5

1 1 1 1 1 1

Program PerIn1 PerIn2 PerIn3 PerIn5

1 1 1 1 1

PerIn6 PerIn4

1 1 1 1

Nutrit6 Nutrit4

1 1 1

 2

 3  4  1

1 1

a c’ b

SLIDE 68

68

Nutrit3 Nutrit5

1 1 1 1

Program PerIn1 PerIn2 PerIn3

1 1 1 1

Nutrit6 Nutrit4

1 1 1

 2

 3  4  1

1 1

a c’ b

SLIDE 69

2/1/2013 D.P. MacKinnon

Latent Change Score Mediation Model

3

X

1

X

2

X

1

X

3

X

2

X

3

Y

2

Y

3

Y

1

M

2

M

3

M

x



1

Y

2

Y

3

Y

x



1

M

2

M

3

M

M



M



Y



Y



1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1

1

a

2

a

1

b

2

b

3

a

3

b

1

c

2

c

3

c
