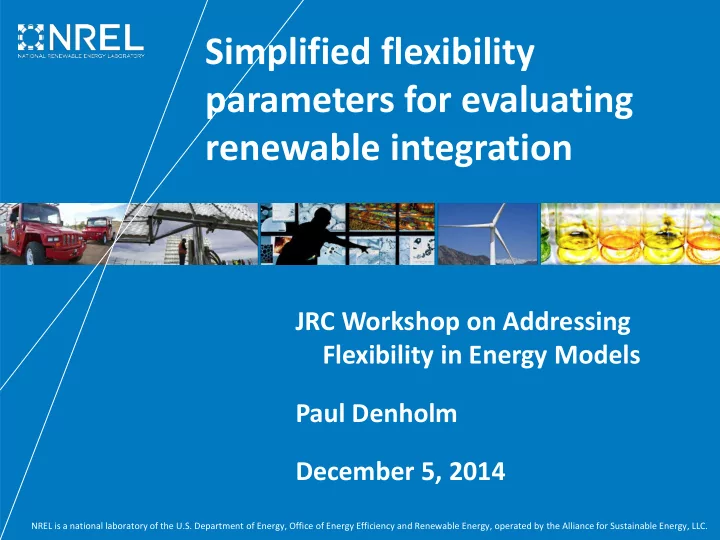

Simplified flexibility parameters for evaluating renewable integration

JRC Workshop on Addressing Flexibility in Energy Models Paul Denholm December 5, 2014

2

Approaches to Capacity Expansion Planning

• Traditional load-duration curve approaches
• Screening curves identify least cost mixes based on

levelized cost of energy

• Doesn’t incorporate any chronological (time-series)

analysis

• Linear and Mixed-Integer optimization
• Finds lowest cost mix based on a life-cycle cost
• Can incorporate chronology in the objective function
• But full year hourly (or sub-hourly) simulations are

computationally complex

3

Approaches to Incorporating Time Series in Capacity Expansion Models

• Reduced set of time-periods
• Full time-series for a few weeks that (hopefully)

represent the entire year

• Variable generation makes picking “typical” periods

challenging

• Time-slice (non chronological) approach
• Estimates typical dispatch characteristics in a set of

representative time periods

• Requires establishing parametric relationships for key

parameters such as curtailment

• NREL approach in the ReEDS models

4

NREL’s Grid Modeling Tools

5

ReEDS Model

A spatially and temporally resolved model of capacity expansion in the U.S. electric sector. Designed to explore potential electric-sector growth scenarios in the U.S. out to 2050 under different economic, technology, and policy assumptions.

(Regional Energy Deployment System Model)

6

ReEDS Model: History and Team

Current team is ~10 staff (not all full-time on ReEDS). Selected studies:

• 2008 20% Wind Vision
• 2012 Renewable

Electricity Futures

• 2012 SunShot
• Various RPS, CES, PTC,

… analyses ReEDS has been in use for >10 years, with a steady increase in sophistication and capabilities over that time.

7

What does ReEDS do?

• Each 2-year solve produces a set of new investments and

described operation of new and existing fleet.

• Between solves, ReEDS updates:
• Existing generator fleet, including retirements
• Existing transmission
• Performance of existing fleet
• Costs/performance of new technologies
• Electricity demand, reserve margin requirements
• Variable renewable capacity values, curtailment, operating reserve

requirements

• Skip forward two years, and solve again.

8

Reduced-form Dispatch

Seventeen time-slices: four seasons x four diurnal + one superpeak. Continuous units: minimum turndown, but no startup or shutdown, flat heatrate. Constraints guarantee adequacy requirements and ancillary services.

9

Modeling Framework

Technology cost & performance Resource availability Demand projection Demand-side technologies Grid operations Transmission costs

Black & Veatch Technology Teams Flexible Resources End-Use Electricity System Operations Transmission

ABB inc. GridView

(hourly production cost)

rooftop PV penetration 2050 mix

• f generators

does it balance hourly?

Implications

GHG Emissions Water Use Land Use Direct Costs Capacity & Generation 2010-2050

10

Integration with Operational Model

• To supplement ReEDS’ reduced-form unit-commitment model, for the REF

analysis we rebuilt ReEDS infrastructure in GridView, a commercial production cost model to test how the ReEDS-projected infrastructure might behave in an hourly dispatch.

• We are now automating the capability, using PLEXOS this time instead of

GridView.

11

UC on NREL’s HPC

Peregrine Characteristics:

• 11520 Intel Xeon E5-2670 "SandyBridge" cores
• 14400 next-generation Intel Xeon "Ivy Bridge"

core

• 576 Intel Phi Intel Many Integrated Core (MIC)

core co-processors with 60+ cores each

• 32 GB DDR3 1600Mhz memory per node
• Peregrine will deliver a peak performance of 1

petaFLOPS

NREL PIX 24580

12

Can we include more chronology in the objective function?

• Fundamental tradeoff between chronology and

simplicity.

• But can we incorporate full chronological simulations

but avoid many of the key complications?

• Unit commitment
• Full storage optimization
• Can reduced form chronological simulations still

provide valuable insights?

• And is 1-hour simulation good enough?

13

Renewable Energy Flexibility (REFlex) Model

• Dispatch only model
• Block dispatch by generator type
• Simplify key parameters traditionally

captured in unit commitment

• Minimum generation point for thermal generation
• Minimum thermal generation for ramp
• Simplified valley-filling algorithm for storage

and DR dispatch

14

What can this approach do?

• Analyze optimal mixes of VG in high penetration

scenario

• Examine curtailment
• Analyze impact of storage and DR
• Run very fast
• What it can’t (probably) do:
• Optimize new conventional generation mix in low VG

scenarios

• Basically assumes thermal fleet is relatively static or

decaling

15

Example – Curtailment Analysis

• At high penetration, economic limits will be due to

curtailment

• Limited coincidence of VG supply and normal demand
• Minimum load constraints on thermal generators
• Thermal generators kept online for operating reserves

16

16

Minimum Generation Levels Limited by Baseload Capacity

Price/Load Relationship in PJM Below Cost Bids

50 100 150 200 250 10000 20000 30000 40000 50000 60000 Load (MW) Wholesale Price ($/MWh)

5 10 15 20 25 30 35 18000 20000 22000 24000 26000 Load (MW) Wholesale Price ($/MWh)

17

17

Min den depends on VG Mix

17

18

Example – Curtailment as a Function of Penetration

0% 5% 10% 15% 20% 25% 30% 35% 40% 45% 50% 20% 30% 40% 50% 60% 70% 80%

Fraction of System Electricity from Solar and Wind Fraction of VG Curtailed

0/100 20/80 30/70 40/60 60/40 80/20 Solar / Wind Mix

Reflex < 1 Minutes per run

19

Results from Full UC/ED Model

PLEXOS Simulations (DAUC/SCED) ~5 Hours per run

20

Example – Storage Dispatch

• Full storage optimization is computationally

complex

• Valley filling (search) algorithms can be much

faster

21

National Renewable Energy Laboratory Innovation for Our Energy Future

REFlex CSP Dispatch

10 20 30 40 50 60 70 1 6 11 16 21 26 31 36 41 46 51 56 61 66 71 76 81 86 91 96 Hour Generation (GW) Curtailed Solar Dispatched CSP Usable PV Wind Conventionals Load Non-Dispatched CSP Dispatched CSP

Dispatch of CSP May 10-13

22

National Renewable Energy Laboratory Innovation for Our Energy Future

PLEXOS CSP Dispatch

Dispatch of CSP in WWSIS-2 Study (July)

5,000 10,000 15,000 20,000 25,000 30,000 35,000 40,000 45,000 20,000 40,000 60,000 80,000 100,000 120,000 140,000 24 48 72 96 120 144 168 CSP Inflow/Generation (MW) Net Load (MW) Hour Net Load with Wind and PV CSP Inflow CSP Generation

23

Example –Energy Storage

0% 5% 10% 15% 20% 25% 30% 35% 40% 20% 30% 40% 50% 60% 70% 80%

Fraction of System Electricity from Wind&Solar Fraction of VG Curtailed

No Storage 4 hours 8 hours 12 hours 24 hours

24

Example – Electric Vehicle Charging

0.0 0.2 0.4 0.6 0.8 1.0 1.2 1.4 1.6 0:00 1:00 2:00 3:00 4:00 5:00 6:00 7:00 8:00 9:00 10:00 11:00 12:00 13:00 14:00 15:00 16:00 17:00 18:00 19:00 20:00 21:00 22:00 23:00 Average Charging Demand Per Vehicle (kW) Time (In 5-Minute Intervals) SUV-40 SUV-20 Sedan-40 Sedan-20 5000 10000 15000 20000 25000 30000 35000 40000 45000 24 48 72 96 Load (MW) Hour Net Load with PV Normal Load Solar PV Output

Vehicle Availability High PV Impacts

25

Example – Electric Vehicle Charging

Overnight

• ptimized,

uncontrolled daytime charging Optimized

• vernight,

imperfect foresight daytime

5000 10000 15000 20000 25000 30000 35000 40000 45000 24 48 72 96

Load (MW) Hour Net Load with PHEVs & PV Normal Load Net Load with PV PHEV Charging Profile

5000 10000 15000 20000 25000 30000 35000 40000 45000 24 48 72 96

Load (MW) Hour Net Load with PHEVs & PV Normal Load Net Load with PV PHEV Charging Profile

26

What else can we ignore?

• Subhourly Dispatch?
• Incorporation of cycling costs into UC/ED

process?

27

Example: Western Wind and Solar Integration Study

• Phase 3: Frequency Response and Grid Impact

Phase 2: Cycling Cost and Emissions Impacts  What happens to the transmission grid’s frequency with high penetration of distributed PV at low load?  What happens to the grid when remote transmission lines are highly- loaded to move wind long distances? From a system perspective, cycling costs are relatively small Emissions impacts of cycling are relatively small

28

5- minute dispatch

120000 121000 122000 123000 124000 125000 126000 127000 128000 129000 130000 0:00 0:20 0:40 1:00 1:20 1:40 2:00 1-Hour 5-Minute

UC based on this 1- hour ramp rate This 5-minute ramp may exceed committed capability

29

Methodology

• PLEXOS unit commitment and dispatch

modeling

• Day ahead market (hourly)

– Coal and nuclear units committed

• 4 hour ahead market (hourly)

– Better forecasts – Gas CC and steam units committed

• Real time market (tested hourly vs subhourly)

– Gas CT committed and dispatched

30

WWSIS Core Scenarios

Wind Capacity (MW) 710 to 1,650 140 to 710 110 to 140 70 to 110 10 to 70 PV Cpacity (MW) 76 to 200 51 to 76 29 to 51 10 to 29 0 to 10 CSP Capacity (MW) 199 to 200 142 to 199 105 to 142 84 to 105 64 to 84

Reference 8% wind 3% solar High Mix 16.5% wind 16.5% solar

31

Consistency between cases

• Constant
• Commitment of non-CT generators
• Planned hourly hydro generation
• Reserve requirements
• Changes
• Interval of real-time dispatch (5-min and hourly

tested)

32

2-part heat rate curves

Another area of sensitivity analysis needed….

33

Difference between hourly and 5-min net load

July 25-28

34

Difference between hourly and 5-min net load

5 Minute net load and interpolated hourly net load (load – mind – PV)

35

Difference between hourly and 5-min net load

2000 4000 6000 8000 10000 12000 14000 16000

• 2.5
• 2.2
• 1.9
• 1.6
• 1.3
• 1
• 0.7
• 0.4
• 0.1

0.2 0.5 0.8 1.1 1.4 1.7 2 2.3 More Frequency Percent difference

36

Run Times

• Day Ahead UC ~ 3 days
• 4-Hour Ahead UC ~1 Day
• 5-Minute Dispatch ~ 2 Days
• Approximately 12 times longer than 1-hour

dispatch

• What do we get for this increase in run time?

37

Results

• No unserved load
• Some change in unserved reserves
• Very little change in total production cost
• Occasionally significant change in LMPS

38

Unserved load and reserves

• No unserved load in any scenario
• Reserve requirement totals ~40 TW-h
• Unserved reserves

HiMix Reference RT – hourly resolution 138 MW-h 178 MW-h RT – 5-minute resolution 263 MW-h 337 MW-h (0.0008%)

39

5-minute resolution dispatch stack

40

Hourly resolution dispatch stack

41

Total production costs

HiMix Reference RT – hourly resolution $11.03 billion $15.12 billion RT – 5-minute resolution $11.02 billion $15.13 billion Changes in production cost between hourly and 5-min runs are within the range of uncertainty

42

Generation by type

43

Number of starts

44

Curtailment

45

Price differences

Demand response deployments

46

My Opinions

• Full unit commitment is desirable, but unless we

get a 100x plus increase in speed we need to simplify the problem

• Capacity expansion problems don’t lend

themselves to traditional parallelization

• Simplification of UC with simplified parameters

appears to produce reasonable representation

• f thermal fleet under high VG scenarios
• Simple time-shifting storage optimization

appears to produce reasonable results

47

Concluding Thoughts

• Does importance of accurate unit

commitment simulation decrease in high renewable scenarios?

• Retirement of long-start units leads to UC being a

hour-ahead problem vs. a day-ahead problem

• Increased importance of chronological

simulation for demand response, energy storage

48

Flexibility Metrics?

Input Metrics

• Ramp Rate
• Ramp Rate
• Transition Time
• Start-up
• Min Up/Down

Time Output Metrics

• Loss of Load

Expectation

• Reserve Violations
• Unmet ramp

requirement Outcome Metrics

• System

Costs/Benefits

• Carrying Capacity

Paul.denholm@nrel.gov
