2019 & 23 Draft LCR Study Results Sierra and Stockton Areas Ebrahim Rahimi Lead Regional Transmission Engineer Stakeholder Meeting April 9, 2018 ISO Public ISO Public Sierra Area Load and Resources (MW) 2019 2023 Load =

slide-1
SLIDE 1

ISO Public ISO Public

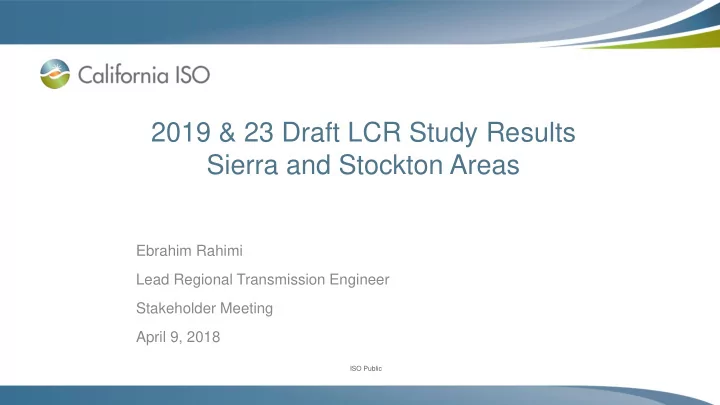

2019 & 23 Draft LCR Study Results Sierra and Stockton Areas

Ebrahim Rahimi Lead Regional Transmission Engineer Stakeholder Meeting April 9, 2018

slide-2
SLIDE 2

ISO Public

Sierra Area Load and Resources (MW)

Load = 1,768 1,819 AAEE =

  • 19
  • 66

BTM-PV =

  • 78
  • 18

Transmission Losses = 87 87 Total Load = 1,758 1,822 Market Generation = 999 999 Muni Generation = 1,108 1,108 QF Generation = 38 38 Total Qualifying Capacity = 2,145 2,145

2019 2023

Slide 2

slide-3
SLIDE 3

ISO Public

Northern Sierra

Slide 3 Palermo Colgate PH

Bangor

Smartville To Woodland To West Sac. Drum Atlantic

Rio Oso

Pease Honcut E. Marysville Olivehur st Bogue

  • E. Nicolaus

To Table Mtn. Encinal Live Oak Barry Tudor Harter

Browns Vly Yuba Goldfields

Narrows Lincoln Pleasant Grove

Formica SPI Camp Far West Beal AFB Catlett

Grass Vly Alleghany

Pike City Columbia Hill

Deer Creek

Weimar

Shady Glen Rollins PH Bonnie Nook Cape Horn

Plumas To Sacramento

slide-4
SLIDE 4

ISO Public

Southern Sierra

Slide 4

Rio Oso Gold Hill

Atlantic Del Mar

Rocklin Taylor Rd Penryn Sierra Pine To Pleasant Grove Horsesho e Newcastle PH Clarksville Flint Shingle Springs Diamond Springs Eldorado PH Placerville Apple Hill To Middle Fork To Stockton Area Wise PH

Placer

Auburn Mtn. Quarries Halsey PH

Weimar

Rollins PH To Grass Vly. Shady Glen Foresthill Oxbow PH

Bell Higgins

Chicago Park PH Dutch Flat #1 PH

Drum

Bonnie Nook Spaulding PH To Summit Cisco Grove Tamarack Ralston PH Middle Fork PH

French Meadows PH

Hell Hole PH Dutch Flat #2 PH Brunswick

slide-5
SLIDE 5

ISO Public

New transmission projects modeled:

Slide 5

2019

  • 1. Gold Hill-Missouri Flat #1 and #2 115 kV line reconductoring

2023

  • 1. Rio Oso #1 and #2 230/115 kV transformer replacement
  • 2. Pease 115/60 kV transformer addition
  • 3. South of Palermo 115 kV Reinforcement
slide-6
SLIDE 6

ISO Public

Pease Sub-Area

Pease Sub-area – Category C

Contingency: 2019: Pease 115/60 kV Tx and Yuba City Unit. 2023:Palermo-Pease 115 kV line and Rio Oso-Pease 115 kV line Limiting component: Thermal overload on Table Mountain-Pease 60 kV line 2019 LCR need: 92 MW 2023 LCR need: 75 MW

Pease Sub-area – Category B

Contingency: Palermo-East Nicolaus 115 kV line and Yuba City unit Limiting component: Thermal overload on the Palermo-Pease 115 kV line 2019 LCR need: 79 MW 2023 LCR need: No requirement

Slide 6

slide-7
SLIDE 7

ISO Public

Placer Sub-Area

Placer Sub-area – Category C

Contingency: Gold Hill-Placer #1 and #2 115 kV lines Limiting component: Thermal overload on the Drum-Higgins 115 kV line 2019 LCR need: 77 MW 2023 LCR need: 82 MW

Placer Sub-area – Category B

Contingency: Gold Hill-Placer #1 115 kV line and Chicago Park unit Limiting component: Thermal overload on the Drum-Higgins 115 kV line 2019 LCR need: 64 MW 2023 LCR need: 89 MW

Slide 7

slide-8
SLIDE 8

ISO Public

Placerville Sub-Area

Placerville Sub-area – Category C

2019 and 2023 LCR need: No requirements

Placerville Sub-area – Category B

2019 and 2023 LCR need: No requirements

Slide 8

slide-9
SLIDE 9

ISO Public

Drum-Rio Oso Sub-Area

Drum-Rio Oso Sub-area – Category C

Contingency: Rio Oso #2 230/115 kV Tx. and Rio Oso-Brighton 230 kV line Limiting component: Thermal overload on the Rio Oso #1 230/115 kV Tx. 2019 LCR need: 506 MW

Drum-Rio Oso Sub-area – Category B

Contingency: Palermo #2 230/115 kV transformer Limiting component: Thermal overload on the Rio Oso #1 230/115 kV Tx. 2019 LCR need: 378 MW 2023 LCR need: No requirements.

Slide 9

slide-10
SLIDE 10

ISO Public

South of Rio Oso Sub-Area

South of Rio Oso Sub-area – Category C

Contingency: Rio Oso-Gold Hill and Rio Oso-Atlantic 230 kV lines for 2019 and Rio Oso-Gold Hill and Rio Oso-Brighton 230 kV lines for 2023 Limiting component: Thermal overload on the Rio Oso-Brighton 230 kV line for 2019 and Rio Oso-Atlantic 230 kV line for 2023 2019 LCR need: 831 MW (includes 104 MW of deficiency) 2023 LCR need: 554 MW

South of Rio Oso Sub-area – Category B

Contingency: Rio Oso-Gold Hill 230 kV line and Ralston unit Limiting component: Thermal overload on the Rio Oso-Atlantic 230 kV line 2019 LCR need: 507 MW 2023 LCR need: 416 MW

Slide 10

slide-11
SLIDE 11

ISO Public

South of Palermo Sub-Area

South of Palermo Sub-area – Category C

Contingency: DCTL Table Mountain-Rio Oso and Colgate-Rio Oso 230 kV lines Limiting component: Thermal overload on the Pease-Rio Oso 115 kV line 2019 LCR need: 1,702 MW (includes 287 MW of deficiency)

South of Palermo Sub-area – Category B

Contingency: Colgate-Rio Oso 230 kV line with Belden unit out of service Limiting component: Thermal overload on the Pease-Rio Oso115 kV line 2019 LCR need: 1,283 MW 2023 LCR need: No additional requirements. Units needed for Pease and South

  • f Rio Oso sub-areas, satisfy Category B and C requirements for this area.

Slide 11

slide-12
SLIDE 12

ISO Public

Overall Sierra

South of Table Mountain Sub-area – Category C

Contingency: DCTL outage Table Mountain-Rio Oso 230 kV and Table Mountain-Palermo 230 kV Limiting component: Thermal overload on the Caribou-Palermo 115 kV line 2019 LCR need: 1,964 MW 2023 LCR need: 1,924 MW

South of Table Mountain Sub-area – Category B

2019 LCR need: No additional category B requirement. Units required for South of Palermo satisfy the category B requirement for this sub-area. Contingency: Table Mountain-Rio Oso 230 kV line with Belden Unit out Limiting component: Table Mountain-Pease 60 kV line 2023 LCR need: 1,268 MW

Slide 12

slide-13
SLIDE 13

ISO Public

Sierra Area LCR: Aggregate

Each unit is only counted once, regardless in how many sub-areas it is needed. In order to come up with an aggregate deficiency, where applicable the deficiencies in each smaller sub-area has been accounted for (based on their effectiveness factors) toward the deficiency of a much larger sub-area.

Slide 13

Available generation Market (MW) Muni (MW) QF (MW) Max. Qualifying Capacity (MW) 2019 999 1,108 38 2,145 2023 999 1,108 38 2,145 2019 2023 Contingency Existing Generation Capacity Needed (MW) Deficiency (MW) Total MW Need Existing Generation Capacity Needed (MW) Deficiency (MW) Total MW Need Category B (Single) 1,362 1,362 1,268 1,268 Category C (Multiple) 1,964 287 2,251 1,924 1,924

slide-14
SLIDE 14

ISO Public

Changes

Since last year:

  • Updated NQC
  • 2019 load forecast went down by 60 MW vs. 2018.
  • Overall LCR need has increased by 138 MW due to load and generation

distribution.

  • 2023 load forecast went up by 8 MW vs. 2022.
  • Overall LCR need has decreased by 43 MW as transmission development

addressed deficient area

Slide 14

slide-15
SLIDE 15

ISO Public

Stockton Area Load and Resources (MW)

Slide 15

Load = 1,204 1,278 AAEE =

  • 18
  • 63

BTM-PV =

  • 32
  • 8

Transmission Losses = 20 20 Total Load = 1,174 1,227 QF Generation = 18 18 Muni Generation = 126 126 Market Generation = 492 543 Total Qualifying Capacity = 636 687

2019 2023

slide-16
SLIDE 16

ISO Public

Stockton Area

Slide 16 To Rio Oso Tesla Stagg Eight Mile Lodi Stig To Gold Hill Lockeford To Brighton Bellota Weber Ellis Tracy Kasson

Howland Road

Vierra

Safeway

GWF

Owens Illinois

Lammers

AEC Salado Miller

Ingram Creek Modesto Energy Teichert Lawrence Lab

Leprino Food Ripon Co- Gen Stanislaus PH Riverbank Melones

Tulloch PH Curtis

Fiberboard Racetrack Donnells PH Manteca Stockton “A” To Gold Hill Lodi Industrial Valley Springs

Country Club

Mosher

Hammer Mettler Martell Pardee PH

West Pnt Electra Pine Grove Ione Clay

Corral Linden

Mormon East Stockton

Salado Banta

Gustine Crows Lndg. Newman Terminous New Hope Sebastiani W Colony Victor

slide-17
SLIDE 17

ISO Public

New transmission projects modeled:

Slide 17

2019

  • 1. Weber-Stockton A #1 & #2 60 kV lines Reconductor
  • 2. Ripon 115 kV Line

2023

  • 3. Vierra 115 kV Looping Project
slide-18
SLIDE 18

ISO Public

Weber Sub-Area

Slide 18

Weber Sub-area – Category C

Contingency: Stockton A-Weber #1 and #2 60 kV lines Limiting component: Stockton A-Weber #3 60 kV 2019 LCR need: 21 MW 2023 LCR need: 17 MW

Weber Sub-area – Category B

2019 and 2023 LCR need: No requirement

slide-19
SLIDE 19

ISO Public

Lockeford Sub-Area

Lockeford Sub-area – Category C

Contingency: Lockeford-Industrial and Lockeford-Lodi #2 60 kV lines Limiting component: Thermal overload on the Lockeford-Lodi #3 60 kV line 2019 LCR need: 83 MW (includes 59 MW of deficiency) 2023 LCR need: 103 MW (includes 79 MW of deficiency)

Lockeford Sub-area – Category B

Contingency: Lockeford-Industrial Line and Lodi CT Unit Limiting component: Thermal overload on the Lockeford-Lodi #2 60 kV line 2019 LCR need: 29 MW (includes 5 MW of deficiency) 2023 LCR need: 44 MW (includes 20 MW of deficiency)

Slide 19

slide-20
SLIDE 20

ISO Public

Stanislaus Sub-Area

Stanislaus Sub-area – Category C

2019 and 2023 LCR need: Same as Category B.

Stanislaus Sub-area – Category B

Contingency: Bellota-Riverbank-Melones 115 kV line and Stanislaus PH Limiting component: Thermal overload on the River Bank Jct.-Manteca 115 kV line 2019 LCR need: 152 MW 2023 LCR need: 147 MW

Slide 20

slide-21
SLIDE 21

ISO Public

Tesla-Bellota Sub-Area

Tesla-Bellota Sub-area – Category C

Contingency 1: Schulte-Lammers and Schulte-Kasson-Manteca 115 kV lines. Limiting component 1: Thermal overload on the Tesla-Tracy 115 kV line. 2019 Need: 532 MW (includes 291 MW of deficiency). 2023 Need: 319 MW (includes 78 MW of deficiency). Contingency 2: Tesla-Tracy 115 kV line and Tesla-Schulte #1 115 kV line. Limiting component 2: Thermal overload on the Tesla-Schulte #2 115 kV line. 2019 Need: 382 MW 2023 Need: 201 MW 2019 LCR need: 673 MW (includes 291 MW of deficiency) 2023 LCR need: 319 MW (includes 78 MW of deficiency)

Slide 21

Tesla-Bellota Sub-area – Category B

Contingency: Tesla-Schulte #2 115 kV line and the loss of GWF Tracy #3. Limiting component: Thermal overload on the Tesla-Schulte #1 115 kV line. 2019 LCR Need: 381 MW 2023 LCR Need: 201 MW

slide-22
SLIDE 22

ISO Public

Stockton Area LCR: Aggregate

Each unit is only counted once, regardless in how many sub-areas it is needed. In order to come up with an aggregate deficiency, where applicable the deficiencies in each smaller sub-area has been accounted for (based on their effectiveness factors) toward the deficiency of a much larger sub-area.

Slide 22

Available generation Market (MW) Muni (MW) QF (MW) Max. Qualifying Capacity (MW) 2019 492 126 18 636 2023 543 126 18 687 2019 2023 Contingency Existing Generation Capacity Needed (MW) Deficiency (MW) Total MW Need Existing Generation Capacity Needed (MW) Deficiency (MW) Total MW Need Category B (Single) 405 5 410 225 20 245 Category C (Multiple) 427 350 777 282 157 439

slide-23
SLIDE 23

ISO Public

Slide 23

Since last year:

  • Updated NQC.
  • 2019 load forecast went up by 5 MW vs. 2018.
  • Overall LCR need has increased by 58 MW mostly due to increase in

deficiency.

  • 2023 load forecast went up by 192 MW vs. 2022
  • Overall LCR need has decreased by 263 MW due to new transmission

projects.

Changes

slide-24
SLIDE 24

ISO Public

Stay connected

Page 24

Sign up for the Daily Briefing at www.caiso.com Download ISO Today mobile app @California_ISO

THANK YOU

Your comments and questions are welcome.

For written comments, please send to: RegionalTransmission@caiso.com
