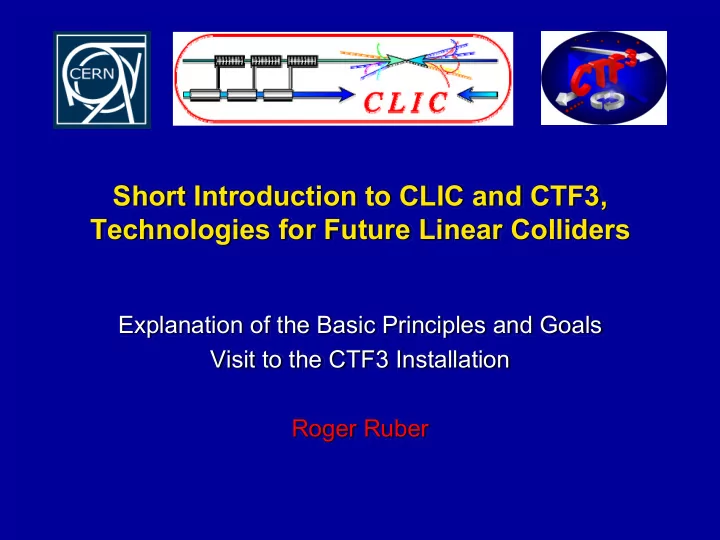

Short Introduction to CLIC and CTF3, Technologies for Future Linear Colliders

Explanation of the Basic Principles and Goals Visit to the CTF3 Installation Roger Ruber

slide-2
SLIDE 2

2 Roger Ruber - CLIC/CTF3 Visit - Introduction

The CRT: Our Home Accelerator

a F E B v F m e = + × = ) (

slide-3
SLIDE 3

3 Roger Ruber - CLIC/CTF3 Visit - Introduction

Collider History

  • hadron collider at the frontier of physics

– huge QCD background – not all nucleon energy available in collision

  • lepton collider for precision physics

– well defined CM energy – polarization possible

  • LHC starting up

– energy constantly increasing – consensus for next machine Ecm ≥0.5 TeV for e+e-

p p e+ e-

[top quark] [W±, Z boson] [gluon] [Nν=3] [charm quark, τ lepton]

“Livingstone” plot (adapted from W. Panofsky)

slide-4
SLIDE 4

4 Roger Ruber - CLIC/CTF3 Visit - Introduction

Hadron collision Lepton collision

p p e+ e-

Simulation of HIGGS production e+ e– → Z H Z → e+ e–, H → b b

Hadrons versus Leptons: Typical Event Patterns

slide-5
SLIDE 5

5 Roger Ruber - CLIC/CTF3 Visit - Introduction

Circular versus Linear Collider

Circular Collider many magnets, few cavities, stored beam higher energy → stronger magnetic field → higher synchrotron radiation losses (∝E4/R) Linear Collider few magnets, many cavities, single pass beam higher energy → higher accelerating gradient higher luminosity → higher beam power (high bunch repetition)

source main linac N S N S

accelerating cavities

slide-6
SLIDE 6

6 Roger Ruber - CLIC/CTF3 Visit - Introduction

Cost of Circular & Linear Accelerators

Circular Collider

  • ΔE ~ (E4/m4R)
  • cost ~ aR + b ΔE
  • optimization: R~E2 → cost ~ cE2

Linear Collider

  • E ~ L
  • cost ~ aL

cost energy

Circular Collider Linear Collider

200 GeV e-

slide-7
SLIDE 7

7 Roger Ruber - CLIC/CTF3 Visit - Introduction

e+ Linac Interaction Point with Detector e- Linac e+ source e- source RF power Source RF power Source

Linear Collider R&D Challenges:

  • 1. high accelerating gradient
  • 2. efficient power production

accelerating cavities accelerating cavities

slide-8
SLIDE 8

8 Roger Ruber - CLIC/CTF3 Visit - Introduction

Acceleration of Charged Particles

  • Lorenz (EM) force most practical
  • increasing particle energy
  • to gain 1 MeV energy requires a 1 MV field

Direct-voltage acceleration used in

  • TV tube: 20~40 kV
  • X-ray tube: ~100 kV
  • tandem van de Graaff: up to ~25 MV

) ( E B v F + × = e

eU d e E = ⋅ = Δ

∫

r E

+

  • e-

+

slide-9
SLIDE 9

9 Roger Ruber - CLIC/CTF3 Visit - Introduction

Higher Integrated Field: Modulation with Drift Tubes

  • shields particle while field direction is reversed
  • length adapted to particle velocity & RF frequency

electric field Courtesy

  • E. Jensen
slide-10
SLIDE 10

10 Roger Ruber - CLIC/CTF3 Visit - Introduction

Static or Modulated Fields (RF) DC acceleration not always possible:

  • keep beam tube at ground potential
  • circular machine:

→ use oscillatory waveform

= ⋅

∫

s E d

Proton Ekin β = v/c 50 MeV 0.314 1.4 GeV 0.916 25 GeV 0.999 3 PS 450 GeV 0.999 998 SPS 7 TeV 0.999 999 991 LHC

slide-11
SLIDE 11

11 Roger Ruber - CLIC/CTF3 Visit - Introduction

Surfing: or How to Accelerate Particles

DC Accelerator RF Accelerator

slide-12
SLIDE 12

12 Roger Ruber - CLIC/CTF3 Visit - Introduction

Cavity Type Acceleration Configuration

  • time-varying electro-magnetic field:

– magnetic field encircles beam – accelerating gap fed with RF voltage

  • cell length must be proportional to

– particle velocity – frequency

  • magnetic field tracks particles’ energy to keep equilibrium orbit

unchanged B E

∫∫ ∫

⋅ ∂ ∂ − = ⋅ A t B s E r r r r d d

slide-13
SLIDE 13

13 Roger Ruber - CLIC/CTF3 Visit - Introduction

Standing Wave Pillbox Cavity

electric field (@ 0o) magnetic field (@ 90o)

TM010-mode (only 1/8 shown)

Courtesy E. Jensen

slide-14
SLIDE 14

14 Roger Ruber - CLIC/CTF3 Visit - Introduction

CERN PS 19 MHz Cavity (prototype 1966)

slide-15
SLIDE 15

15 Roger Ruber - CLIC/CTF3 Visit - Introduction

Standing Wave Cavity

  • long pulse time
  • frequency <3 GHz
  • typical 2~5 MV/m
  • superconducting

up to ~30 MV/m

  • ions & electrons,

all energies l=βλ/2

  • 1
  • 0 . 5
0 . 5 1 2 0 4 0 6 0 8 0 1 0 0 1 2 0

z

Electric field (at time t0) Beam

slide-16
SLIDE 16

16 Roger Ruber - CLIC/CTF3 Visit - Introduction

  • short pulses
  • high frequency

>3 GHz

  • typical

10~20 MV/m

  • CLIC:

– 12 GHz – 240 ns – 100 MV/m

  • electrons β~1

(v~c)

Travelling Wave Structure

RF power source electric field

d

particle bunch RF load

slide-17
SLIDE 17

17 Roger Ruber - CLIC/CTF3 Visit - Introduction

e+ Linac Interaction Point with Detector e- Linac e+ source e- source RF power Source RF power Source

Linear Collider R&D Challenges:

  • 1. high accelerating gradient
  • 2. efficient power production

accelerating cavities accelerating cavities

slide-18
SLIDE 18

18 Roger Ruber - CLIC/CTF3 Visit - Introduction

Klystron RF Power Amplifier

  • velocity modulation (RFin)
  • f electron bunch

→ microwave amplifier

  • output power (RFout)

1 MW continuous 150 MW pulsed

  • 0.1 – 300 GHz range

5 – 10% bandwidth

  • expensive

(40-60% efficiency) and high maintenance cost

slide-19
SLIDE 19

19 Roger Ruber - CLIC/CTF3 Visit - Introduction

CLIC Two-beam Power Distribution Scheme

  • high power drive beam

like the modulated klystron beam

  • power extraction in a

deceleration structure (PETS)

  • high power, high frequency
  • sub-harmonic frequency
  • f main beam
  • compress energy density:

“transformer” function

drive beam main beam

slide-20
SLIDE 20

20 Roger Ruber - CLIC/CTF3 Visit - Introduction

Drive Beam Accelerator efficient acceleration in fully loaded linac Power Extraction Drive Beam Decelerator Sector Combiner Ring x 3 Combiner Ring x 4 pulse compression & frequency multiplication pulse compression & frequency multiplication Delay Loop x 2 gap creation, pulse compression & frequency multiplication

RF Transverse Deflectors

Recombination to Increase Peak Power & Frequency

140 µs train length - 24 x 24 sub-pulses - 4.2 A 2.4 GeV - 60 cm between bunches 240 ns 24 pulses – 100 A – 2.5 cm between bunches 240 ns 5.8 µs

Drive beam time structure - initial Drive beam time structure - final

slide-21
SLIDE 21

21 Roger Ruber - CLIC/CTF3 Visit - Introduction

Drive Beam Generation Scheme

slide-22
SLIDE 22

22 Roger Ruber - CLIC/CTF3 Visit - Introduction

e+ Linac Interaction Point with Detector e- Linac e+ source e- source RF power Source RF power Source

Linear Collider R&D Challenges:

  • 1. high accelerating gradient
  • 2. efficient power production
  • 3. build a working accelerator

accelerating cavities accelerating cavities

slide-23
SLIDE 23

23 Roger Ruber - CLIC/CTF3 Visit - Introduction

CLIC: Compact Linear Collider

Main Linac C.M. Energy 3 TeV Peak luminosity 2x1034 cm-2s-1 Beam Rep. rate 50 Hz Pulse time duration 156 ns Average field gradient 100 MV/m # accelerating cavities 2 x 71,548

Φ4.5m tunnel

slide-24
SLIDE 24

24 Roger Ruber - CLIC/CTF3 Visit - Introduction

CTF3 Test Facility

  • demonstration drive beam generation
  • evaluate beam stability & losses in deceleration
  • develop power production & accelerating structures

X 5 Combiner Ring 84 m X 2 Delay loop 42 m Drive Beam Injector 180 MeV Probe Beam Injector Two-Beam Test-stand Drive Beam Accelerator 30 A - 150 MeV 140 ns 30 GHz High Gradient Test stand

CLEX

Decelerator Test Beam Line Drive beam stability bench marking CLIC sub-unit Drive beam generation scheme
