Server Siblings: Identifying Shared IPv4/IPv6 Infrastructure via Active Fingerprinting Robert Beverly , Arthur Berger Naval Postgraduate School MIT/Akamai March 20, 2015 PAM 2015 - 16th Passive and Active Measurement Conference

slide-1
SLIDE 1

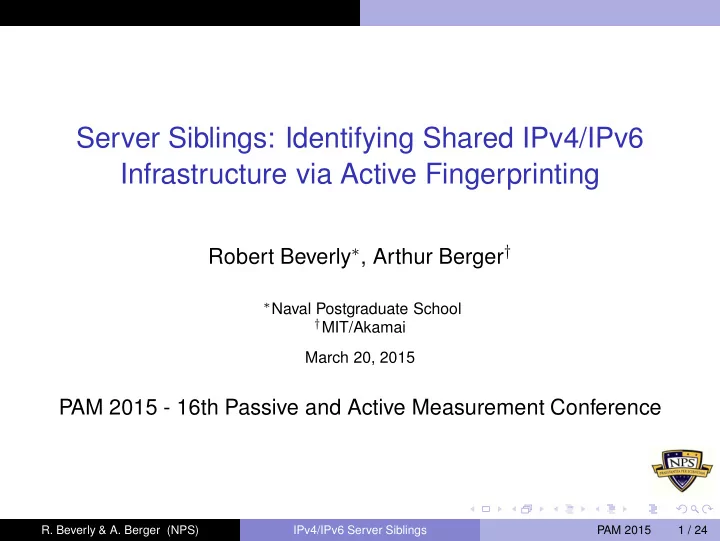

Server Siblings: Identifying Shared IPv4/IPv6 Infrastructure via Active Fingerprinting

Robert Beverly∗, Arthur Berger†

∗Naval Postgraduate School †MIT/Akamai

March 20, 2015

PAM 2015 - 16th Passive and Active Measurement Conference

  • R. Beverly & A. Berger (NPS)

IPv4/IPv6 Server Siblings PAM 2015 1 / 24

slide-2
SLIDE 2

What/Why

Outline

1

What/Why

2

Methodology

3

Results

  • R. Beverly & A. Berger (NPS)

IPv4/IPv6 Server Siblings PAM 2015 2 / 24

slide-3
SLIDE 3

What/Why

IPv4/IPv6 Siblings

IPv4/IPv6 “Siblings:” Given a candidate (IPv4, IPv6) address pair, determine if these addresses are assigned to the same physical machine. Related IPv6 Research: IPv6 adoption, routing, performance [DLHEA12], [CAZIOB14] Passive client IPv4/IPv6 sibling associations: e.g. web-bugs, javascript, flash [ZAAHM12] DNS server IPv4/IPv6 siblings [BWBC13] Our work: Targeted, active test: on-demand for any given pair Infrastructure: finding server siblings

  • R. Beverly & A. Berger (NPS)

IPv4/IPv6 Server Siblings PAM 2015 3 / 24

slide-4
SLIDE 4

What/Why

IPv4/IPv6 Siblings

IPv4/IPv6 “Siblings:” Given a candidate (IPv4, IPv6) address pair, determine if these addresses are assigned to the same physical machine. Related IPv6 Research: IPv6 adoption, routing, performance [DLHEA12], [CAZIOB14] Passive client IPv4/IPv6 sibling associations: e.g. web-bugs, javascript, flash [ZAAHM12] DNS server IPv4/IPv6 siblings [BWBC13] Our work: Targeted, active test: on-demand for any given pair Infrastructure: finding server siblings

  • R. Beverly & A. Berger (NPS)

IPv4/IPv6 Server Siblings PAM 2015 3 / 24

slide-5
SLIDE 5

What/Why

Motivation

Question? Is IPv6 infrastructure being deployed with separate hardware or by adding IPv6 to existing machines? Why? Adoption:

Track IPv6 infrastructure evolution, how deployed

Bootstrapping:

IPv6 geolocation, reputation by correlating to IPv4 counterpart

Security:

Better understand correlated failures Lack of IPv6 security, tunnel to circumvent firewalls (e.g. an attack on IPv6 resource affecting IPv4 service)

Performance:

Isolate path vs. host performance when comparing IPv4 and IPv6

  • R. Beverly & A. Berger (NPS)

IPv4/IPv6 Server Siblings PAM 2015 4 / 24

slide-6
SLIDE 6

What/Why

Motivation

Question? Is IPv6 infrastructure being deployed with separate hardware or by adding IPv6 to existing machines? Why? Adoption:

Track IPv6 infrastructure evolution, how deployed

Bootstrapping:

IPv6 geolocation, reputation by correlating to IPv4 counterpart

Security:

Better understand correlated failures Lack of IPv6 security, tunnel to circumvent firewalls (e.g. an attack on IPv6 resource affecting IPv4 service)

Performance:

Isolate path vs. host performance when comparing IPv4 and IPv6

  • R. Beverly & A. Berger (NPS)

IPv4/IPv6 Server Siblings PAM 2015 4 / 24

slide-7
SLIDE 7

What/Why

Motivation

Question? Is IPv6 infrastructure being deployed with separate hardware or by adding IPv6 to existing machines? Why? Adoption:

Track IPv6 infrastructure evolution, how deployed

Bootstrapping:

IPv6 geolocation, reputation by correlating to IPv4 counterpart

Security:

Better understand correlated failures Lack of IPv6 security, tunnel to circumvent firewalls (e.g. an attack on IPv6 resource affecting IPv4 service)

Performance:

Isolate path vs. host performance when comparing IPv4 and IPv6

  • R. Beverly & A. Berger (NPS)

IPv4/IPv6 Server Siblings PAM 2015 4 / 24

slide-8
SLIDE 8

What/Why

Motivation

Question? Is IPv6 infrastructure being deployed with separate hardware or by adding IPv6 to existing machines? Why? Adoption:

Track IPv6 infrastructure evolution, how deployed

Bootstrapping:

IPv6 geolocation, reputation by correlating to IPv4 counterpart

Security:

Better understand correlated failures Lack of IPv6 security, tunnel to circumvent firewalls (e.g. an attack on IPv6 resource affecting IPv4 service)

Performance:

Isolate path vs. host performance when comparing IPv4 and IPv6

  • R. Beverly & A. Berger (NPS)

IPv4/IPv6 Server Siblings PAM 2015 4 / 24

slide-9
SLIDE 9

What/Why

Motivation

Question? Is IPv6 infrastructure being deployed with separate hardware or by adding IPv6 to existing machines? Why? Adoption:

Track IPv6 infrastructure evolution, how deployed

Bootstrapping:

IPv6 geolocation, reputation by correlating to IPv4 counterpart

Security:

Better understand correlated failures Lack of IPv6 security, tunnel to circumvent firewalls (e.g. an attack on IPv6 resource affecting IPv4 service)

Performance:

Isolate path vs. host performance when comparing IPv4 and IPv6

  • R. Beverly & A. Berger (NPS)

IPv4/IPv6 Server Siblings PAM 2015 4 / 24

slide-10
SLIDE 10

What/Why

Contributions

IPv4/IPv6 Server Sibling Inference, Contributions

1

Develop an active IPv4/IPv6 sibling inference measurement technique by extending prior fingerprinting work

2

Validate and evaluate technique on ground-truth

3

Use technique to survey top Alexa IPv6 capable web servers

  • R. Beverly & A. Berger (NPS)

IPv4/IPv6 Server Siblings PAM 2015 5 / 24

slide-11
SLIDE 11

Methodology

Outline

1

What/Why

2

Methodology

3

Results

  • R. Beverly & A. Berger (NPS)

IPv4/IPv6 Server Siblings PAM 2015 6 / 24

slide-12
SLIDE 12

Methodology

Sibling Identification

Targeted, Active Sibling Identification Intuition: IPv4 and IPv6 share a common transport-layer (TCP) Combine, extend, and reappraise prior TCP fingerprinting work:

Coarse-grained: TCP options signature [Nmap] Fine-grained: TCP timestamp clockskew [Kohno 2005]

  • R. Beverly & A. Berger (NPS)

IPv4/IPv6 Server Siblings PAM 2015 7 / 24

slide-13
SLIDE 13

Methodology

Course-Grained Sibling Identification

Course-Grained Sibling Identification Presence of TCP options is common-case Order and packing of options is implementation dependent, e.g.:

Win: <mss, nop, wscale 5, nop, nop, TS, sackOK> FreeBSD: <mss, nop, wscale 3, sackOK, TS> Linux: <mss, sackOK, TS, nop, wscale 4>

We:

Strip timestamp value Strip MSS value (unreliable, not just IPv4 MSS-20) Preserve order, compare between IPv4 and IPv6

  • R. Beverly & A. Berger (NPS)

IPv4/IPv6 Server Siblings PAM 2015 8 / 24

slide-14
SLIDE 14

Methodology

Fine-Grained Sibling Identification

Fine-Grained Sibling Identification TCP timestamp option: “TCP Extensions for High Performance” [RFC1323, May 1992]. Universally supported, enabled by default.

Option value: 4 bytes containing current clock TS clock:

Value not specified in RFC (only used to detect duplicate segments) = system clock Frequently unaffected by system clock adjustments (e.g. NTP)

Connect to remote TCP periodically over time, fetch TS Fingerprint is TS clock skew or drift

  • R. Beverly & A. Berger (NPS)

IPv4/IPv6 Server Siblings PAM 2015 9 / 24

slide-15
SLIDE 15

Methodology Examples

TCP Timestamp Clock Skew

Skew-based Fingerprinting Idea:

  • 70
  • 60
  • 50
  • 40
  • 30
  • 20
  • 10

10 20 30 40 200 400 600 800 1000

  • bserved offset (msec)

measurement time(sec) Host A (IPv6) Host B (IPv4) α=0.029938 β=-3.519 α=-0.058276 β=-1.139

Use linear program to find slope of points Here, different skews (one negative) y = 0.0299x skew (≈ 1.8ms/min, ≈ 15 min/year) Then:

Compare IPv4 and IPv6 slopes Siblings if angle less than threshold

  • R. Beverly & A. Berger (NPS)

IPv4/IPv6 Server Siblings PAM 2015 10 / 24

slide-16
SLIDE 16

Methodology Examples

Example: Ground Truth Visualization

  • 70
  • 60
  • 50
  • 40
  • 30
  • 20
  • 10

10 20 30 40 200 400 600 800 1000

  • bserved offset (msec)

measurement time(sec) Host A (IPv6) Host B (IPv4) α=0.029938 β=-3.519 α=-0.058276 β=-1.139

Non-Siblings

  • 70
  • 60
  • 50
  • 40
  • 30
  • 20
  • 10

10 200 400 600 800 1000

  • bserved offset (msec)

measurement time(sec) Host A (IPv6) Host A (IPv4) α=-0.058253 β=-1.178 α=-0.058276 β=-1.139

Siblings Host A IPv4 vs. Host A IPv6: identical slopes (θ = 0.0098) Host A IPv6 vs. Host B IPv4: different slopes (θ = 31.947) Of course, more complicated in practice!

  • R. Beverly & A. Berger (NPS)

IPv4/IPv6 Server Siblings PAM 2015 11 / 24

slide-17
SLIDE 17

Methodology Examples

Probing Outcomes No options returned: Infrequent, limits to coarse Timestamps:

Not present: e.g., middlebox, limits to coarse Non-monotonic: (between connections) e.g., load-balancer Random: e.g., BSD’s random per-flow offset Monotonic: fine-grained fingerprinting

For example, raw TCP timestamps:

  • 2e+16
  • 1.8e+16
  • 1.6e+16
  • 1.4e+16
  • 1.2e+16
  • 1e+16
  • 8e+15
  • 6e+15
  • 4e+15
  • 2e+15

2e+15 10000 20000 30000 40000 50000 60000 70000

  • bserved offset (msec)

measurement time(sec) 209.85.225.160 2001:4860:b007::a0

Random across connects

5e+08 1e+09 1.5e+09 2e+09 2.5e+09 3e+09 3.5e+09 4e+09 4.5e+09 50 100 150 200 TCP Timestamp TCP Packet Sample apache.org V4 apache.org V6

Non-monotonic across connects

  • R. Beverly & A. Berger (NPS)

IPv4/IPv6 Server Siblings PAM 2015 12 / 24

slide-18
SLIDE 18

Methodology Examples

Methodology

Server Sibling Inference Propose and evaluate two algorithms:

1

Options signature and basic timestamp skew (Alg 1)

2

Additional, parameterized logic (Alg 2)

(See paper for gory algorithm details) Test against ground truth Periodically probe Alexa IPv4 and IPv6 targets once every ∼3.5 hours for ∼17 days

  • R. Beverly & A. Berger (NPS)

IPv4/IPv6 Server Siblings PAM 2015 13 / 24

slide-19
SLIDE 19

Results

Outline

1

What/Why

2

Methodology

3

Results

  • R. Beverly & A. Berger (NPS)

IPv4/IPv6 Server Siblings PAM 2015 14 / 24

slide-20
SLIDE 20

Results

Ground Truth Validation

Hosts # v4 AS # v6 AS Countries # Option Signatures Ground Truth 61 34 34 19 13

Ground Truth: Friends and family Small, but well-distributed: among ASes, countries, and OSes Permits ∼ 1, 800 combinations of non-siblings

  • R. Beverly & A. Berger (NPS)

IPv4/IPv6 Server Siblings PAM 2015 15 / 24

slide-21
SLIDE 21

Results

Ground Truth Evaluation Ten rounds of testing, forming equal number random (known) non-siblings Option signatures alone: ∼ 82% accuracy Timestamps alone: ∼ 91% accuracy Combined algorithms perform best on our ground truth Note: high precision and specificity, but at cost of more indeterminate predictions Validation Results Algorithm Acc. Prec. Recall Specif. Unknown TCP Opts 82.2% 74.1% 98.2% 66.8% 0.0%

  • R. Beverly & A. Berger (NPS)

IPv4/IPv6 Server Siblings PAM 2015 16 / 24

slide-22
SLIDE 22

Results

Ground Truth Evaluation Ten rounds of testing, forming equal number random (known) non-siblings Option signatures alone: ∼ 82% accuracy Timestamps alone: ∼ 91% accuracy Combined algorithms perform best on our ground truth Note: high precision and specificity, but at cost of more indeterminate predictions Validation Results Algorithm Acc. Prec. Recall Specif. Unknown TCP Opts 82.2% 74.1% 98.2% 66.8% 0.0% Kohno 90.6% 82.3% 97.0% 86.4% 27.8%

  • R. Beverly & A. Berger (NPS)

IPv4/IPv6 Server Siblings PAM 2015 16 / 24

slide-23
SLIDE 23

Results

Ground Truth Evaluation Ten rounds of testing, forming equal number random (known) non-siblings Option signatures alone: ∼ 82% accuracy Timestamps alone: ∼ 91% accuracy Combined algorithms perform best on our ground truth Note: high precision and specificity, but at cost of more indeterminate predictions Validation Results Algorithm Acc. Prec. Recall Specif. Unknown TCP Opts 82.2% 74.1% 98.2% 66.8% 0.0% Kohno 90.6% 82.3% 97.0% 86.4% 27.8% Alg 1 94.2% 93.6% 91.4% 96.0% 22.4% Alg 1&2 97.4% 99.6% 93.1% 99.8% 29.4%

  • R. Beverly & A. Berger (NPS)

IPv4/IPv6 Server Siblings PAM 2015 16 / 24

slide-24
SLIDE 24

Results

Datasets

Hosts # v4 AS # v6 AS Countries # Option Signatures Alexa embedded 1050 85 80 31 30 Alexa non-CDN 1533 629 575 69 73 Alexa CDN 230 59 55 18 29

Alexa: Top 100,000 sites with both A and AAAA records Remove duplicate addresses Subdivide into:

Embedded: IPv4 address encoded into IPv6 address CDN: Geographically dispersed servers supporting domain non-CDN: Remainder

Well-distributed: among ASes, countries, OSes

  • R. Beverly & A. Berger (NPS)

IPv4/IPv6 Server Siblings PAM 2015 17 / 24

slide-25
SLIDE 25

Results

Alexa Machine-Sibling Inferences Inference non-CDN CDN Embed Siblings 816 (53.2%) 55 (23.9%) 978 (93.1%) Non-Siblings 409 (26.7) 98 (42.6) 31 (3.0) Unknown 308 (20.0) 77 (33.5) 41 (3.9) Total 1533 (100%) 230 (100%) 1050 (100%) Sibling prevalence: Embedded > non-CDN > CDN

  • R. Beverly & A. Berger (NPS)

IPv4/IPv6 Server Siblings PAM 2015 18 / 24

slide-26
SLIDE 26

Results

Alexa Machine-Sibling Inferences Inference non-CDN CDN Embed Siblings 816 (53.2%) 55 (23.9%) 978 (93.1%) Non-Siblings 409 (26.7) 98 (42.6) 31 (3.0) Unknown 308 (20.0) 77 (33.5) 41 (3.9) Total 1533 (100%) 230 (100%) 1050 (100%) Surprisingly, 3.0% of embedded are non-siblings Highlights that addresses alone do not imply siblings!

  • R. Beverly & A. Berger (NPS)

IPv4/IPv6 Server Siblings PAM 2015 19 / 24

slide-27
SLIDE 27

Results

Alexa Machine-Sibling Inferences Inference non-CDN CDN Embed Unknown

  • v4 and v6 missing

196 (12.8%) 6 (2.6%) 26 (2.5%)

  • v4 and v6 random

32 (2.1%) 25 (10.9%) 6 (0.6%) Load balancers primary source of unknowns:

Missing timestamps for 12.8% of non-CDN Operator feedback: missing timestamps due to front-end load balancer Non-monotonic for 19.6% of CDN (inherent load balancing)

  • R. Beverly & A. Berger (NPS)

IPv4/IPv6 Server Siblings PAM 2015 20 / 24

slide-28
SLIDE 28

Results

Alexa Machine-Sibling Inferences Inference non-CDN CDN Embed Unknown

  • v4 and v6 missing

196 (12.8%) 6 (2.6%) 26 (2.5%)

  • v4 and v6 random

32 (2.1%) 25 (10.9%) 6 (0.6%)

  • v4 and v6 non-mono

78 (5.1%) 45 (19.6%) 9 (0.9%)

  • v4 or v6 unresp.

2 (0.1%) 1 (0.4%) 0 (0.0%) Load balancers primary source of unknowns:

Missing timestamps for 12.8% of non-CDN Operator feedback: missing timestamps due to front-end load balancer Non-monotonic for 19.6% of CDN (inherent load balancing)

  • R. Beverly & A. Berger (NPS)

IPv4/IPv6 Server Siblings PAM 2015 20 / 24

slide-29
SLIDE 29

Results

Autonomous System (AS) Agreement Examine origin AS of routeviews prefixes for addresses IPv4 and IPv6 addresses more likely to be in same AS when siblings CDN (both sibling and non-sibling) least likely to have addresses in same AS 10% of non-CDN and 2.7% of embedded siblings are in different ASes! Sibling Inference AS Agreement Fraction of matching (I4, I6) ASNs Inference non-CDN CDN Embedded Siblings 90.0% 83.6% 97.3% Non-Siblings 78.2% 51.0% 87.1% Unknown 91.6% 62.3% 78.0%

  • R. Beverly & A. Berger (NPS)

IPv4/IPv6 Server Siblings PAM 2015 21 / 24

slide-30
SLIDE 30

Results

Autonomous System (AS) Agreement Examine origin AS of routeviews prefixes for addresses IPv4 and IPv6 addresses more likely to be in same AS when siblings CDN (both sibling and non-sibling) least likely to have addresses in same AS 10% of non-CDN and 2.7% of embedded siblings are in different ASes! Sibling Inference AS Agreement Fraction of matching (I4, I6) ASNs Inference non-CDN CDN Embedded Siblings 90.0% 83.6% 97.3% Non-Siblings 78.2% 51.0% 87.1% Unknown 91.6% 62.3% 78.0%

  • R. Beverly & A. Berger (NPS)

IPv4/IPv6 Server Siblings PAM 2015 21 / 24

slide-31
SLIDE 31

Summary

Summary

Integration and refinement of fingerprinting methods to actively test server IPv4/IPv6 sibling relationships Evaluation of technique on ground-truth with >97% accuracy and 99% precision Survey of Alexa top 100,000 site server sibling relationships Even embedded IPv4 addresses do not imply IPv4/IPv6 siblings (or even same AS) Thanks! Questions? http://www.cmand.org/ipv6/

  • R. Beverly & A. Berger (NPS)

IPv4/IPv6 Server Siblings PAM 2015 22 / 24

slide-32
SLIDE 32

Summary

Backup

  • R. Beverly & A. Berger (NPS)

IPv4/IPv6 Server Siblings PAM 2015 23 / 24

slide-33
SLIDE 33

Summary

Alexa Machine-Sibling Inferences Inference non-CDN CDN Embed Siblings

  • v4/v6 drift match

816 (53.2%) 55 (23.9%) 978 (93.1%) Non-Siblings

  • v4 and v6 opt sig diff

229 (14.9%) 14 (6.1%) 22 (2.1%)

  • v4 or v6 missing

70 (4.6%) 11 (4.8%) 7 (0.7%)

  • v4 or v6 random

23 (1.5%) 13 (5.7%) 1 (0.1%)

  • v4 or v6 non-mono

52 (3.4%) 47 (20.4%) 1 (0.1%)

  • v4/v6 drift mismatch

35 (2.3%) 13 (5.7%) 0 (0.0%) Unknown

  • v4 and v6 missing

196 (12.8%) 6 (2.6%) 26 (2.5%)

  • v4 and v6 random

32 (2.1%) 25 (10.9%) 6 (0.6%)

  • v4 and v6 non-mono

78 (5.1%) 45 (19.6%) 9 (0.9%)

  • v4 or v6 unresp.

2 (0.1%) 1 (0.4%) 0 (0.0%) Total 1533 (100%) 230 (100%) 1050 (100%)

  • R. Beverly & A. Berger (NPS)

IPv4/IPv6 Server Siblings PAM 2015 24 / 24
