Serum Control for Therapeutic Antibody and IgE during Treatment - - PowerPoint PPT Presentation

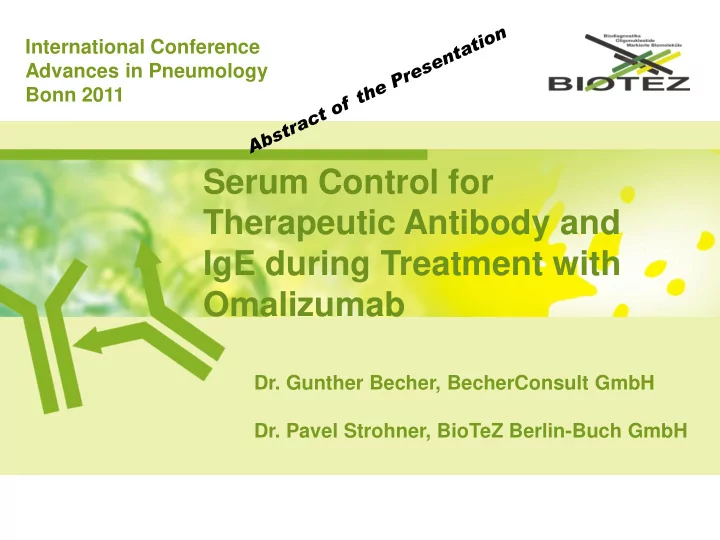

International Conference Advances in Pneumology Bonn 2011

Serum Control for Therapeutic Antibody and IgE during Treatment with Omalizumab

• Dr. Gunther Becher, BecherConsult GmbH
• Dr. Pavel Strohner, BioTeZ Berlin-Buch GmbH

Target is not measurable by traditional antibody based tests in presence of a therapeutic antibody Because components of test system are already in the sample! New immunoassay for antibody therapies developed:

recoveryELISA

5

Comparison of IgE determinations during Omalizumab therapy

In presence of therapeutic antibody, conventional Sandwich ELISA systematically measures false high levels of IgE.

8

Comparison of IgE determination during Omalizumab therapy

The efficiency of Omalizumab therapy can not be controlled by conventional tests; they rarely measure the goal of therapy (< 50 ng IgE / mL).

9

8

There is no correlation between concentration of target antigen and therapeutic antibody in serum, also not with respect to initial values .

10

13

c) Function 3: Recovery curve (main result of assay)

Basis: b1 = q1*p/(1/k1+q1) Binding rate of target protein:b1/p=q1/(1/k1+q1) Recovery of free target protein: rec = 1 –b1/p = 1 – q1/(1/k1+q1)

rec = 1 / (1+k1*q1) + NSB

15

Recovery of IgE after TAb addition in relation to reference curve without TAb

Calculation of IgE from O.D. with inverse of function 1 for spiked samples Slope of lines = Recovery (rec)

16

Function 3: Recovery curve:

It shows the neutralization rate of target protein dependent on TAb. Higher the TAb lower the neutralization of added TAb.

Y = rec; X = TAb

Y = 1 / (1 + 2,7628 * X) + 2,0753E-04

17

recoveryELISA avoids massive interference of conventional tests in samples during antibody therapy

• Free antigen (target protein), if available in serum
• Available therapeutic antibody (TAb) in serum
• Effective interaction between antigen and TAb

(binding / neutralization rate of target protein)

recoveryELISA measures 3 parameters for a sample:

21

Comparative studies from the example IgE / Omalizumab show:

• Conventional immunoassays are not suitable for

measurement of antigen during antibody therapies

• Traditional assays are massively disrupted by the

presence of therapeutic antibodies in the sample

recoveryELISA provides the solution

22

Taking the general assumption in account, we could establish the following recoveryELISAs which allow to analyze the interaction between target protein and therapeutic antibody.

Further recoveryELISAs in progress (in-house versions available) :

• 3. TNF- / Infliximab
• 4. TNF- / Eternacept
• 5. Her2 / Trastuzumab
• 6. VEGF / Bevacizumab
• 1. IgE / Omalizumab „RIO“ -

Registered IVD

• 2. TNF- / Adalumimab
• For research use only
