Foundations of Global Networked Computing: Building a Modern Computer From First Principles

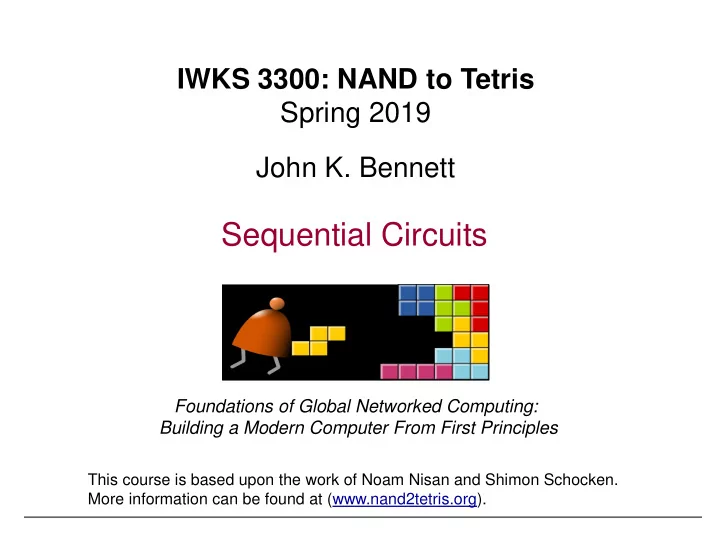

IWKS 3300: NAND to Tetris Spring 2019 John K. Bennett

This course is based upon the work of Noam Nisan and Shimon Schocken. More information can be found at (www.nand2tetris.org).

Sequential Circuits

First, some follow-up from last time…

Demonstrating the Book’s ALU

x=0 x=!x y=!y y=0

• ut = !out

+/AND if out = 0, zr = 1 if out < 0, ng = 1

The Book’s ALU

4:1 Multiplexor as a Function Generator A-D are the Function Select S0 and S1 are the Variables

A B C D Function

1 S0 • S1 1 S0 • !S1 1 1 S0 1 !S0 • S1 1 1 S1 1 1 S0 XOR S1 1 1 1 S0 + S1 1 !S0 • !S1 1 1 !(S0 XOR S1) 1 1 !S1 1 1 1 S0 + !S1 1 1 !S0 1 1 1 !S0 + S1 1 1 1 !S0 + !S1 1 1 1 1 1

4:1 Multiplexor as a Function Generator

Programmable Logic

Programmable Logic Example 16R4 PAL

Field Programmable Gate Array (FPGA)

FPGA Logic Arrays (simple and complex)

FPGA Special Cells Soft (e.g., MicroBlaze) and hard (e.g., PowerPC) processors Special pre- configured cells

Metal Oxide Transistor

Building Gates on Silicon

NAND

By Reza Mirhosseini - originally uploaded to en.wikipedia

Building Gates on Silicon

 5 x 2:1 Multiplexor

Now, back to sequential circuits…

Sequential VS Combinatorial Circuits

 Combinatorial devices: outputs are a function of inputs only – input changes will propagate to the output after a finite (usually small) propagation delay.  Sequential devices: outputs are a function of both inputs and current state – inputs and current state are periodically sampled and new outputs are computed.  Sequential devices are sometimes called “clocked devices,” because the period sampling is typically initiated by a “clock” signal, like a square wave:  The low-level behavior of sequential circuits, particularly circuits that employ feedback, can be complex to analyze and design.  The good news:  In the Hack computer, all sequential chips are based upon a single low-level sequential gate, called a “D flip flop”, or DFF  Clock-dependency details are encapsulated at the DFF level (almost)  Higher-level sequential chips are built on top of DFF gates using combinatorial logic only.

Sequential VS combinational logic

• ut = some function of (in)

Combinational chip comb. logic

in

• ut
• ut(t) = some function of (in(t-1), out(t-1))

Sequential chip comb. logic

in

• ut

DFF gate(s) comb. logic

(optional) (optional) time delay

Best to not have combinatorial logic on both sides. The Book’s HDL simulator is OK with this; LogicCircuit less so. Why?

Basic S-R Flip Flop (no clock)

The Clock

clock signal

cycle cycle cycle cycle

tick tock tick tock tick tock tick tock

 In Hack jargon, a clock cycle = tick-phase (low), followed by a tock-phase (high)  In real hardware, the clock is implemented by an oscillator (a special circuit that, well, oscillates)  In the Hack hardware simulator, clock cycles can be simulated either  Manually, by the user, or  “Automatically,” by a test script.

Implementing a Crystal Oscillator with NAND Gates

Practical Note: Design for 2x desired frequency and divide by 2; (Xtal oscillators have accurate frequency, but asymmetric period)

Implementing a Divide by Two

The Book’s D Flip-flop

 A fundamental state-keeping device  The book assumes that the DFF implementation is magic, but in fact it can be readily implemented using NAND gates.  In the Hack computer, memory devices are made from numerous flip-flops, all regulated by the same master clock signal  Notational convention (we sometimes omit the “CLK”):

sequential chip

• ut

in sequential chip

• ut

in clock signal

=

(notation)

DFF

• ut

in

• ut(t) = in(t-1)

Two Ways to Implement the Book’s D Flip-flop: 1

DFF

• ut

in

• ut(t) = in(t-1)

Two Ways to Implement the Book’s D Flip-flop: 2

DFF

• ut

in

• ut(t) = in(t-1)

You Do Not Have to Implement the Book’s D Flip-flop

DFF

• ut

in

• ut(t) = in(t-1)

(unless you want to simulate inside LogicCircuit) Just download (or create) the Nand and DFF templates

A Real D Flip Flop With Asynchronous Set’ and Reset’

Flip Flops in the Real World

 The critical design parameters for a flip flop are setup and hold times, and propagation delay.  Setup: The length of time before the clock edge that inputs must be stable (Tsu)  Hold Time: The length of time after the clock edge that inputs must be stable (Th)  Propagation Delay: The time it takes for outputs to become stable after the clock edge (Pd)  Maximum Frequency can be calculated: Fmax = 1 / (Pd + Tsu)

Fmax Example: 74F74 Tsu = 3ns (from data sheet) Th = 1ns (from data sheet) Pd = 9ns (from data sheet) Fmax = 1/(12ns) = 83 MHz

Metastability: What happens if Tsu or Th are violated

This is a worst case example

D Flip Flop With Asynchronous Set’ and Reset’ From NANDs

CLK Q Q-

½ of 74x74

Divide By Two Circuit (book’s simulator will not accept this)

Q Q- D CLK

Implementing Edge Triggering (74x74 is edge triggered)

Q: Are there other kinds of FF’s?

 A: Yes  We have covered:  SR (NAND) FF  D (NAND) FF  D (NAND) with async. S&R  Positive-edge-triggered D FF  Some others:  JK FF  D FF with sync S&R  Toggle FF  SR NOR FF  SR AND-OR FF  Gated SR FF  Earle latch  Master–slave D FF  T FF  Gated versions of all of these

What’s a JK Flip Flop?

JK Flip Flops Require Care in Design

Who invented the JK Flip Flop?

• a. Jack Kilby (what some think)
• b. Edward Nelson (what others think)
• c. We don’t know

Answer: I’m going to go with (c.). Here’s why:

1. Jack Kilby introduction at Rice University in 1973 “He has been credited with the invention of the JK flip flop.” Lot’s of web sites state that Kilby invented JK FFs. Kilby himself never made this

• claim. But he did win a Nobel Prize in Physics for invention of the

integrated circuit. 2. Kilby started at TI in 1958, and JK FF’s are mentioned in a 1953 patent (US 2,850,566) by Edward C. Nelson. Some web sites use this datum to assert that Nelson invented JK FFs. 3. But Nelson does not claim invention of JK FFs in the patent.

What’s in a Patent?

• 1. Specification – invention background and description
• 2. Claims – what is unique about the invention

Nelson’s Patent: “HIGH-SPEED PRINTING SYSTEM”

In the Specification: “…Each flip-flop or bistable multivibrator includes two input terminals, hereinafter termed the j-input and the k-input terminals, respectively, and two output terminals for producing complementary bi-valued electrical output signals hereinafter termed Q and Q, respectively. Signals applied separately to the j-input and k-input terminals set the flip-flop to conduction states corresponding to the binary values one and zero, respectively, while signals applied simultaneously to both input terminals trigger

• r change the conduction state of the flip-flop…”

Flip-flops are not mentioned in the claims, which all relate to printing. “What is claimed as new is: 1. A high-speed printing system for printing on a printing medium a line of intelligence information …”

The JK Flip-Flop was Patented in 1969 (filed in 1966) Miller did not disclose Nelson’s patent to the examiner. Miller’s patent is likely invalid due to obviousness and prior art.

JKB’s Best Guess The JK Flip Flop was likely invented sometime in the early days of vacuum tube computing by an engineer who was too busy getting things done to worry about

• patents. The idea probably became common

knowledge to digital designers by the early 1950’s. …Miller’s patent should have probably never issued. We now return to your regularly scheduled programming…

1-bit register (the book calls it “Bit”)

DFF

• ut(t) = in(t-1)

Basic building block in

• ut

Objective: build a storage unit that can: (a) Change its state to a given input (b) Maintain its state over time (until changed)

DFF

• ut(t) = out(t-1) ?
• ut(t) = in(t-1) ?

in

• ut

Bit

• ut

load in

if load(t-1) then out(t)=in(t-1) else out(t)=out(t-1)

The book, and the book’s simulator prohibit such feedback, but in practice, feedback can be very useful, e.g., div-by-2., although you cannot tie two normal outputs together.

Bit register (cont.)

Bit

• ut

load in

if load(t-1) then out(t)=in(t-1) else out(t)=out(t-1)

Interface

DFF

MUX

load in

• ut

Implementation

• Load bit
• Read logic
• Write logic

Bit Register Implementation

DFF

MUX

load in

• ut

Implementation

DFF

MUX

load in

• ut

Logical Design

Better Bit Register Implementation

A Bit from DFF (red circle) and 2:1 mux (green circle)

Multi-bit register

Bit

• ut

load in

if load(t-1) then out(t)=in(t-1) else out(t)=out(t-1)

1-bit register

• Register’s width: a trivial parameter
• Read logic
• Write logic

. . .

Bit

w-bit register

• ut

load in

w w

if load(t-1) then out(t)=in(t-1) else out(t)=out(t-1) Bit Bit

Multi-Bit (16 bit) Register

Aside: Hardware Simulation

Relevant topics from the HW simulator tutorial:  Clocked chips: When a clocked chip is loaded into the simulator, the clock icon is enabled, allowing clock control  Built-in chips:  Feature a standard HDL interface (implemented in Java)  Provide behavioral simulation of low-level parts  May feature GUI effects (at the simulator level only).

Random Access Memory (RAM)

• Read logic
• Write logic.

load (0 to n-1)

Direct Access Logic register 0 register 1 register n-1

RAM n . . .

register 2

in

• ut

(word) (word) address

RAM interface

address load

• ut

in

16 bits log 2 n bits

RAMn

16 bits

Book’s Implementation of RAM8 This is not how RAM is actually implemented

How Static Ram is Implemented

• Approx. 10 transistors per cell

How Dynamic Ram is Implemented

Static RAM Cell Dynamic RAM Cell

1 transistor/cell + R/W logic

What is Tri-State?

 The idea is to use two transistors to isolate the output so that multiple

• utputs can be tied together (as long as only one is enabled at a time).

If both transistors are off, the output is in a disconnected (actually, a high-impedance) state.

Conceptual TTL Tri-State Implementation (no bias considerations)

VCC Out- Enable- In

Bit Bit

Register

.. .

Bit

The Book’s RAM Hierarchy

register

RAM 8 8

register

. . .

register

RAM8 RAM 64 8

. . .

RAM8

. . .

Recursive ascent

For our projects, we will use multiplexors and demultiplexors to manage RAM input and output

Counter

 Typical function: program counter  Implementation: register chip + some combinatorial logic. PC (counter)

w bits

• ut

in

w bits

inc load reset

If reset(t-1) then out(t)=0 else if load(t-1) then out(t)=in(t-1) else if inc(t-1) then out(t)=out(t-1)+1 else out(t)=out(t-1)

Needed: a storage device that can: (a) set its state to some base value (LOAD) (b) increment the state in every clock cycle (INC) (c) maintain its state (stop incrementing) over clock cycles (NOT LOAD, INC, or RST) (d) reset its state (RESET)

Implementing the Book’s PC Counter

Time Matters

Implications:  Challenge: propagation delays  Solution: clock synchronization  Cycle length and processing speed  In actual designs, DFFs are used to synchronize asynchronous inputs. This is a complex subject.

+

Reg2

a

Reg1

b

• ut

sel

clock signal

cycle cycle cycle cycle

tick tock tick tock tick tock tick tock

 During a tick-tock cycle, the internal states of all the clocked chips are allowed to change, but their outputs are “latched”  At the beginning of the next cycle, the outputs of all the clocked chips in the architecture commit to the new values.

Perspective

 All the memory units described in this lecture are standard (but the described implementation is not).  Typical memory hierarchy  SRAM (“static”), typically used for the cache  DRAM (“dynamic”), typically used for main memory  Disk (used for non-volatile long-term storage) (Elaborate caching / paging algorithms)  Flip-flops can be built from NAND gates  Real memory devices (like RAM) are highly optimized, using a great variety of storage technologies. For example, Dynamic RAM requires only one CMOS transistor (and some capacitance) per bit of memory (neglecting control logic). Access time Cost
