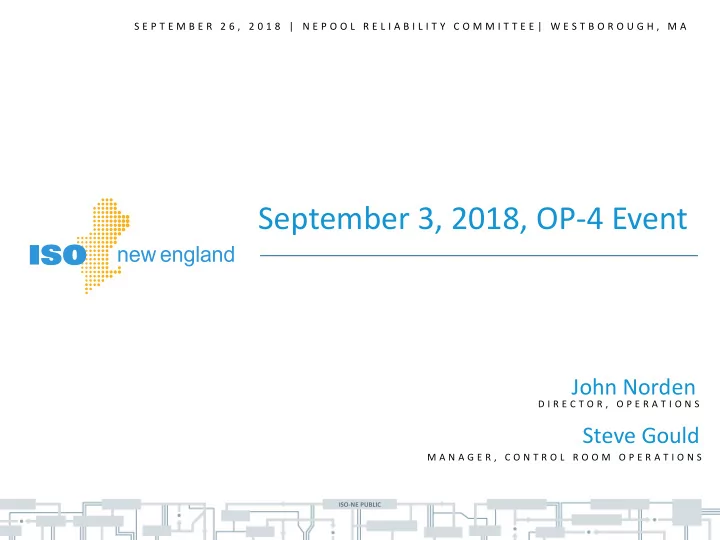

September 3, 2018, OP-4 Event

Steve Gould

M A N A G E R , C O N T R O L R O O M O P E R A T I O N S

slide-2
SLIDE 2

ISO-NE PUBLIC

System Conditions: Monday, September 3, 2018

  • Two primary factors led to the implementation of Operating Procedure
  • No. 4 (OP-4):

– Significant generation outages and reductions totaling ~1,650 MW occurred during the dispatch day – Higher than forecasted temperatures and dew points, with largest departures in the afternoon, resulted in significant load forecast deviations

  • System conditions required implementation of Master/Local Control

Center Procedure No. 2 (M/LCC2) and OP-4

– M/LCC2: 15:15─21:00 – OP-4, Actions 1, 2: 15:30─20:00 – OP-4, Actions 3-5: 16:00─21:00

  • 30-minute Reserve Constraint Penalty Factor (RCPF) violated for the

following 5 minute intervals: 15:40─18:15

– $1,000/MWh RCPF

  • 10-minute RCPF violated for the following 5 minute intervals: 17:00─17:10

and 17:35─18:00

– $1,500/MWh RCPF

2

slide-3
SLIDE 3

ISO-NE PUBLIC

Generation Outages and Reductions

  • During the course of the operating day, the system

experienced ~1,650 MW of significant generation outages and reductions

– The largest loss, totaling ~1,050 MW, occurred between 15:00 and 15:30

  • In addition, there were ~250 MW of small reductions across

many generators

  • The total outages and reductions were ~ 1,900 MW

3

slide-4
SLIDE 4

ISO-NE PUBLIC

Additional Commitments

  • Prior to the significant outage of a resource between 15:00

and 15:30, the ISO committed ~600 MW of capacity resources

  • Subsequent to the large outage, the ISO committed all

remaining resources with short enough notification and start times that they could assist in meeting the evening peak, totaling ~45 MW

4

slide-5
SLIDE 5

ISO-NE PUBLIC

Load Forecast Deviations and Weather

  • The ISO load forecast for the peak hour on 9/3 was 20,590 MW
  • Actual peak load served on 9/3 was 22,956 MW*
  • The ISO load forecast accuracy is primarily determined by the

accuracy of weather forecasts

  • On 9/3, the actual weather was hotter and more humid than

forecast

– As the weather became hotter and more humid than forecast, the load started to deviate accordingly

  • The following slides detail the temperature, dew point, and

Temperature Humidity Index (THI) deviations from the forecasts for Boston and Hartford

– THI is a measure of the degree of discomfort experienced by an individual in warm weather

5

*Reconstituted Load with Active DR was 23,174 MW for 218 DR; not Revenue Quality Metered Data

slide-6
SLIDE 6

ISO-NE PUBLIC

System Load – Forecast versus Actual

6

slide-7
SLIDE 7

ISO-NE PUBLIC

Boston Temperature – Forecast versus Actual

7

slide-8
SLIDE 8

ISO-NE PUBLIC

Boston Dew Point – Forecast versus Actual

8

slide-9
SLIDE 9

ISO-NE PUBLIC

Boston THI – Forecast versus Actual

9

slide-10
SLIDE 10

ISO-NE PUBLIC

Hartford Temperature – Forecast versus Actual

10

slide-11
SLIDE 11

ISO-NE PUBLIC

Hartford Dew Point – Forecast versus Actual

11

slide-12
SLIDE 12

ISO-NE PUBLIC

Hartford THI – Forecast versus Actual

12

slide-13
SLIDE 13

ISO-NE PUBLIC

Backcast Results

  • Backcasting actual weather in the forecast model would have

resulted in a load forecast of ~22,000 MW versus ~ 20,600 MW

13

slide-14
SLIDE 14

ISO-NE PUBLIC

Top 10 Labor Day Loads and Actual Weather

14
