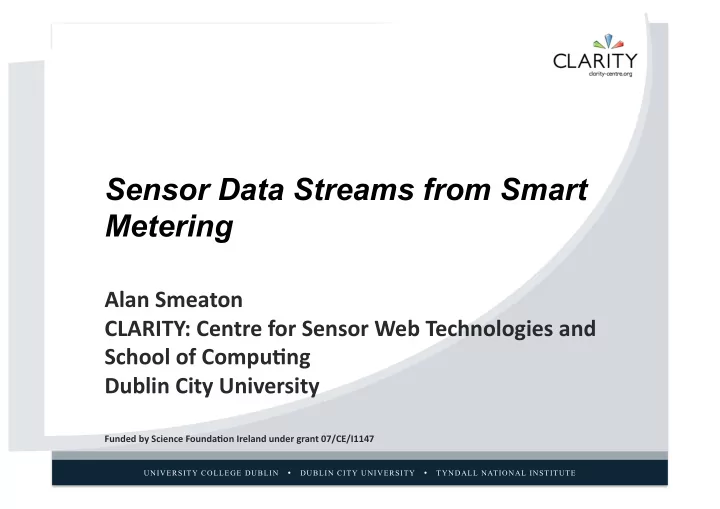

Sensor Data Streams from Smart Metering Alan Smeaton CLARITY: Centre for Sensor Web Technologies and School of Compu>ng Dublin City University Funded by Science

slide-1
SLIDE 1

UNIVERSITY COLLEGE DUBLIN  DUBLIN CITY UNIVERSITY  TYNDALL NATIONAL INSTITUTE

Sensor Data Streams from Smart Metering ¡

Alan ¡Smeaton ¡ CLARITY: ¡Centre ¡for ¡Sensor ¡Web ¡Technologies ¡and ¡ School ¡of ¡Compu>ng ¡ Dublin ¡City ¡University ¡

Funded ¡by ¡Science ¡Founda>on ¡Ireland ¡under ¡grant ¡07/CE/I1147 ¡

slide-2
SLIDE 2

UNIVERSITY COLLEGE DUBLIN  DUBLIN CITY UNIVERSITY  TYNDALL NATIONAL INSTITUTE

CLARITY ¡Overview ¡

UCD ¡/ ¡DCU ¡/ ¡TNI ¡ 130+ ¡(PhD/PD) ¡Researchers ¡ Diverse ¡Exper>se ¡ Health ¡/ ¡Environment ¡/ ¡Media ¡ ¡ Strong ¡Industry ¡Focus ¡ Award-­‑Winning ¡Research ¡& ¡Commercializa>on ¡

slide-3
SLIDE 3

UNIVERSITY COLLEGE DUBLIN  DUBLIN CITY UNIVERSITY  TYNDALL NATIONAL INSTITUTE

Core ¡Team ¡

  • Prof. Barry Smyth

CLARITY Director RS4

  • Prof. Alan Smeaton

Deputy Director RS4

  • Prof. Dermot

Diamond RS1

  • Prof. Greg O’Hare

RS2

  • Prof. Noel

O’Connor RS3 Leader

  • Dr. Brian Caulfield

RS2/Sports

  • Prof. Niall Moyna

Sports

  • Dr. Cian

O’Mathuna RS2

Personalization, Recommender Systems, User Modeling Materials science, novel sensor Technologies, wearables. Physiotherapy, Human motion, Body sensing technologies,… Sports science, human Performance, …. Sensor platforms and hardware, Power management, … Middleware, agent oriented computing, mobile computing. Signal processing, audio/video processing, data analysis. Information retrieval, multimedia Information, video retrieval,…

  • Dr. Donnacha

O’Driscoll Centre Manager

1.3

slide-4
SLIDE 4

UNIVERSITY COLLEGE DUBLIN  DUBLIN CITY UNIVERSITY  TYNDALL NATIONAL INSTITUTE

CLARITY Landscape

Basic Applied

CLARITY

IPRI NCSR BSAC

Materials/Sensors Software/Systems

CENS F’hofer IIS Nokia

Sensor Planet

IBM

Smart Cities

HP CeNSE CMU

CenSCIR

Intel/GE TRIL F’hofer CeSMa VT

E-Textiles

MSR

SenseCam

Research Focus Target Domains

RRD

N’lands

CamBridgeSens Fujitsu

HCC

VTT

Finland

CSIRO ICT WISENET

1.4

STICC France

slide-5
SLIDE 5

UNIVERSITY COLLEGE DUBLIN  DUBLIN CITY UNIVERSITY  TYNDALL NATIONAL INSTITUTE

CLARITY ¡Industry ¡Scorecard ¡ ¡ 2008-­‑2012 ¡

Everseen ¡

DerbyVale ¡

“Research ¡Project ¡with ¡greatest ¡ commercial ¡poten5al” ¡

slide-6
SLIDE 6

UNIVERSITY COLLEGE DUBLIN  DUBLIN CITY UNIVERSITY  TYNDALL NATIONAL INSTITUTE

CLARITY ¡Demonstrators ¡

Personal Health & Sports Energy & the Environment Ambient Assisted Living Sensing ¡the ¡Real-­‑ Time ¡Web ¡

slide-7
SLIDE 7

UNIVERSITY COLLEGE DUBLIN  DUBLIN CITY UNIVERSITY  TYNDALL NATIONAL INSTITUTE

Domestic Energy

  • Many smart energy metering trials
  • Ireland’s CER ran an 8,000-home customer

behaviour trial, technology trials, cost-benefit analysis

  • Motivations are the usual combination of

– Better Customer Information and Choice – Lower Energy Bills – time of use tariffs – Greater Energy Efficiency and Reduced Costs – Reduced CO2 emissions

slide-8
SLIDE 8

UNIVERSITY COLLEGE DUBLIN  DUBLIN CITY UNIVERSITY  TYNDALL NATIONAL INSTITUTE

Domestic Energy

  • Many smart energy cost-benefit analysis trials
slide-9
SLIDE 9

UNIVERSITY COLLEGE DUBLIN  DUBLIN CITY UNIVERSITY  TYNDALL NATIONAL INSTITUTE

Domestic Energy

  • CER has decided to proceed and include

– In-home Display device – Smart Bills – Time-of-Use Pricing – Pre-payment services

slide-10
SLIDE 10

UNIVERSITY COLLEGE DUBLIN  DUBLIN CITY UNIVERSITY  TYNDALL NATIONAL INSTITUTE

Smart meters = sensors

  • From the HAN, we regard smart meters as

generating sensor data, which is what CLARITY is interested in;

  • Working with Episensor, we deployed our
  • wn in-home smart metering to 2 dozen

homes, over years

  • Monitor the electrical consumption within the

home, on a per-minute basis

slide-11
SLIDE 11

UNIVERSITY COLLEGE DUBLIN  DUBLIN CITY UNIVERSITY  TYNDALL NATIONAL INSTITUTE

Smart meters = sensors

  • Components …

– Cuff, mains power, Zigbee, local DB on PC, broadband to cloud, web apps – Now plugPC and Raspberry Pi

slide-12
SLIDE 12

UNIVERSITY COLLEGE DUBLIN  DUBLIN CITY UNIVERSITY  TYNDALL NATIONAL INSTITUTE

Domestic Energy

ZEM-­‑30 ¡Energy ¡Monitor ¡

  • Reports ¡mul0ple ¡power/current/voltage ¡values ¡every ¡minute ¡
  • 15,840 ¡sensor ¡readings ¡per ¡house ¡per ¡ ¡

day ¡! ¡ ¡

  • Normal ¡5-­‑7PM ¡peak ¡in ¡electricity ¡consump0on ¡
slide-13
SLIDE 13

UNIVERSITY COLLEGE DUBLIN  DUBLIN CITY UNIVERSITY  TYNDALL NATIONAL INSTITUTE

Sensing The Home

Web-based interface

slide-14
SLIDE 14

UNIVERSITY COLLEGE DUBLIN  DUBLIN CITY UNIVERSITY  TYNDALL NATIONAL INSTITUTE

So what ?

  • Personal feedback reduces demand ?

– Olympic Peninsula Project – Darby Review Paper – ENEL 27 million smart meters – Microsoft Holm & Google power meter – Irish Commission for Energy Regulation behavioural trials – … and many others

  • We are interested in different kinds of

intervention based on fine-grained usage sensing, not IHD, but more

14

slide-15
SLIDE 15

UNIVERSITY COLLEGE DUBLIN  DUBLIN CITY UNIVERSITY  TYNDALL NATIONAL INSTITUTE

Intervention 1

  • Weekly email … Google Powermeter did this also … but

with comparisons against others

slide-16
SLIDE 16

UNIVERSITY COLLEGE DUBLIN  DUBLIN CITY UNIVERSITY  TYNDALL NATIONAL INSTITUTE

Intervention 2

  • Touchscreen display
slide-17
SLIDE 17

UNIVERSITY COLLEGE DUBLIN  DUBLIN CITY UNIVERSITY  TYNDALL NATIONAL INSTITUTE

Intervention 3

  • Web portal
slide-18
SLIDE 18

UNIVERSITY COLLEGE DUBLIN  DUBLIN CITY UNIVERSITY  TYNDALL NATIONAL INSTITUTE

Intervention 4

  • Colour-changing soft furnishings
  • Tablecloth, cushions, etc. - where

colour changes ambiently reflect the +/- energy usage vs. typical historical norm for that day/time

slide-19
SLIDE 19

UNIVERSITY COLLEGE DUBLIN  DUBLIN CITY UNIVERSITY  TYNDALL NATIONAL INSTITUTE

Interventions ?

  • Guess what ? We found the same as

everyone else … initial enthusiasm gives way to bad habits - need to continuously inform

  • Real role for persuasive technologies …

captology

19

slide-20
SLIDE 20

UNIVERSITY COLLEGE DUBLIN  DUBLIN CITY UNIVERSITY  TYNDALL NATIONAL INSTITUTE

Strange outcome

  • A strange outcome was the interest in

the heatmaps as a tool to summarise lifestyles;

  • One ambient, cheap sensor tells a lot

about living patterns;

  • Subsequently working with

ethnographers and geriatricians on monitoring the lifestyles of people;

  • All from a cheap €100 option
slide-21
SLIDE 21

UNIVERSITY COLLEGE DUBLIN  DUBLIN CITY UNIVERSITY  TYNDALL NATIONAL INSTITUTE

Strange Outcome

  • This will be even cheaper with rollout of

smart meters, where this can be done for free … direct interface to the meter

  • Could allow easy inter-user

comparisons, comparison across peers, long-term deviation detection

  • And that was very interesting, but …
slide-22
SLIDE 22

UNIVERSITY COLLEGE DUBLIN  DUBLIN CITY UNIVERSITY  TYNDALL NATIONAL INSTITUTE

Sensing The Home

  • This is total energy usage in a home,

covering all appliances.

  • But, we have gone a step further …
slide-23
SLIDE 23

UNIVERSITY COLLEGE DUBLIN  DUBLIN CITY UNIVERSITY  TYNDALL NATIONAL INSTITUTE

Home ¡Deployment ¡

Kettle Mirowave + toaster Electric oven + shower

1 2 3 4 5 6 1 61 121 181 241 301 361 421 481 541 601 661 721 781 841

Power (KW) Time (m)

Shower + vacuum Kettle Electric Oven Electric Boiler

slide-24
SLIDE 24

UNIVERSITY COLLEGE DUBLIN  DUBLIN CITY UNIVERSITY  TYNDALL NATIONAL INSTITUTE

Sensing the Home

  • Analysis of the electrical power usage of a

home provides appliance signatures.

  • This enables identification of different types
  • f household appliance usage.
  • We gathered groundtruth and used machine

learning (SVM) to build classifiers for devices

  • Assessed accuracy at 95% precision/recall
  • Use this in smart bills, and behaviour

analysis

slide-25
SLIDE 25

UNIVERSITY COLLEGE DUBLIN  DUBLIN CITY UNIVERSITY  TYNDALL NATIONAL INSTITUTE

E.g. Electric Kettle

  • 1 year
  • June
  • nly
  • This tells what is happening in my home
  • Better when combined with other appliances

and sensors, a cheap ambient sensor

slide-26
SLIDE 26

UNIVERSITY COLLEGE DUBLIN  DUBLIN CITY UNIVERSITY  TYNDALL NATIONAL INSTITUTE

E.g. Electric Shower

Morning Showers

slide-27
SLIDE 27

UNIVERSITY COLLEGE DUBLIN  DUBLIN CITY UNIVERSITY  TYNDALL NATIONAL INSTITUTE

Appliance Detection

  • Other ways to capture appliance usage …

contact sensors, circuit-based or appliance- specific sensing

– We show its not actually necessary

  • We don’t focus on dynamic machine

learning, we post-process

– who would need to know ?

slide-28
SLIDE 28

UNIVERSITY COLLEGE DUBLIN  DUBLIN CITY UNIVERSITY  TYNDALL NATIONAL INSTITUTE

Conclusion

  • Monitoring home energy usage has great

potential

– IHD and billing as the sole user intervention doesn’t maximise potential impact – Autonomous appliance management is better – Can be much more than just energy saving

  • Can enable other uses when smart metering

architecture permits user access to own data

  • It shows the richness of good data and is an

ICT challenge !
