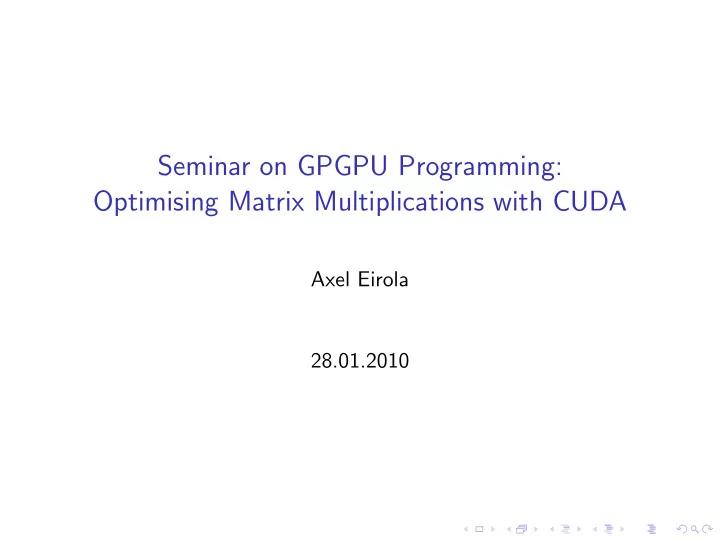

Seminar on GPGPU Programming: Optimising Matrix Multiplications with CUDA Axel Eirola 28.01.2010 Table of Contents Introduction Multiplication with CPU Naive implementation IT++ Multiplication with CUDA Naive implementation Using Shared
SLIDE 2
SLIDE 3
Introduction
◮ Matrix multiplication for square unfiformally random matrices ◮ C = AB where A, B, C ∈ R(n,n) ◮ Syntetical benchmarking, since we do not know anything
about the matrices
◮ In real life problems we usually have information about the
matrix, it can be symmetric or orthogonal, or have some other pattern which can be exlpoited in the computations
SLIDE 4
About the benchmarks
◮ Executed on miranda ◮ CPU code in C++, GPU code in CUDA ◮ Measurements average of 5 runs after one warm-up run ◮ Calculations performed in single precission floating point ◮ Only actual calculation timed, no allocation or copying
between host and device
◮ Matrices of sizes 100 × 100 (40Kb) to 4000 × 4000 (64MB)
were used,
SLIDE 5
Naive CPU implementation
◮ Simple ”by definition” implementation ◮ Loops through the elements of the output matrix C, and
calculates each element seperately
◮ No multithreading, no smart fetching of elements from A and
B
SLIDE 6
Benchmarks
100 1000
Matrix Width
0.1 1 10 100 1000 10000
Time (ms)
CPU Naive
Figure: Naive CPU implementation
SLIDE 7
BLAS libary IT++
◮ A general purpose linear algebra and signal processing library
for C++
◮ Utilizes underlying BLAS implementataions ◮ Seems to do multithreading and smarter memory management ◮ Does not seem to use Strasses (or any other guys) matrix
multiplication algorithm
SLIDE 8
Benchmarks
100 1000
Matrix Width
0.1 1 10 100 1000 10000
Time (ms)
CPU Naive IT++
Figure: IT++ library
SLIDE 9
Naive GPU implementation
◮ Trivial reimplementation of the CPU naive code to CUDA ◮ Replaces the loops with threading, that is that each thread is
created for each element in the output matrix C
◮ All data is retreived from the global memory of the GPU
SLIDE 10
Benchmarks
100 1000
Matrix Width
0.1 1 10 100 1000 10000
Time (ms)
CPU Naive IT++ GPU Naive
Figure: Naive GPU implementation
SLIDE 11
Speed it up with Shared Memory
◮ The naive GPU implementation only used global memory for
accessing matrices A and B
◮ Since each element is accessed multiple times, it would be
faster to store the elements somwhere close, such as the SM (stream multiprocessor) shared memory
◮ Give each thread block a responsibilty to calculate one block
- f the output matrix C
◮ Store data needed to calculate the block in the shared memory
SLIDE 12
Benchmarks
A B C
B.width A.width col A.height B.height B.width-1 row A.height-1
Figure: Naive matrix multiplication
SLIDE 13
Benchmarks
A
!
B C Csub
BLOCK_SIZE B.width A.width BLOCK_SIZE BLOCK_SIZE BLOCK_SIZE BLOCK_SIZE BLOCK_SIZE
blockRow row
BLOCK_SIZE-1 BLOCK_SIZE-1
col blockCol
A.height B.height
Figure: Matrix multiplication with shared memory
SLIDE 14
Benchmarks
100 1000
Matrix Width
0.1 1 10 100 1000 10000
Time (ms)
CPU Naive IT++ GPU Naive + Shared Memory
Figure: GPU using shared memory
SLIDE 15
What can we do with block size
◮ The block size represents the amount of threads executed by
- ne SM (stream multiprocessor)
◮ The amount of threads stays constant ◮ But the amount of data kept in the shared memory of the SM
is increased, decreasing the amount of costly accesses to the global memory
◮ Block size is limited to 22, since the maximum amount of
thread blocks in one grid is 512 (222 = 484 and 232 = 529)
SLIDE 16
Benchmarks
100 1000
Matrix Width
0.1 1 10 100 1000 10000
Time (ms)
CPU Naive IT++ GPU Naive + Shared Memory + large blocksize
Figure: GPU with larger blocksize
SLIDE 17
CUBLAS library
◮ A C library provided by nVidia implementing the BLAS (Basic
Linear Algebra Subprograms) specification
◮ Could not find what it actually does, but seems to do
something.
SLIDE 18
Benchmarks
100 1000
Matrix Width
0.1 1 10 100 1000 10000
Time (ms)
CPU Naive IT++ GPU Naive + Shared Memory + large blocksize CUBLAS
Figure: CUBLAS library implementation
SLIDE 19
Benchmarks
100 1000
Matrix Width
0.1 1 10 100 1000 10000
Time (ms)
CPU Naive IT++ GPU Naive + Shared Memory + large blocksize CUBLAS
Figure: This is interesting
SLIDE 20
Benchmarks (Zoomed)
1008 1024 1040 1056 1072 1088 1104 1120 1136 1152 1168 1184 1200
Matrix Width
2 4 6 8 10 12 14 16 18 20
Time (ms)
CUBLAS
Figure: Zoom on spikes
SLIDE 21
◮ CUBLAS twice as fast when the width of the matrix is
divisible by 16
◮ Noticed by O. Schenk et al in Algorithmic performance studies
- n graphics processing units. Stating that When the matrix is
not divisible by 16, there are conflicts in shared memory regarding multiple threads accessing the same bank at the same time. This forces one thread to be put in a queue while the other thread is accessing the mem- ory, increasing the amount of time for all memory accesses to be completed.
◮ The question is: Why aren’t the smaller matrices padded to
become divisible by 16?
SLIDE 22
Profit ratio
◮ Tesla C1060 costs about $1200, and calculates a 2000 × 2000
matrix in 50 ms
◮ Core i7 920 costs about $300, and calculates a 2000 × 2000
matrix in 2000 ms
◮ CUBLAS is about 40 times faster than IT++, while a Tesla
costs only about 4 times more than a Core i7
◮ So the profit ratio becomes tenfold.
300$ ∗ 2000ms 1200$ ∗ 50ms = 10
