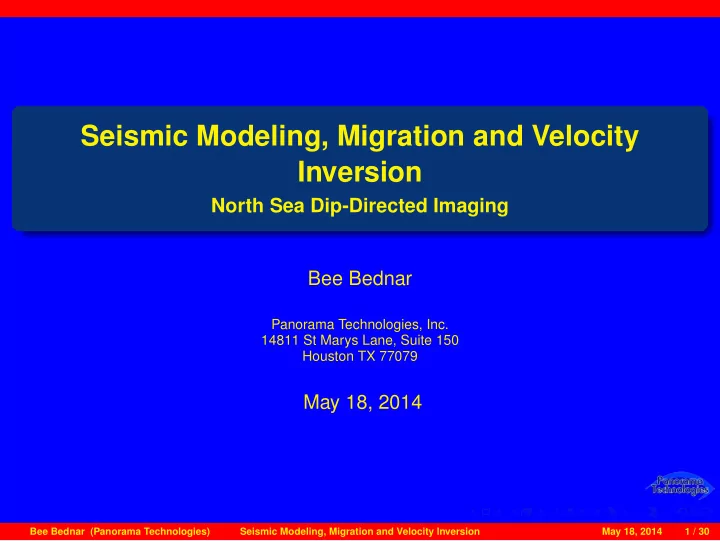

Seismic Modeling, Migration and Velocity Inversion North Sea Dip-Directed Imaging Bee Bednar Panorama Technologies, Inc. 14811 St Marys Lane, Suite 150 Houston TX 77079 May 18, 2014 Bee Bednar (Panorama Technologies) Seismic Modeling,


slide-1
SLIDE 1

Seismic Modeling, Migration and Velocity Inversion

North Sea Dip-Directed Imaging Bee Bednar

Panorama Technologies, Inc. 14811 St Marys Lane, Suite 150 Houston TX 77079

May 18, 2014

Bee Bednar (Panorama Technologies) Seismic Modeling, Migration and Velocity Inversion May 18, 2014 1 / 30

slide-2
SLIDE 2

Outline

1

A Real Data Example Objective, Data, and Model Initial Migration Dip Analysis Dip-Directed Imaging Hess VTI DDI Real Data DDI Velocity Update Summary

Bee Bednar (Panorama Technologies) Seismic Modeling, Migration and Velocity Inversion May 18, 2014 2 / 30

slide-3
SLIDE 3

A Real Data Example

Outline

1

A Real Data Example Objective, Data, and Model Initial Migration Dip Analysis Dip-Directed Imaging Hess VTI DDI Real Data DDI Velocity Update Summary

Bee Bednar (Panorama Technologies) Seismic Modeling, Migration and Velocity Inversion May 18, 2014 3 / 30

slide-4
SLIDE 4

A Real Data Example Objective, Data, and Model

Objective

Produce an interpretable image below a strong reflector at ≈ 2.4 KM

Use existing velocity volume to perform a single pass beam migration

Input data relatively small Large number of lines Small number of cross lines Target cross line in center

Hypothesis is that image should reveal strongly dipping section

Bee Bednar (Panorama Technologies) Seismic Modeling, Migration and Velocity Inversion May 18, 2014 4 / 30

slide-5
SLIDE 5

A Real Data Example Objective, Data, and Model

The Data

North Sea Reasonable quality No Source/Receiver locations

Every trace is a shot Every trace is a receiver MVA/Tomography only

Roughly 3km cables Approximately 80 fold Data fully regularized

Bee Bednar (Panorama Technologies) Seismic Modeling, Migration and Velocity Inversion May 18, 2014 5 / 30

slide-6
SLIDE 6

A Real Data Example Objective, Data, and Model

Initial Velocity Model

Simple and smooth Three zones

Essentially water (blue) Slight Speed up (Green) Very Fast (Orange/Red)

No apparent issue

Bee Bednar (Panorama Technologies) Seismic Modeling, Migration and Velocity Inversion May 18, 2014 6 / 30

slide-7
SLIDE 7

A Real Data Example Initial Migration

Expectations

Expectations

Interpretable structure

Below 2.4 km

Strong dipping events

Based on pinchouts Tectonically driven? Compressional thrusting?

Where’s the dips Where’s the coherency

Bee Bednar (Panorama Technologies) Seismic Modeling, Migration and Velocity Inversion May 18, 2014 7 / 30

slide-8
SLIDE 8

A Real Data Example Dip Analysis

Automatic Dip Analysis

(a) Sacked Volume (b) Dip Volume

Assessing the potential for the existence of steep dips began with a review of an automatic dip analysis (in (b)) of the stacked volume shown in part (a) above. While the image in part (b) does appear to contain coherent dip energy at an apparent azimuth of 45 degrees, coherence is relatively weak.

Bee Bednar (Panorama Technologies) Seismic Modeling, Migration and Velocity Inversion May 18, 2014 8 / 30

slide-9
SLIDE 9

A Real Data Example Dip Analysis

Common Image Gathers (CIG)

High gain CIG’s, particularly below the 2.5 km level, suggest that the velocity field is

  • reasonable. Events below this level appear to be relatively flat. There is at least one

event at approximately 3km that is not flat, but there is little reason to question the velocity field. So, where are the hypothesized dips?

Bee Bednar (Panorama Technologies) Seismic Modeling, Migration and Velocity Inversion May 18, 2014 9 / 30

slide-10
SLIDE 10

A Real Data Example Dip Analysis

Questions

Why aren’t dips apparent in the image?

Image is accurate There are no dipping events. Blanked by multiples Weak reflectivity

Focus on dip imaging

Dip Directed Imaging (DDI)

Perform multiple migrations with different dip ranges

Bee Bednar (Panorama Technologies) Seismic Modeling, Migration and Velocity Inversion May 18, 2014 10 / 30

slide-11
SLIDE 11

A Real Data Example Dip-Directed Imaging

How Many Dips

Not Many

Side by side

≈ ±6 ms/tr Multiples

Lower dip range Extractable

High Dip Noise

Smoothing

Bee Bednar (Panorama Technologies) Seismic Modeling, Migration and Velocity Inversion May 18, 2014 11 / 30

slide-12
SLIDE 12

A Real Data Example Dip-Directed Imaging

Full Beam Image

Single dip image of synthetic data from the HESS VTI model. Dip selected from ±6 ms/tr range.

Bee Bednar (Panorama Technologies) Seismic Modeling, Migration and Velocity Inversion May 18, 2014 12 / 30

slide-13
SLIDE 13

A Real Data Example Hess VTI DDI

Blanked Beam Image

A 0 to 6 ms/tr blanked image of the HESS VTI data set. A right hand view.

Bee Bednar (Panorama Technologies) Seismic Modeling, Migration and Velocity Inversion May 18, 2014 13 / 30

slide-14
SLIDE 14

A Real Data Example Hess VTI DDI

Blanked Beam Image

A -6 to 0 ms/tr blanked image of the HESS VTI data set. A left hand view.

Bee Bednar (Panorama Technologies) Seismic Modeling, Migration and Velocity Inversion May 18, 2014 14 / 30

slide-15
SLIDE 15

A Real Data Example Hess VTI DDI

Blanked Beam Image

A -3 to 3 ms/tr blanked image of the HESS VTI data set. Dips outside ±3 only.

Bee Bednar (Panorama Technologies) Seismic Modeling, Migration and Velocity Inversion May 18, 2014 15 / 30

slide-16
SLIDE 16

A Real Data Example Real Data DDI

  • 1 to 1 ms/tr Dip Exclusion

(a) ±1 ms/tr Exclusion (b) ±1 ms/tr Inclusion

Two images of the real data. In (a) we see the result of using dips outside the range ±1 ms/tr. The (b) panel shows an image using only dips within the ±1 ms/tr range. Clearly there are some dipping events in the original data. Why weren’t they immediately visible in the initial migration?.

Bee Bednar (Panorama Technologies) Seismic Modeling, Migration and Velocity Inversion May 18, 2014 16 / 30

slide-17
SLIDE 17

A Real Data Example Real Data DDI

CDP Comparisons

(a) Full Beam High Gain CIG (b) ± 1 ms/tr Exclusion CIG

Direct comparison of highly-gained-full-beam CDP gathers with dip directed gathers suggest that the velocity model may be the culprit.

Bee Bednar (Panorama Technologies) Seismic Modeling, Migration and Velocity Inversion May 18, 2014 17 / 30

slide-18
SLIDE 18

A Real Data Example Real Data DDI

Line Direction

Interestingly, dip coherency in the line direction supports the validity of the imaged dips fairly strongly. The key point is the significantly smaller difference between the original and the DDI images. Reasons may be:

Smaller Aperture

Lower dips

Smaller xLine Spacing

Less Aliasing

(a) ±1 Exclusion (b) Initial Migration

Bee Bednar (Panorama Technologies) Seismic Modeling, Migration and Velocity Inversion May 18, 2014 18 / 30

slide-19
SLIDE 19

A Real Data Example Real Data DDI

Depth Slice Comparisons

(a) ±1 ms/tr Inclusion (b) ±1 ms/tr Exclusion

When carefully compared, depth slices from the ±1 images reveal dramatic

  • differences. The exclusion slice in (b) shows considerable coherence at an apparent

angle of approximately 45 degrees. The inclusion slice in (a) shows a weak correlation with the slice in (b) and thus provides some support to the validity of the dips in the ±1 Exclusion image.

Bee Bednar (Panorama Technologies) Seismic Modeling, Migration and Velocity Inversion May 18, 2014 19 / 30

slide-20
SLIDE 20

A Real Data Example Real Data DDI

A Quick Summary

Steep Dips

Somewhat realistic Supports dipping event hypothesis

Image difficult to interpret

Poor correlations

Interpretation difficulties

Data not recorded properly

Short (3 km) offsets Loss of source/receiver information

Data volume too small

Large number of lines Small number of cross lines

Poor velocity

Bee Bednar (Panorama Technologies) Seismic Modeling, Migration and Velocity Inversion May 18, 2014 20 / 30

slide-21
SLIDE 21

A Real Data Example Velocity Update

Multiples

Original time CDP’s

Evidence for multiples Residual moveout Strong semblance

(a) CDP NMO (b) CDP Semb

Bee Bednar (Panorama Technologies) Seismic Modeling, Migration and Velocity Inversion May 18, 2014 21 / 30

slide-22
SLIDE 22

A Real Data Example Velocity Update

Multiples

Original time CDP’s

Evidence for multiples Residual moveout Strong semblance

(a) CDP NMO (b) CDP Semb

Bee Bednar (Panorama Technologies) Seismic Modeling, Migration and Velocity Inversion May 18, 2014 22 / 30

slide-23
SLIDE 23

A Real Data Example Velocity Update

Horizon Based Merge

(a) Horizon Based Blend (b) ±1 Inclusion

A blend of the two image after a full blanking above and below a picked horizon.

Bee Bednar (Panorama Technologies) Seismic Modeling, Migration and Velocity Inversion May 18, 2014 23 / 30

slide-24
SLIDE 24

A Real Data Example Velocity Update

Horizon Based Merge

Initial Migration Merge

Weak multiple semblance Demonstration of faster velocity

(a) CIG NMO (b) CIG Semb

Bee Bednar (Panorama Technologies) Seismic Modeling, Migration and Velocity Inversion May 18, 2014 24 / 30

slide-25
SLIDE 25

A Real Data Example Velocity Update

Updated Velocity

Three Updates

MVA

Tomography

Very small benefit

Bee Bednar (Panorama Technologies) Seismic Modeling, Migration and Velocity Inversion May 18, 2014 25 / 30

slide-26
SLIDE 26

A Real Data Example Velocity Update

Initial Velocity

Three Updates

MVA

Tomography

Very small benefit

Bee Bednar (Panorama Technologies) Seismic Modeling, Migration and Velocity Inversion May 18, 2014 26 / 30

slide-27
SLIDE 27

A Real Data Example Velocity Update

Third Update CIG

Bee Bednar (Panorama Technologies) Seismic Modeling, Migration and Velocity Inversion May 18, 2014 27 / 30

slide-28
SLIDE 28

A Real Data Example Velocity Update

Third Update Images

Bee Bednar (Panorama Technologies) Seismic Modeling, Migration and Velocity Inversion May 18, 2014 28 / 30

slide-29
SLIDE 29

A Real Data Example Velocity Update

Third Update Images

Bee Bednar (Panorama Technologies) Seismic Modeling, Migration and Velocity Inversion May 18, 2014 28 / 30

slide-30
SLIDE 30

A Real Data Example Summary

Summary

Easier to interpret Greater coherency Dip Directed Imaging

Provided the clue Not necessary for final image

Fast Beam migration essential

Bee Bednar (Panorama Technologies) Seismic Modeling, Migration and Velocity Inversion May 18, 2014 29 / 30

slide-31
SLIDE 31

A Real Data Example Summary

Questions?

Bee Bednar (Panorama Technologies) Seismic Modeling, Migration and Velocity Inversion May 18, 2014 30 / 30
