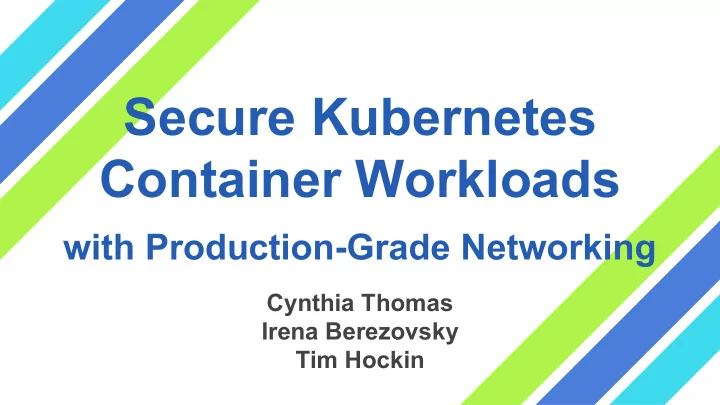

Secure Kubernetes Container Workloads

with Production-Grade Networking

Cynthia Thomas Irena Berezovsky Tim Hockin

CIA IT operations have top secret apps for their agents, most of which require isolation

• Antoni is in Ops and wants to help CIA

embrace DevOps

• Berta is a Dev eager to design

efficiently and deliver excellent apps

Antoni Berta

1. New project defined: Developer needs an environment 2. Dev asks SysAdmin for some resources 3. SysAdmin installs Server OS and asks Network people for a VLAN (ewww!) 4. Network people ask Security team to

• pen a port in a firewall rule

∞. Someone plugs into wrong port or wrong requirements: start over!

The world before Neutron: can I plug in your cable?

The CIA IT takes weeks, even months to deliver isolated resources for the various projects at CIA. Servers and VLANs and firewalls, oh my!

Antoni & Berta were doing it the hard way

• OpenStack core project since

Folsom

• Tenant and Admin solution

agnostic API

• Pluggable Framework
• Provides extensible API to build rich

topologies (vendor extensions)

• Advanced Services Support, i.e.

LBaaS, VPNaaS, FWaaS

Neutron for higher layer network services

Operator (networking, security, etc) versus App Developer

• OpenStack has reduced

the time to deliver compute resources

• Security policies allows the

CIA to keep business units separate

• Each department admin

can manage its own resources

OpenStack Networking on the fly at CIA

Guest OS App Libs Guest OS App Libs OS Hardware Hypervisor Guest OS App Libs

Can we do better?

• Spawning a VM is slow expensive
• There is a lot of management overhead
• VMs are not portable: run on a specific

Hypervisor If only there was a way to virtualize an OS to enable multiple workloads to run on a single OS...

container container container

Along came Docker

Containers are an alternative to VMs

• Bundle your app & deps, but not the OS

Faster and lower overhead than VMs

• O(milliseconds) to spawn

Developer-focused

• Enables fast iteration, less non-app concerns

Ridiculously simple UX It’s the technology of the decade!

OS Hardware Libs App Libs App Libs App

CIA developers demand containers

Launch in milliseconds! Dev-Prod parity, on my laptop! MUST HAVE! But it is very chaotic -- they need need help managing it all...

Kubernetes changed everything

The Kubernetes API is app-centric

• De-emphasizes infrastructure and operations

concerns

• Those can exist, but are not the primary focus
• Integrate with existing infrastructure and ops,

but don’t replace it

Networking is infrastructure, security is ops We still need to address the concerns of ops!

Kubernetes network model

Assumes a single, shared network space

• No noun for Network (yet?)

Network plugins decide what technology

• veth, VXLAN, OVS, etc.

All connectivity is enabled by default Implicitly single tenant

• Also reflected in services like DNS

Compare to Docker model:

• Noun for Network
• App-centric networks

“No, no, no! I can’t have my apps be reachable by Carlos’s team!”

Tension between dev and ops

Namespaces: Kubernetes

Scopes for named objects within a cluster

• Pods, Services, etc. are all namespaced

Logical grouping of related things

• Could be 1 user
• ...or 1 app
• ...or 1 tier of an app

No relationship to nodes or networks

• All Namespaces exist on all nodes
• Network is not segmented

Seems like an obvious hook for networking

Kubernetes NetworkPolicy

API to lock down the network

• Describe the graph of your app
• Specify which connectivity to allow

Applies per Namespace

• Exists alongside the apps it decribes
• Default-deny plus explicit allow rules

Network infrastructure can enforce it

• Many vendors have implementations

Does not cover egress (yet?)

Kubernetes NetworkPolicy

apiVersion: extensions/v1beta1 kind: NetworkPolicy metadata: name: front-to-mid namespace: cia-spy-app spec: podSelector: matchLabels: role: middleware ingress:

• ports:
• protocol: TCP

port: 6379 from:

• podSelector:

matchLabels: role: frontend apiVersion: extensions/v1beta1 kind: NetworkPolicy metadata: name: mid-to-db namespace: cia-spy-app spec: podSelector: matchLabels: role: db ingress:

• ports:
• protocol: TCP

port: 3306 from:

• podSelector:

matchLabels: role: middleware

Kubernetes NetworkPolicy

apiVersion: extensions/v1beta1 kind: NetworkPolicy metadata: name: front-to-mid namespace: cia-spy-app spec: podSelector: matchLabels: role: middleware ingress:

• ports:
• protocol: TCP

port: 6379 from:

• podSelector:

matchLabels: role: frontend apiVersion: extensions/v1beta1 kind: NetworkPolicy metadata: name: mid-to-db namespace: cia-spy-app spec: podSelector: matchLabels: role: db ingress:

• ports:
• protocol: TCP

port: 3306 from:

• podSelector:

matchLabels: role: middleware

Kubernetes NetworkPolicy

apiVersion: extensions/v1beta1 kind: NetworkPolicy metadata: name: front-to-mid namespace: cia-spy-app spec: podSelector: matchLabels: role: middleware ingress:

• ports:
• protocol: TCP

port: 6379 from:

• podSelector:

matchLabels: role: frontend apiVersion: extensions/v1beta1 kind: NetworkPolicy metadata: name: mid-to-db namespace: cia-spy-app spec: podSelector: matchLabels: role: db ingress:

• ports:
• protocol: TCP

port: 3306 from:

• podSelector:

matchLabels: role: middleware

Kubernetes NetworkPolicy

apiVersion: extensions/v1beta1 kind: NetworkPolicy metadata: name: front-to-mid namespace: cia-spy-app spec: podSelector: matchLabels: role: middleware ingress:

• ports:
• protocol: TCP

port: 6379 from:

• podSelector:

matchLabels: role: frontend apiVersion: extensions/v1beta1 kind: NetworkPolicy metadata: name: mid-to-db namespace: cia-spy-app spec: podSelector: matchLabels: role: db ingress:

• ports:
• protocol: TCP

port: 3306 from:

• podSelector:

matchLabels: role: middleware

Where Neutron is ahead of k8s

Neutron Kubernetes

Multi Tenant environment Single Tenant Rich network topologies with overlapping IPs Flat, shared network with IP per pod Security Groups, Port Security (ARP Spoofing) Network Policy (ingress only) Port Quality of Service

• Admin and Tenant facing API

Primarily application-centric API

Containers Challenges

• A lot of new products/companies have

emerged in the container orchestration and integration ecosystem

• With multi-host, multi orchestration

environment, networking becomes critical

• Run containers in VMs for better isolation

and security

• Multi-tenancy, host or cluster per tenant
• VMs and Containers share the same

network

What is Kuryr?

• Neutron as a production-ready

networking abstraction that containers need

• Kuryr translates container
• rchestration events into Neutron

entities, performs API calls and manages the response to the

• rchestrator

Kuryr as a translator between k8s and Neutron

• Map container networking abstractions

to the Neutron API

• Allow Container, BM and VM

networking under the same API

• Implements all the common code for

Neutron vendors, allowing them to provide advanced container networking by just having a binding script

Kubernetes Neutron Namespace Network, Subnet Pod Port Service Load Balancer External IP Floating IP Network Policy Security Groups

Example: CIA Security

Antoni can satisfy CIA security requirements with Kubernetes & Kuryr:

• Kubernetes made it easy for the app devs to express

the application in terms of required deployment

• With NetworkPolicy devs can specify the intended

application connectivity

• With Kuryr mapping of Kubernetes requests to

Neutron constructs, and NetworkPolicy realization by Neutron security groups, true isolation and security is achieved via the Kubernetes API

Kubernetes + Kuryr + MidoNet: Scalable Neutron

Neutron plugin scaling with ease, and flexible API for fine-grain security policies

• Event-based design (receives events from

k8s-api)

• Compatible with Kubernetes >=1.2
• API watcher + CNI driver
• Asynchronous event-loop based on asyncio

python 3.4 library

• No kube-proxy

How is MidoNet a Scalable Neutron Solution?

Example: CIA MidoNet deployment

Antoni uses MidoNet for his OpenStack Neutron plugin for production-grade networking

• He knows he can scale compute

for the CIA with confidence with an HA solution

• MidoNet Manager provides

Antoni with every single network flow and each security policy applied

Example: CIA MidoNet deployment with kuryr-k8s

• Antoni is trying the kuryr-k8s tech preview

solution with MidoNet: https://docs.midonet.org/

• Today, he can launch a script to automatically

deploy the k8s-master and k8s-worker to try MidoNet with k8s

• Antoni wants native API calls for pods and VMs

while using the same operator tools

MidoNet-enhanced Security

Neutron Security Groups

• white-list of allowed traffic
• port-level firewall

MidoNet implements SG+:

• low-level constructs called chains

and rules

• richer feature set for

matching/filtering and actions

Future of networking in Kubernetes

Multi-tenancy is probably unavoidable

• Ripples are deep and wide

Possible evolution:

• Network objects in API
• More fine-grained policy
• Egress policy
• L7 policy
• QoS/shaping
• Multi-tenant DNS (and other services)

Kuryr-Kubernetes status

• Current

○ Early stage ○ CNI Driver and k8s API watcher in progress

• Future work

○ K8s Network Policy support ○ High Availability ○ Kuryr-openshift ○ Bridging OpenStack VMs and kuryr-k8s
