Scientific Approaches for Microbial Safety of Foods Dr. Sandhya Shrivastava, Associate Prof. of Microbiology, Bhavans College, Coordinator, Bhavans Researh Canter, Mumbai sandhya_s10@brcmicrobiology.in Unsafe food and water Annual

slide-1
SLIDE 1

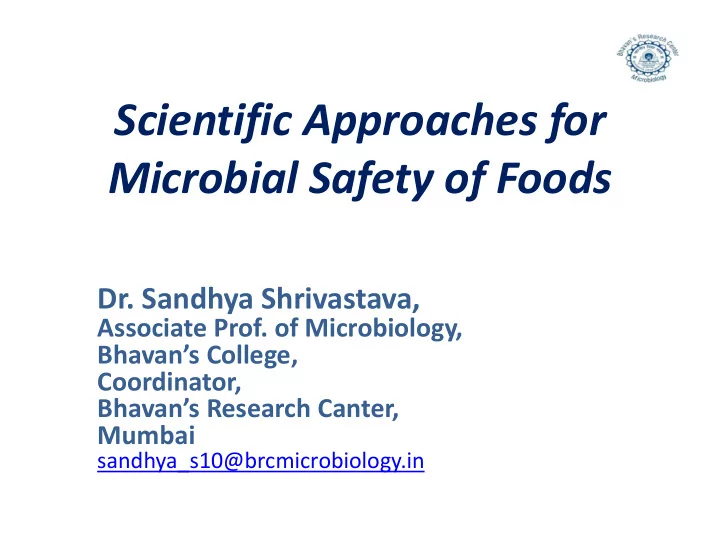

Scientific Approaches for Microbial Safety of Foods

  • Dr. Sandhya Shrivastava,

Associate Prof. of Microbiology, Bhavan’s College, Coordinator, Bhavan’s Researh Canter, Mumbai

sandhya_s10@brcmicrobiology.in

slide-2
SLIDE 2

Unsafe food and water…

Annual Death Estimates

  • Global: 2 million people
  • South-East Asia Region: 700 000 children

Indian Scenario: Estimates not clear

  • Compounding factors in India
  • 1. High Population Density
  • 2. High density of tropical live-stock
  • 3. Favorable environment for disease transmission
  • 4. Recent data- 8 outbreaks associated with emerging and

reemerging diseases of which 6 are of zoonotic origin Attributes: Contaminated by bacteria, viruses, parasites or chemical substances

Source: WHO, World Health Day 2015 12/01/2015 Scientific Approaches...Food Safety 2

slide-3
SLIDE 3

Foodborne outbreaks 1996 - 2006

▼ ▼ ▼ ▼ ▼ ▼ Cryptosporidiosis, Leptospirosis, Lyme borreliosis

  • Brucellosis, E. coli 0157, Salmonellosis

 BSE

  • ●
  • ●
  • ●

       

Reference: WHO

12/01/2015 Scientific Approaches...Food Safety 3

slide-4
SLIDE 4

Why is Microbial Safety a big Challenge???

12/01/2015 Scientific Approaches...Food Safety 4

  • Microbes are more ubiquitous and non-

uniform in distribution

  • It has the ability to multiply, mutate, adapt

and release toxins as it gets the opportunity

  • Huge fear of unknown
slide-5
SLIDE 5

Lab. Confirmed Cases Reported Positive Isolates Suspectible Cases Unnotified Cases Hospitalised No sample taken No medical intervention

Foodborne Infections & Intoxications Known/ Unknown

12/01/2015 Scientific Approaches...Food Safety 5

slide-6
SLIDE 6

Can Things Change???

  • Yes –Data from the US
  • Comparison of Five year averages for Common food

borne Reported Outbreaks IMPACT in the US? Earlier 1:4 FB illness Now 1:6 cases

  • Source: Haas, Rose & Gerba: QMRA, 2nd Edition

12/01/2015 Scientific Approaches...Food Safety 6

Agent Annual Average 1988-1992 Annual Average 2002-2006 Cases Outbreak Cases Outbreak Bacteria 5688 134 5765 240 Virus 480 9 11, 854 339 Protozoa 37 1.4 02 1 Unknown 40, 483 1, 422 4, 052 30

slide-7
SLIDE 7

“ietifi Approah…

  • Surveillance System
  • Processing Goals
  • Indian Foods & Indian Specifications
  • For Meeting the Objectives
  • 1. Global Standards
  • 2. Global Technology

12/01/2015 Scientific Approaches...Food Safety 7

slide-8
SLIDE 8

Surveillance Programs

The CDC way:

Different Platforms

  • FoodNet : Associated with active surveillance
  • NORS (National Outbreak Reporting system)- A Web-based

program wherein national, state and local public health departments are primarily responsible for identifying and investigating outbreaks

  • FOOD (Food Outbreak Online Database) –Surveillance

team analyses the outbreak data and makes it available using this online tool

  • PulseNet: Identifies cause and epidemiological spread of

the microbe using molecular fingerprinting

12/01/2015 Scientific Approaches...Food Safety 8

slide-9
SLIDE 9

Our Tools for Effetive Surveillane…

  • Capacity building
  • Quantitative Microbial Risk Assessment

(QMRA)

  • Advance Methods: Field, Rapid, Molecular, E-

platforms

  • Regulations and monitoring

12/01/2015 Scientific Approaches...Food Safety 9

slide-10
SLIDE 10

Capacity building

12/01/2015 Scientific Approaches...Food Safety 10

  • Establishment of Food Safety & Standards Authority
  • f India (FSSAI )- a key milestone for the country
  • Identify, create centers for excellence at colleges and

universities using globally accepted quality management

  • systems. Special training and methods for:
  • Sample processing of indigenous foods
  • Microbiological Risk Assessment
  • Accuracy, Precision, Sensitivity, & Reproducibility
  • Learning from Healthcare/ diagnostics industry?
slide-11
SLIDE 11

Quantitative Microbial Risk Assessment

  • QMRA based Tools closes the loop right from Hazard

Identification to

  • Risk Communication,
  • Through risk assessment, and exposure assessment

using dose-response models and risk management

Advantages: Integrated- involves all stakeholders, thus holistic Quantitative- thus reliable/comparable data Cost effective- compilation of existing data

12/01/2015 Scientific Approaches...Food Safety 11

slide-12
SLIDE 12

New/Advance Technologies

  • Field: Coliform, E.coli in my water???
  • Rapid: Spoilage???
  • Molecular: Classical/Molecular???
  • E-Platforms: Responsible Communication!!!

Lab Networks , Databases, Predictive and deisio akig tools, outry’s Digital Capabilities & Prowess

12/01/2015 Scientific Approaches...Food Safety 12

slide-13
SLIDE 13

Field-Rapid & E-Platform

12/01/2015 Scientific Approaches...Food Safety 13

slide-14
SLIDE 14

12/01/2015 Scientific Approaches...Food Safety 14

slide-15
SLIDE 15

Advantages/ disadvantages of the use of Metagenomics/New generation sequencing platforms to study food-associated microbial ecology.

Danilo Ercolini Appl. Environ. Microbiol. 2013;79:3148-3155

12/01/2015 Scientific Approaches...Food Safety 15

slide-16
SLIDE 16

Regulations and monitoring

  • Developing data based national specification
  • Establishing methods
  • Code of practices for all stakeholders,

including general public

  • Fixing Accountability

12/01/2015 Scientific Approaches...Food Safety 16

slide-17
SLIDE 17

Expected Outcome???

12/01/2015 Scientific Approaches...Food Safety 17

slide-18
SLIDE 18

Expected Outcome???

12/01/2015 Scientific Approaches...Food Safety 18

slide-19
SLIDE 19

Approaches for Food Industries

  • TQM √
  • QM“ √
  • GMP √
  • HACCP √

What Else???

  • Processing Goals!!!

12/01/2015 Scientific Approaches...Food Safety 19

slide-20
SLIDE 20

Setting Processing Goals by Industry

  • Preservation strategies: Physical, chemical, Biological, packaging, Safety by

Design

  • Classical case: Pasteurization Wine...Dairy industry

Food Spoilage Food Safety

  • Processing Goals:
  • Understanding of microbial behaviour to the food matrix to enhance shelf

life

  • Acquire Knowledge of the microbial and food environment interplay though

experimentations using principles of Predictive Microbiology.

  • Including the right choice of test cultures, will not only assist in defining

the shelf-life of foods, but also helps in assessing pathogen behaviour, ensuring consumer safety.

  • Predictive microbiology also referred as The Quatitatie Miroial

Eology is ased o the preise that the resposes of iroial populations to environmental factors are reproducible; and this response under different environmental conditions can be summarized as equations

  • r mathematical models and applied to foods with similar environmental

conditions.

12/01/2015 Scientific Approaches...Food Safety 20

slide-21
SLIDE 21

30 25 20 15 10 5 9 8 7 6 5 4 3 2 Storage Period BC-TVC

8 8 8 12 8 16 4 4 4 8 4 12 4 16 6 4 6 8 6 12 6 16 8 4 IMCL St. Temp

Scatterplot of BC-TVC vs Storage Period

30 25 20 15 10 5 16 14 12 10 8 6 4 2 Storage Period PS-TVC

7 8 7 12 7 16 3 4 3 8 3 12 3 16 5 4 5 8 5 12 5 16 7 4 IMCL St. Temp

Scatterplot of PS-TVC vs Storage Period

30 25 20 15 10 5 15.0 12.5 10.0 7.5 5.0 Storage Period LM-TVC

8 8 8 12 8 16 4 4 4 8 4 12 4 16 6 4 6 8 6 12 6 16 8 4 IMCL
  • St. Temp

Scatterplot of LM-TVC vs Storage Period

30 25 20 15 10 5 14 12 10 8 6 4 2 Storage Period EC-TVC

4 8 4 12 4 16 2 4 2 8 2 12 2 16 3 4 3 8 3 12 3 16 4 4 IMCL St. Temp

Scatterplot of EC-TVC vs Storage Period

SCATTER PLOTS- SURVIVAL OF PATHOGENS IN PANEER

slide-22
SLIDE 22 1 2 15 3 4 5 10 5 20 30 FITS1 Storage Temperature Storage Period

Surface Plot of FITS1 vs Storage Period, Storage Temperature BT-4

2 30 5.0 7.5 10.0 10 12.5 5 10 15 FITS1 Storage Period Storage temperature

Surface Plot of FITS1 vs Storage Period, Storage temperature PT-3

2 30 5.0 7.5 10 10.0 5 12.5 10 15 FITS1 Storage Period Storage Temperature

Surface Plot of FITS1 vs Storage Period, Storage Temperature LT4

2 30 3 6 10 9 5 12 10 15 FITS1 Storage Period Storage Temperature

Surface Plot of FITS1 vs Storage Period, Storage Temperature ET-2

3- DIMENSIONAL SURFACE PLOTS- SURVIVAL

KEY: FITS1: Viable Counts expressed as Log10 CFU/ g of paneer

  • L. monocytogenes

Pseudomonas sp.

  • E. coli O157
  • B. cereus
slide-23
SLIDE 23

Indian Food Industry & Indian Foods

12/01/2015 Scientific Approaches...Food Safety 23

slide-24
SLIDE 24

12/01/2015 Scientific Approaches...Food Safety 24

Indian Foods

slide-25
SLIDE 25

Safety-Yes!!! Who’s Resposiility??

12/01/2015 Scientific Approaches...Food Safety 25

  • Multisectoral & Shared
  • Everyone is Responsible
  • Need to create an ecosystem
  • Food borne illness investigations: same rigor as crime

tracing

  • Expertise: Food Scientists, Microbiologists, Biochemist,

Nutritionists, Chemists, Mathematicians, Statisticians, Engineers, Legal, Economists, Social scientists

  • Govt: Establish Food safety network of national and

international scientists.

  • Govt: Enforcement for domestic market with same rigor

as export foods

slide-26
SLIDE 26

12/01/2015 Scientific Approaches...Food Safety 26

Collaboration & Working together is the key

slide-27
SLIDE 27

12/01/2015 Scientific Approaches...Food Safety 27

Coig together is a egiig Keeping together is progress Working together is success

Henry Ford

sandhya_s10@brcmicrobiology.in

HAPPY EATING

slide-28
SLIDE 28

Aout Bhavan’s Researh Center

  • Unique Experimentation in the Andheri, Campus of Bharatiya Vidya Bhavan
  • Partership etee Miroiology Departet of Bhaa’s College ad

SPJIMR, the management school to set up a lab for Academia-Industry partnership with internal funding, on a self-sustaining basis

  • The lab now, set in an area of 9000 sqft , is ISO 17025 (NABL) accredited and

works actively with industries in the areas Food, Water and Hygiene

  • R&D projects and analysis are handled by a dedicated pool of trained staff or

students, under constant supervision of faculty

  • Focus Area:

1. Antimicrobial studies for hygiene based products 2. Predictive Microbiology 3. QMRA 4. Pathogen detection and evaluation, including biosensor-based technology 5. Building capability in non-bacterial pathogens detection and evaluation in foods and water 6. Collaborating with national and international scientists in areas of Water & food safety, surrogate designing for protozoa, bacteriophage application for reducing pathogens in water contaminated with sewage

12/01/2015 Scientific Approaches...Food Safety 28
