Schematic energy balance of ideal surface R N = H S + H L + H G Atm - - PowerPoint PPT Presentation

▶
schematic energy balance of ideal surface
SMART_READER_LITE
LIVE PREVIEW

Schematic energy balance of ideal surface R N = H S + H L + H G Atm - - PowerPoint PPT Presentation

Sep 29, 2023 9 likes •120 views

Schematic energy balance of ideal surface R N = H S + H L + H G Atm S 547 Lecture 10, Slide 1 Energy balance: Dry desert lakebed Atm S 547 Lecture 10, Slide 2 Surface energy balance: barley field Atm S 547 Lecture 10, Slide 3 Energy budget:

slide-1
SLIDE 1

Atm S 547 Lecture 10, Slide 1

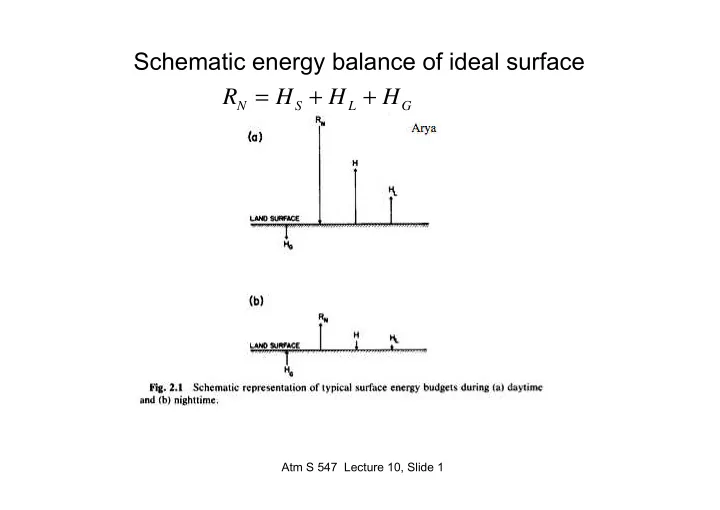

Schematic energy balance of ideal surface RN = HS + H L + HG

slide-2
SLIDE 2

Atm S 547 Lecture 10, Slide 2

Energy balance: Dry desert lakebed

slide-3
SLIDE 3

Atm S 547 Lecture 10, Slide 3

Surface energy balance: barley field

slide-4
SLIDE 4

Atm S 547 Lecture 10, Slide 4

Energy budget: Fir canopy

slide-5
SLIDE 5

Atm S 547 Lecture 10, Slide 5

slide-6
SLIDE 6

Atm S 547 Lecture 10, Slide 6

Diurnal cycle of surface radiative flux components

slide-7
SLIDE 7

Atm S 547 Lecture 10, Slide 7

Diurnal cycle of subsurface temperature

Arya

slide-8
SLIDE 8

Atm S 547 Lecture 10, Slide 8

Annual cycle of subsurface temperature

Arya

slide-9
SLIDE 9

Atm S 547 Lecture 10, Slide 9

Surface material properties

slide-10
SLIDE 10

Atm S 547 Lecture 10, Slide 10

Idealized temperature wave vs. depth

slide-11
SLIDE 11

Atm S 547 Lecture 10, Slide 11

Annual observed temperature wave vs. depth
