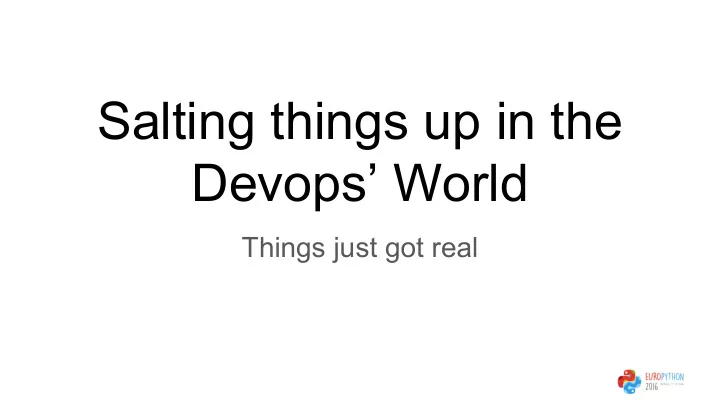

Salting things up in the Devops’ World

Things just got real

whoami

• Juan Manuel Santos
• Team Leader / Principal Technical Support Engineer @ Red Hat
• Organizer of sysarmy / nerdear.la
• Using Salt for a couple of years now, no regrets.
• Or all regrets.

Disclaimer

• I am just a user.
• I do not develop Salt, although I do annoy the team on IRC.
• Only had 72 hours to prepare this.

Why Salt?

• Configuration Management System
• Like Puppet / Chef / Ansible (only better ;)
• Python / YAML / Jinja
• Relatively easy to understand.
• Extremely powerful.
• Allows “root-less” operation (via SSH).

Previously...

• https://ep2016.europython.eu/conference/talks/salting-things-up-in-the-sysadmins-world
• Master / minion
• States / highstates
• Matching
• Grains / Pillar
• Unfortunately, still no Python 3 support:

○ https://github.com/saltstack/salt/issues/11995

Salt Mine

• Collect arbitrary data on the minions. Ship it to the master.
• Only the most recent data is maintained.
• Data is made available for all minions.
• Grains?
• Mine data is more updated. Grains are mainly static (can be updated

manually though).

• If minions need data from other (slower) minions, the mine caches it. It is at

least mine-interval fresh.

Salt Mine

• Mine can be populated by either:

○ Pillar ○ Minion’s configuration file

• In the case of salt-ssh:

○ Roster data ○ Pillar ○ Master configuration

Salt Mine - example

# /srv/pillar/top.sls: base: 'G@roles:web':

• web

# /srv/pillar/web.sls: mine_functions: network.ip_addrs: [eth0] # /etc/salt/minion.d/mine.conf: mine_interval: 5

Salt Mine - example

# /srv/salt/haproxy.sls: haproxy_config: file.managed:

• name: /etc/haproxy/config
• source: salt://haproxy_config
• template: jinja

# /srv/salt/haproxy_config: <...file contents snipped...> {% for server, addrs in salt['mine.get']('roles:web', 'network.ip_addrs', expr_form='grain') | dictsort() %} server {{ server }} {{ addrs[0] }}:80 check {% endfor %} <...file contents snipped...>

Topologies

• Most common topology:

○ Master → Minion(sssss)

• Alternative topologies?
• Moar masters?
• Segregation?

Topologies

Syndic Node

• Intermediate node type, special passthrough one.
• Controls a given set of lower level minions.
• Two daemons running: salt-syndic & salt-master (optionally but

recommended, a salt-minion too).

• salt-syndic receives ‘orders’ from the master of masters.
• salt-syndic relays those orders to the local master.
• salt-master gets the ‘orders’ and relays them to the lower minions.
• The Syndic node is now a master of minions.

Syndic Node

Salt Master (master of masters) Salt Syndic/Master (master of minions) Salt Minion Salt Syndic/Master (master of minions) Salt Syndic/Master (master of minions) Salt Minion Salt Minion Salt Minion Salt Minion Salt Minion Salt Minion

Syndic Node - configuration

• On the Syndic node:

# /etc/salt/master syndic_master: 10.10.0.1 # may be either an IP address or a hostname # /etc/salt/minion # id is shared by the salt-syndic daemon and a possible salt-minion daemon # on the Syndic node id: my_syndic

• On the master node:

# /etc/salt/master

• rder_masters: True

Syndic Node - running it

• On the Syndic node:

○ salt-syndic

• On the master node:

○ salt-key -A my_syndic

Syndic Node

• Different syndics per environment (production, development, QA, etc).
• Different syndics to comply with InfoSec standards.
• We can even do multimaster:

○ https://docs.saltstack.com/en/latest/topics/tutorials/multimaster.html

The Event System

• Track events.
• That’s it? No.
• Events can be acted upon.
• The Event System is at the base of many other subsystems.
• The event bus is a ZeroMQ PUB interface.
• Every event has a tag.
• Every event has a data structure.

The Event System

• Viewing events:

# salt-run state.event pretty=True

• Sending events to the master:

# salt-call event.send 'myevent/mytag/success' '{success: True, message: "It works!"}'

• Events can also be sent from Python code.

The Event System

• If watching the event bus, this shows up:

salt/job/20160717180356279472/ret/gantrithor { "_stamp": "2016-07-17T21:03:56.280813", [...] "fun": "event.send", "fun_args": [ "myevent/mytag/success", "{success: True, message: \"It works!\"}" ], "id": "minion_id", [...] }

State (Execution) modules vs Runner modules

• Execution modules run on the targeted minions.
• Runner modules run on the master.
• They can be either asynchronous or synchronous.
• Added via runner_dirs configuration variable in /etc/salt/master.
• Runner modules can be written in pure Python code.
• Convenience: any print statements will generate events.

State (Execution) modules vs Runner modules

def a_runner(outputter=None, display_progress=False): print('Hello world') … Event fired at Tue Jan 13 15:26:45 2015 ************************* Tag: salt/run/20150113152644070246/print Data: {'_stamp': '2015-01-13T15:26:45.078707', 'data': 'hello', 'outputter': 'pprint'}

State (Execution) modules vs Runner modules

• You don’t have to forcefully write runner modules.
• Full list: https://docs.saltstack.com/en/latest/ref/runners/all/index.html

Beacons

• Like in the picture, Salt Beacons serve as a signal.
• Beacons use the Salt Event System to monitor things outside Salt.
• Send notifications (an event) when something changes.
• Are configured via the minion’s configuration file.
• inotify anyone?
• In fact...

Beacons - examples

• inotify

# cat /etc/salt/minion.d/beacons.conf beacons: inotify: /etc/resolv.conf: auto_add: True interval: 30 [...]

Beacons - examples

• Process

# cat /etc/salt/minion.d/beacons.conf beacons: [...] service: process_name:

• nchangeonly: True

interval: 120

Beacons - examples

• Memory usage
• Disk usage
• System load
• Network settings
• [...]
• Your own

https://docs.saltstack.com/en/latest/ref/beacons/all/index.html#all-salt-beacons

Salt Reactor

Salt Reactor

• Its job is to “react” (not JS :)
• Trigger actions in response to an event
• So it needs the event system
• Actions → states!
• In reality:

○ *Something happened* → Event → Reactor → Action (state)

• Reactors are defined in the master’s configuration file.

Salt Reactor - associating events to states

• In the master’s configuration file:

reactor: # Master config section "reactor"

• 'salt/minion/*/start': # Match tag "salt/minion/*/start"
• /srv/reactor/start.sls # Things to do when a minion starts
• /srv/reactor/monitor.sls # Other things to do
• 'salt/cloud/*/destroyed': # Globs can be used to match tags
• /srv/reactor/destroy/*.sls # Globs can be used to match file names
• 'myevent/custom/event/tag': # React to custom event tags
• salt://reactor/mycustom.sls # Reactor files can come from the salt fileserver

Salt Reactor - Caveats

• State system in the Reactor is limited.
• When compared to the normal state system, things will be missing.
• Grains and pillar are unavailable inside the reactor subsystem.
• Plus, reactor sls are processed sequentially and handled over to a pool of

worker threads.

• TL;DR: do not handle logic in reactor states

○ Use them for matching (‘Which minions? Which states?’). ○ Call normal Salt states instead and handle the logic there. ○ This is due to a ‘disconnect’ between the reactor & master engines (different namespaces).

Salt Reactor - associating events to states

• 'myevent/custom/event/tag': # React to custom event tags
• salt://reactor/mycustom.sls # Reactor files can come from the salt fileserver

# /srv/salt/reactor/mycustom.sls {% if data['id'] == 'mysql1' %} state_run: local.state.sls:

• tgt: mysql1
• arg:
• a_long_running_and_complex_state

{% endif %}

Salt Reactor - full example

• Need to have minions’ keys automatically accepted.

# /etc/salt/master.d/reactor.conf: reactor:

• 'salt/auth':
• /srv/reactor/auth-pending.sls
• 'salt/minion/nice*/start':
• /srv/reactor/auth-complete.sls

Salt Reactor - full example

# /srv/reactor/auth-pending.sls: {# Nice server failed to authenticate -- remove accepted key #} {% if not data['result'] and data['id'].startswith('nice') %} minion_remove: wheel.key.delete:

• match: {{ data['id'] }}

minion_rejoin: local.cmd.run:

• tgt: salt-master.domain.tld
• arg:
• ssh -o UserKnownHostsFile=/dev/null -o StrictHostKeyChecking=no "{{ data['id'] }}" 'sleep

10 && /etc/init.d/salt-minion restart' {% endif %} [...]

Salt Reactor - full example

[...] {# Nice server is sending new key -- accept this key #} {% if 'act' in data and data['act'] == 'pend' and data['id'].startswith(nice') %} minion_add: wheel.key.accept:

• match: {{ data['id'] }}

{% endif %} # /srv/reactor/auth-complete.sls: {# When a Nice server connects, run state.apply. #} highstate_run: local.state.apply:

• tgt: {{ data['id'] }}

Salt API

• REST API allowing to send commands to a running Salt master server.
• Supports encryption.
• Supports authentication.
• Authentication provided via Salt’s External Authentication System.
• Controlled by the salt-api daemon.

Salt API - example

# curl -i saltmaster:8000/minions/minion-id GET /minions/minion-id HTTP/1.1 Host: localhost:8000 Accept: application/x-yaml HTTP/1.1 200 OK Content-Length: 129005 Content-Type: application/x-yaml return:

• minion-id:

Grains.items: ...

Salt API

• /
• /login
• /logout
• /minions
• /jobs
• /run
• /events
• /hook
• /keys
• /ws
• /stats

Salt API - /hook

• Generic webhook entry point.
• Fires events on Salt’s event bus.
• Data is passed as-is to an event.
• Authentication can be explicitly disabled here (think legacy apps).
• This does not mean you can make do without security!

Putting them all together

Recapping

• Events
• Beacons
• Reactor
• API

Recapping

Salt Event System Salt States (SLS) Beacons Salt API Salt Reactor

Recapping

• With great responsibility comes great power.
• If configured properly, Salt can allow for full control of an infrastructure.
• Don’t fear the power; beware of the security risks though.

Possibilities

• Self healing your applications / systems.
• The endless CI cycle of push → build → test → deploy
• Scaling:

○ Both ways (growing and shrinking the environment) ○ Provisioning required.

• Keep environments consistent: react immediately upon changes.

Docs

• https://docs.saltstack.com/en/latest/
• #salt @ irc.freenode.net

Q&A

• Twitter: @godlike64
• Freenode: godlike

Thank you!
